Square D™ 3106340947

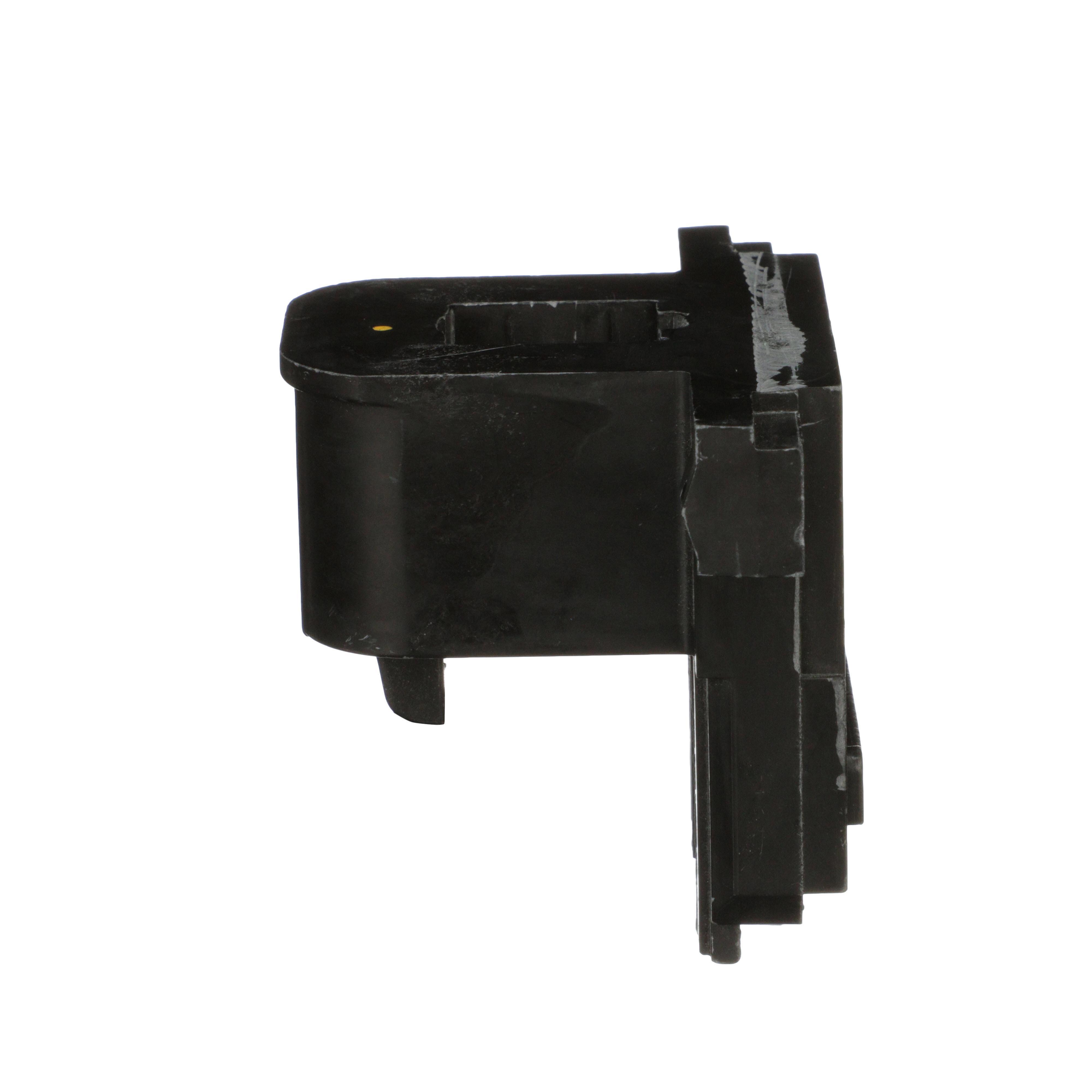

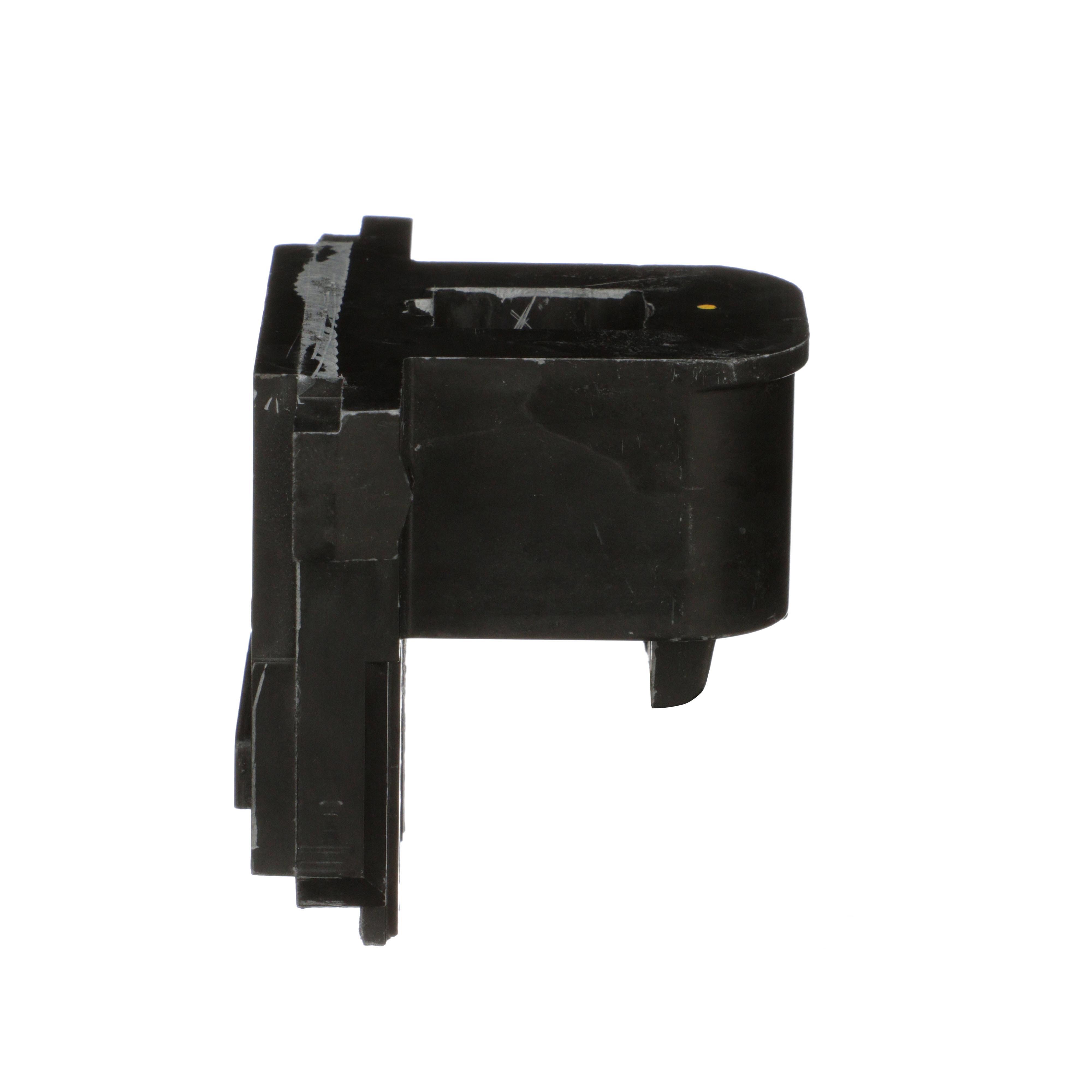

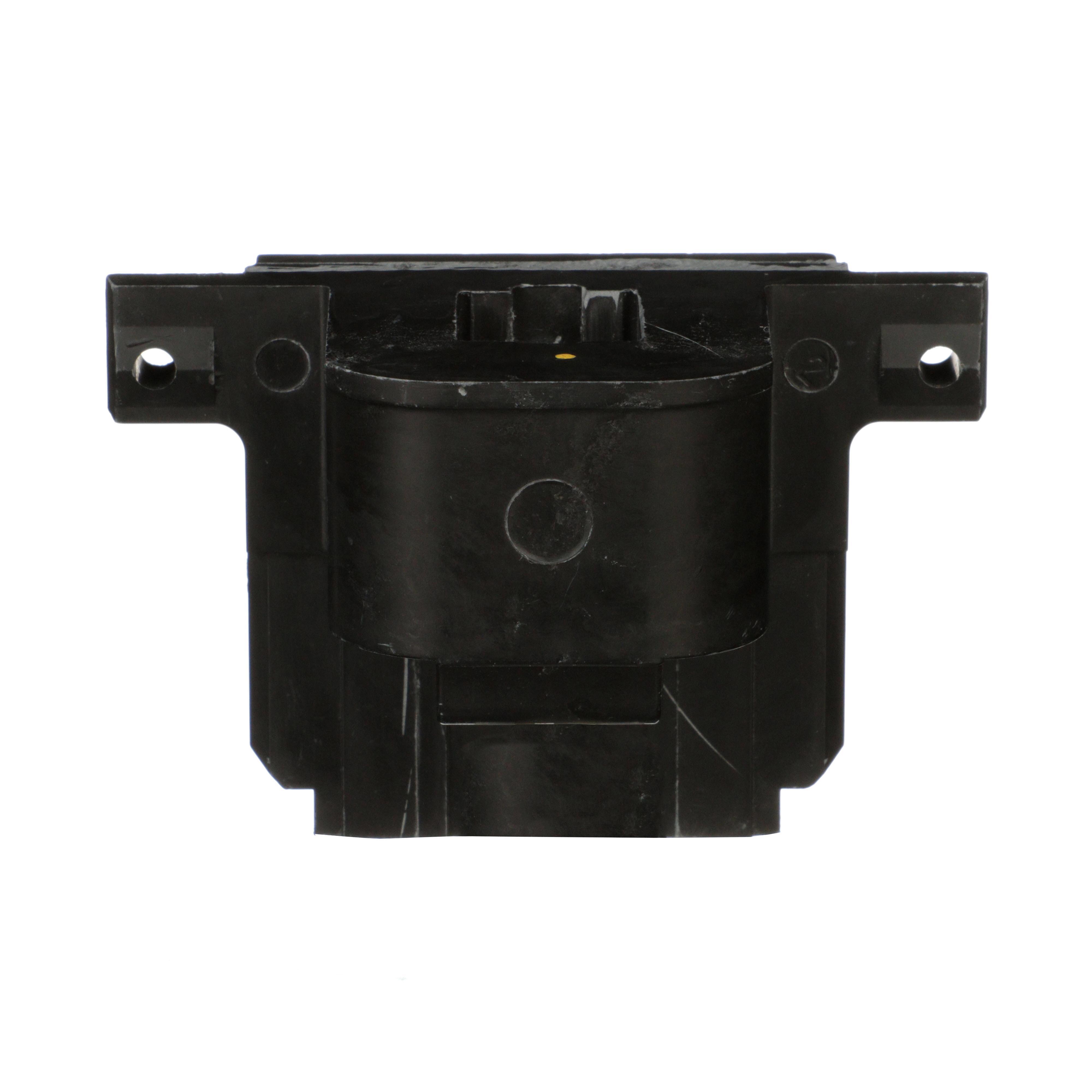

Square D™ 3106340947 Coil, NEMA 2, 220/240 VAC, 50/60 Hz, For Use With Class 8903 Type SP, Class 8502 Type SD 2/3-Poles Contactor/Starter
Brand: Square D™
Item ID: 37070
MPN: 3106340947
UPC: 785901504979
Login for Price
Features
- Screw clamp terminal connections
- Direct mount
- 40 deg c ambient operating temperature
- 60 a current rating
Description
Type S replacement coil, 220/240 V 50/60 Hz, 2 or 3 P NEMA Size 2 contactors and starters, 8903SP lighting contactors
Square D™ Coil, NEMA 2, 220/240 VAC, 50/60 Hz, For Use with: Class 8903 Type SP, Class 8502 Type SD 2/3-Poles Contactor/Starter
Specifications
Frequency Rating |
50/60 Hz |
Size |
NEMA 2 |
Suitable For Use With |
Class 8903 Type SP, Class 8502 Type SD 2/3-Poles Contactor/Starter |
Voltage Rating |
220/240 VAC |
Standard Approval |
UL Listed|CSA Certified|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
Contactors and Starters Applications |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_3106340947_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_3106340947_Specification_Sheet.pdf
