Square D™ 3107440044

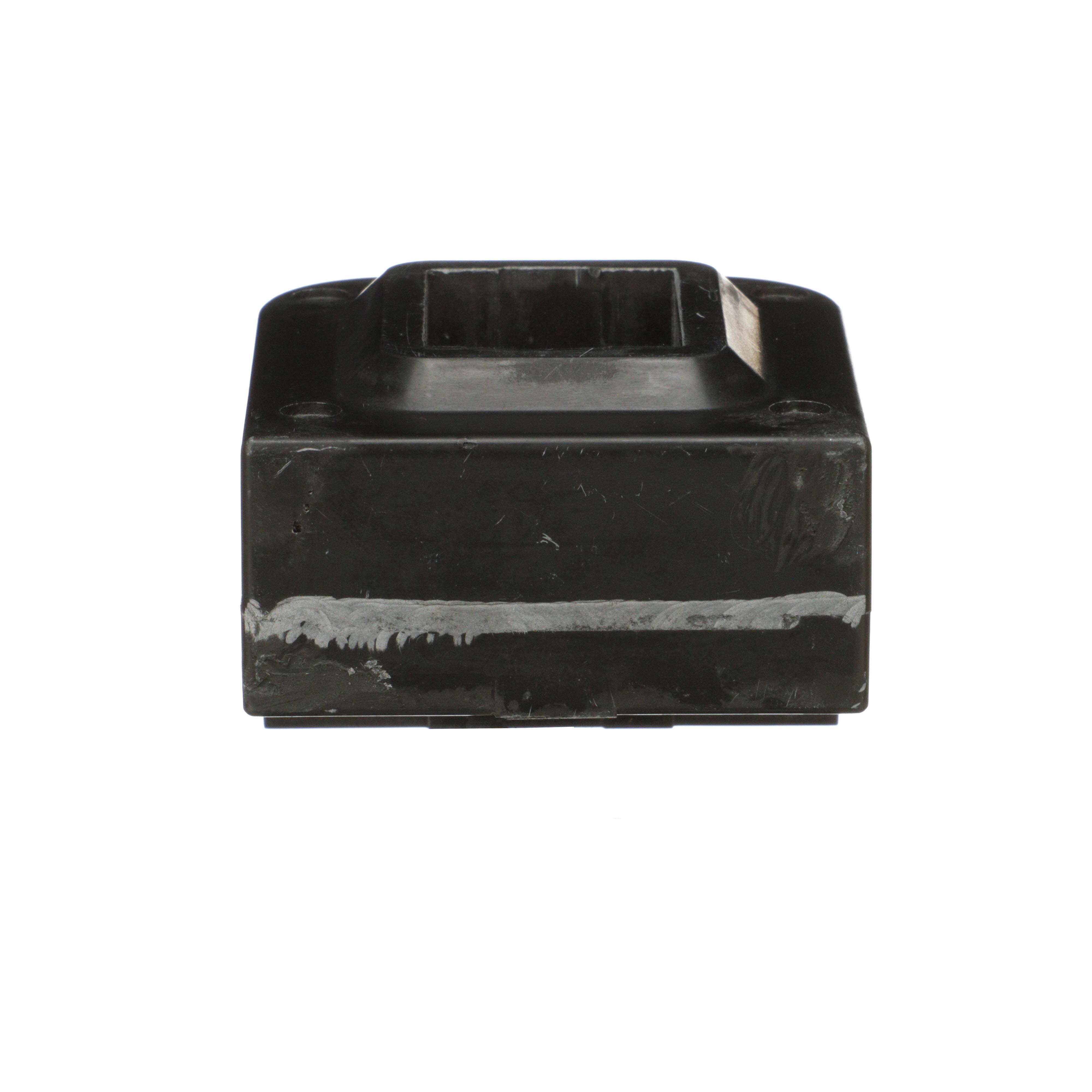

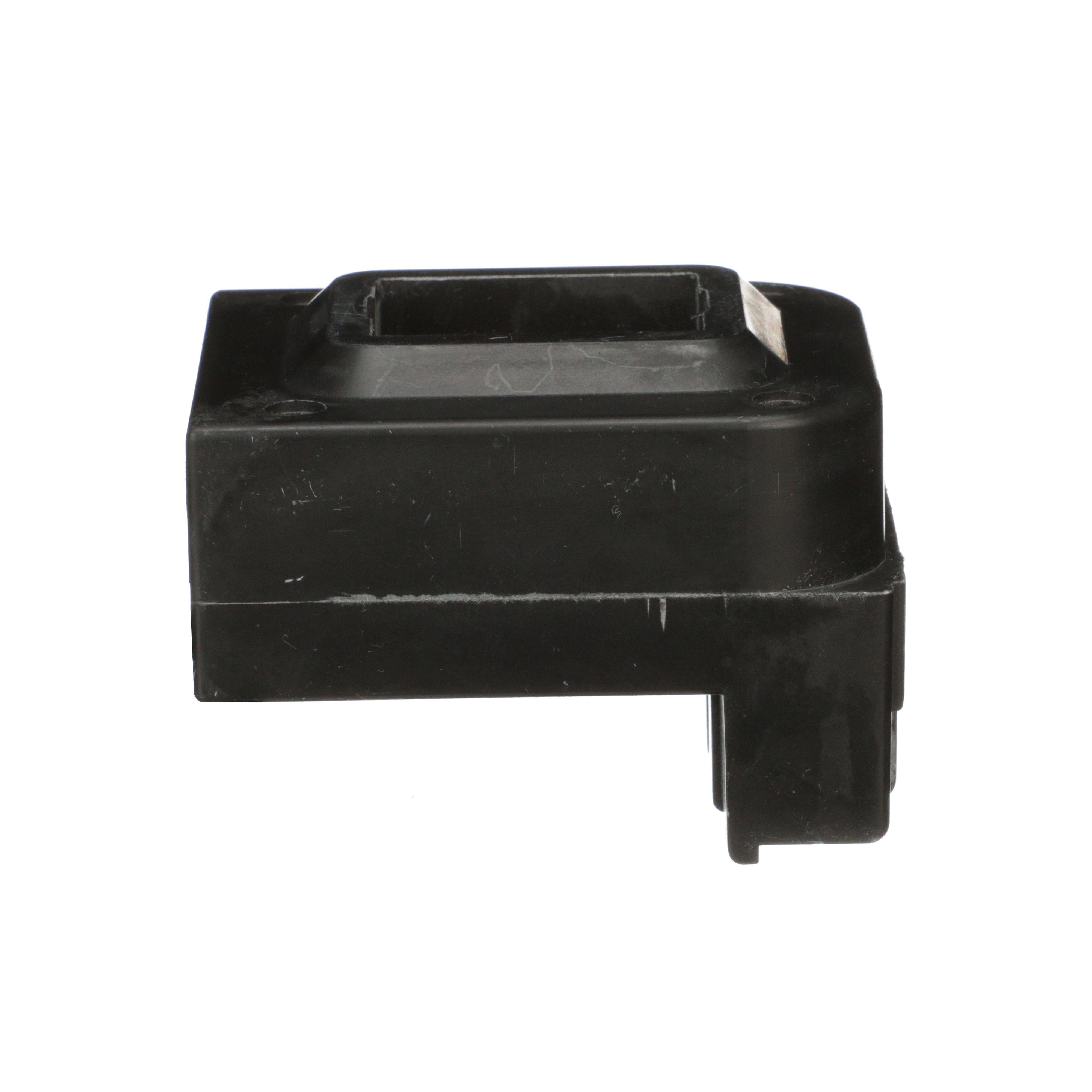

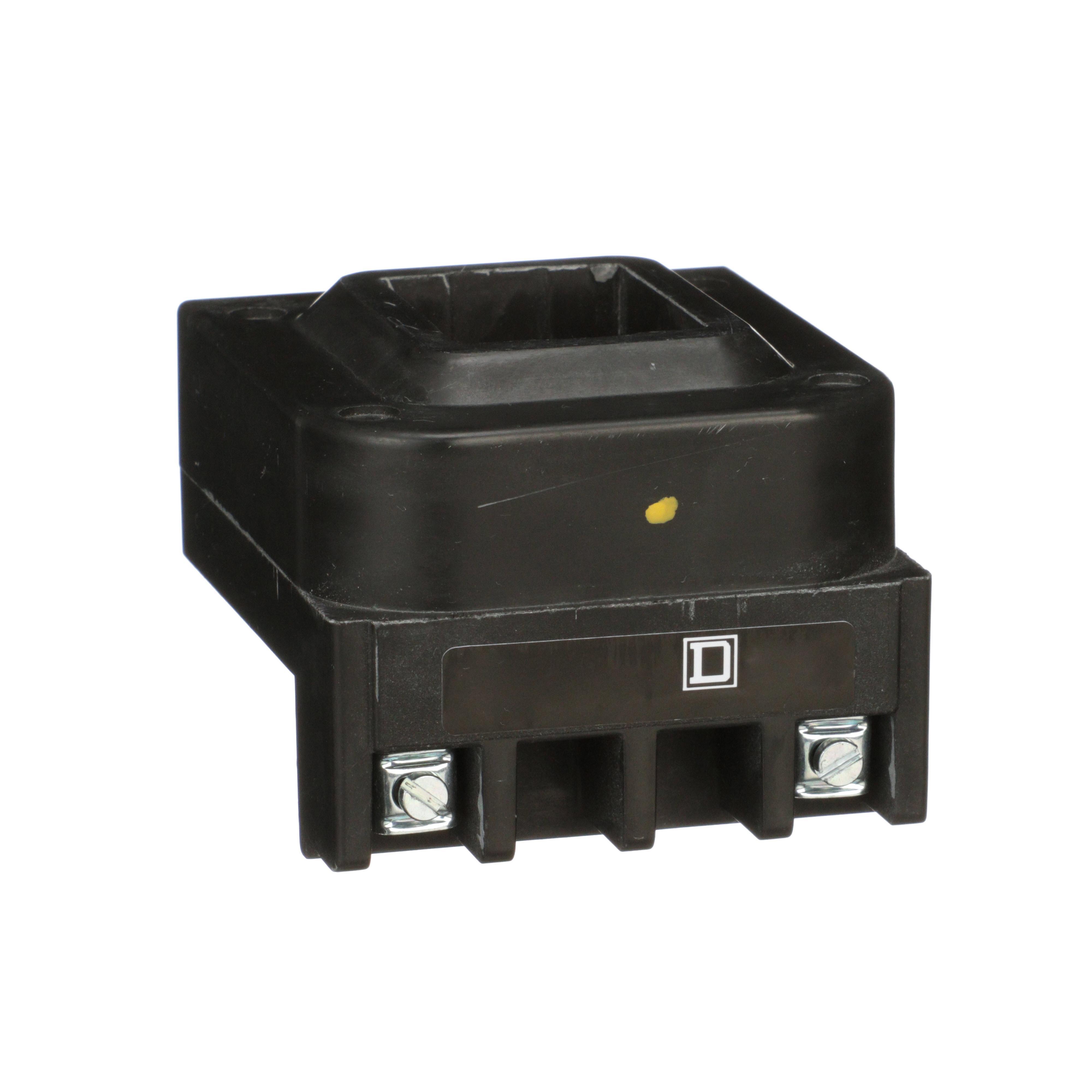

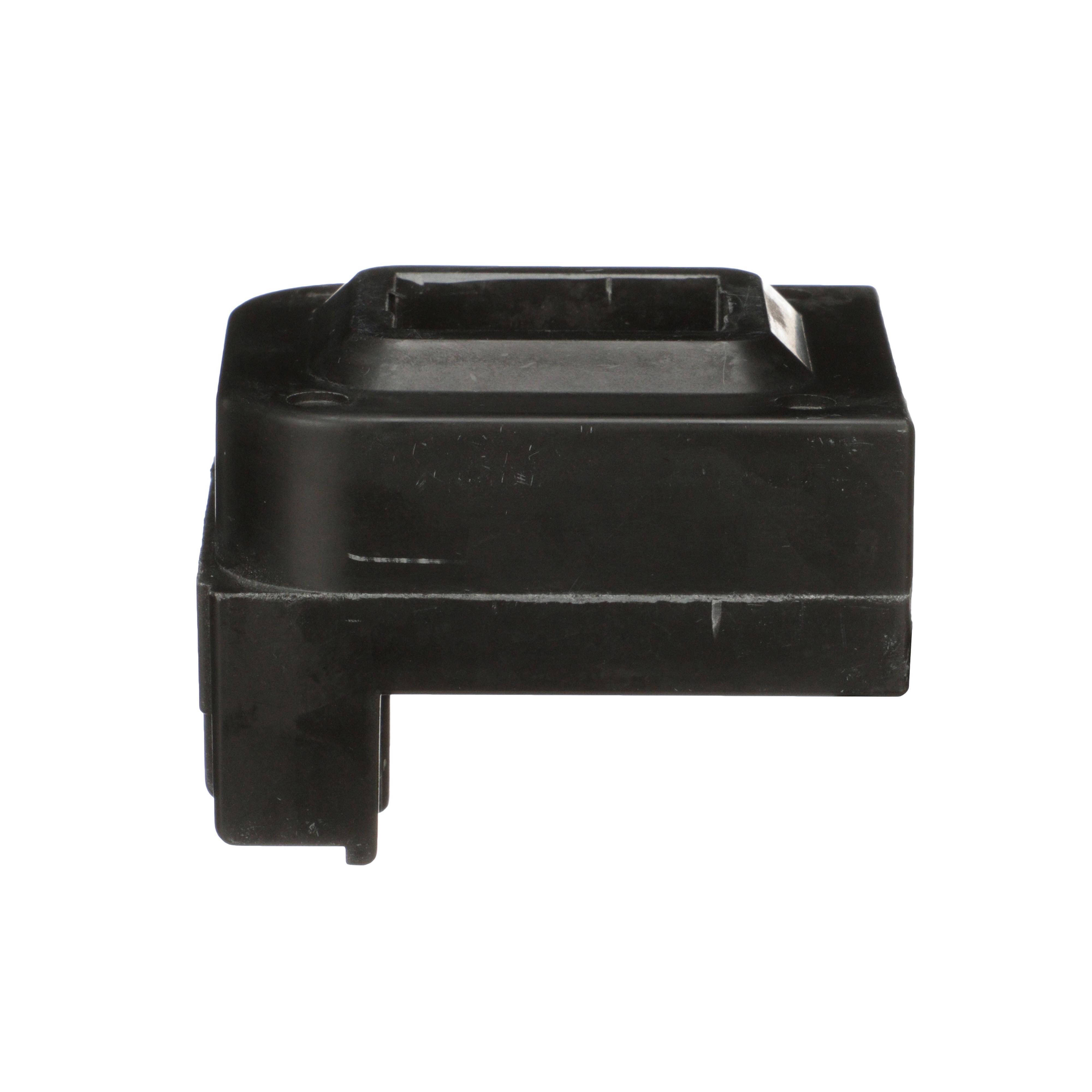

Square D™ 3107440044 Contactor and Starter Coil, NEMA 3, 208 VAC, 50/60 Hz, For Use With Class 8903 Type SQ, Class 8502 Type SE, Class 8910 Type DPA12/SYD138 2/3-Poles Contactor/Starter
Brand: Square D™
Item ID: 430039
MPN: 3107440044
UPC: 785901226055
Login for Price
Features
- Screw clamp terminal connection
- Direct mounting
- 40 deg c ambient operating temperature
- 100 a current rating
Description
Square D™ Contactor and Starter Coil, NEMA 3 Size, 208 VAC, 50/60 Hz Frequency, For Use With: Class 8903 Type SQ, Class 8502 Type SE, Class 8910 Type DPA12/SYD138 2/3-Poles Contactor/Starter
Specifications
Frequency Rating |
50/60 Hz |
Size |
NEMA 3 |
Suitable For Use With |
Class 8903 Type SQ, Class 8502 Type SE, Class 8910 Type DPA12/SYD138 2/3-Poles Contactor/Starter |
Voltage Rating |
208 VAC |
Standard Approval |
UL Listed|CSA Certified|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4526510e07e1c5af84f8268ae9877844185927e85b62c61c4788d8b3c95e1a7e.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_179611725071b4e3447a47475cdbbef92e3c4be55b956039d4a38de2b1700fc9.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_3107440047_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_3107440047_Instruction_Installation_Manual.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_3107440049_Installation_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XS4P30MA230L1_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1e515f0367c30a881fc66a6a09bbc931f572e21a5d0396517c1bed174179fea8.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_3107440044_Specification_Sheet.pdf
