Square D™ 8501CO16V20

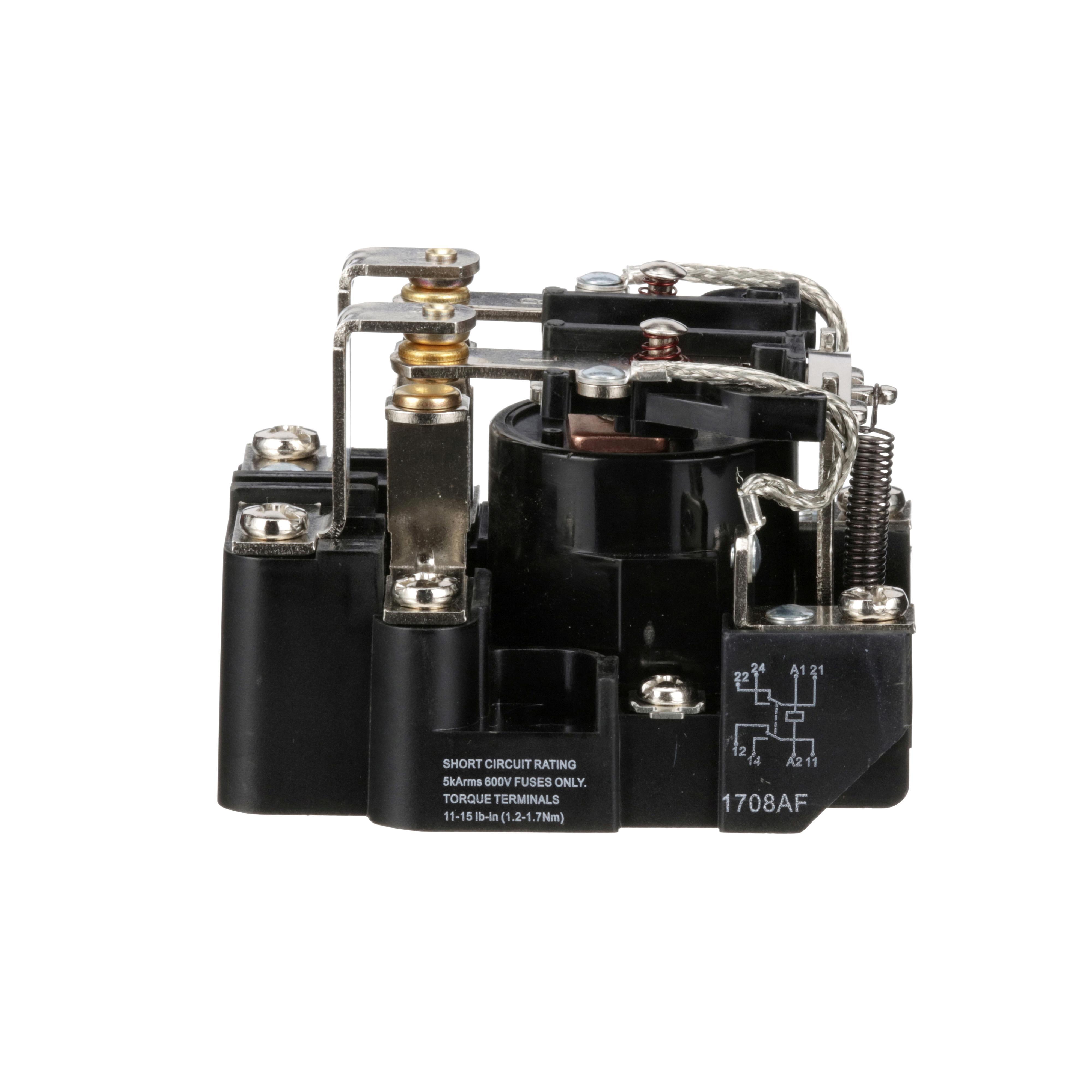

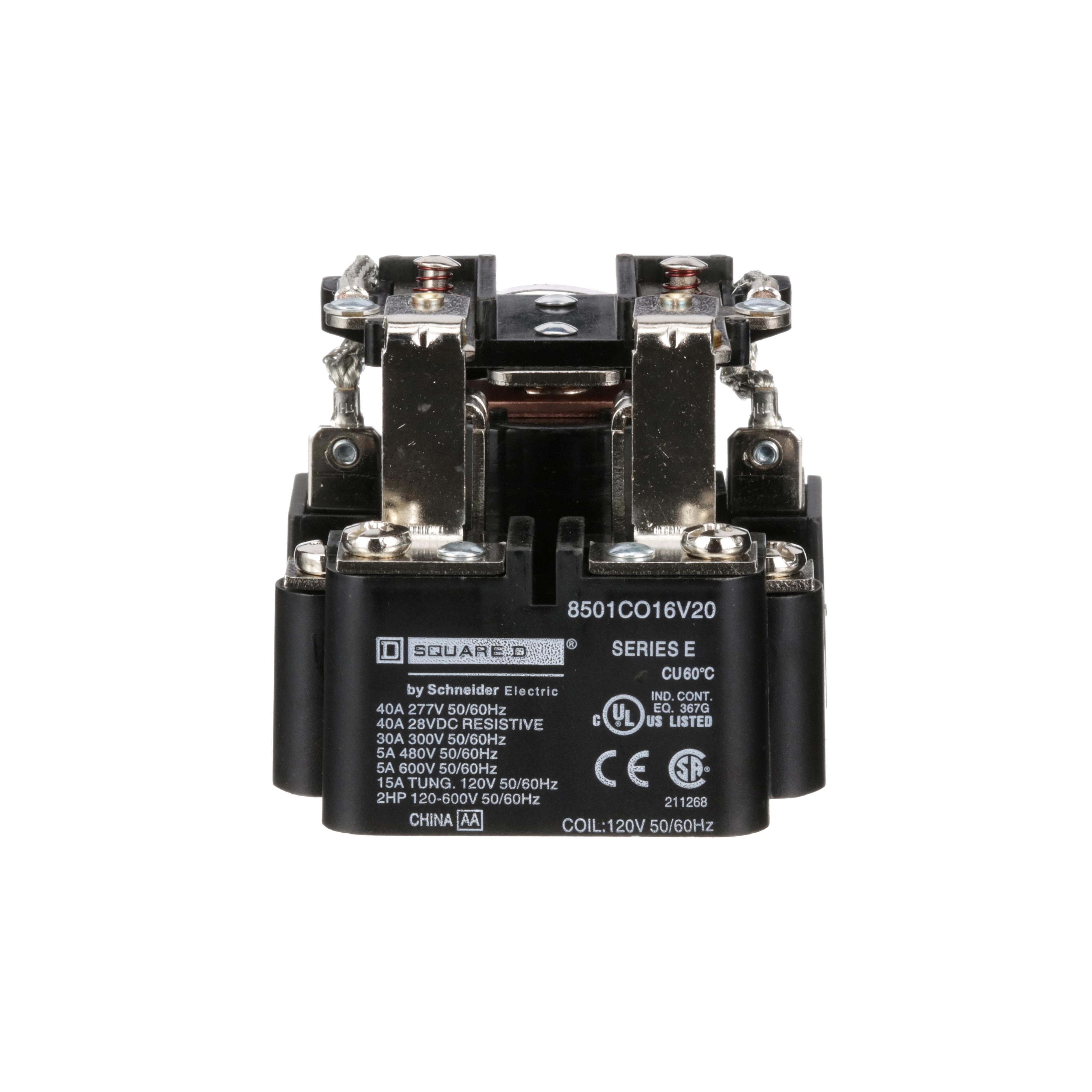

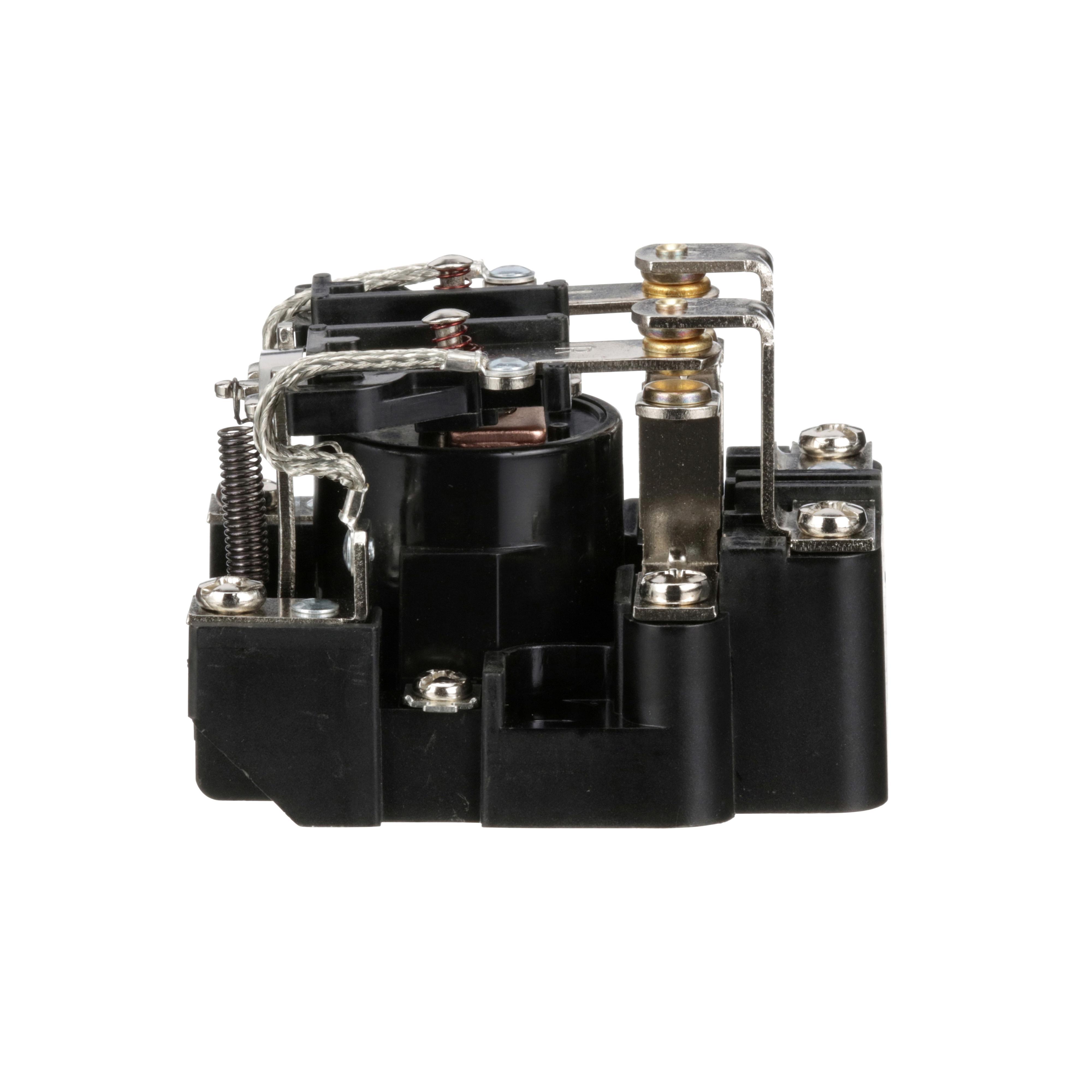

Square D™ 8501CO16V20 8501C Type C 1-Phase Power Relay, 30 A, 2NO-2NC/DPDT Contact, 120 VAC V Coil
Brand: Square D™
Item ID: 546609
MPN: 8501CO16V20
UPC: 785901052135
Login for Price
Features
- Durable open frame construction
- 30 A line rated current
- 600 VAC maximum switching voltage
Description
Square D™, 8501CO16V20, Power Relay, Type C 1-Phase, Series: 8501C, 30 A, 1.5 hp Power, 50/60 Hz Frequency, 120 VAC Coil, 2NO-2NC/DPDT Contact Form, 30 A at 600 VAC Contact, Panel Mounting, Screw Terminal, -22 to 122 deg F
Specifications
Amperage Rating |
30 A |
Coil Voltage |
120 VAC |
Contact Form |
2NO-2NC/DPDT |
Contact Rating |
30 A at 600 VAC |
Frequency Rating |
50/60 Hz |
Mounting Type |
Panel |
Power Rating |
1.5 hp |
Series |
8501C |
Temperature Rating |
-22 to 122 deg F |
Terminal Type |
Screw |
Type |
Type C 1-Phase |
Standard Approval |
CE Certified|CSA File No. 218139/Class 3211 04|IEC 60947-4-1|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL File No. E78351/CCN/NLDX |
Application |
Suited For Controlling Small Single Phase Motors and Other Light Loads Such As Electric Heaters, Pilot Lights Or Audible Signals Applications |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8501CO16V20_RoHS.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8501CO16V20_RoHS.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8501CO16V20_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8501CO16V20_Specification_Sheet.pdf
