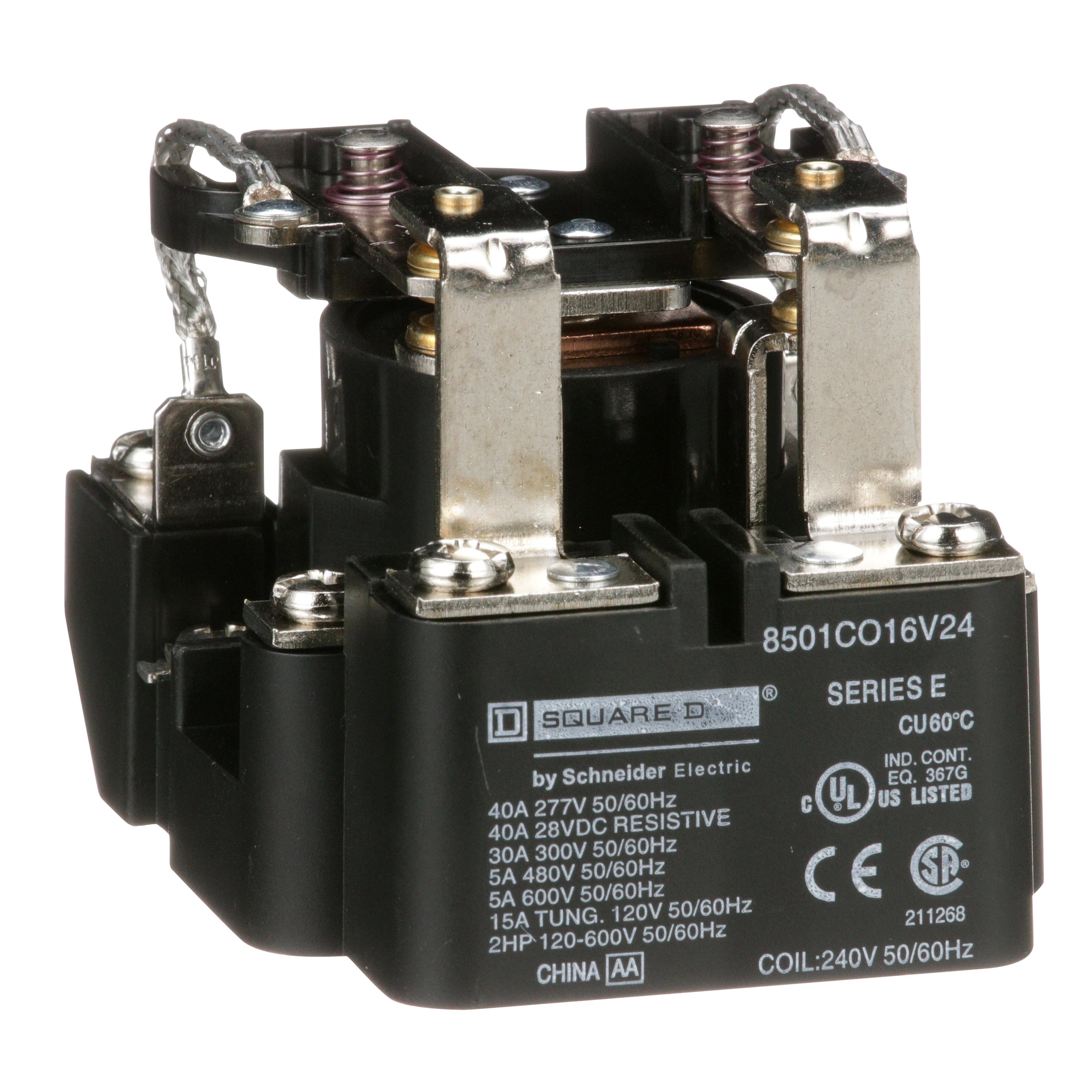

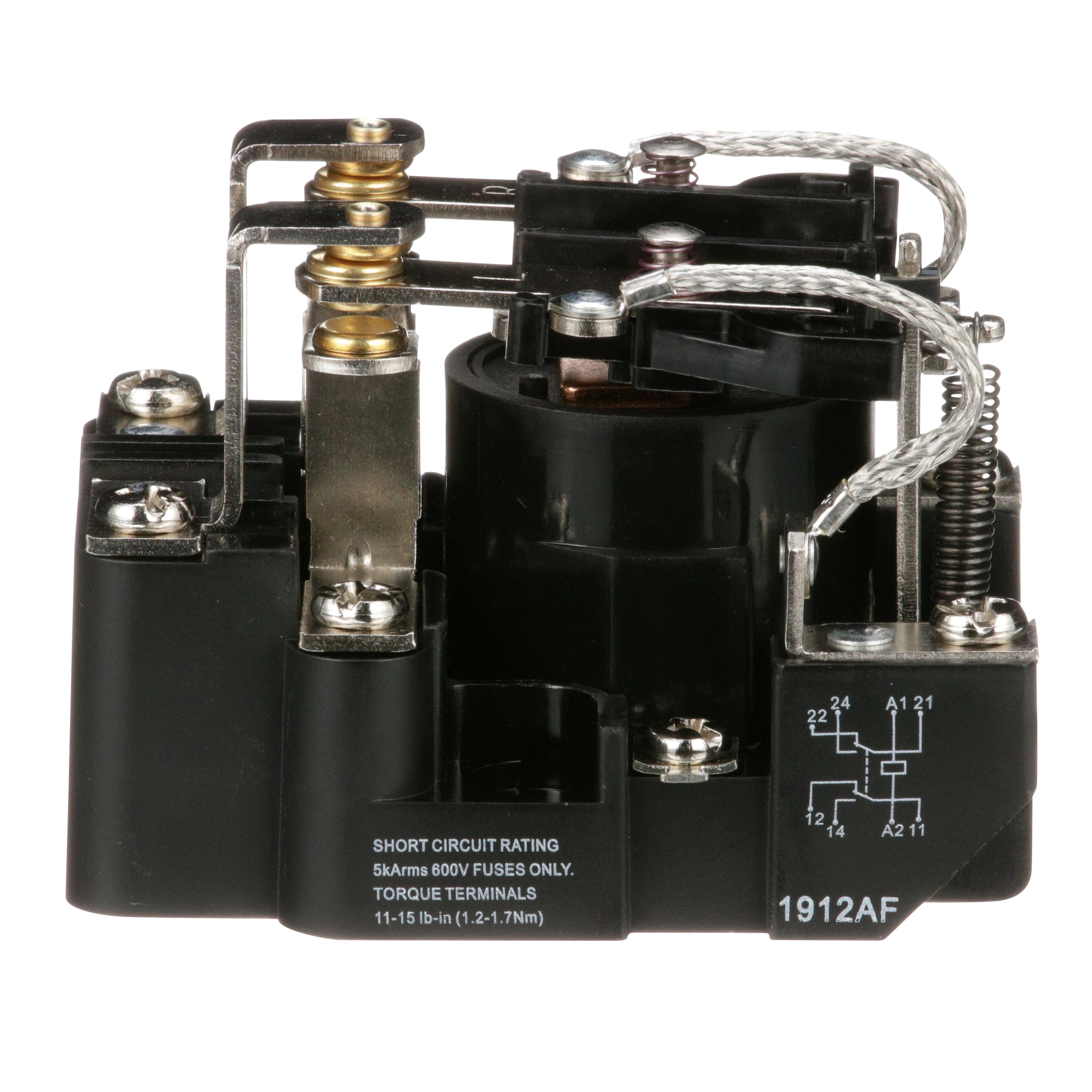

Square D™ 8501CO16V24 General Purpose Type C Power Relay, 30 A, 2NO-2NC/DPDT Contact, 240 VAC V Coil
Brand: Square D™
Item ID: 509643
MPN: 8501CO16V24
UPC: 785901052159
Login for Price
Features
- Visible contacts
- Low cost
- Horsepower rated
- 8501 type C open frame Power Relays
Description
Square D™ Power Relay, General Purpose Type C, Series: 8501C, 30 A, 1-1/2 hp, 50/60 Hz, 240 VAC Coil, 2NO-2NC/DPDT, 30 A at 300 VAC, 5 A at 600 VAC Contact, 2 Pole, Panel Mount, Screw Terminal, NEMA 1, -22 to 122 deg F, 3.12 in W x 2.5 in D x 2.31 in H
Specifications
Amperage Rating |
30 A |
Coil Voltage |
240 VAC |
Contact Form |
2NO-2NC/DPDT |
Contact Rating |
30 A at 300 VAC, 5 A at 600 VAC |
Dimensions |
3.12 in W x 2.5 in D x 2.31 in H |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Mounting Type |
Panel |
Number of Poles |
2 |
Power Rating |
1-1/2 hp |
Series |
8501C |
Temperature Rating |
-22 to 122 deg F |
Terminal Type |
Screw |
Type |
General Purpose Type C |
Standard Approval |
CCN NLDX|CE Marked|CSA Certified|CSA File No. 218139 Class 321104|IEC 60947-4-1|NLDX7 Listed|RoHS Compliant|UL File No. E78351|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
Controlling Small Single Phase Motors and Other Light Loads such as Electric Heaters, Pilot Lights or Audible Signals, Pumps, Conveyors and Material Handling Equipment Applications |
