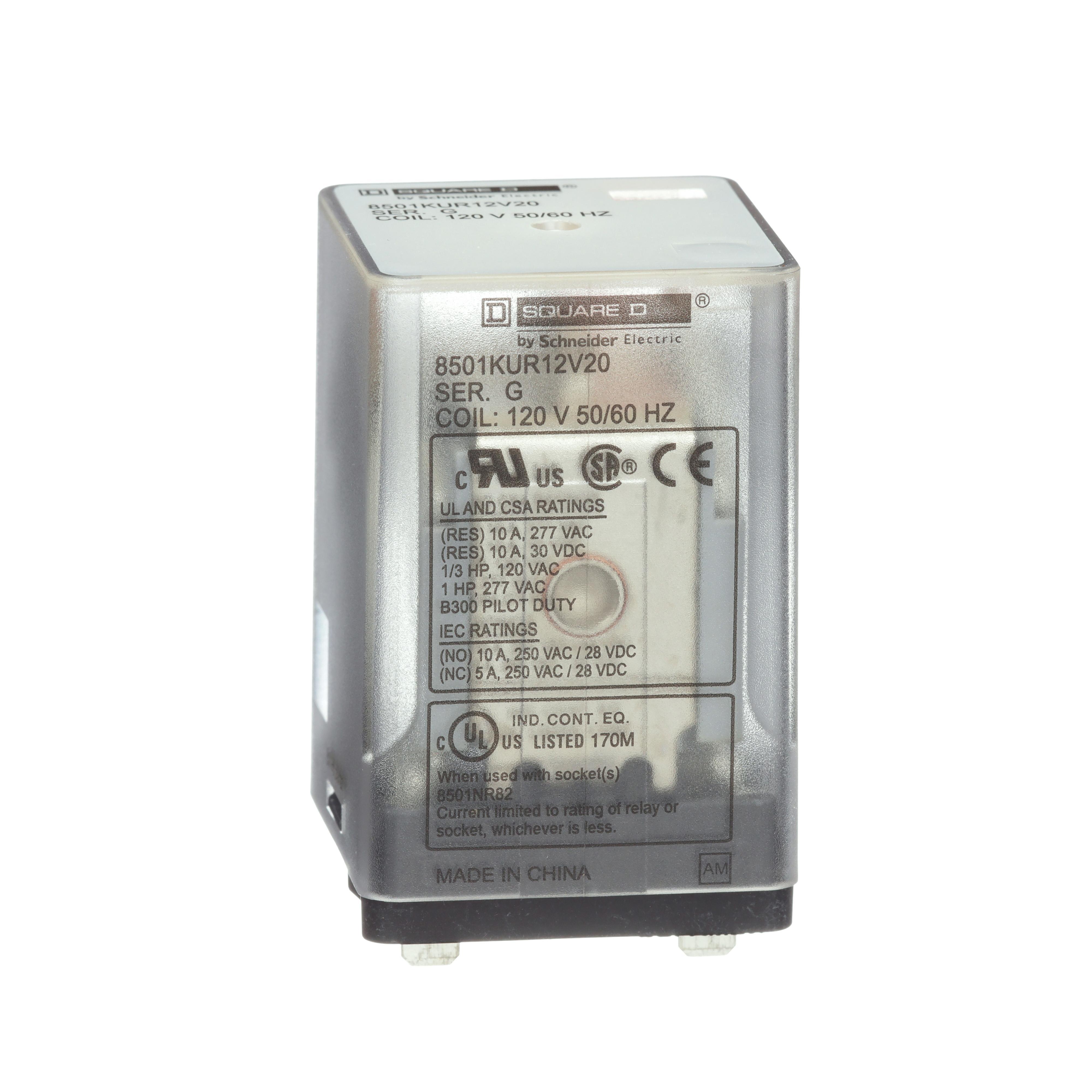

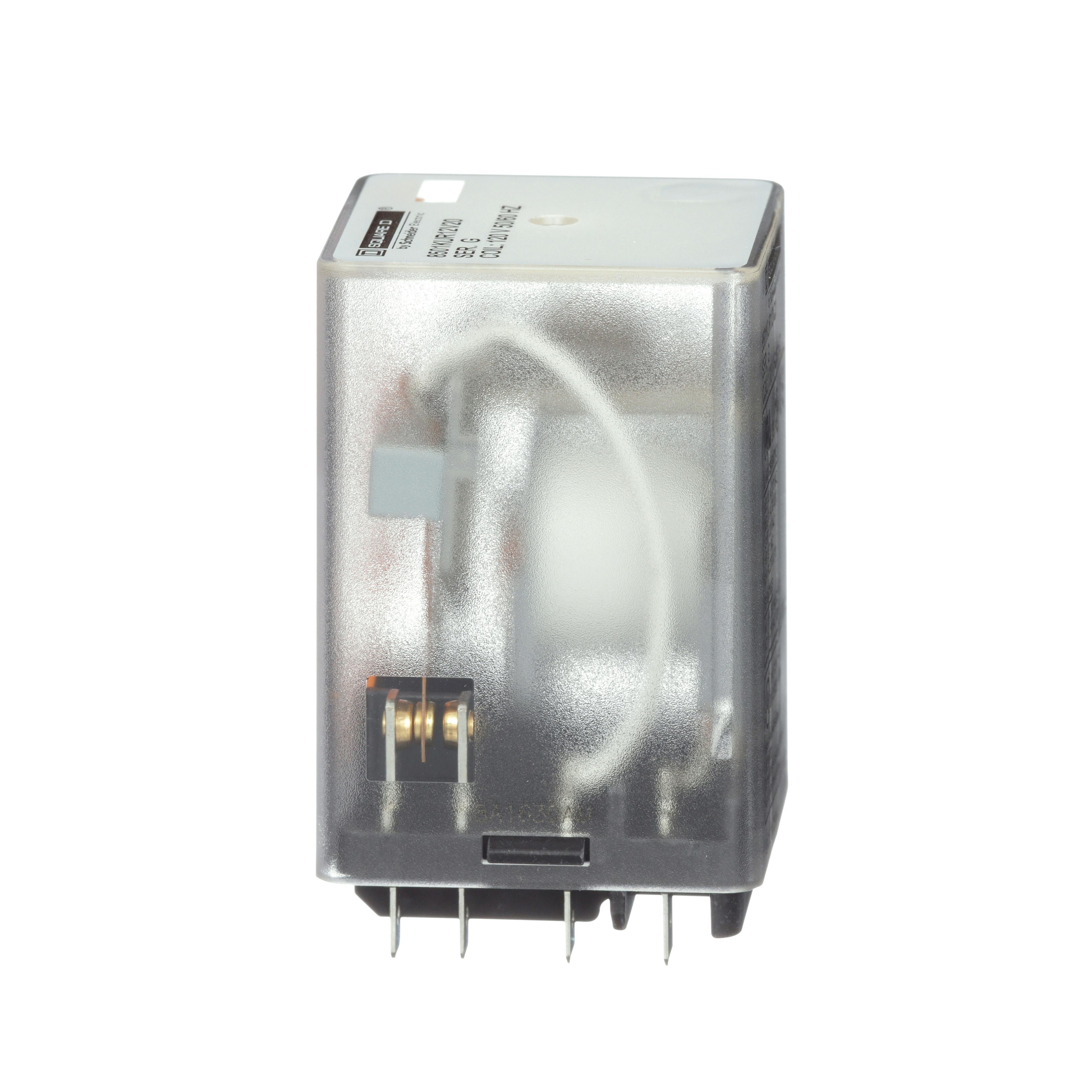

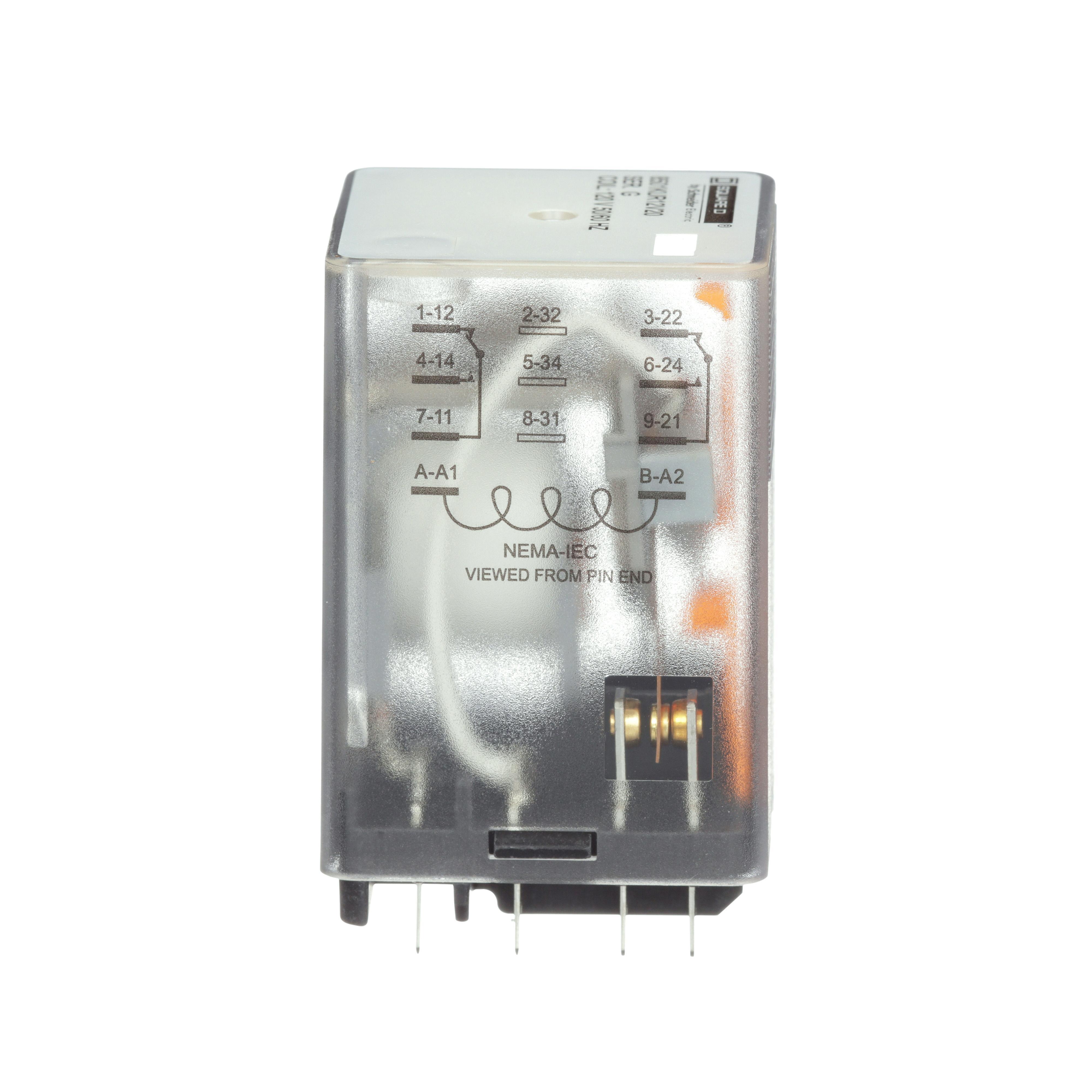

Square D™ 8501KUR12V20

• Horsepower Rated
• DPDT Latching Relay
• AC or DC Operation
• General purpose relay type
• Silver alloy (AgNi) contact material
• 20 ms - pick-up20 ms - drop-out operating time
• With toxic heavy metal free

8501KU universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR82 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KU relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.

Square D™ 8501KUR12V20, Relay, Relay Relay, Relay Relay, 8501K Series, 10 A, 1 hp at 277 VAC,0.33 hp at 120 VAC Power, DPDT Contact Form, 3 A Contact, Socket Mounting, Spade Terminal, -40 to 55 deg F, 2.25 in H x 1.37 in W x 1.4 in D Dimensions
