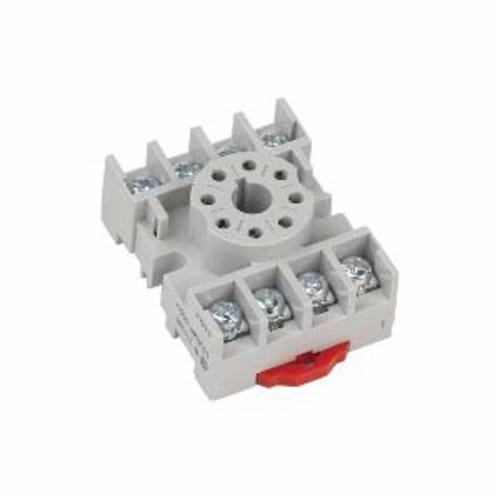

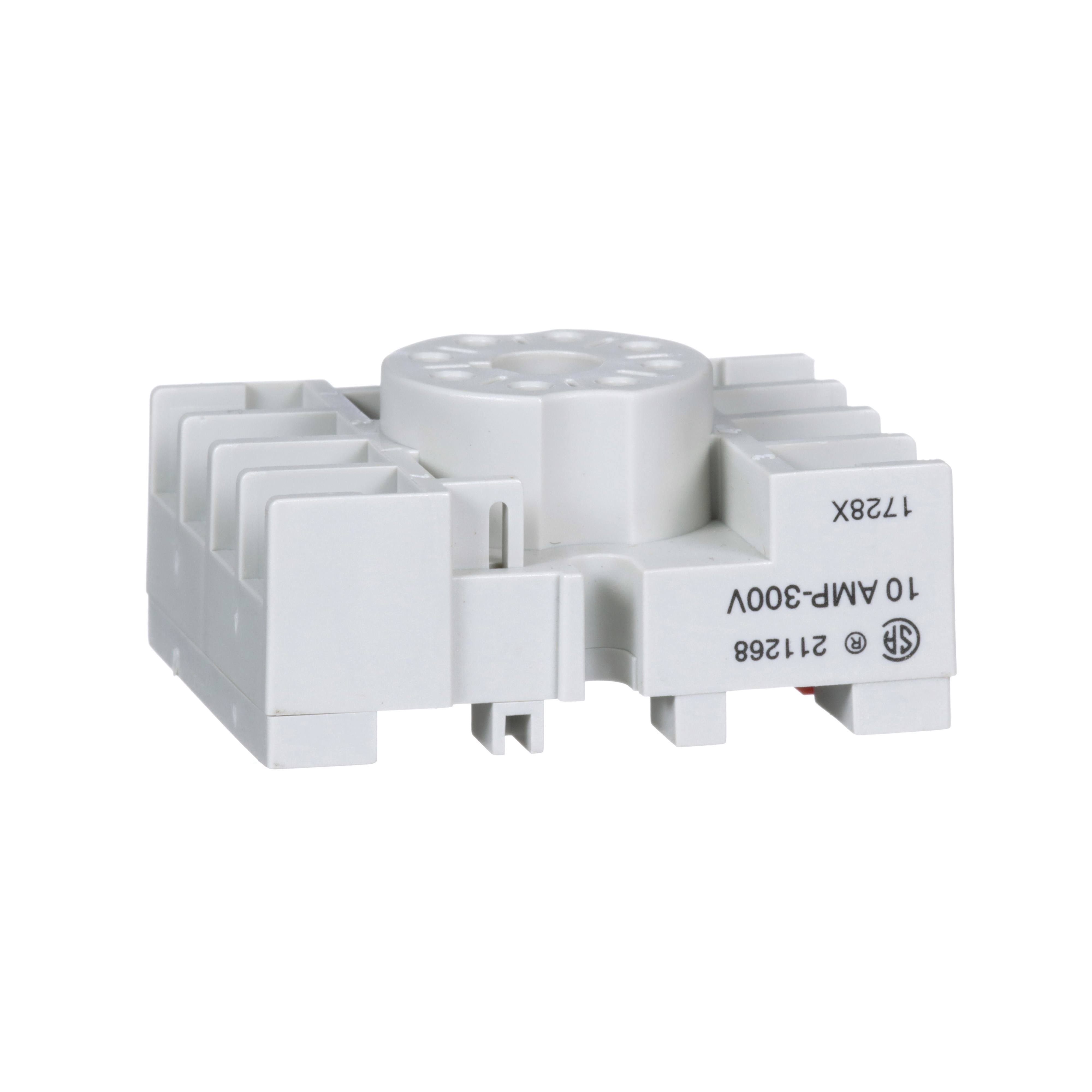

Square D™ 8501NR51
Square D™ 8501NR51 1-Tier Type K Relay Socket, 600 VAC, 10 A, For Use With Class 8501 Series Miniature Plug-In Relay, 8 Pin
Brand: Square D™
Item ID: 38533
MPN: 8501NR51
UPC: 785901583592
Login for Price
Features
- Tubular shape pin
- Plug-in type
Description
Square D™ Relay Socket, 1-Tier Type K, Series: 8501N, 600 VAC, 10 A, 8 Pins, For Use with: Class 8501 Series Miniature Plug-In Relay, DIN Rail/Panel Mount, Screw Clamp Terminal, 2.4 in L x 1.6 in W x 0.86 in H
Specifications
Amperage Rating |
10 A |
Dimensions |
2.4 in L x 1.6 in W x 0.86 in H |
Mounting Type |
DIN Rail/Panel |
Number of Pins |
8 |
Series |
8501N |
Suitable For Use With |
Class 8501 Series Miniature Plug-In Relay |
Terminal Type |
Screw Clamp |
Type |
1-Tier Type K |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|CE Certified|CSA Certified|UL Listed|PROP65: This product can expose you to chemicals including Nickel compounds which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
For relays applications |
Documentation
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XZCP2540L10_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8501NR51_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_05c44f57f06b976999bcb2d48942d30e09912a7341ab7eb6cb84f63ce7a5800b.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8501NR51_Specification_Sheet.pdf
