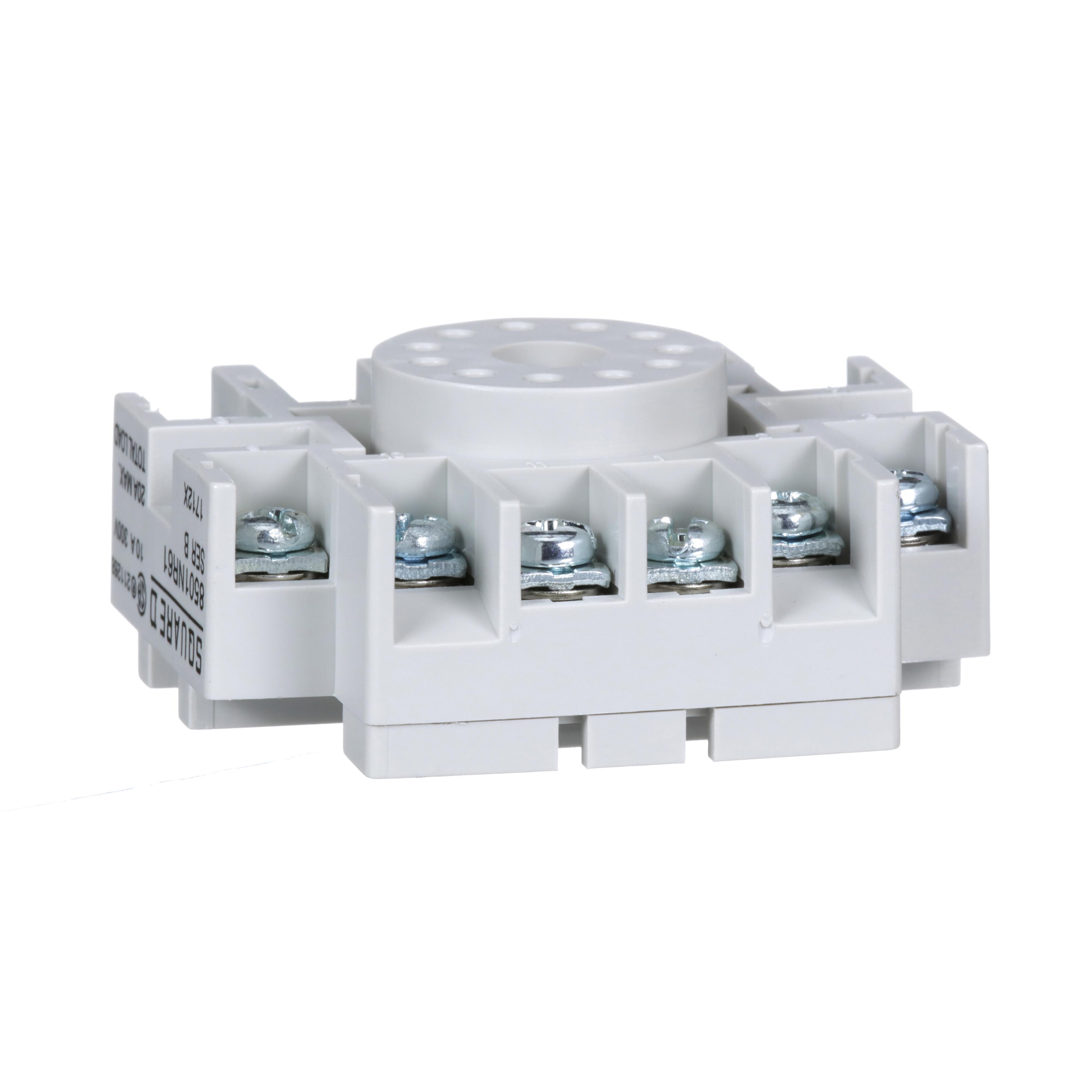

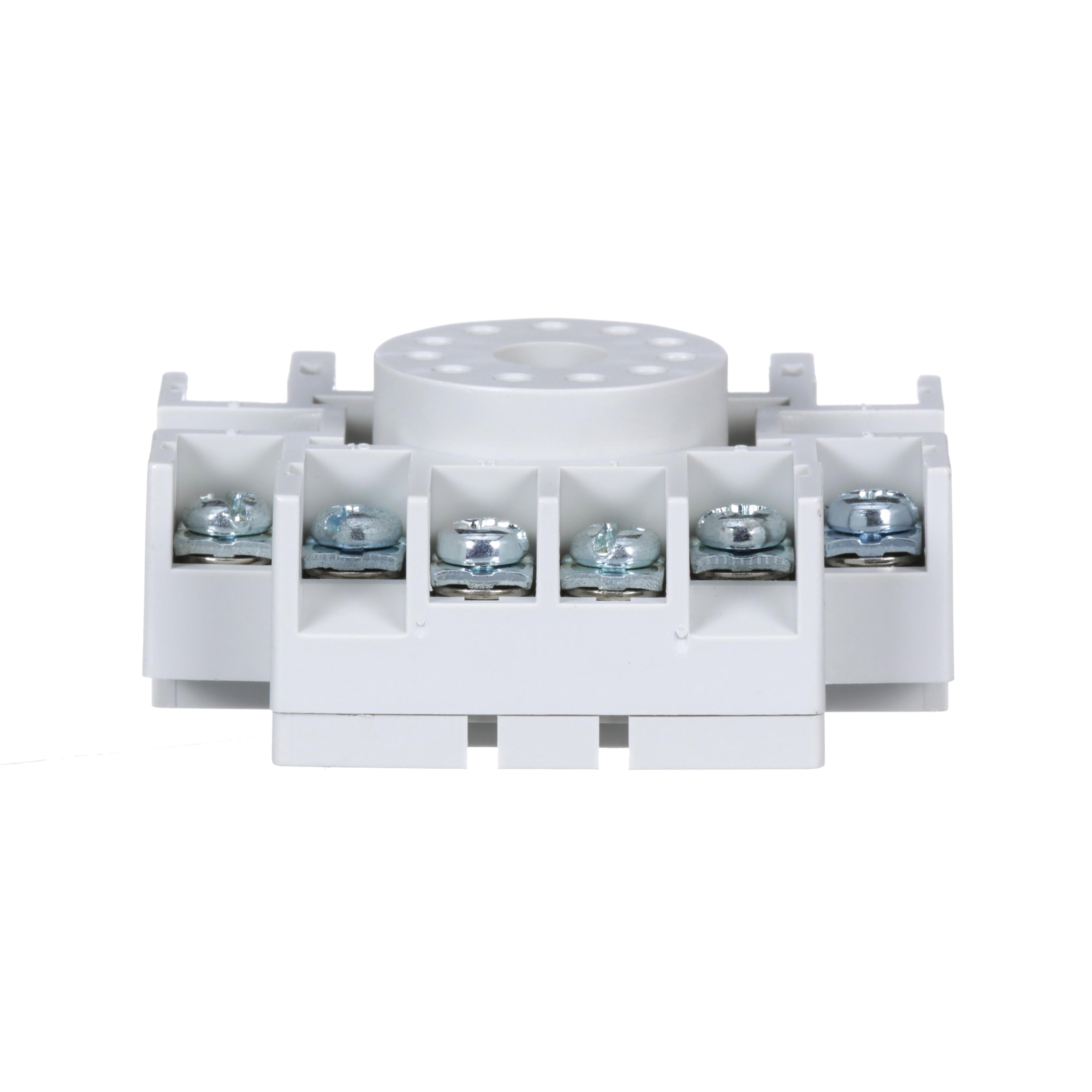

Square D™ 8501NR61
Square D™ 8501NR61 8501N Type K Plug-In Relay Socket, 600 VAC, 5/10/15 A, For Use With 8501KPR13XXX and 8501KPDR13XXX Relay, 11 Pin
Brand: Square D™
Item ID: 38539
MPN: 8501NR61
UPC: 785901583677
Login for Price
Features
- Tubular shape pin
- Single tiered screw clamp terminals
- 5 a at 600 VAC, 15 a at 300 vac
Description
Square D™, 8501NR61, Relay Socket, Type K Plug-In, Series: 8501N, 600 VAC, 5/10/15 A, 11 Pins, For Use With: 8501KPR13XXX and 8501KPDR13XXX Relay, DIN Rail/Panel Mounting, Screw Terminal, 5 in L x 4.4 in W x 2.5 in H Dimensions
Specifications
Amperage Rating |
5/10/15 A |
Dimensions |
5 in L x 4.4 in W x 2.5 in H |
Mounting Type |
DIN Rail/Panel |
Number of Pins |
11 |
Series |
8501N |
Suitable For Use With |
8501KPR13XXX and 8501KPDR13XXX Relay |
Terminal Type |
Screw |
Type |
Type K Plug-In |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|UL Listed|CSA Certified|CE Certified|PROP65: This product can expose you to chemicals including Nickel compounds which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
For downsizing equipment and applications |
Documentation
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8501NR61_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8501NR61_Specification_Sheet.pdf
VIDEO LINK
https://www.youtube.com/watch?v=3SxmA3ubihc
