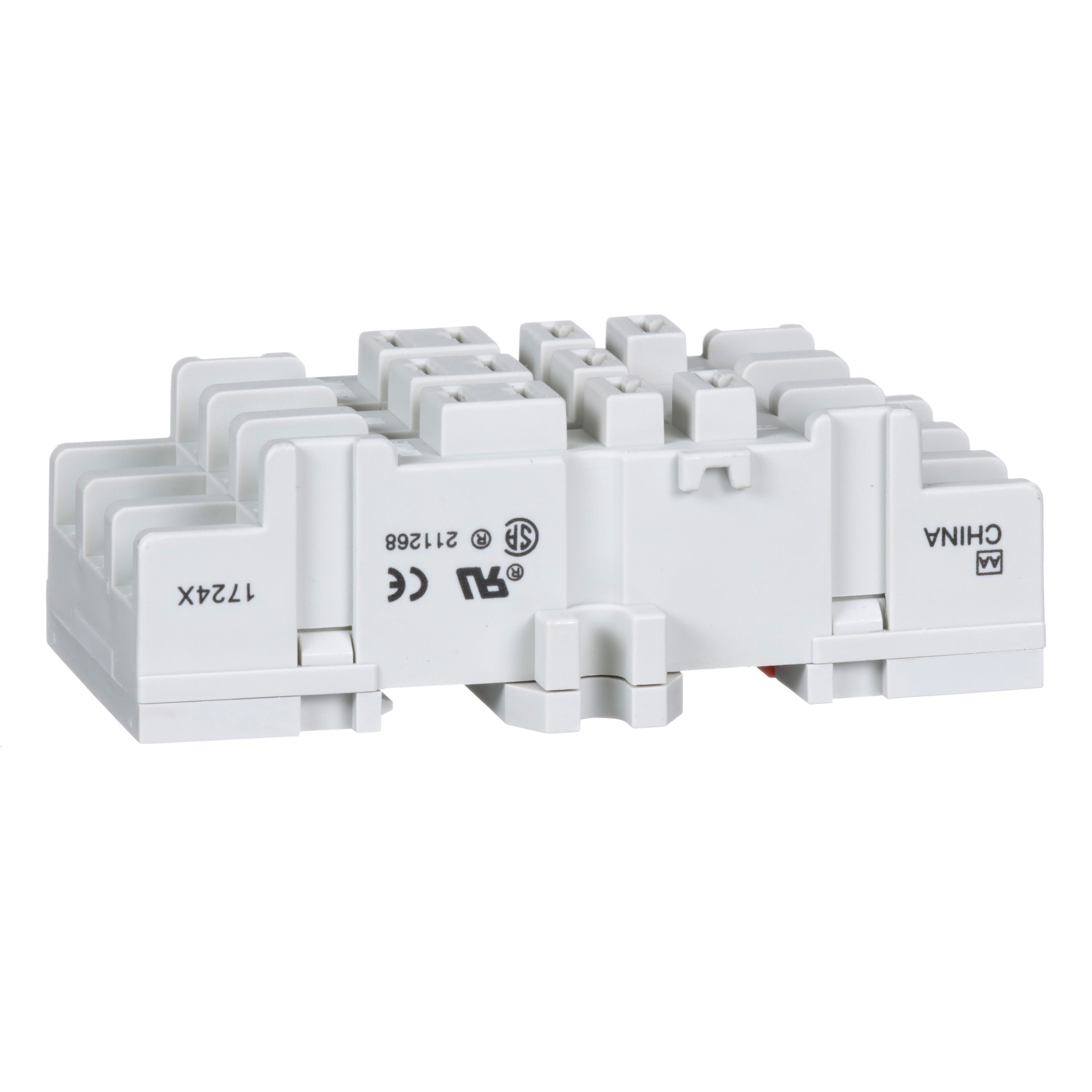

Square D™ 8501NR82
Square D™ 8501NR82 Type K Double Tier Relay Socket, 600 VAC, 10 A, For Use With Class 8501 Series Miniature Plug-In Relay, 11 Pin
Brand: Square D™
Item ID: 38544
MPN: 8501NR82
UPC: 785901583868
Login for Price
Features
- Spade pin
- Plug-in type
Description
Square D™ Relay Socket, Type K Double Tier, Series: 8501N, 600 VAC, 10 A, 11 Pins, For Use With: Class 8501 Series Miniature Plug-In Relay, DIN Rail/Panel Mounting, Screw Clamp Terminal, 3.13 in L x 1.7 in W x 1.03 in H Dimensions
Specifications
Amperage Rating |
10 A |
Dimensions |
3.13 in L x 1.7 in W x 1.03 in H |
Mounting Type |
DIN Rail/Panel |
Number of Pins |
11 |
Series |
8501N |
Suitable For Use With |
Class 8501 Series Miniature Plug-In Relay |
Terminal Type |
Screw Clamp |
Type |
Type K Double Tier |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|CE Certified|CSA Certified|UL Listed|PROP65: This product can expose you to chemicals including Nickel compounds which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
For use with relays applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3693e65bc875cb7e695c677856a422c44ec7ebc382aa6f09b8fb10cf6213c58f.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8501NR82_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5b7a2eb89b88d81a6d109c5e0dd37fc26a46f78b55c847dd18c3d6bef6863274.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8501NR82_Specification_Sheet.pdf
