Square D™ 8501RS41V20

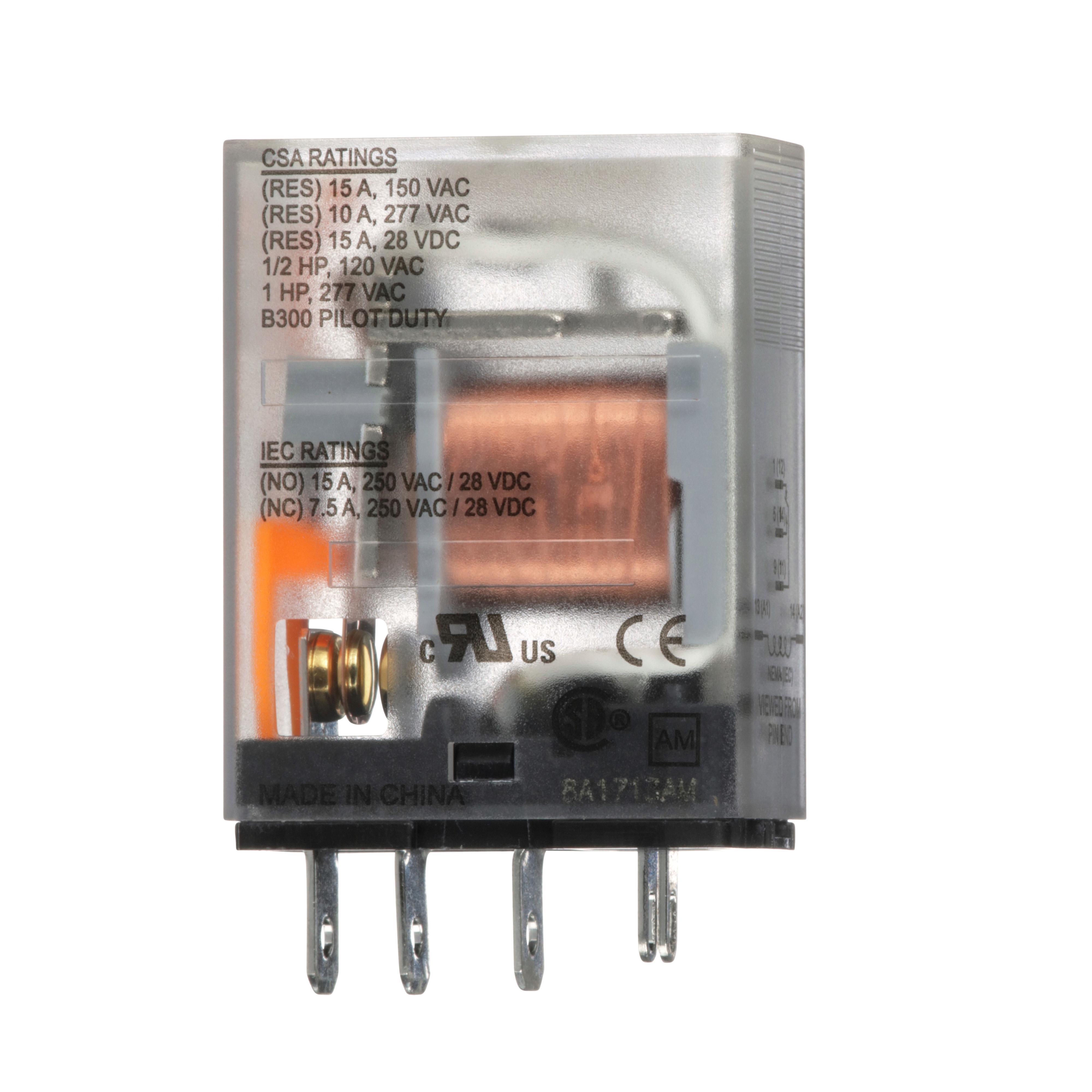

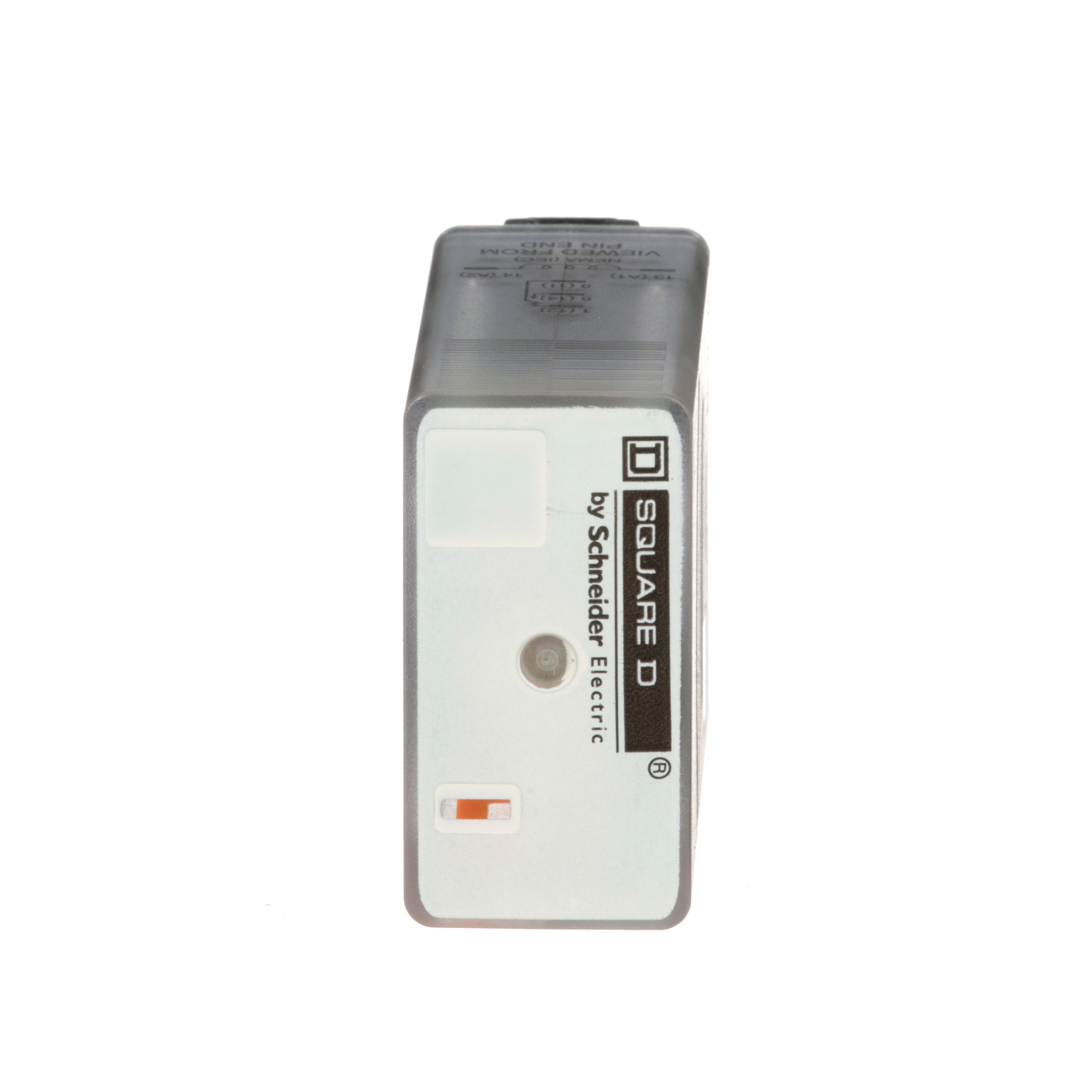

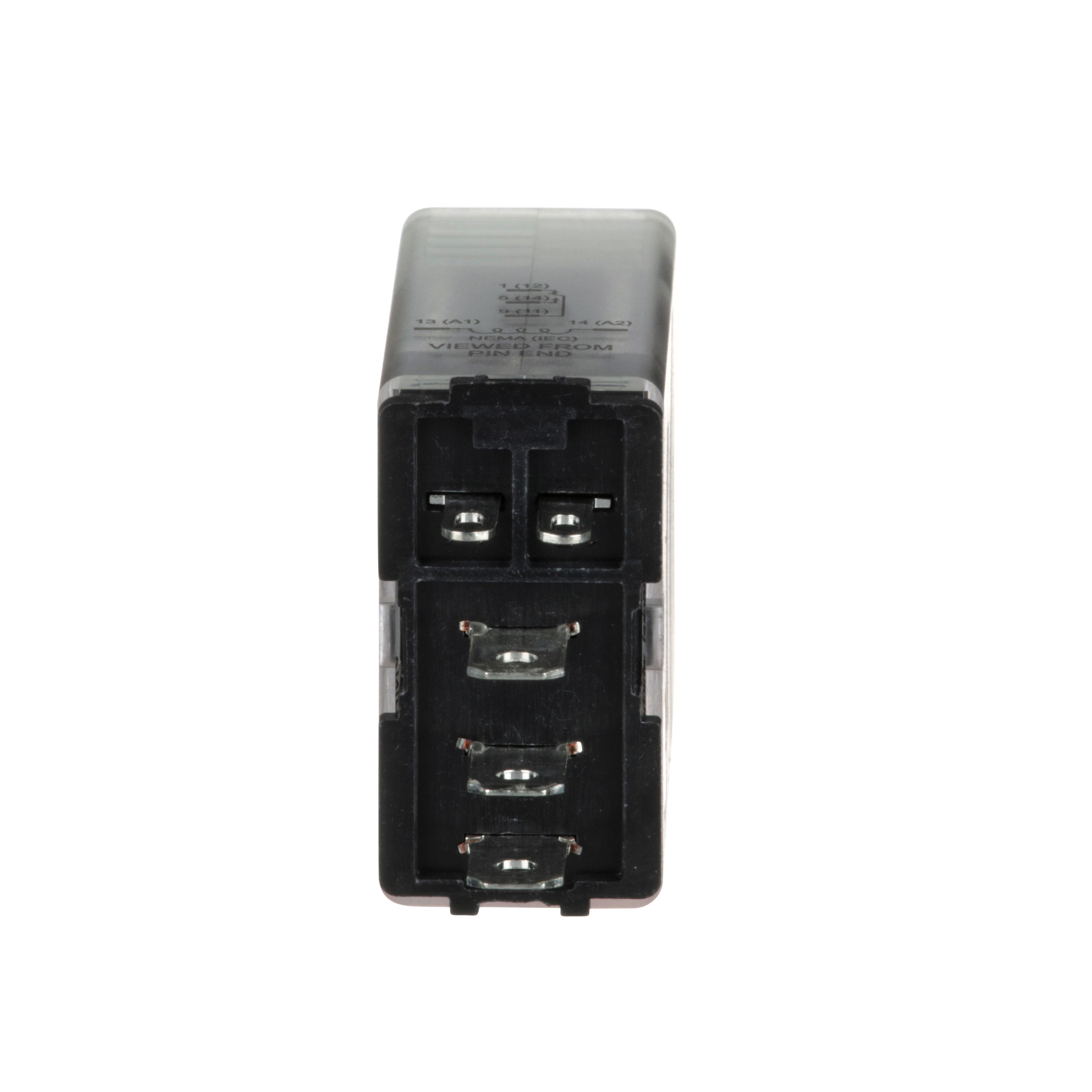

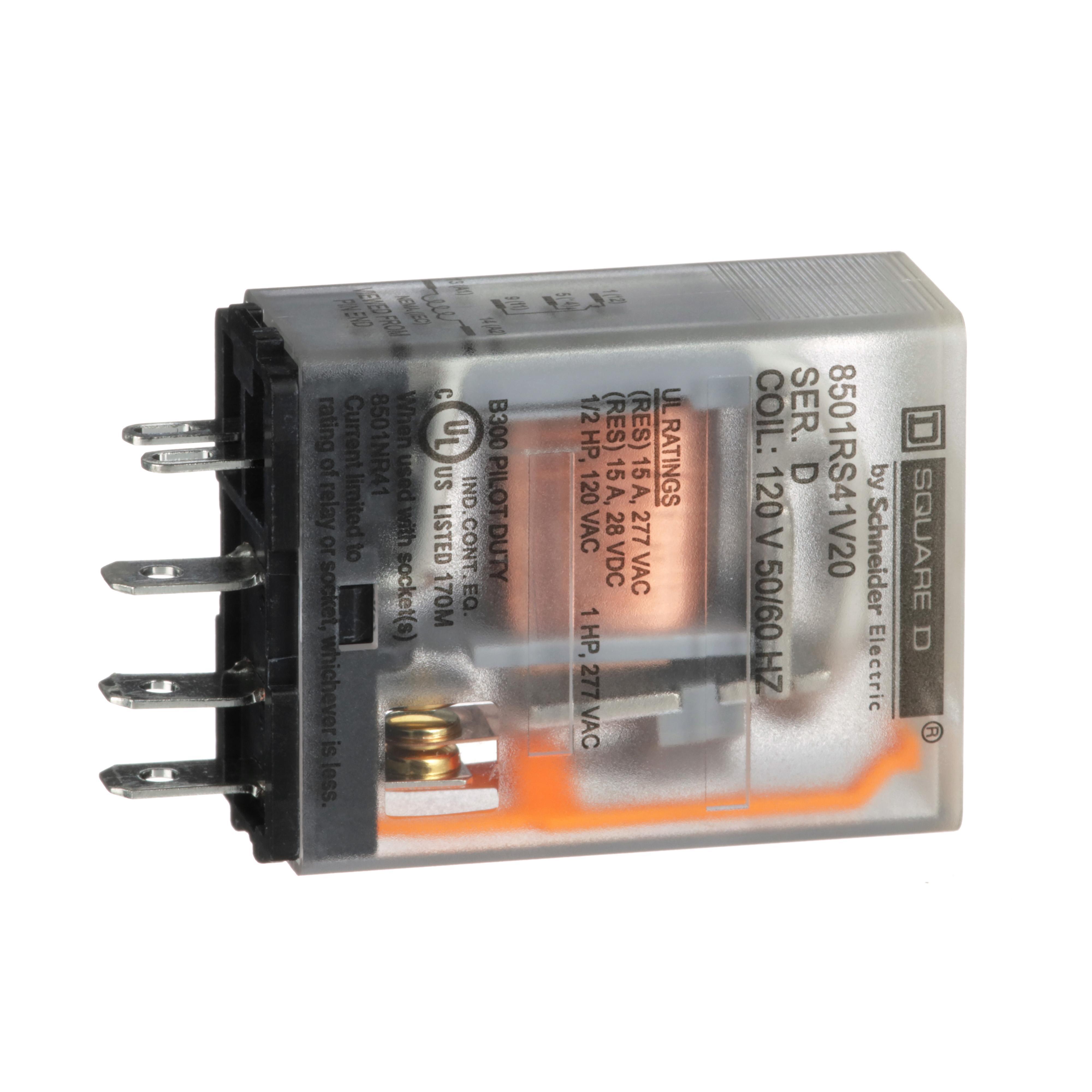

Square D™ 8501RS41V20 8501R Plug-In Relay, 10 to 15 A, SPDT Contact, 300 VAC, 30 VDC V Coil
Brand: Square D™
Item ID: 38567
MPN: 8501RS41V20
UPC: 785901137030
Login for Price
Features
- Spade shape pin
- Silver alloy (Ag/Ni) contact
- 20 ms pickup and 20 ms drop-out operating time
- Socket compatible
- 0.5 hp at 120 VAC/1 hp at 240 VAC power rating
- No indicator, without test button
- Green pilot light option
Description
8501R miniature plug-in relays have a 15 A resistive rating. The compact size of these relays makes them ideal for downsizing equipment and applications where space is at a premium.
Square D™, 8501RS41V20, Plug-In Relay, Series: 8501R, 10 to 15 A, 1/2 hp Power, 50/60 Hz Frequency, 300 VAC, 30 VDC Coil, SPDT Contact Form, 10 A at 240 VAC Contact, Socket Mounting, Spade Terminal, -40 to 131 deg F
Specifications
Amperage Rating |
10 to 15 A |
Coil Voltage |
300 VAC, 30 VDC |
Contact Form |
SPDT |
Contact Rating |
10 A at 240 VAC |
Frequency Rating |
50/60 Hz |
Mounting Type |
Socket |
Power Rating |
1/2 hp |
Series |
8501R |
Temperature Rating |
-40 to 131 deg F |
Terminal Type |
Spade |
Type |
Type R Standard Miniature |
Standard Approval |
CE Certified|CSA Certified|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL Listed|UL Recognized |
Application |
General Purpose Applications |
Documentation
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8501RS41V20_RoHS.pdf
SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e867daa790874d5c875d4fc3542a7daee94bc2dc1717a05574dfff4c38298b2e.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8501RS41V20_Specification_Sheet.pdf
