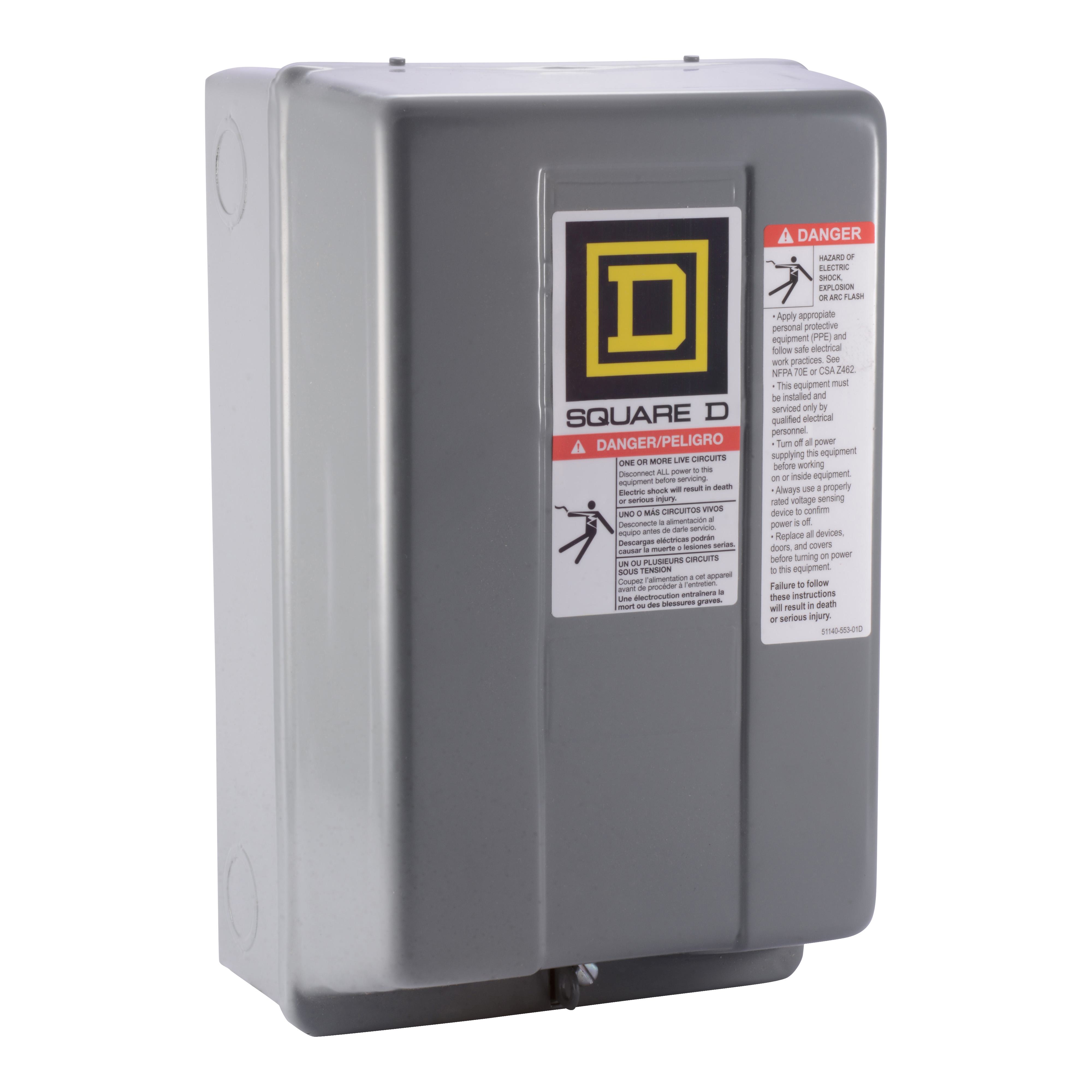

Square D™ 8502SAG12V06

• A normally open holding circuit contact for three wire control is provided as standard
• For flexibility field-installable or factory modified accessories include auxiliary contacts, power poles and cover mounted control stations
• Bell crank design promotes superior electrical and mechanical life
• NEMA sizes 00 to 5 are supplied with coils that are designed to operate satisfactorily on line voltages of 85% to 110% of rated voltage
• NEMA sizes 5, 6 and 7 contactors are supplied with a DC coil operated by a solid state rectifier circuit that is powered by an AC source
• Sizes 00 to 2 contactors use a class 9999 SX11 auxiliary contact as the holding circuit contact
• Sizes 3 to 7 contactors use a class 9999 SX6 auxiliary contact as the holding circuit contact
• NEMA type 1 general purpose enclosure
• Used to switch heating loads capacitors, transformers and electric motors where overload protections is provided separately
• 600 VAC system voltage
• Without indicator

Class 8502 Type S magnetic contactors are used to switch heating loads, capacitors, transformers and electric motors where overload protection is separately provided. Type S contactors are available in NEMA Sizes 00 to 7 and are designed for operation at 600 V maximum.

Square D™ Contactor, Non-Reversing Type S, Series: 8502, 440 VAC at 50 Hz to 480 VAC at 60 Hz Coil, 1.5 hp at 200/230 VAC/2 hp at 460/575 VAC Coil, 3 Pole, 50/60 Hz Frequency, 1.1 kW at 200/230 V/1.5 kW at 460/575 V Wattage, 9 A Contact, 00 Connection, Screw Clamp Terminal, NEMA 1 Enclosure, 6 cpm Operating Cycles, 0 to 40 deg C Operating, Sheet Steel, Painted, 152 mm W x 134 mm D x 254 mm H Dimensions
