Schneider Electric 8536SAG12V08H30S

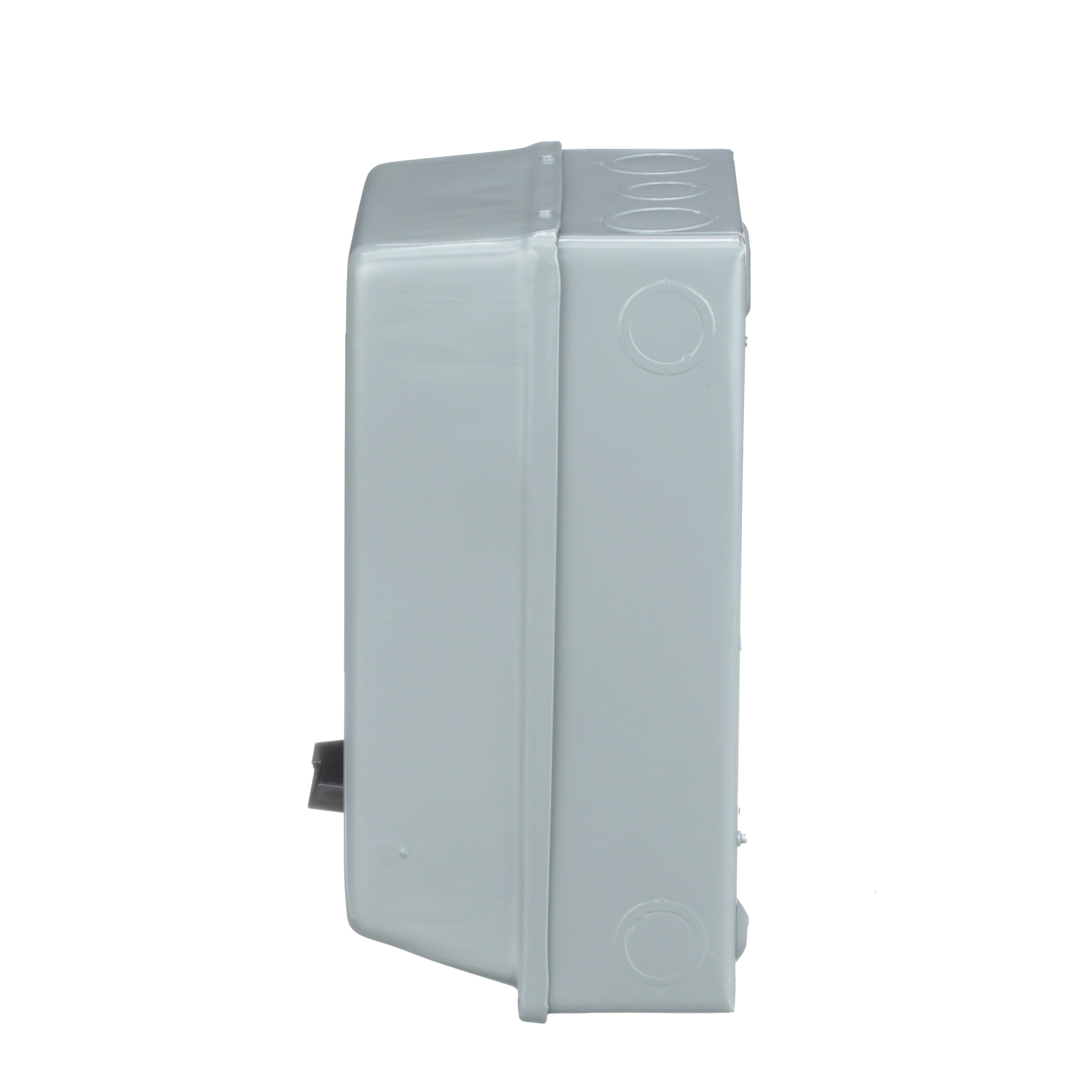

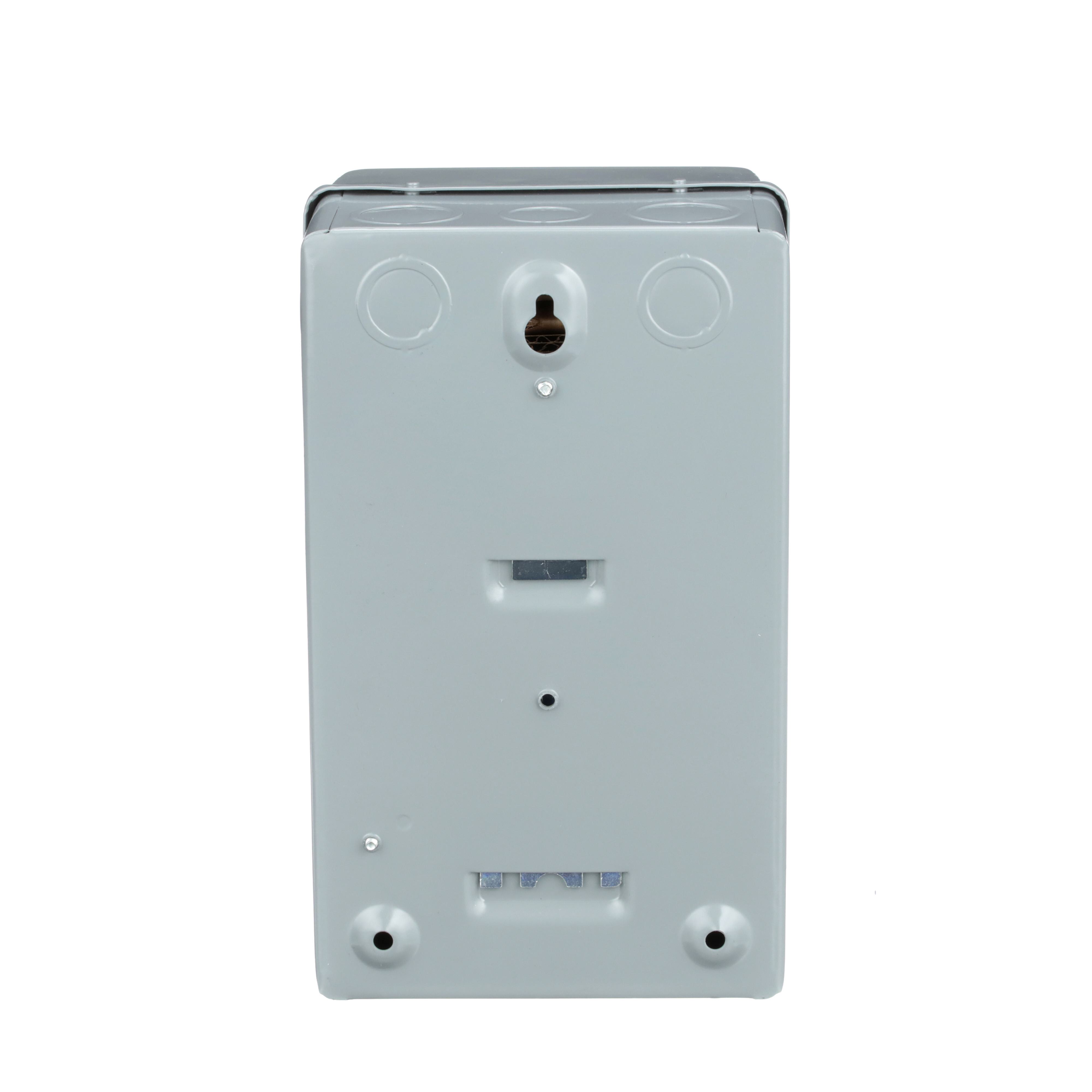

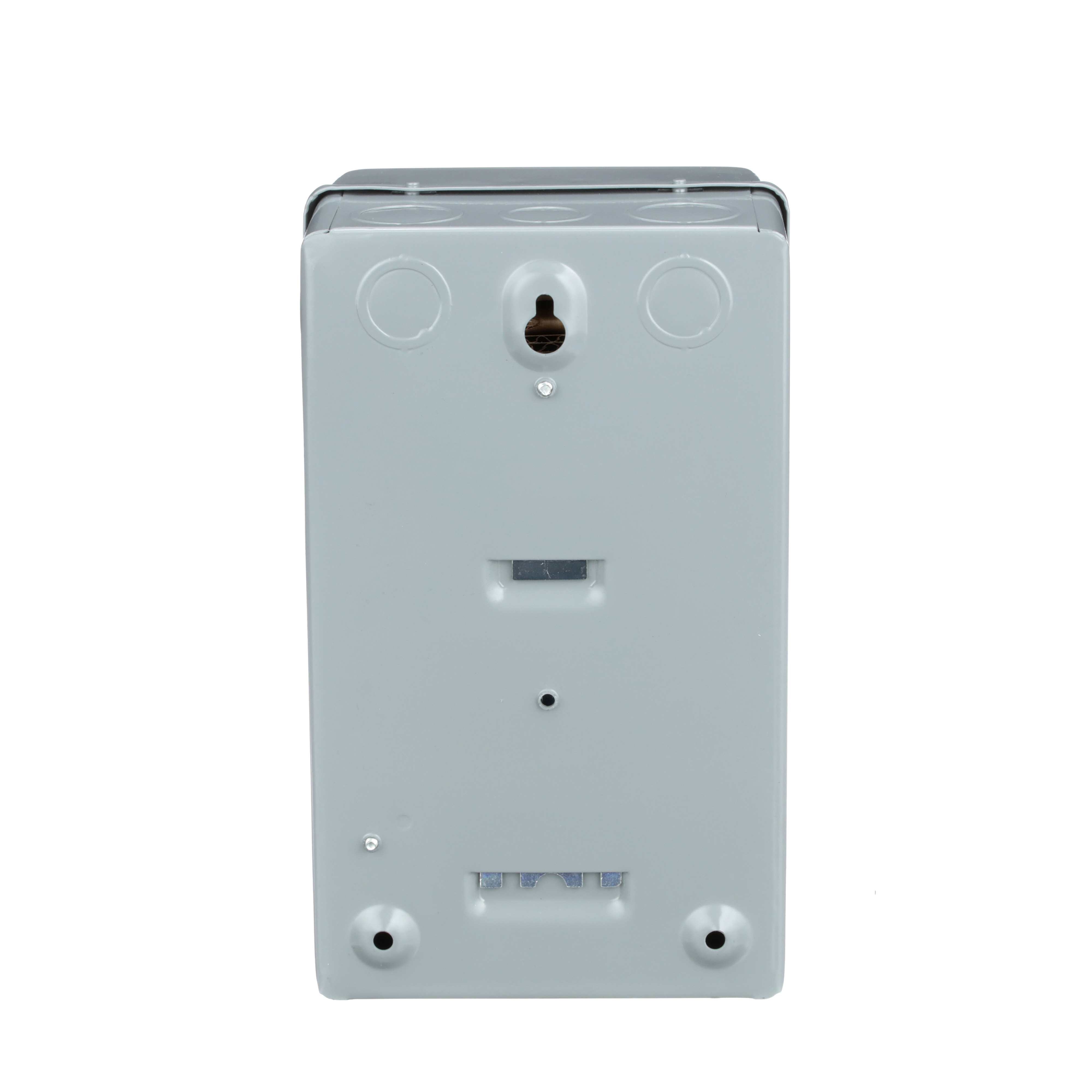

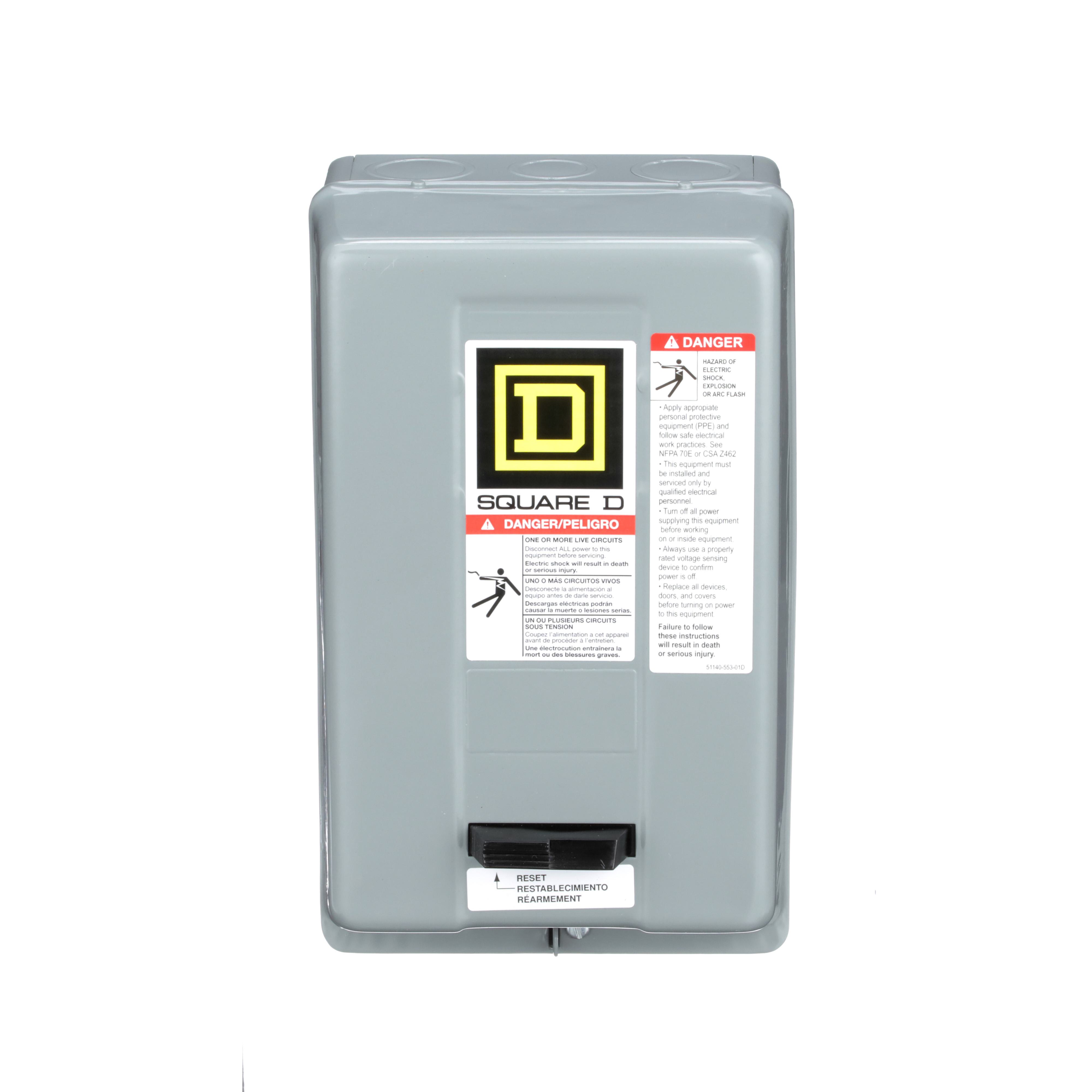

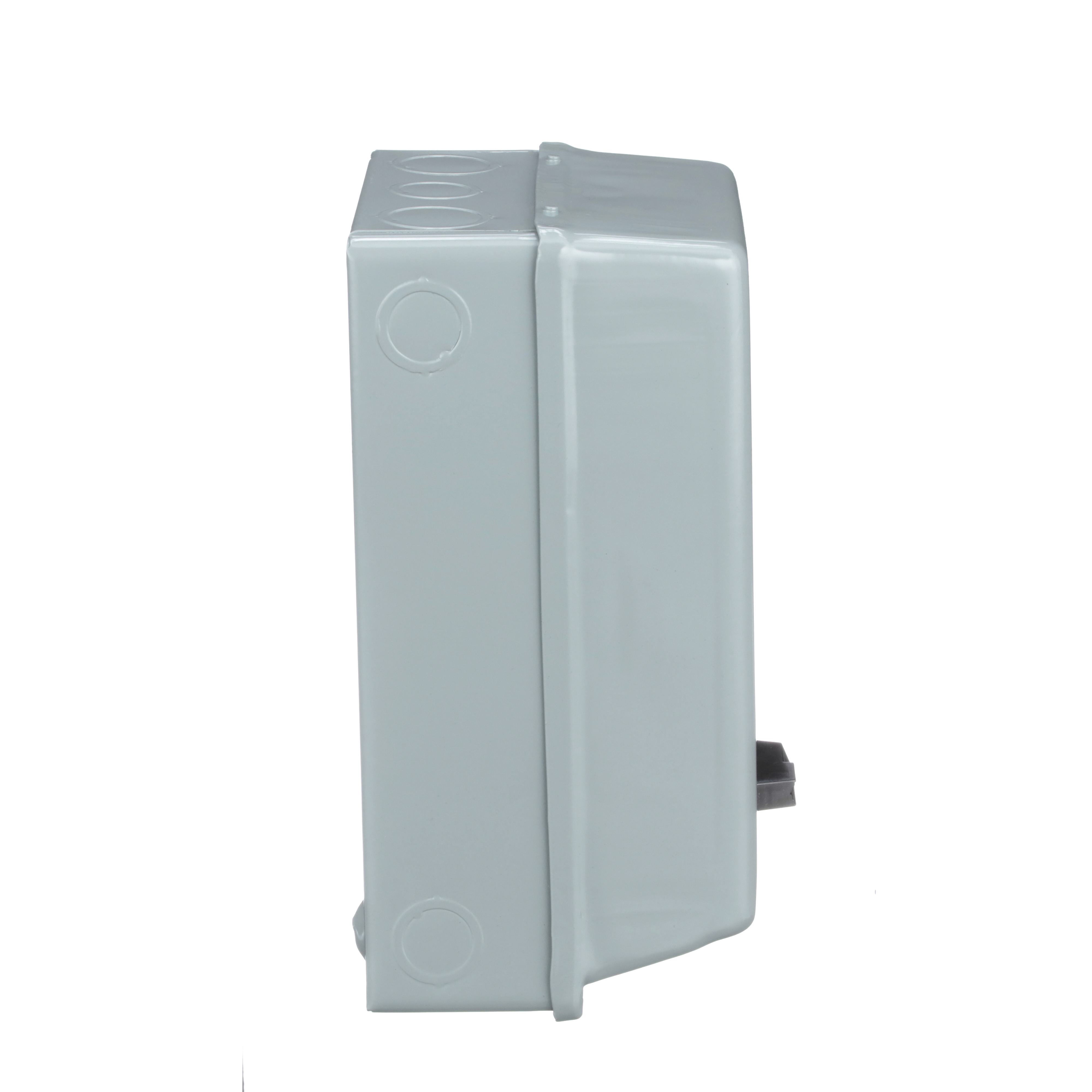

Schneider Electric Square D™ 8536SAG12V08H30S Type S Starter, 208 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure
Brand: Schneider Electric
Item ID: 422660
MPN: 8536SAG12V08H30S
UPC: 785901302629
Login for Price
Features
- A normally open holding circuit contact for three wire control is provided as standard
- Sizes 3 to 7 starters use a class 9999 SX6 auxiliary contact as the holding circuit contact
- Class 8536 type S sizes 00 to 6 starters are provided with a melting alloy thermal overload relay as standard
- Three ph starters use three thermal units
Description
Class 8536 type S magnetic starters are used to switch AC inductive motors with a variety of overload relay options. type S NEMA motor starters are designed for operation at 600 VAC max, up to 600 hp and with a max of 810 A.
Schneider Electric Square D™ Starter, Type S, 600 VAC, 9 A, 208 VAC Coil, 3 Pole, 3 ph ph, Screw Clamp Terminal Connection, Non-Reversing Action, NEMA 1 Enclosure, 152 mm W x 141 mm D x 254 mm H Dimensions
Specifications
Action |
Non-Reversing |
Amperage Rating |
9 A |
Coil Voltage |
208 VAC |
Connection Type |
Screw Clamp Terminal |
Dimensions |
152 mm W x 141 mm D x 254 mm H |
Enclosure Type |
NEMA 1 |
Number of Poles |
3 |
Phase |
3 ph |
Type |
Type S |
Voltage Rating |
600 VAC |
Standard Approval |
CSA Certified|UL Listed|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65PROP65s.ca.gov |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_76f7096983aa37dcb5e82228503d8b7cb1c9d9eb24231fad3b5edd9829fd222d.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7ebffd843b5d45c7dc541fc1f3b383996e941a894d9467d3eef0ab7c9a498ce6.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SAG12V08H30_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SAG12V08H30_Instruction_Installation_Manual.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8736SAO16V02H308S_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SAG12V02CS_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SDO1V02H301S_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SDO1V02H301S_Owners_User_Manual.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8e569d821d94c27181af454c0b7d5e4cd1d40100fbed0cd8e91f27ce0b61f251.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_8536SAG12V08H30S_Specification_Sheet.pdf
