Square D™ 8536SBG2V03H30S

• A normally open holding circuit contact for 3-wire control is provided as standard
• Sizes 00 to 2 starters use a class 9999 SX11 auxiliary contact as the holding circuit contact
• 3-phase starters use three thermal units
• Selectable trip class 10/20
• Ground fault detection and communication capabilities for future enhancement
• Ambient insensitive and features phase loss, phase unbalance and over current protection
• NEMA sizes 00 to 4 are supplied with coils that are designed to operate satisfactorily on line voltages of 85 to 110% of rated voltage
• Robust design and reliable build for long mechanical life and electrical endurance
• Serviceable by replacing contacts and coils rather than replacing the entire product, simply service the part that is worn out
• Without auxiliary contact
• Without pilot light
• Without control units
• 3 hp at 200 VAC, 3 hp at 230 VAC, 5 hp at 460 VAC, 5 hp at 575 VAC

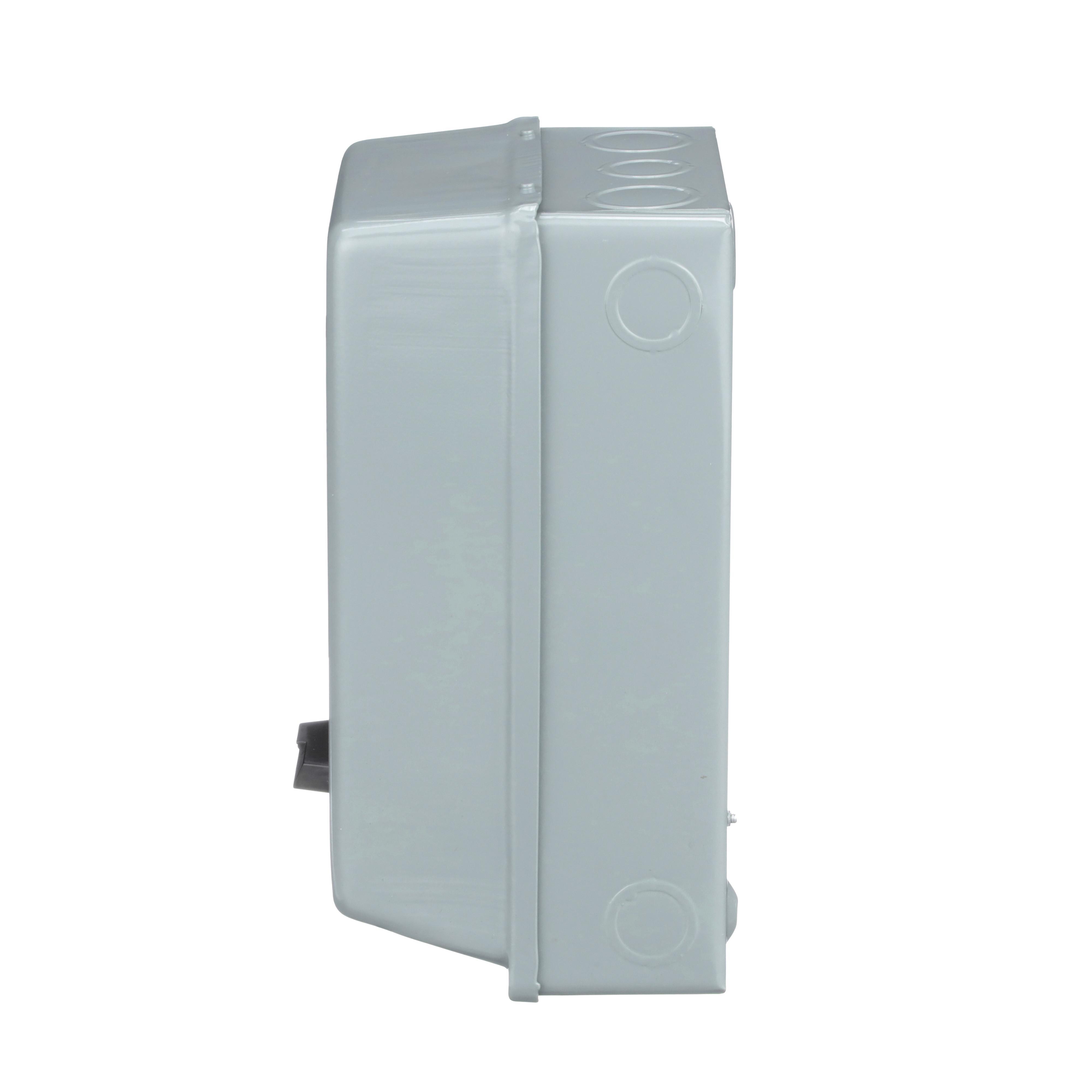

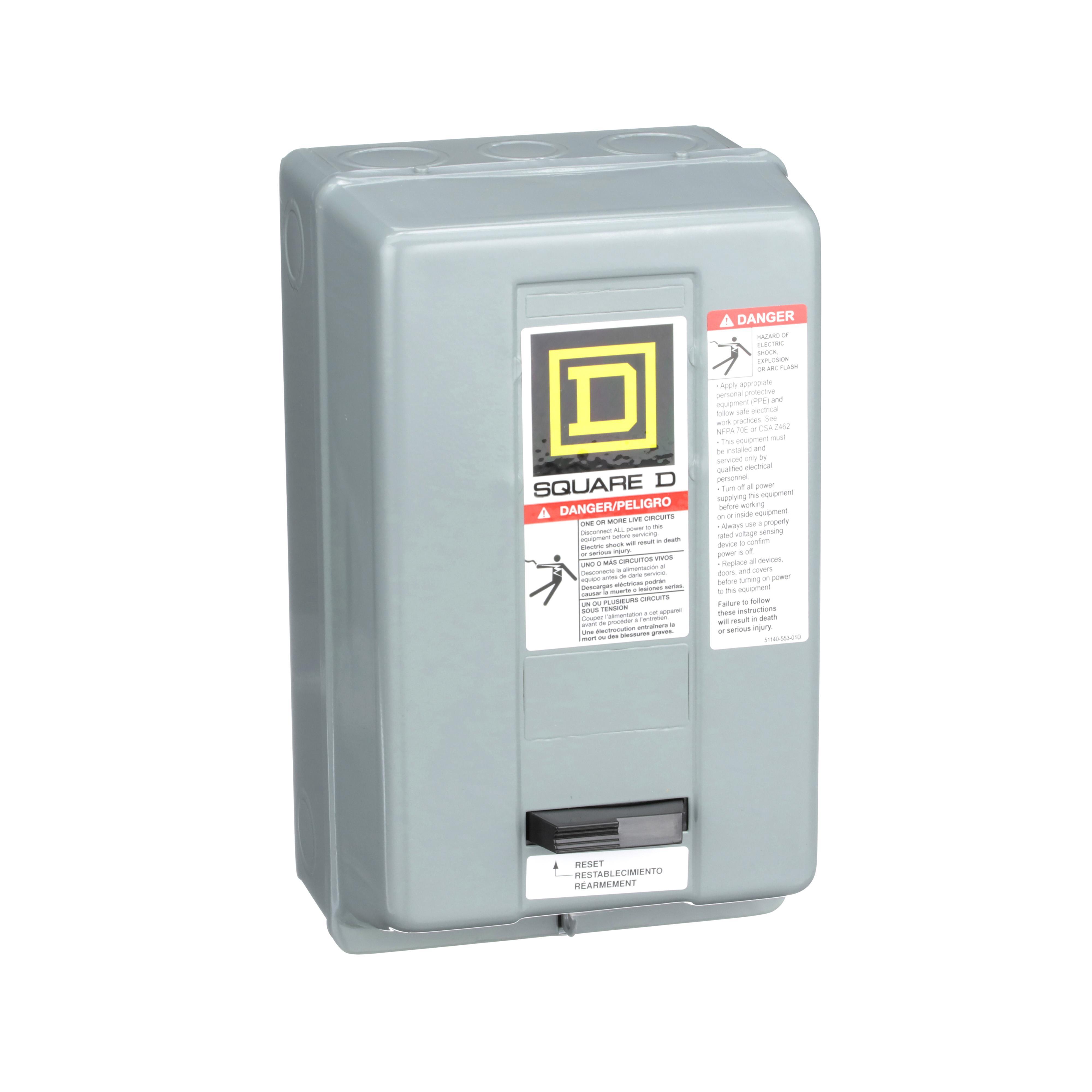

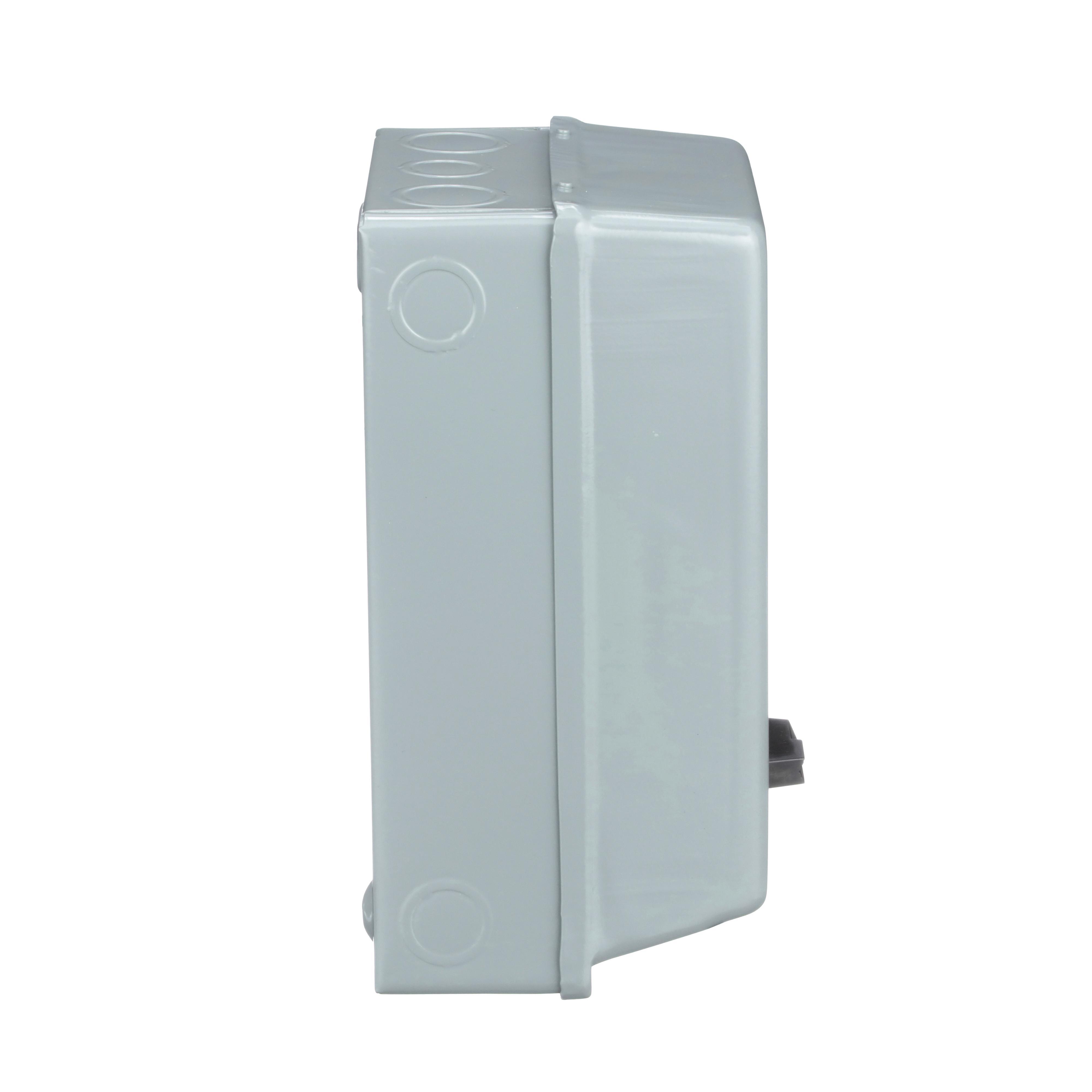

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 A. This 3 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. NEMA Size 0 motor starters have 3-phase ratings of 3 hp at 200 and 230 VAC and 5 hp at 460 and 575 VAC. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 6 to 18 A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 220/240 VAC 50/60 Hz operating coil wired for separate control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 10 in H x 6 in W x 5.56 in D. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.

Square D™ Schneider Electric NEMA Motor Magnetic Starter, Type S Full Voltage Size 0, Series: 8536, 600 VAC, 18 A, 50/60 Hz Frequency, 3 hp, 5 hp Motor, 220/240 VAC Coil, 3 Poles, 3 ph, Screw Clamp Connection, Non-Reversing Action, Motor Logic™ Class 10/20 Solid State Overload Relay, NEMA 1 Enclosure, Sheet Steel, 6 in W x 5.56 in D x 10 in H Dimensions
