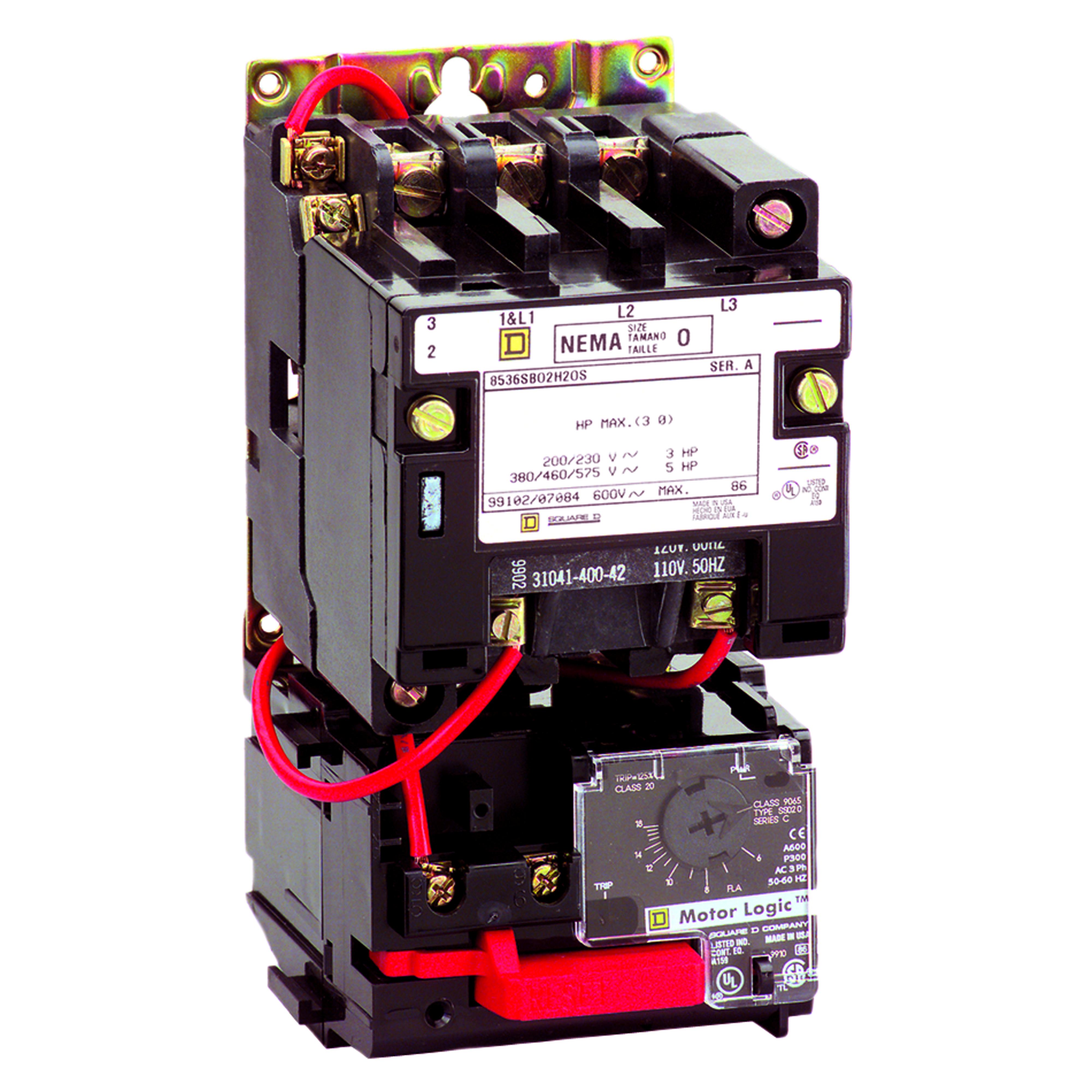

Square D™ 8536SBO2V06H30 Type S Magnetic Starter, 440 VAC at 50 Hz/480 VAC at 60 Hz V Coil, Non-Reversing Action, 3 Poles, Open Enclosure
Brand: Square D™
Item ID: 536726
MPN: 8536SBO2V06H30
UPC: 785901807292
Login for Price
Features
- Flexible with four overload relays, Motor Logic solid state, TeSysT communication solid state, Adapted Bimetal and melting alloy types
- Customizable with hundreds of combinations of contactors, starters, combination starters, pump panels, two-speed starters, reduced- voltage starters, enclosure options and accessories
- Serviceable by replacing contacts and coils rather than replacing the entire product
- Simply service the part that is worn out
Description
Class 8536 Type S magnetic starters are used to switch electric motors and provide overload protection. They are available as open or enclosed products.
Square D™ Magnetic Starter, Type S, Series: 8536, 600 VAC, 18 A, 50/60 Hz Frequency, 2.2 kW at 200/230 VAC/3.7 kW at 460/575 VAC Wattage, 3 hp at 200/230 VAC/5 hp at 460/575 VAC Motor, 440 VAC at 50 Hz/480 VAC at 60 Hz Coil, 3 Pole, 3 ph, Screw Clamp Connection, Non-Reversing Action, Motor Logic™ Solid-State Overload Relay, Open Enclosure, 0 to 40 deg C Operating, 3.5 in W x 4.21 in D x 6.77 in H Dimensions
Specifications
Action |
Non-Reversing |
Amperage Rating |
18 A |
Coil Voltage |
440 VAC at 50 Hz/480 VAC at 60 Hz |
Connection Type |
Screw Clamp |
Dimensions |
3.5 in W x 4.21 in D x 6.77 in H |
Enclosure Type |
Open |
Frequency Rating |
50/60 Hz |
Motor Power |
3 hp at 200/230 VAC/5 hp at 460/575 VAC |
Number of Poles |
3 |
Operating Temperature |
0 to 40 deg C |
Overload Relay |
Motor Logic™ Solid-State |
Phase |
3 ph |
Series |
8536 |
Type |
Type S |
Voltage Rating |
600 VAC |
Wattage |
2.2 kW at 200/230 VAC/3.7 kW at 460/575 VAC |
Standard Approval |
CE Certified|IEC 947-4-1|CSA 60905 Class 3211-04|ECCN EAR99|UL File E78351 NLDX|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
Construction, Infrastructure, Industrial Markets, Commercial Office Buildings And Building Automation, Used For Starting and Stopping Of AC Squirrel Cage Motors |
