Square D™ 8536SCA3V02S

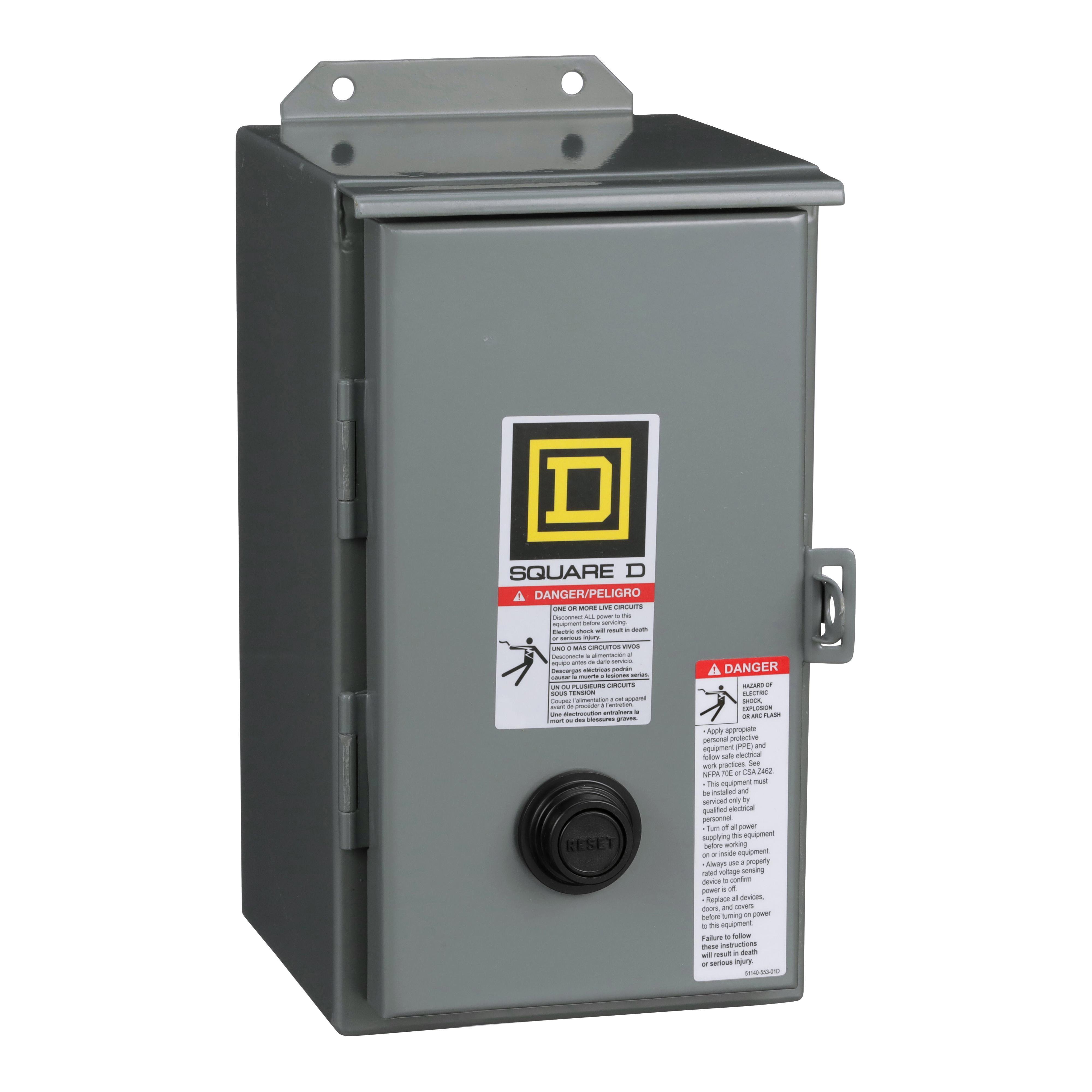

Square D™ 8536SCA3V02S Type S Starter, 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 12 Enclosure
Brand: Square D™
Item ID: 8536SCA3V02S
MPN: 8536SCA3V02S
UPC: 785901877424
Login for Price
Features
- Used for full voltage starting and stopping AC squirrel cage motors
- NEMA type 12 dusttight and driptight industrial use enclosure
- NEMA 1 enclosure rating
Description
Class 8536 type s magnetic starters are used to switch electric motors and provide overload protection. They are available as open or enclosed products.
Square D™ Starter, Type S, Series: 8536, 600 VAC, 27 A, 50/60 Hz, 5.5 kW at 200/230 VAC/7.5 kW at 460/575 VAC, 7-1/2 hp at 200/230 VAC/10 hp at 460/575 VAC Motor, 110/120 VAC Coil, 3 Pole, (3) Thermal Melting Alloy Reset, 3 ph, Screw Clamp, Non-Reversing, Thermal Melting Alloy 3 Overload Relay, NEMA 12, Starting Modes: Magnetic, Sheet Steel, 10 cpm Operating Cycles, 0 to 40 deg C Operating, 6.38 in W x 8.54 in D x 12.76 in H
Specifications
Action |
Non-Reversing |
Amperage Rating |
27 A |
Coil Voltage |
110/120 VAC |
Connection Type |
Screw Clamp |
Dimensions |
6.38 in W x 8.54 in D x 12.76 in H |
Enclosure Type |
NEMA 12 |
Frequency Rating |
50/60 Hz |
Material |
Sheet Steel |
Motor Power |
7-1/2 hp at 200/230 VAC/10 hp at 460/575 VAC |
Number of Poles |
3 |
Operating Cycles |
10 cpm |
Operating Temperature |
0 to 40 deg C |
Overload Relay |
Thermal Melting Alloy 3 |
Phase |
3 ph |
Reset Type |
(3) Thermal Melting Alloy |
Series |
8536 |
Starting Modes |
Magnetic |
Type |
Type S |
Voltage Rating |
600 VAC |
Wattage |
5.5 kW at 200/230 VAC/7.5 kW at 460/575 VAC |
Standard Approval |
CE Certified|IEC 947-4-1|CSA 60905 Class 3211-04|ECCN: EAR99|UL File No. E78351|Guide No. NLDX|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
Starting and Stopping of AC Squirrel Cage Motors, Construction, Infrastructure, Industrial Markets, Commercial Office Buildings and Building Automation Applications |
