Square D™ 8536SCG1V03

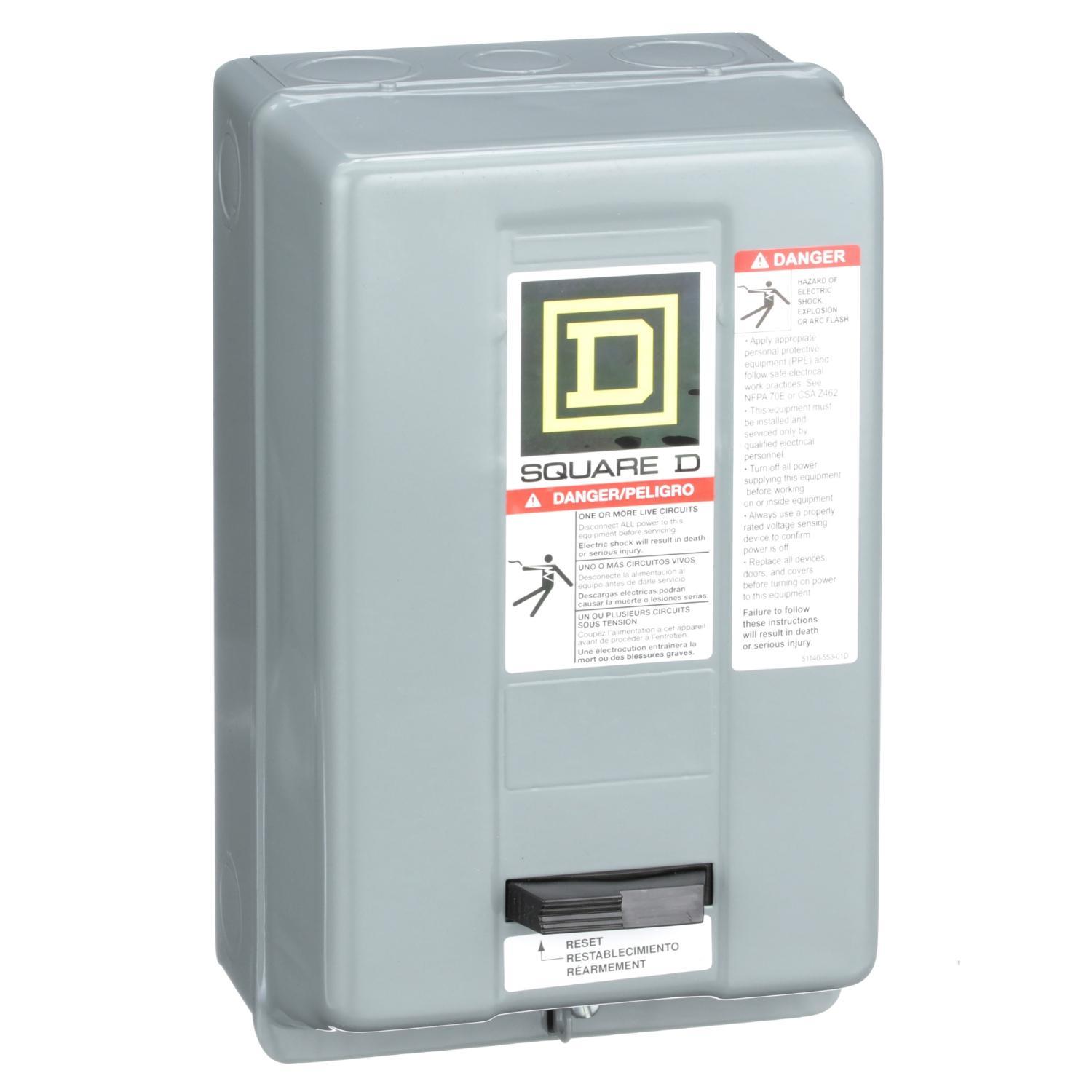

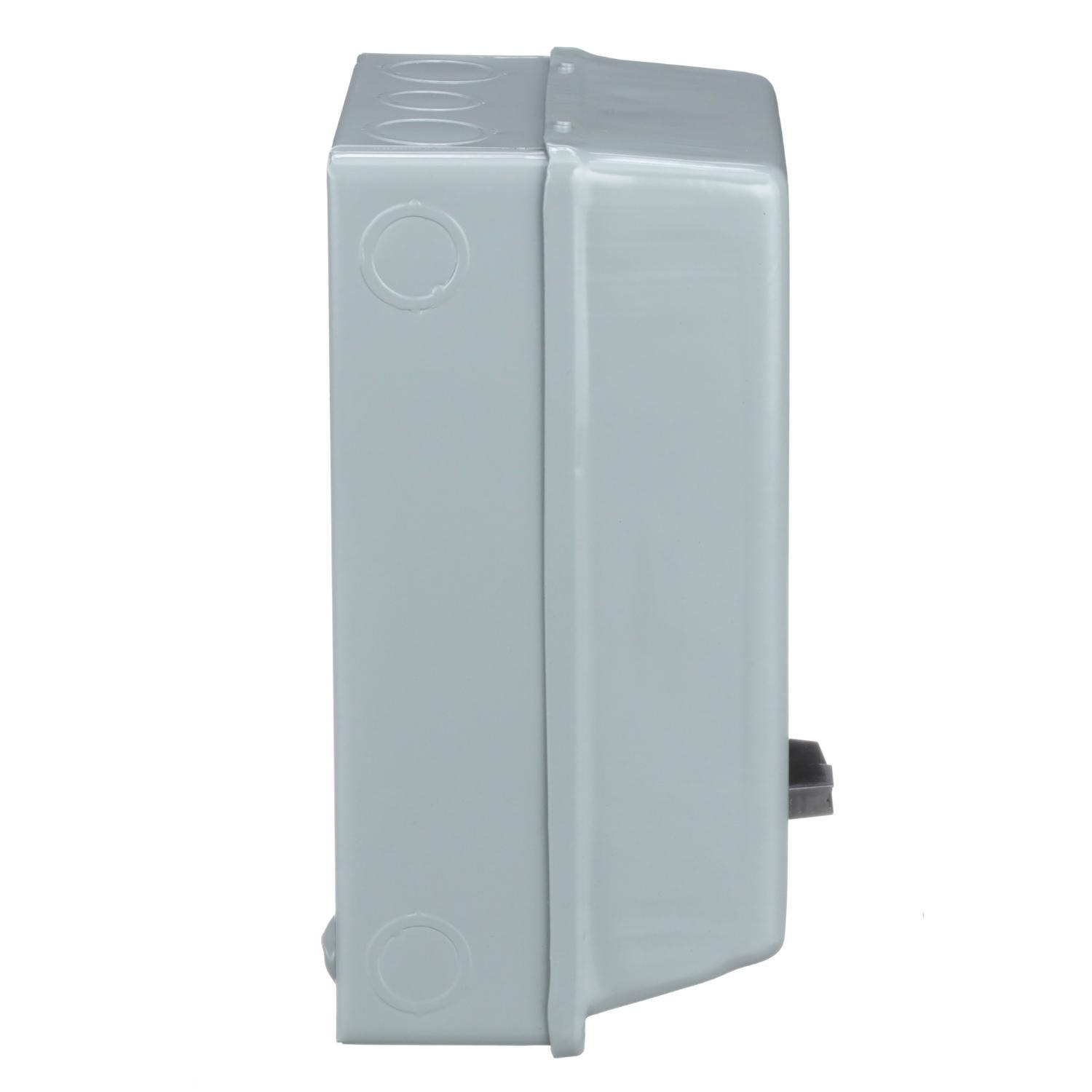

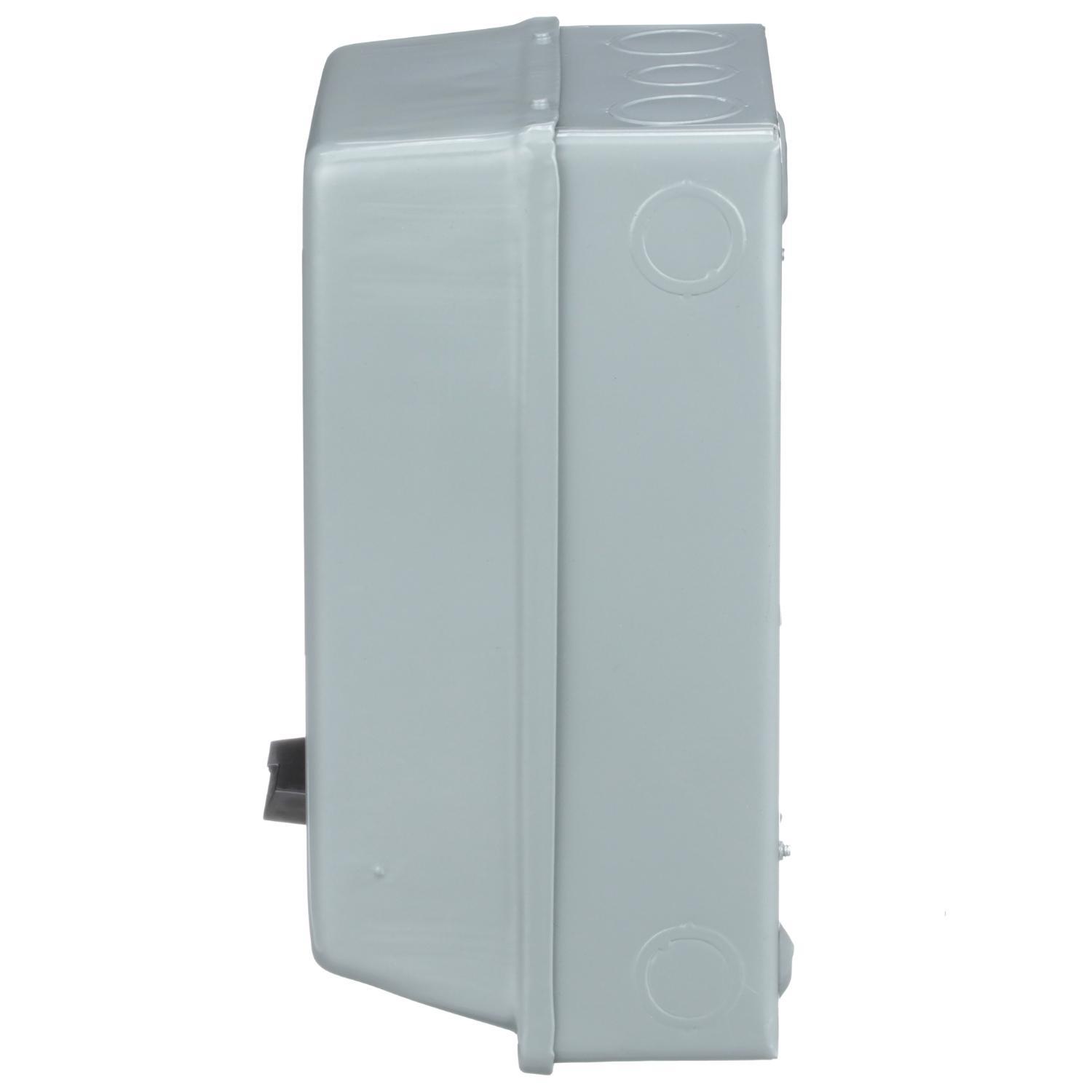

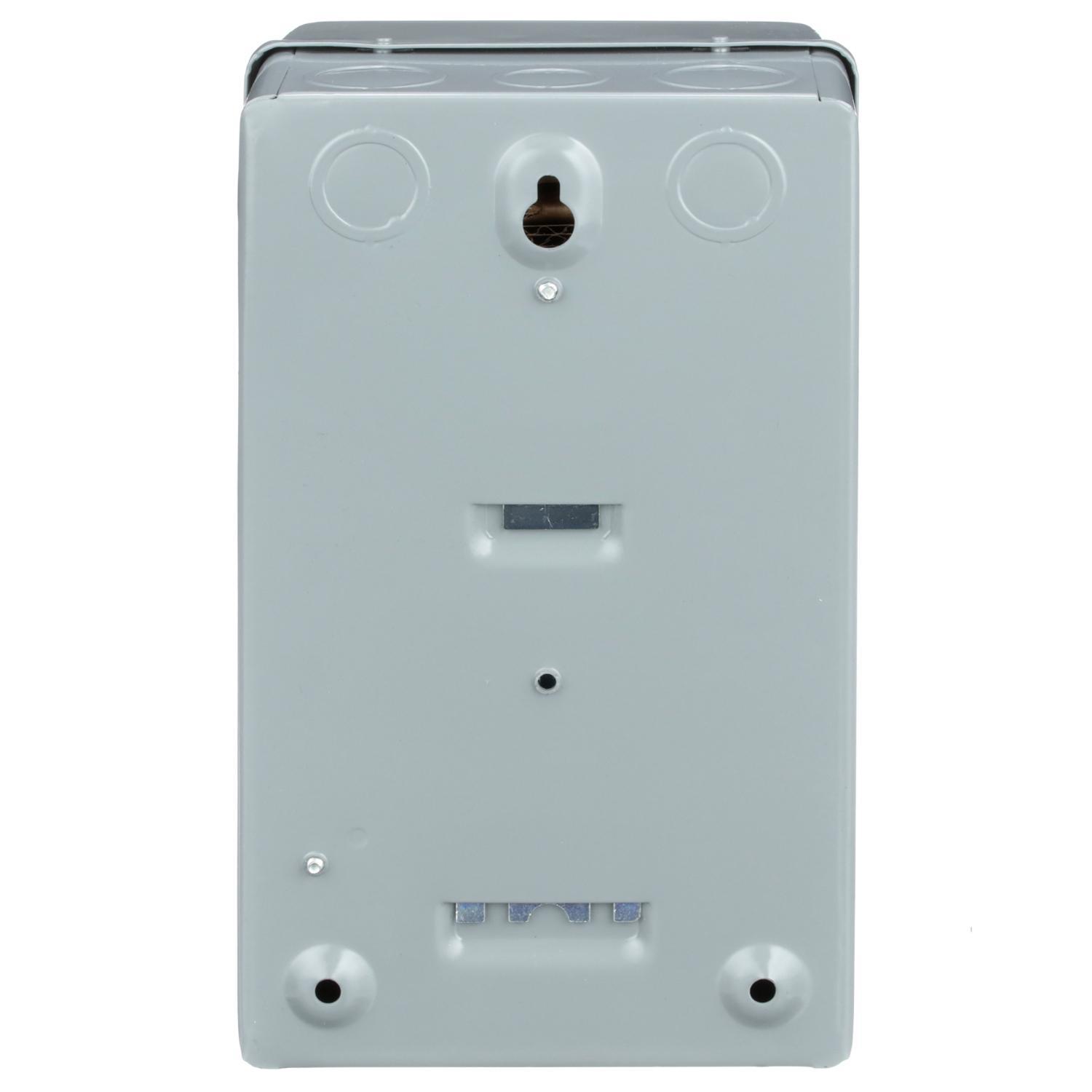

Square D™ 8536SCG1V03 Type S Magnetic Starter, 220 VAC at 50 Hz, 240 VAC at 60 Hz V Coil, 2 Poles, NEMA 1 Enclosure
Brand: Square D™
Item ID: 8536SCG1V03
MPN: 8536SCG1V03
UPC: 785901080169
Login for Price
Features
- Used for full voltage starting and stopping AC squirrel cage motors
- NEMA type 1 general purpose enclosure
- NEMA 1 enclosure rating
Description
Class 8536 type S magnetic starters are used to switch electric motors and provide overload protection. They are available as open or enclosed products.
Square D™ Magnetic Starter, Type S, Series: 8536, 600 VAC, 27 A, 50/60 Hz Frequency, 2 hp at 115 VAC, 3 hp at 230 VAC Motor, 220 VAC at 50 Hz, 240 VAC at 60 Hz Coil, 2 Pole, Thermal Melting Alloy Reset, 1 ph, Screw Clamp Connection, Thermal Melting Alloy Overload Relay, NEMA 1 Enclosure, Sheet Steel, 10 cpm Operating Cycles, 0 to 40 deg C Operating, 10 in H x 5.98 in W x 5.55 in D Dimensions
Specifications
Amperage Rating |
27 A |
Coil Voltage |
220 VAC at 50 Hz, 240 VAC at 60 Hz |
Connection Type |
Screw Clamp |
Dimensions |
10 in H x 5.98 in W x 5.55 in D |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Material |
Sheet Steel |
Motor Power |
2 hp at 115 VAC, 3 hp at 230 VAC |
Number of Poles |
2 |
Operating Cycles |
10 cpm |
Operating Temperature |
0 to 40 deg C |
Overload Relay |
Thermal Melting Alloy |
Phase |
1 |
Reset Type |
Thermal Melting Alloy |
Series |
8536 |
Type |
Type S |
Voltage Rating |
600 VAC |
Standard Approval |
CE Certified|IEC 947-4-1|CSA 60905 Class 3211-04|ECCN EAR99|UL File E78351 NLDX|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
Application |
Starting and Stopping of AC Squirrel Cage Motors, Construction, Infrastructure, Industrial Markets, Commercial Office Buildings and Building Automation Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2b07a78d41ab9edc81ca6ed1b56b3cdbc1b42143e547575929609b9fd14fc150.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SBG1V02S_Full_Engineering_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SBG1V02S_Full_Engineering_Drawing.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SBH1V03_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8502SCO2V08S_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8538SCA24V02SY74_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8538SCA24V02SY74_Instruction_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SAG12V02CS_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SDO1V02H301S_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SDO1V02H301S_Owners_User_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b7211dfd350aee4423d9e23a022f1597dc8c625a97e130344483cb9c07c81f40.pdf
