Square D™ 8536SCO3V08

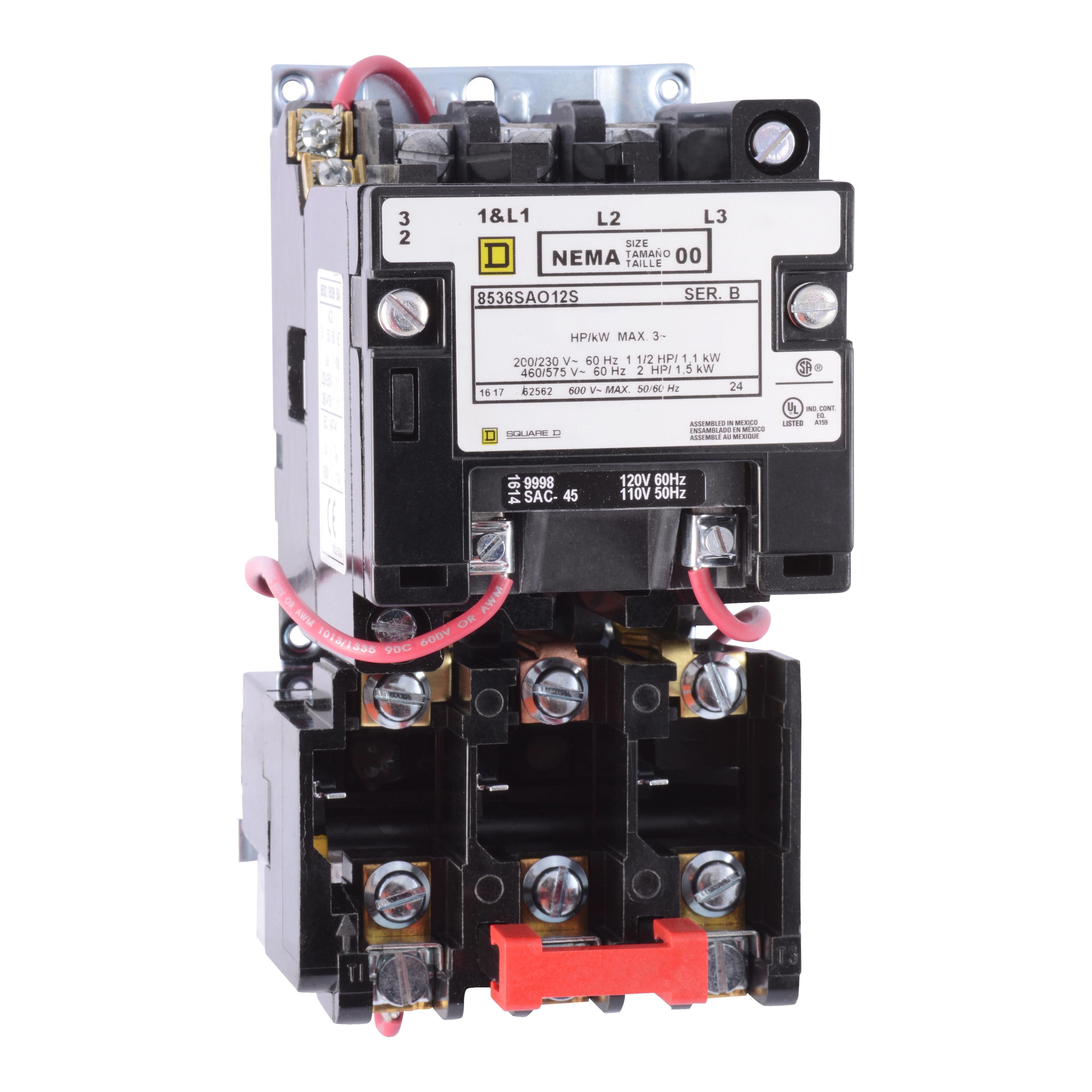

Square D™ 8536SCO3V08 Type S Starter, 208 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 1/Open Enclosure
Brand: Square D™
Item ID: 526236
MPN: 8536SCO3V08
UPC: 785901767916
Login for Price
Features
- 7.5 hp at 200/230 VAC, 10 hp at 460/575 vac power rating
Description
Square D™ Starter, Type S, Series: 8536, 600 VAC, 27 A, 50/60 Hz, 7-1/2 hp at 200/230 VAC/10 hp at 460/575 VAC Motor, 208 VAC Coil, 3 Pole, (3) Thermal Melting Alloy Reset, 3 ph, Screw Clamp, Non-Reversing, NEMA 1/Open, Starting Modes: Magnetic, Sheet Steel, 0 to 40 deg C Operating, 4.21 in W x 3.5 in D x 6.77 in H
Specifications
Action |
Non-Reversing |
Amperage Rating |
27 A |
Coil Voltage |
208 VAC |
Connection Type |
Screw Clamp |
Dimensions |
4.21 in W x 3.5 in D x 6.77 in H |
Enclosure Type |
NEMA 1/Open |
Frequency Rating |
50/60 Hz |
Material |
Sheet Steel |
Motor Power |
7-1/2 hp at 200/230 VAC/10 hp at 460/575 VAC |
Number of Poles |
3 |
Operating Temperature |
0 to 40 deg C |
Phase |
3 ph |
Reset Type |
(3) Thermal Melting Alloy |
Series |
8536 |
Starting Modes |
Magnetic |
Type |
Type S |
Voltage Rating |
600 VAC |
Standard Approval |
UL Listed|CSA Certified|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
Constructions, Infrastructure, Industrial Markets, Commercial Office Buildings, Building Automation, Starting and Stopping Of AC Squirrel Cage Motors Applications |
