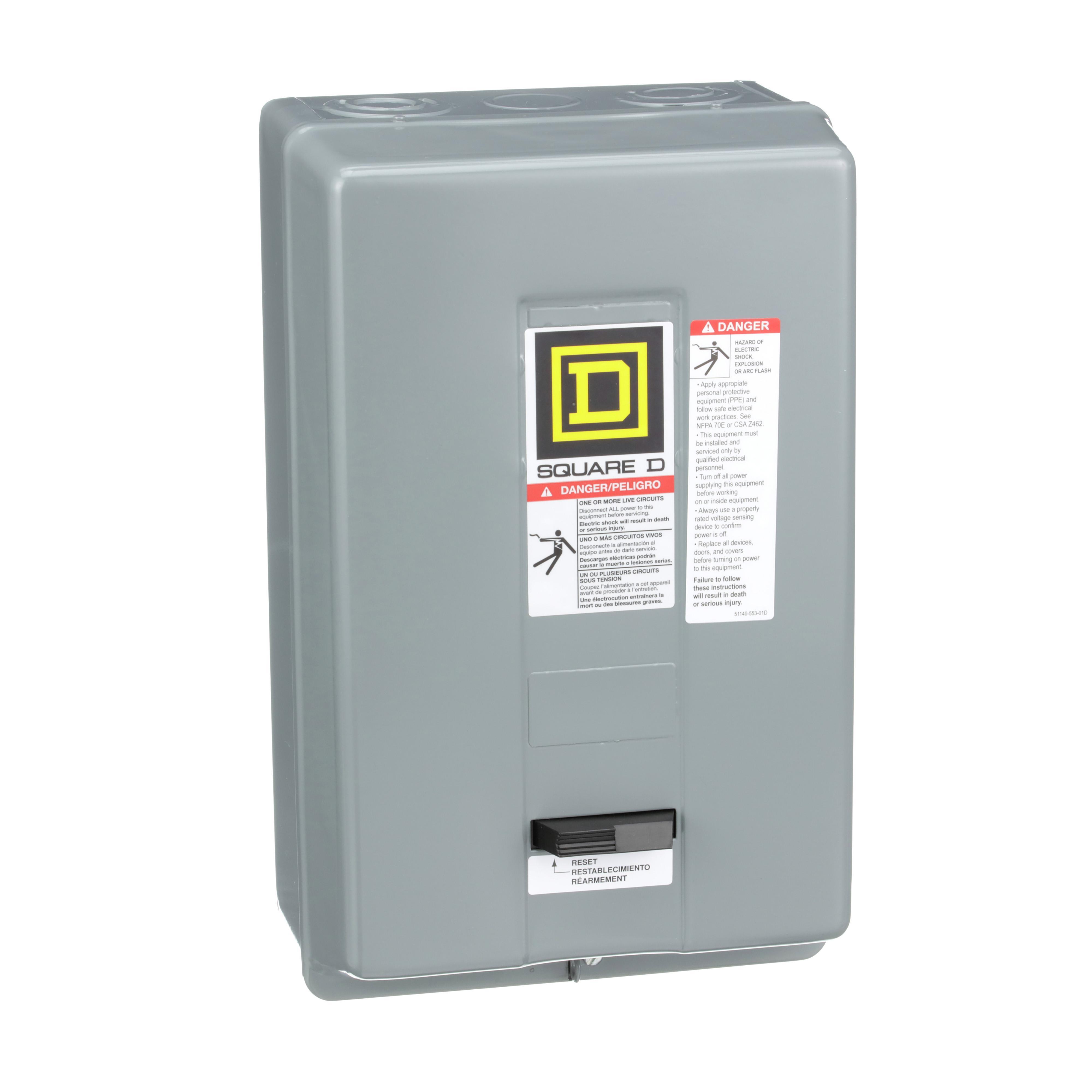

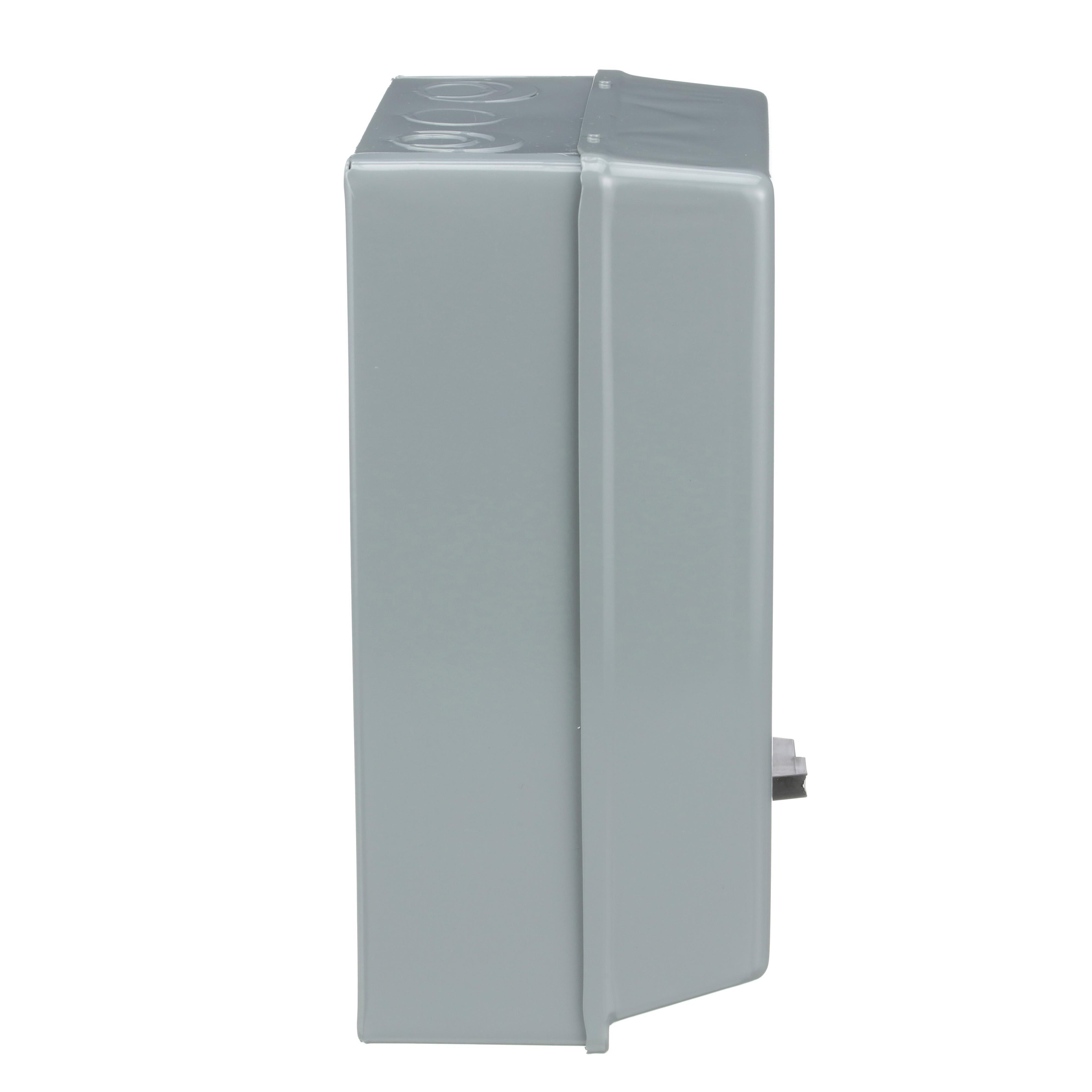

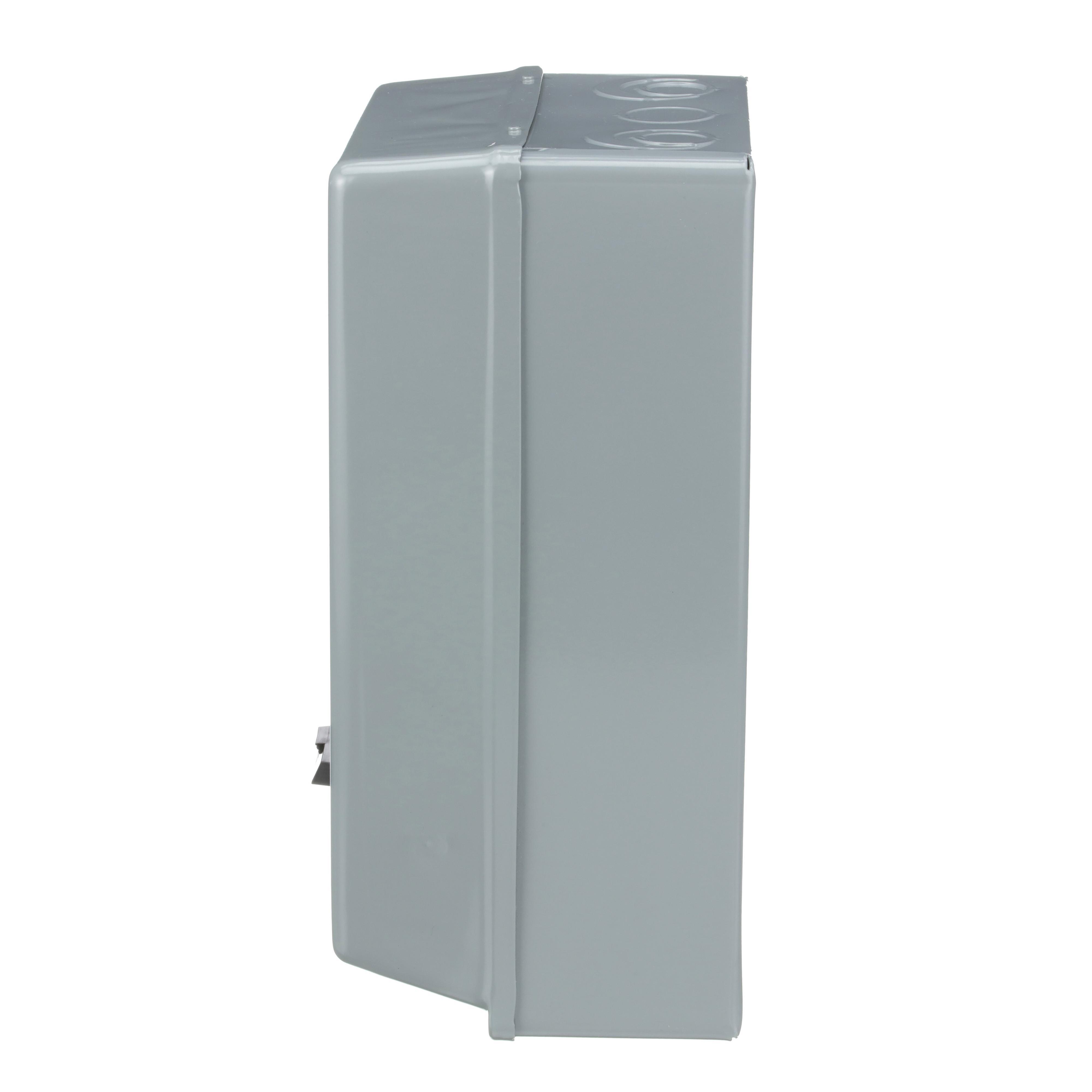

Square D™ 8536SDG1V02S
Square D™ 8536SDG1V02S General Purpose Type S Starter, 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 1/2 Enclosure
Brand: Square D™
Item ID: 39108
MPN: 8536SDG1V02S
UPC: 785901881926
Login for Price
Features
- 10 hp at 200 VAC, 15 hp at 230 VAC, 25 hp at 460/575 vac motor power rating
Description
Type S nonreversing magnetic starter, NEMA Size 2, 3 P, 110/120 VAC 50/60 Hz coil, melting alloy overload, NEMA 1
Square D™ Starter, General Purpose Type S, 600 VAC, 45 A, 50/60 Hz, 10 hp/15 hp/25 hp Motor, 110/120 VAC Coil, 3 Pole, (3) Thermal Melting Alloy Reset, 3 ph, Screw Clamp, Non-Reversing, Thermal Melting Alloy Overload Relay, NEMA 1/2, Starting Modes: Magnetic, Sheet Steel, 6.3 in W x 7.8 in D x 12.68 in H
Specifications
Action |
Non-Reversing |
Amperage Rating |
45 A |
Coil Voltage |
110/120 VAC |
Connection Type |
Screw Clamp |
Dimensions |
6.3 in W x 7.8 in D x 12.68 in H |
Enclosure Type |
NEMA 1/2 |
Frequency Rating |
50/60 Hz |
Material |
Sheet Steel |
Motor Power |
10 hp/15 hp/25 hp |
Number of Poles |
3 |
Overload Relay |
Thermal Melting Alloy |
Phase |
3 ph |
Reset Type |
(3) Thermal Melting Alloy |
Starting Modes |
Magnetic |
Type |
General Purpose Type S |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|UL Listed|CSA Certified|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
For full voltage starting and stopping of AC squirrel cage motors applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_38883d9af2fb32181f8bca874df3f5842627c8bedd5020f055c26b745d7f3963.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SDA1V03A_Full_Engineering_Drawing.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SDG1V01CS_Full_Engineering_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SDG1V01CS_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f8ab85188a50600cfa283f0ab6bd1c8799649898931ed1bb76a8ca60b490542e.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_3106340957_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SDG1V01CS_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SDG1V01CS_Instruction_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SAG12V02CS_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SDO1V02H301S_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SDO1V02H301S_Owners_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8501XDO40V62Y414_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_adf1da99a64a04ff162bc9d2d52521130d19664a7fbd797cf2c6166c6c2d1f74.pdf
