Square D™ 8903LG40V02 Type L Electrically Held Multi-Pole Lighting Contactor, 110/120 VAC V Coil, 30 A, 4NO Contact, 4 Poles
Brand: Square D™
Item ID: 39692
MPN: 8903LG40V02
UPC: 785901851325
Login for Price
Features
- 30 A ballast lighting rating, 20 A tungsten lighting rating
- 2 thru 12-pole versions
- Field convertible contacts with no and NC indicators
- Without indicator
Description

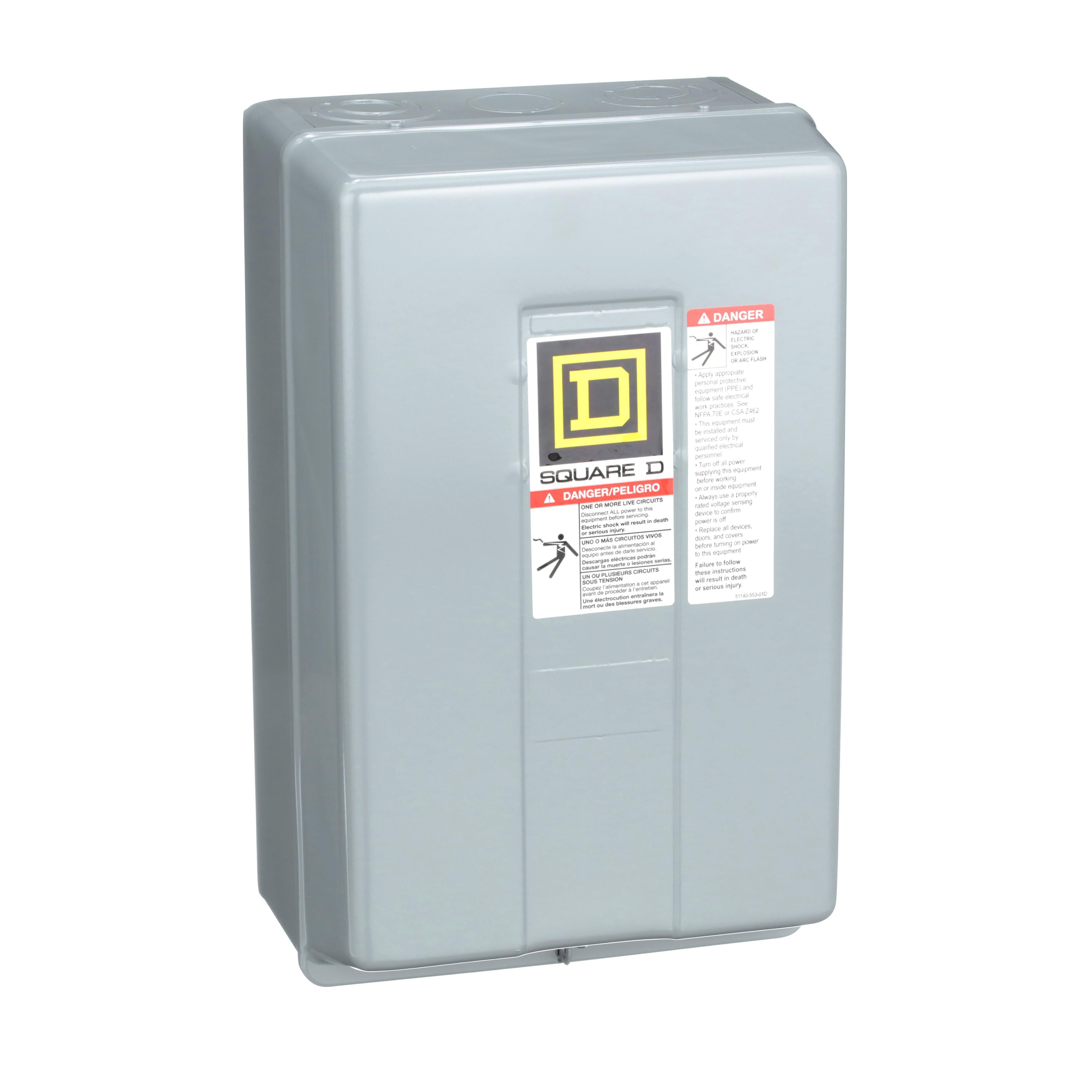

Square D™ Lighting Contactor, Type L Electrically Held Multi-Pole, Series: 8903L, 110/120 VAC Coil, 30 A Maximum Load Current, 4 Pole, 50/60 Hz, 4NO, Screw Clamp, NEMA 1, Surface Mount, 7.81 in W x 6.03 in D x 12.69 in H
Specifications
Coil Voltage |
110/120 VAC |
Connection Type |
Screw Clamp |
Contact Configuration |
4NO |
Dimensions |
7.81 in W x 6.03 in D x 12.69 in H |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Maximum Load Current |
30 A |
Mounting Type |
Surface |
Number of Poles |
4 |
Series |
8903L |
Type |
Type L Electrically Held Multi-Pole |
Standard Approval |
RoHS Compliant|Class 3211-07|UL File No. E78427|CCN Guide No. NRNT|CSA File No. LR60905 Certified |
Application |
For electrically held applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b2691c7338b24a2c72e4540cca7b06b4d4a0e3f235f3ac1cb4546d544de885bb.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903L1R_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903L1R_Instruction_Installation_Manual.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903LO0012V02_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d089fcced22ed3bee501e3e607819f342bc498e44579a3977dc5962a04dd52ad.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0f80a09b1f89c07a9689afae4a8543722c3a6a136c9d3693d50ce14c529cba10.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903LG40V02_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0abf748cddaf42a046aeff30d6b9a9408083a5ad5bf1618f8bec9c6479543f43.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903LG40V02_Specification_Sheet.pdf
