Square D™ 8903LO1000V02

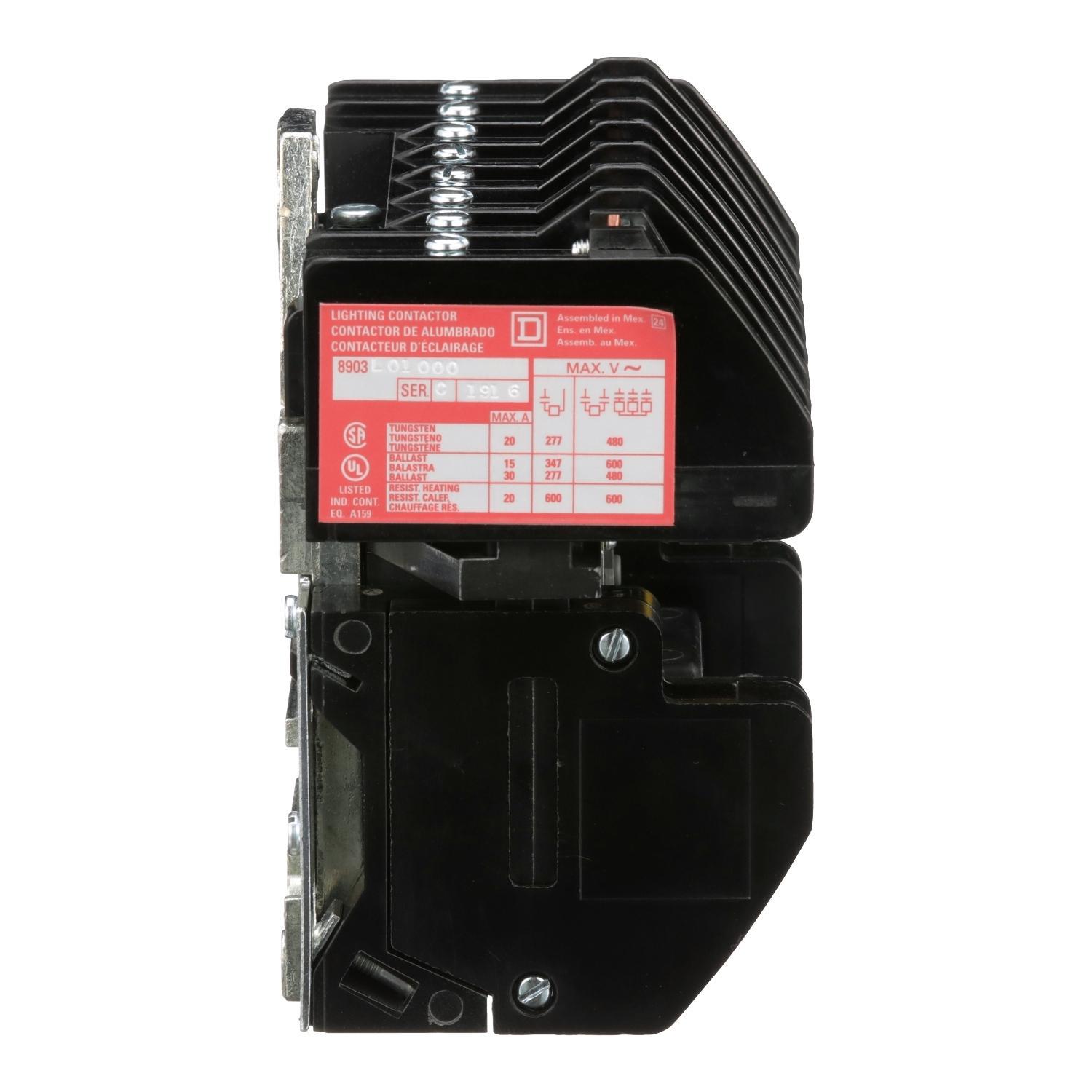

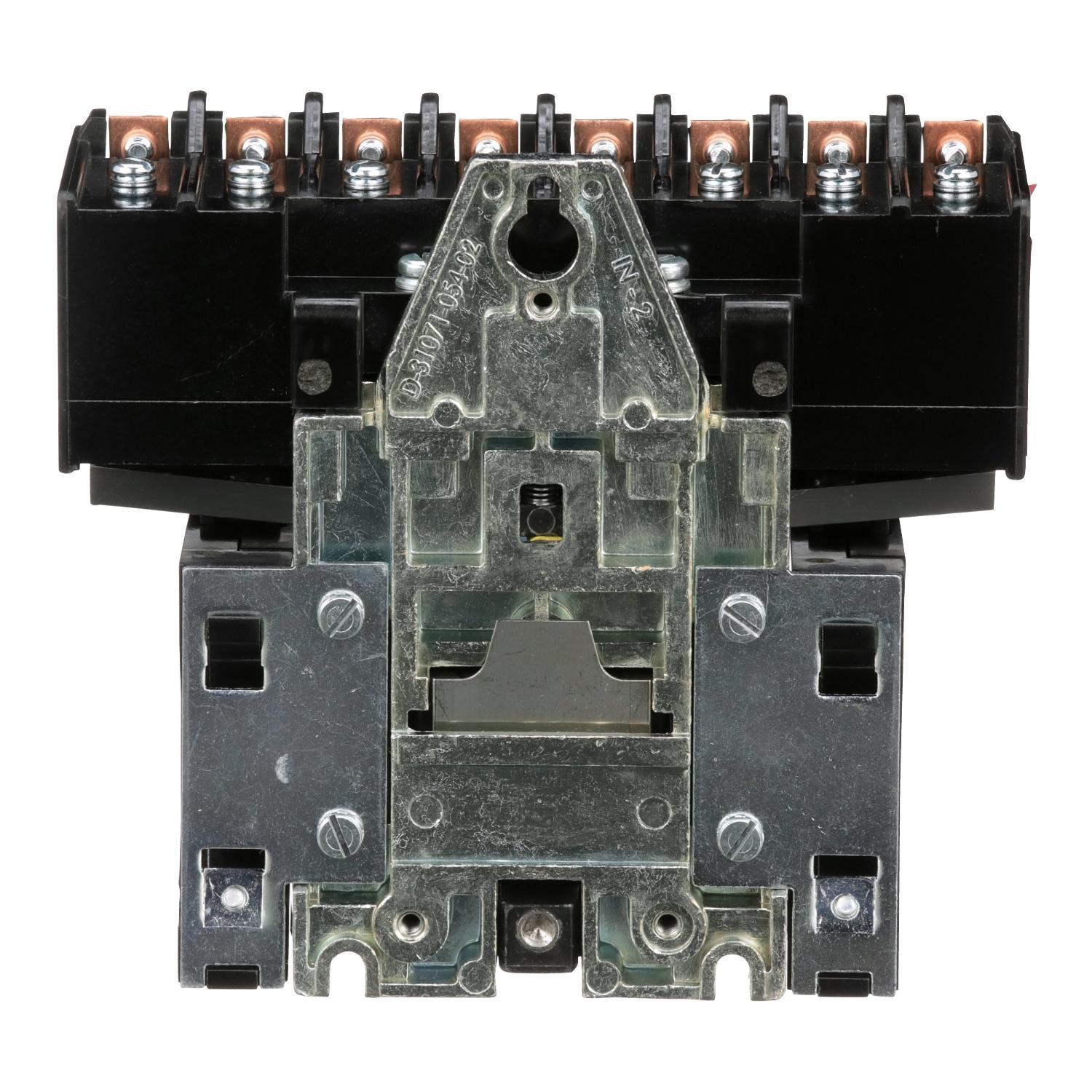

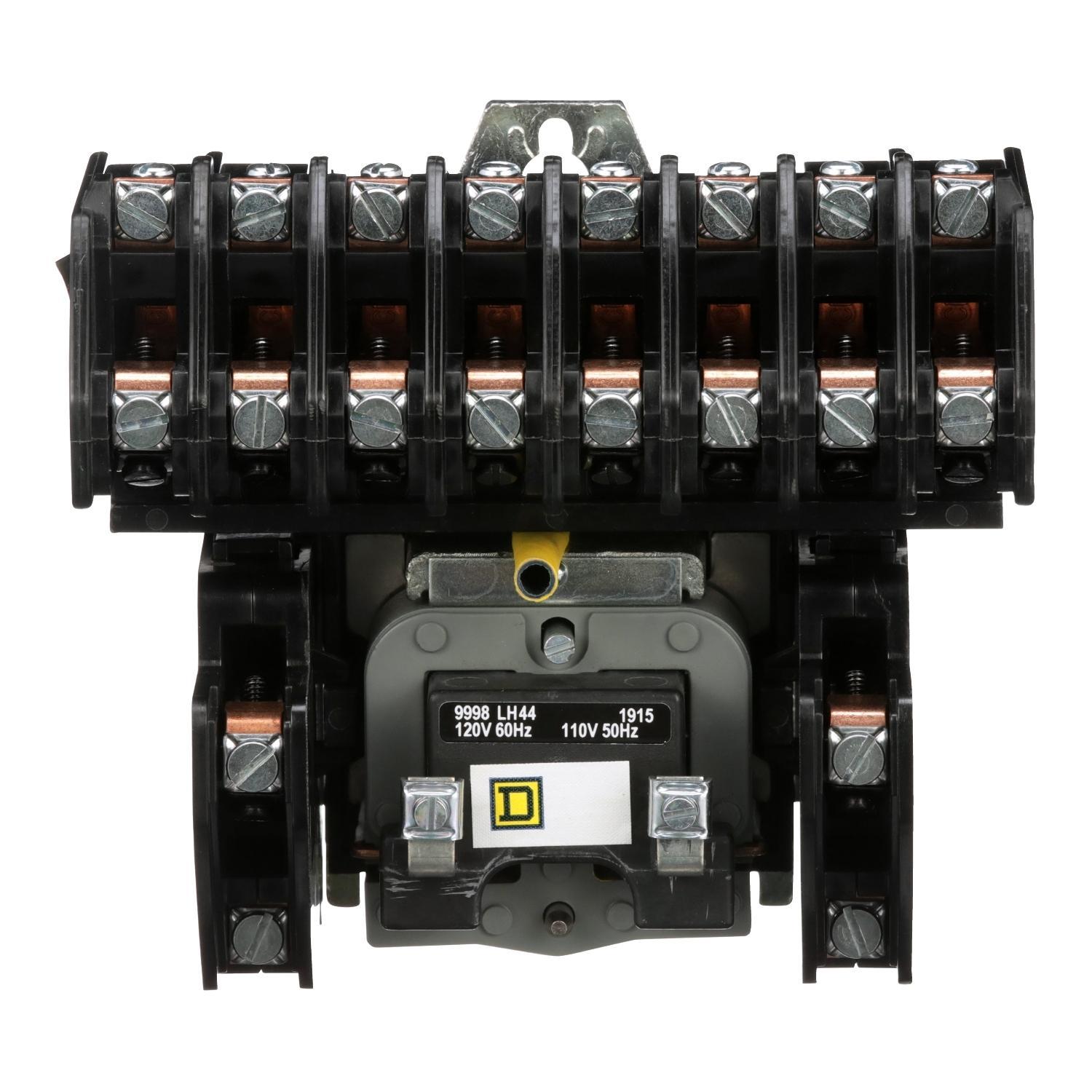

Square D™ 8903LO1000V02 Type L Electrically Held Multi-Pole Lighting Contactor, 110/120 VAC V Coil, 30 A, 10NO Contact, 10 Poles
Brand: Square D™
Item ID: 8903LO1000V02
MPN: 8903LO1000V02
UPC: 785901851806
Login for Price
Features
- 30 A ballast lighting rating, 20 A tungsten lighting rating
- Two through 12-pole versions

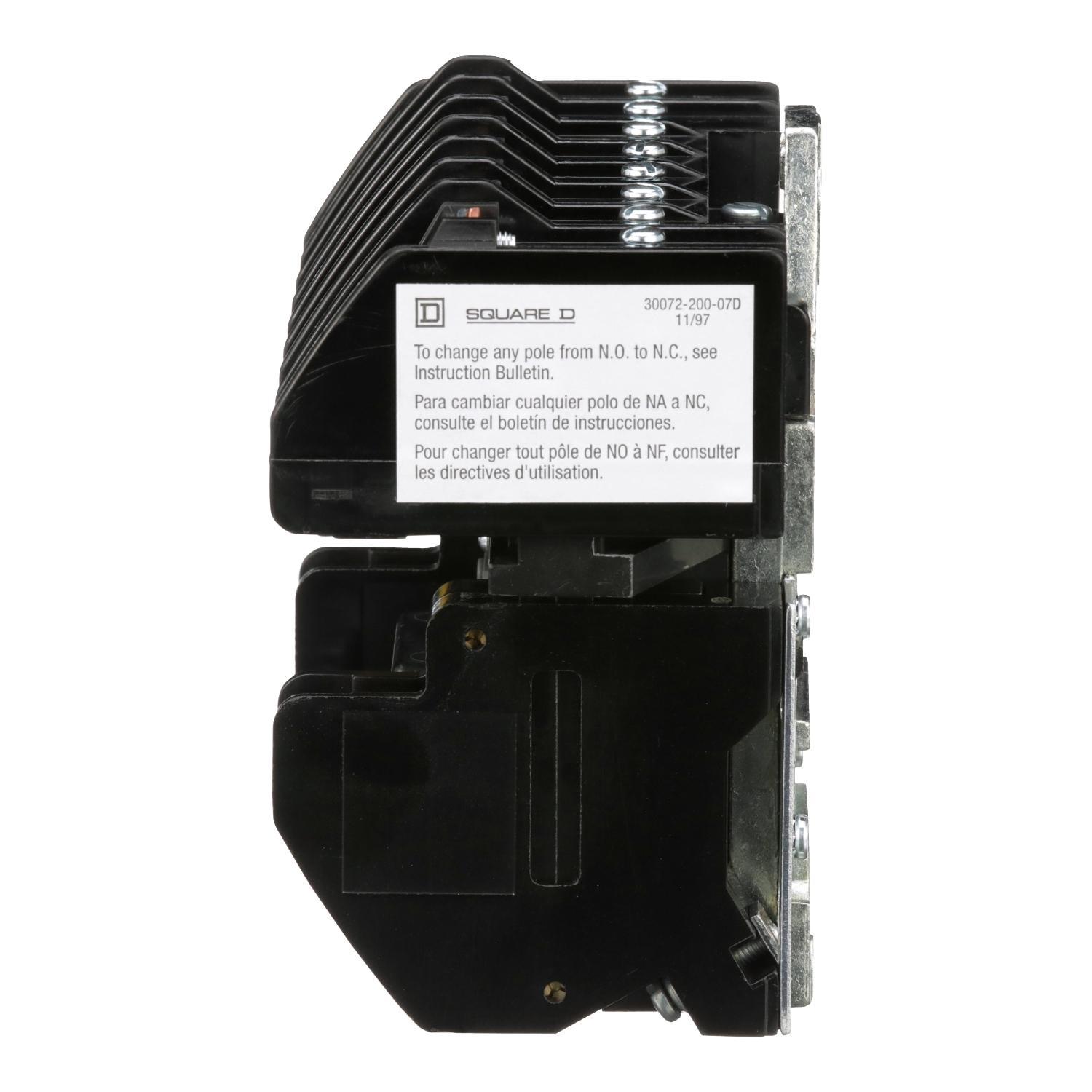

- Field convertible contacts with no and NC indicators
Description
Square D™ Lighting Contactor, Type L Electrically Held Multi-Pole, Series: 8903L, 110/120 VAC Coil, 30 A Maximum Load Current, 10 Pole, 50/60 Hz Frequency, 10NO Contact Configuration, 600 VAC Contact, Screw Clamp Connection, Open Enclosure, Surface Mounting, 5.63 in W x 3.12 in D x 5 in H Dimensions
Specifications
Coil Voltage |
110/120 VAC |
Connection Type |
Screw Clamp |
Contact Configuration |
10NO |
Contact Rating |
600 VAC |
Dimensions |
5.63 in W x 3.12 in D x 5 in H |
Enclosure Type |
Open |
Frequency Rating |
50/60 Hz |
Maximum Load Current |
30 A |
Mounting Type |
Surface |
Number of Poles |
10 |
Series |
8903L |
Type |
Type L Electrically Held Multi-Pole |
Standard Approval |
RoHS Compliant|UL File No. E78427 CCN Guide No. NRNT|CSA File No. LR60905 Class 3211-07|ECCN: EAR99 |
