Square D™ 8903LO40V02

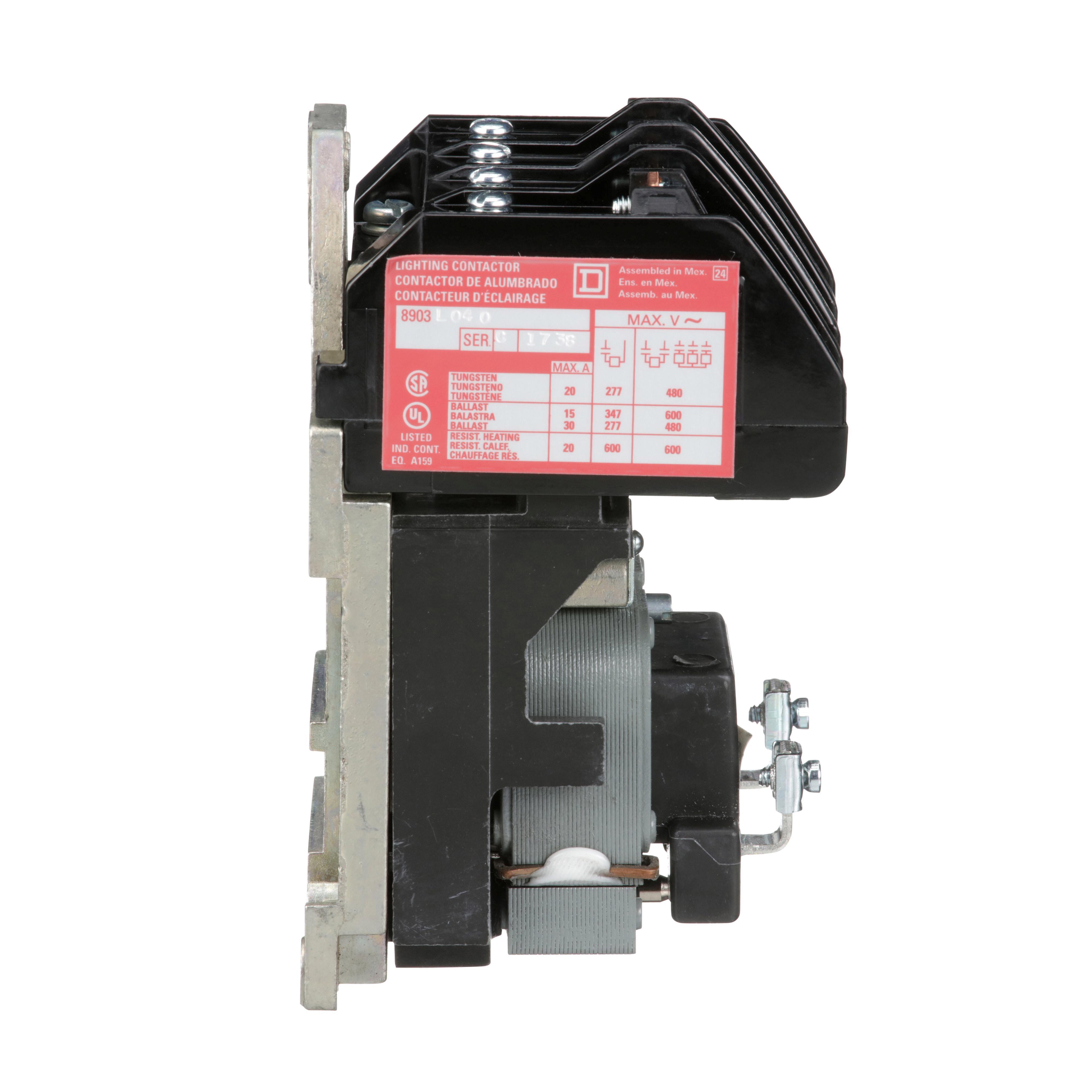

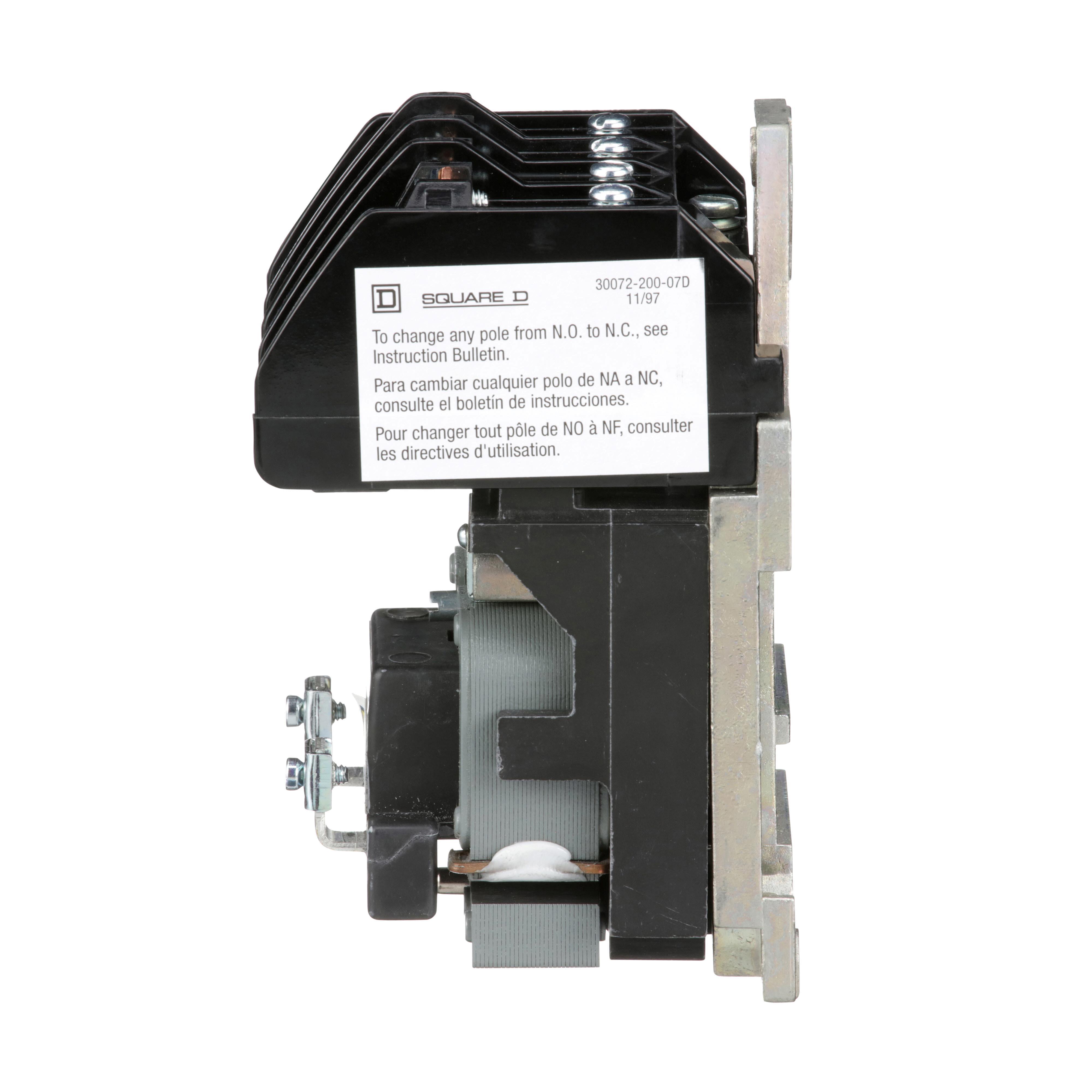

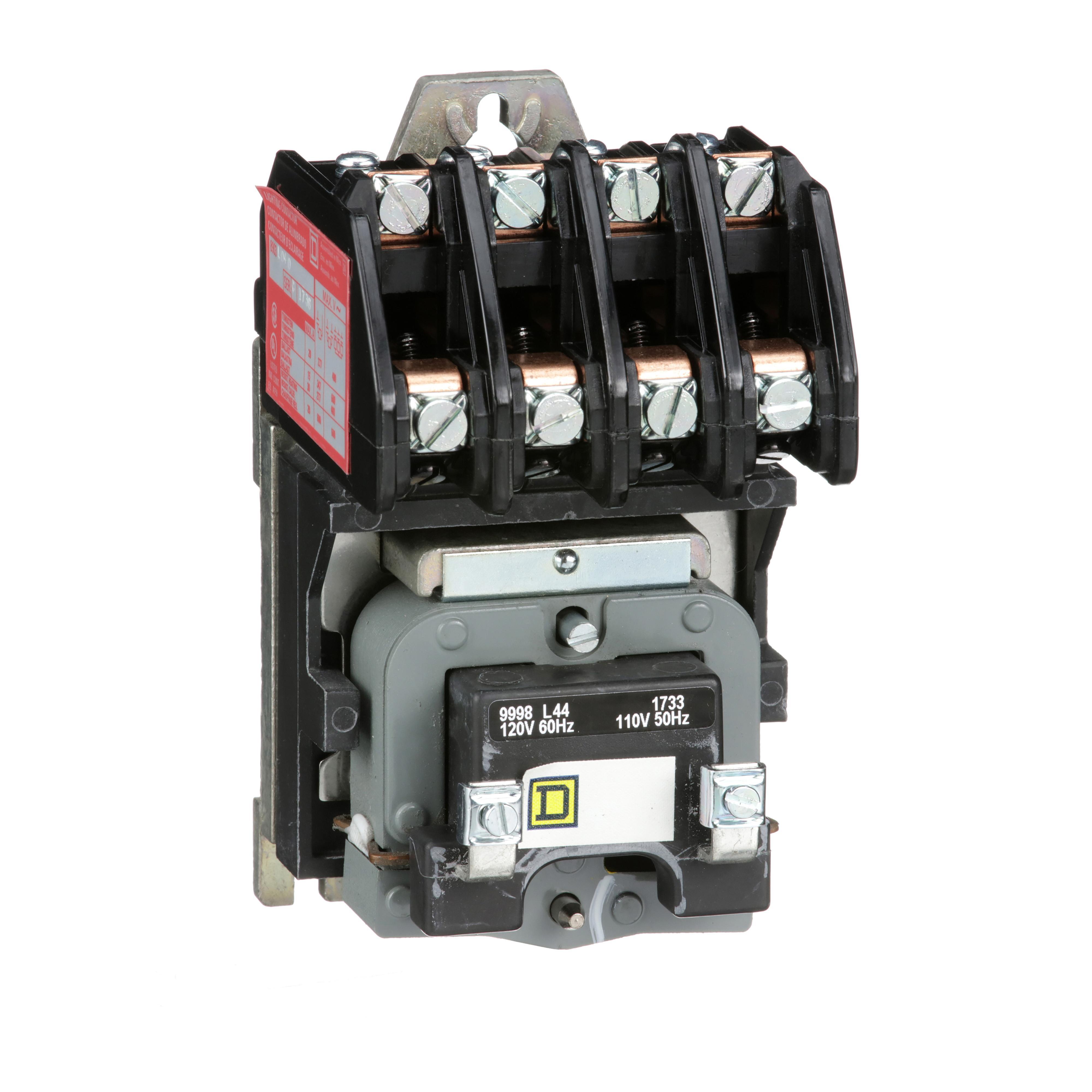

Square D™ 8903LO40V02 8903L Type L Electrically Held Multi-Pole Contactor, 110/120 VAC V Coil, 30 A, 4NO Contact, 4 Poles
Brand: Square D™
Item ID: 438906
MPN: 8903LO40V02
UPC: 785901851714
Login for Price
Features
- 30 A ballast lighting rating, 20 A tungsten lighting rating
- 2 thru 12-pole versions
- Field convertible contacts with no and NC indicators
- Without indicator
- Electrically held operational mode
Description
Square D™, 8903LO40V02, Contactor, Type L Electrically Held Multi-Pole, Series: 8903L, 110/120 VAC Coil, 30 A Maximum Load Current, 4 Pole, 50/60 Hz Frequency, 4NO Contact Configuration, Screw Clamp Connection, Open Enclosure, Surface Mounting, 2.88 in W x 3.12 in D x 5 in H Dimensions
Specifications
Coil Voltage |
110/120 VAC |
Connection Type |
Screw Clamp |
Contact Configuration |
4NO |
Dimensions |
2.88 in W x 3.12 in D x 5 in H |
Enclosure Type |
Open |
Frequency Rating |
50/60 Hz |
Maximum Load Current |
30 A |
Mounting Type |
Surface |
Number of Poles |
4 |
Series |
8903L |
Type |
Type L Electrically Held Multi-Pole |
Standard Approval |
RoHS Compliant|Class 3211-07|UL File No. E78427|CCN Guide No. NRNT|CSA File No. LR60905 Certified |
Application |
For electrically held applications |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903LO0012V02_Installation_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903LO40V02_RoHS.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903LO40V02_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903LO40V02_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SBG2V08H30S_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SBG2V08H30S_Technical_Bulletin.pdf
