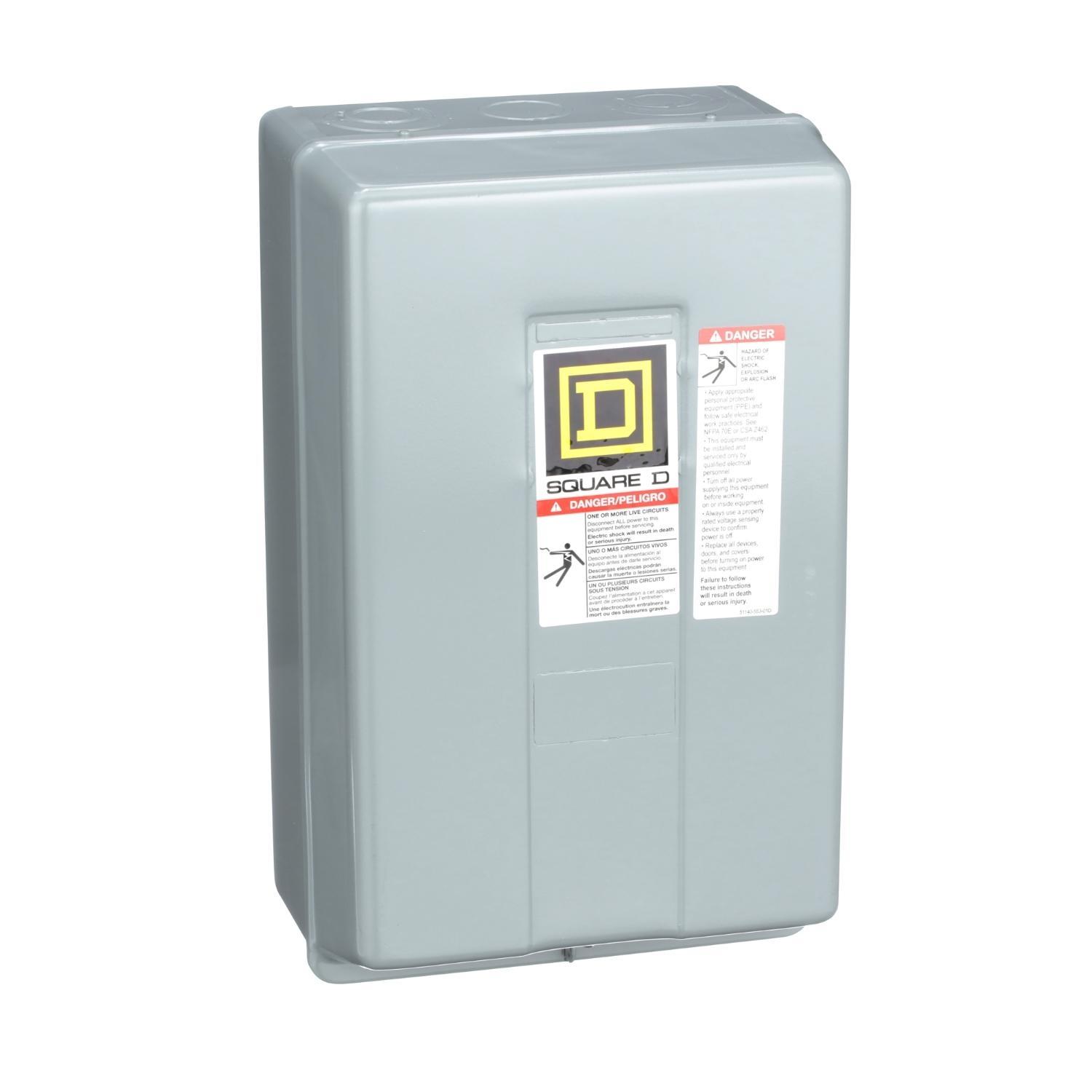

Square D™ 8903LXG60V02
Square D™ 8903LXG60V02 Type LX Mechanically Held Multi-Pole Lighting Contactor, 110/120 VAC V Coil, 30 A, 6NO Contact, 6 Poles
Brand: Square D™
Item ID: 39778
MPN: 8903LXG60V02
UPC: 785901057383
Login for Price
Features
- 30 a ballast and 20 a tungsten lighting rating
- 2 thru 12-pole versions
- Field convertible contacts with no and NC indicators
- Without indicator
Description
Square D™ Lighting Contactor, Type LX Mechanically Held Multi-Pole, Series: 8903LX, 110/120 VAC Coil, 30 A Maximum Load Current, 6 Pole, 50/60 Hz Frequency, 6NO Contact Configuration, Screw Clamp Connection, NEMA 1 Enclosure, Surface Mounting
Specifications
Coil Voltage |
110/120 VAC |
Connection Type |
Screw Clamp |
Contact Configuration |
6NO |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Maximum Load Current |
30 A |
Mounting Type |
Surface |
Number of Poles |
6 |
Series |
8903LX |
Type |
Type LX Mechanically Held Multi-Pole |
Standard Approval |
CSA Certified|RoHS Compliant|SWAS Certified|UL Listed|PROP65: This product can expose you to chemicals including: Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_885c06dd8d583d5b0ffce6ff6bafddff771dcbe7089fb9b519e88b41fc29d524.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_ZB4BW0B12_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903LXG40V02_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903LXG40V02_Instruction_Installation_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XB5AV63_RoHS.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903LXG60V02_RoHS.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903LXG60V02_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ca89fe3e525276cf07d5df79c59191253a955aaefb194538da63fec29cc1dbcf.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903LXG60V02_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903LXG60V02_Specification_Sheet.pdf
