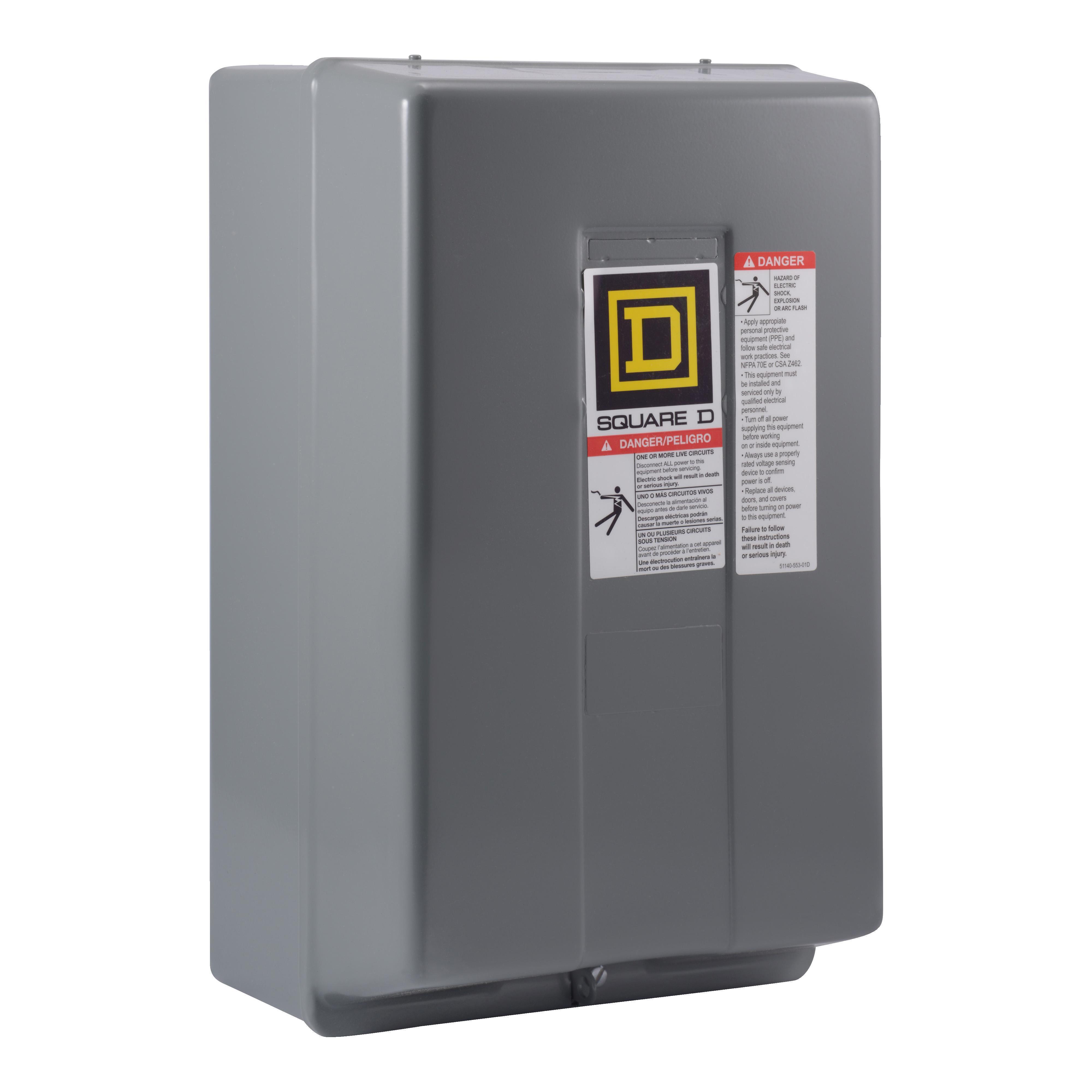

Square D™ 8903LXG80V02 Type LX Mechanically Held Multi-Pole Lighting Contactor, 110/120 VAC V Coil, 30 A, 8NO Contact, 8 Poles
Brand: Square D™
Item ID: 521735
MPN: 8903LXG80V02
UPC: 785901057420
Login for Price
Features
- 30 A ballast lighting rating, 20 A tungsten lighting rating
- Two through 12-pole versions
- Field convertible contacts with no and NC indicators
Description
Square D™ Lighting Contactor, Type LX Mechanically Held Multi-Pole, Series: 8903LX, 110/120 VAC Coil, 30 A Maximum Load Current, 8 Pole, 50/60 Hz Frequency, 8NO Contact Configuration, 600 VAC Contact, Screw Clamp Connection, NEMA 1 Enclosure, Surface Mounting, 7.81 in W x 6.03 in D x 12.69 in H Dimensions
Specifications
Coil Voltage |
110/120 VAC |
Connection Type |
Screw Clamp |
Contact Configuration |
8NO |
Contact Rating |
600 VAC |
Dimensions |
7.81 in W x 6.03 in D x 12.69 in H |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Maximum Load Current |
30 A |
Mounting Type |
Surface |
Number of Poles |
8 |
Series |
8903LX |
Type |
Type LX Mechanically Held Multi-Pole |
Standard Approval |
RoHS Compliant|UL File No. E78427|CCN Guide No. NRNT|CSA File No. LR60905|Class 3211-07|PROP65: This product can expose you to chemicals including: Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e9190caf95a832d27eac1de5f2048ea485b0974d7578c0b3ee3e24ad614edc36.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_af99db38b671b18f9238cb4106fa2bb746e880dbd39e832403bc641f97190e49.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_759f007455e5e6273ed82931963e28dba29ce2c677c56dec0eb57a90a9b542d4.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903LXO20V02_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903LXO20V02_Owners_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903LXG80V02_RoHS.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903LXG80V02_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_197a7b8f49e33e31ccba4ebde0d786dd2ccbedfd657de848985d74ebccf24b67.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903LXG80V02_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8903LXG80V02_Specification_Sheet.pdf
