Square D™ 8903LXO60V04

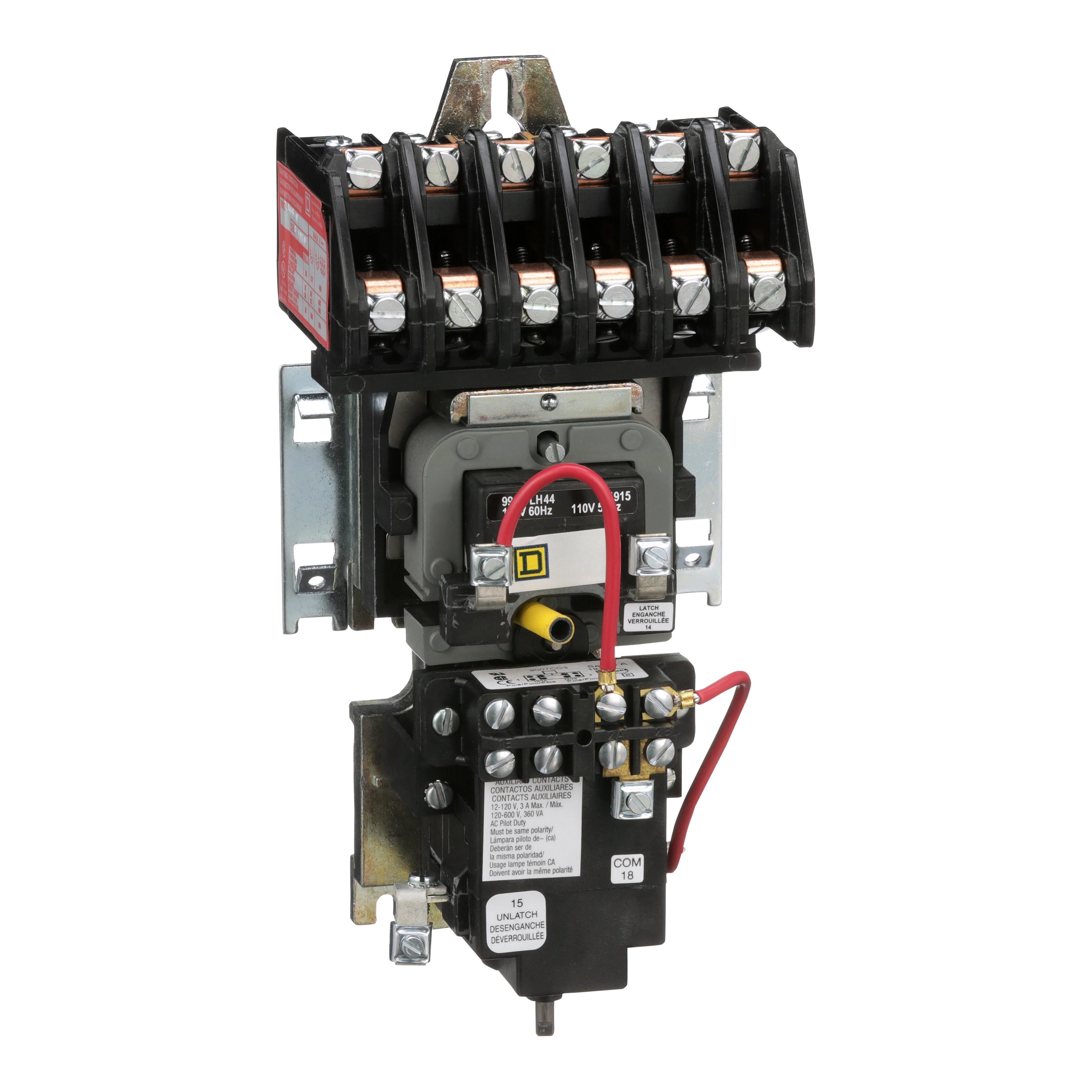

Square D™ 8903LXO60V04 Mechanically Held Type LX Lighting Contactor, 277 VAC at 60 Hz V Coil, 6NO Contact, 6 Poles
Brand: Square D™
Item ID: 481988
MPN: 8903LXO60V04
UPC: 785901057376
Login for Price
Features
- 30 A ballast lighting rating, 20 A tungsten lighting rating
- Silver-cadmium-oxide double break contacts
- 600 VAC system voltage
- Without indicator
Description
Class 8903 L/LX multi-pole lighting contactors are available in wide variety of enclosures suitable for lighting control.
Square D™ Lighting Contactor, Mechanically Held Type LX, Series: 8903, 277 VAC at 60 Hz Coil, 6 Pole, 50/60 Hz Frequency, 6.9 kW at 200 V/7.9 kW at 230 V/13.1 kW at 380 V/15.9 kW at 460 V/19.9 kW at 575 V Wattage, 6NO Contact Configuration, 30 A Contact, Screw Clamp Terminal, Open Enclosure, 1000 cpm Operating Cycles, 0 to 40 deg C Operating, 4.25 in W x 3.27 in D x 8.82 in H Dimensions
Specifications
Coil Voltage |
277 VAC at 60 Hz |
Contact Configuration |
6NO |
Contact Rating |
30 A |
Depth |
9-1/2 in |
Dimensions |
4.25 in W x 3.27 in D x 8.82 in H |
Enclosure Type |
Open |
Finish |
Painted |
Frequency Rating |
50/60 Hz |
Material |
Steel |
Mounting Type |
Surface |
NEMA Rating |
NEMA 3R/5/12 |
Number of Poles |
6 |
Operating Cycles |
1000 cpm |
Operating Temperature |
0 to 40 deg C |
Series |
8903 |
Terminal Type |
Screw Clamp |
Type |
Mechanically Held Type LX |
Wattage |
6.9 kW at 200 V/7.9 kW at 230 V/13.1 kW at 380 V/15.9 kW at 460 V/19.9 kW at 575 V |
Width |
42 in |
Standard Approval |
CSA LR60905 Class 3211-07|ECCN EAR99|RoHS Compliant|UL E78427 CCN NRNT|PROP65: This product can expose you to chemicals including: Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
Application |
Lighting Management, Electrical Heating Control |
