Square D™ 8910DPA33V14

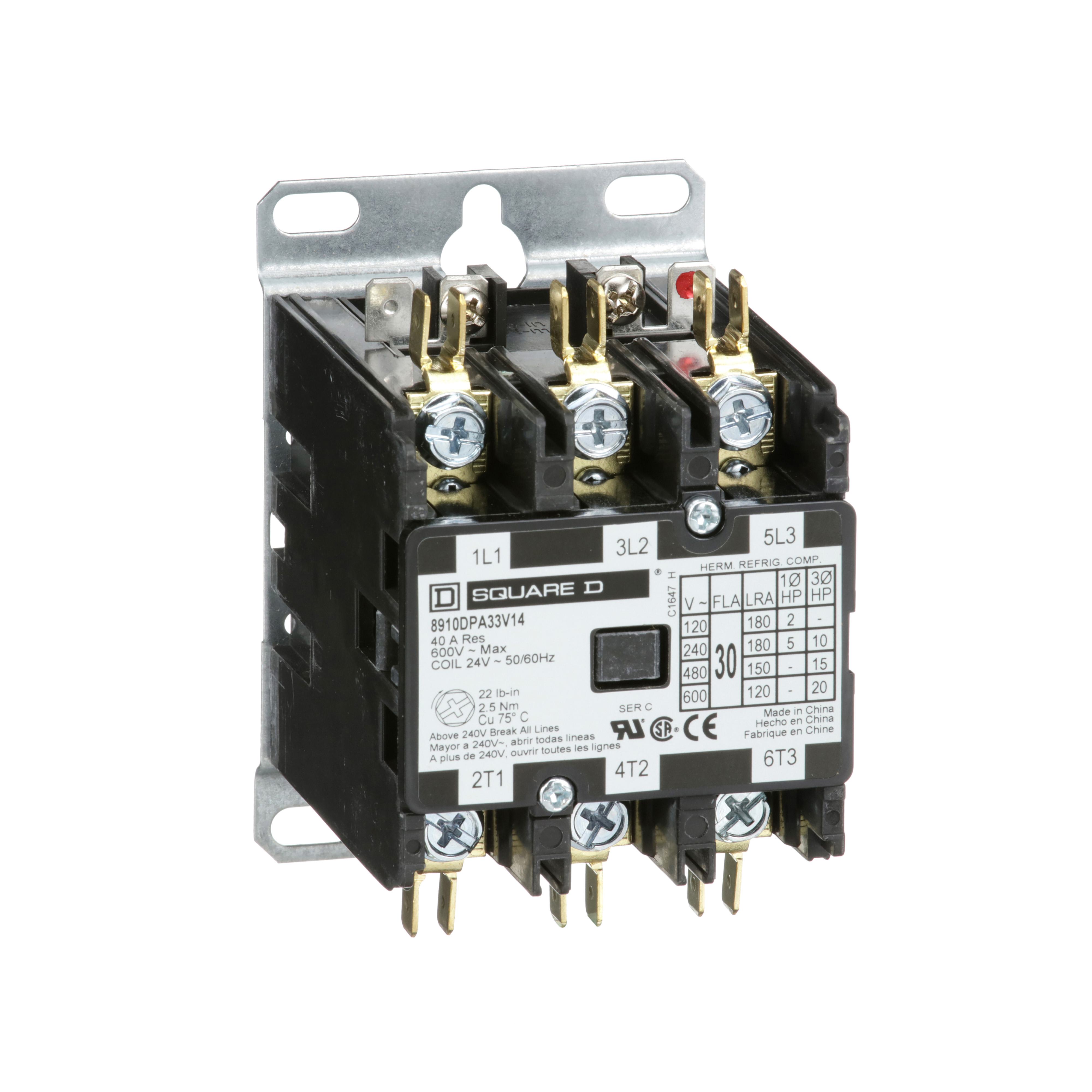

Square D™ 8910DPA33V14 3-Phase Electromechanical Type DPA Definite Purpose Contactor, 24 VAC V Coil, 30 A, 3NO Contact, 3 Poles
Brand: Square D™
Item ID: 351796
MPN: 8910DPA33V14
UPC: 785901073543
Login for Price
Features
- Square D 8910DPA33V14 magnetic contactor, definte purpose, 3 pole, 30 Aeres maximum at 600 V, with 24 VAC, 50/60 Hz operating coil, open
- Quick connect terminals and binder head screws allow for easy wiring
- Coils can be changed quickly, without a tool, on the type DPA 50 to 90 a contactors
- Auxiliary contact modules snap-on either side of the type DPA contactors
- Box lugs are standard on contactors 40 a and larger
Description
Square D™ 8910DPA33V14 magnetic contactor, definite purpose, for heating, air conditioning and refrigeration applications, 3-pole, 30 a (inductive) and 40 a (resistive) maximum at 600 V, 24 VAC, 50/60 Hz. Operating coil, UL recognized, CSA Certified, CE marked, open style, with type 1 enclosure and DIN mounting bracket available.
Square D™ Definite Purpose Contactor, 3-Phase Electromechanical Type DPA, Series: 8910, 24 VAC Coil, 30 A Maximum Load Current, Coil Power Rating: 2 hp at 115 VAC/5/10 hp at 230 VAC/15 hp at 460 VAC/20 hp at 575 VAC, 3 Pole, 50/60 Hz, Non-Reversing Contact, 3NO, 600 VAC Contact, Binding Head Screw, Quick-Connect Terminal, Open, 500000 cycles Operating Cycles, 0 to 65 deg C Operating, Panel Mount, 2.5 in W x 3.12 in D x 4 in H
Specifications
Coil Power Rating |
2 hp at 115 VAC/5/10 hp at 230 VAC/15 hp at 460 VAC/20 hp at 575 VAC |
Coil Voltage |
24 VAC |
Connection Type |
Binding Head Screw |
Contact Configuration |
3NO |
Contact Rating |
600 VAC |
Contact Type |
Non-Reversing |
Dimensions |
2.5 in W x 3.12 in D x 4 in H |
Enclosure Type |
Open |
Frequency Rating |
50/60 Hz |
Maximum Load Current |
30 A |
Mounting Type |
Panel |
Number of Poles |
3 |
Operating Cycles |
500000 cycles |
Operating Temperature |
0 to 65 deg C |
Series |
8910 |
Terminal Type |
Quick-Connect |
Type |
3-Phase Electromechanical Type DPA |
Standard Approval |
CCN Guide No. NLDX2|CE Certified|CSA File No. LR25490/Class 3211 04|UL File No. E3190|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov|RoHS Compliant |
Application |
Heating, Air Conditioning, Refrigeration, Data Processing and Food Service Equipment Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3a99cce2c6f0757b455d01223614d554a637710f191fc1fbcf91427738e47a16.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0d0c4fc9a1697721f319284ac03ad9dd6b149d2bdeac4951c8fe4d621873bec1.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8910DPA33V02_Installation_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8910DPA33V14_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9d0ee47f91d5a352c3a1a555d1998128675701eff6a2a181779c1d8c90995a95.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8910DPA33V14_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LC1D099F7_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_LC1D099F7_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9422TF2_Technical_Bulletin.pdf
