Square D™ 8910DPA44V09

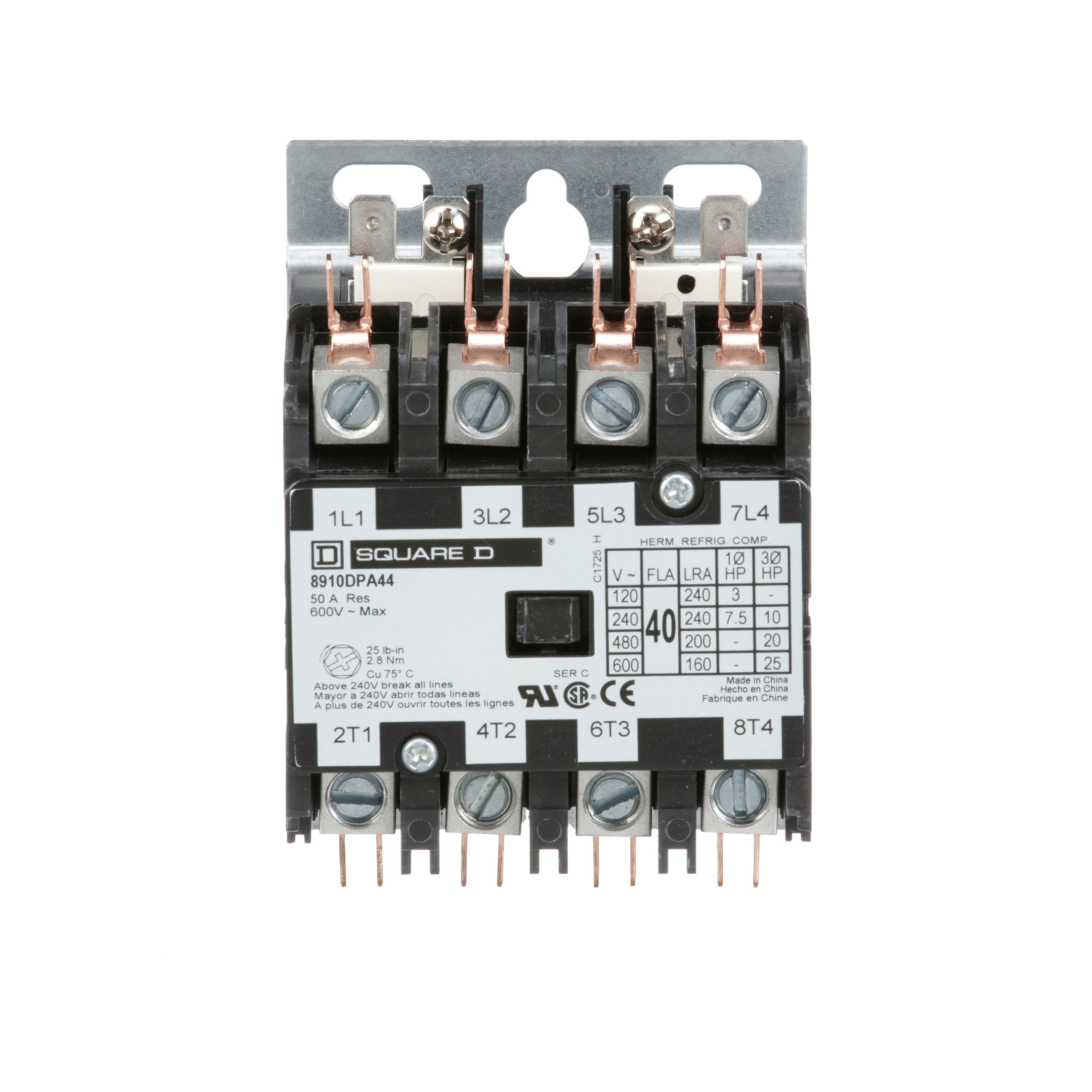

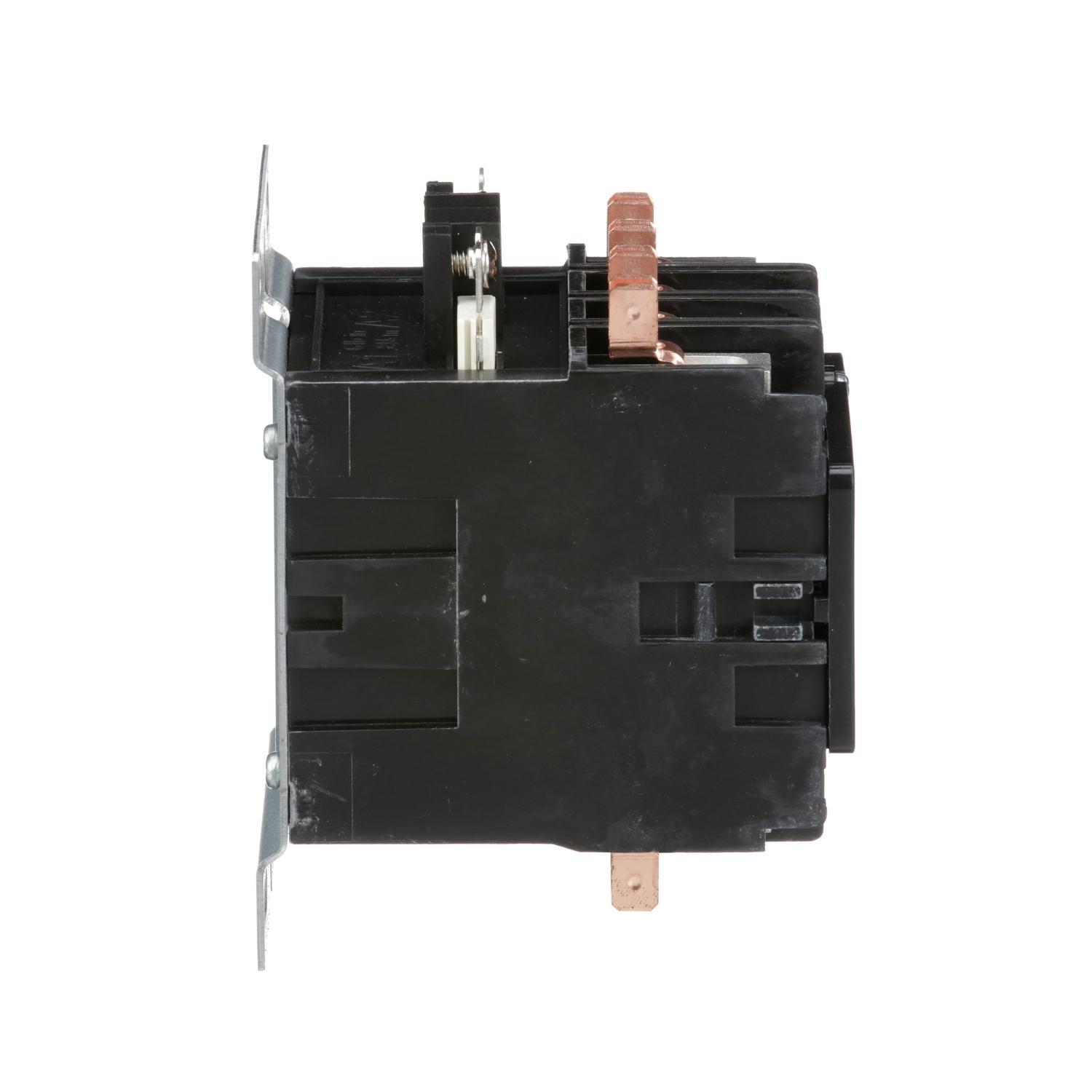

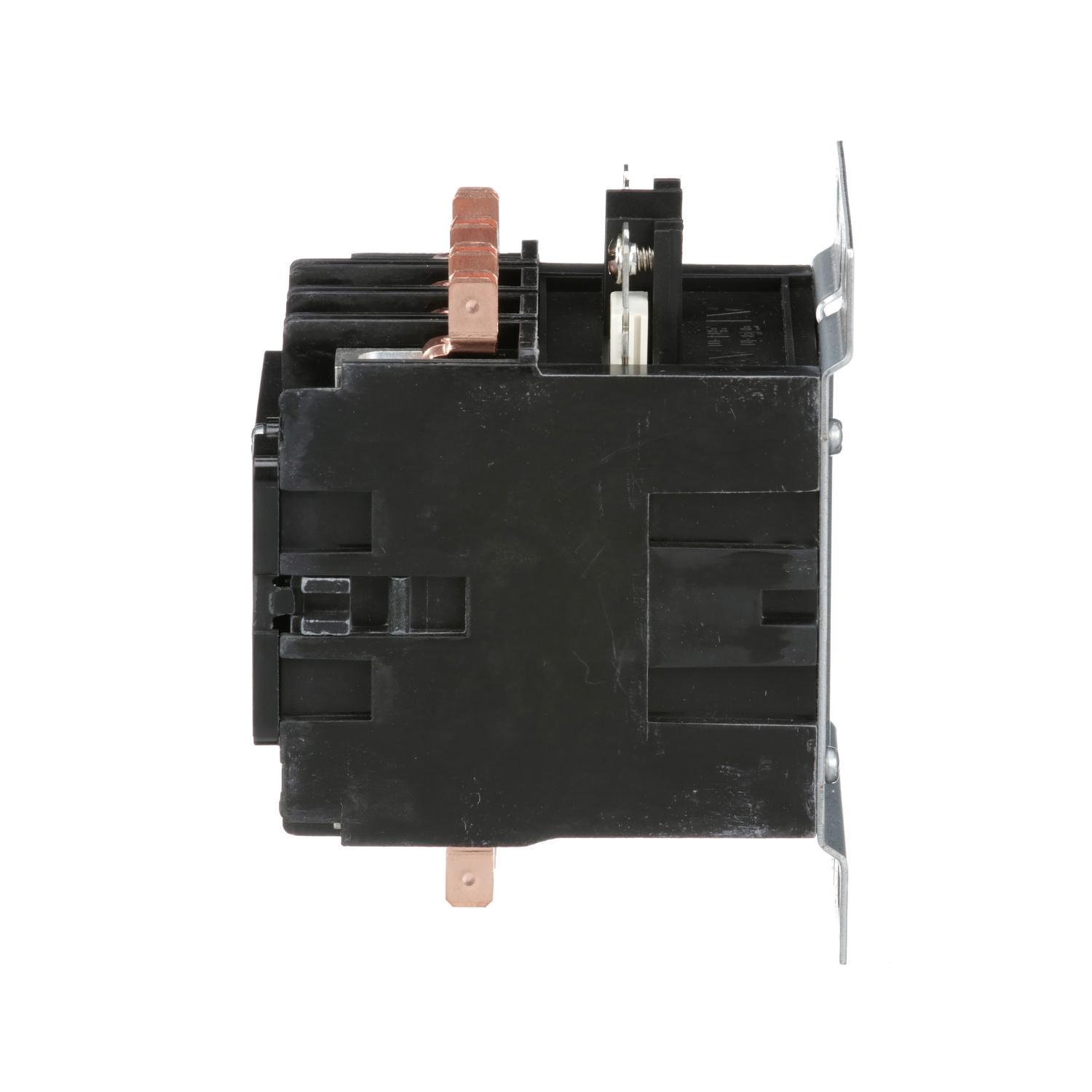

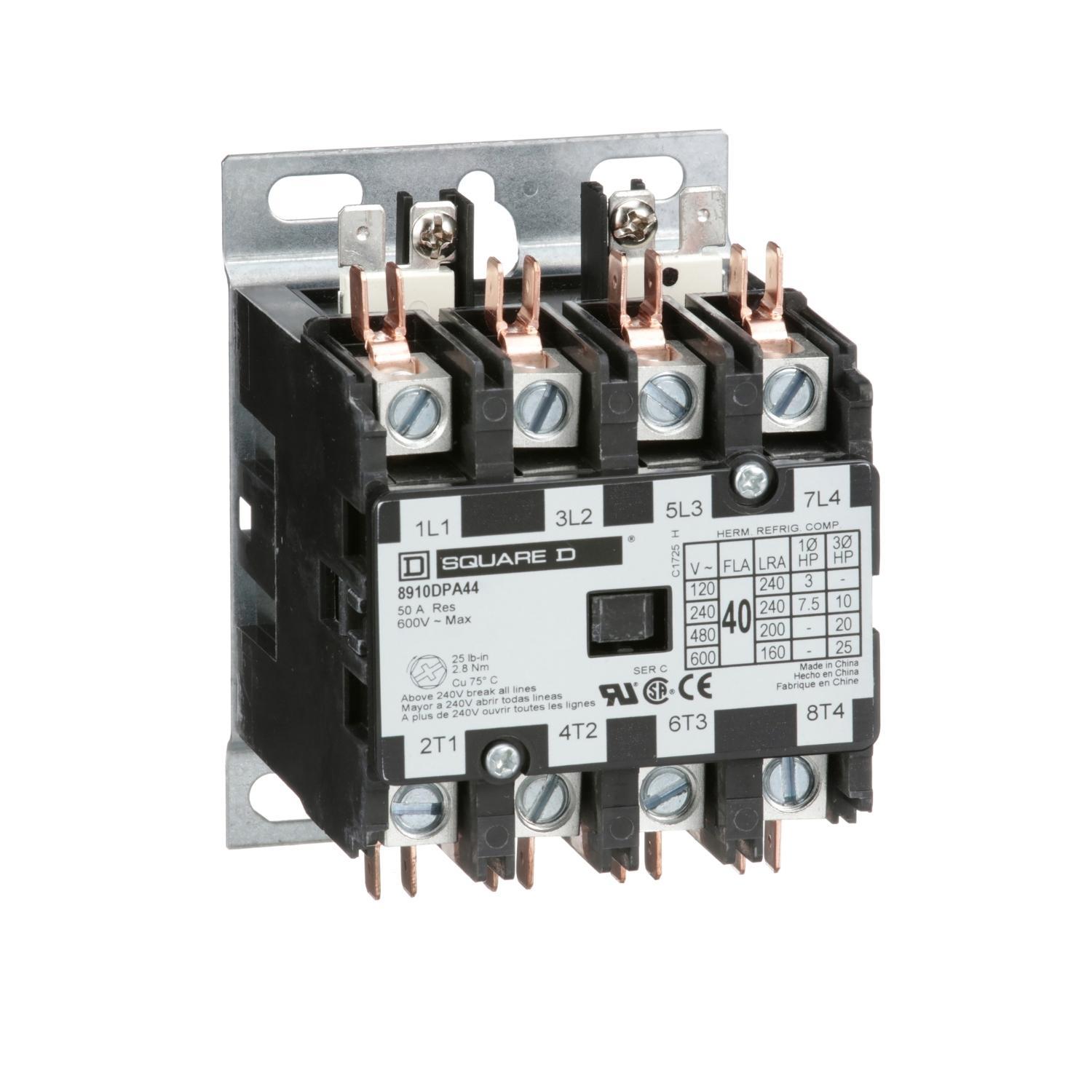

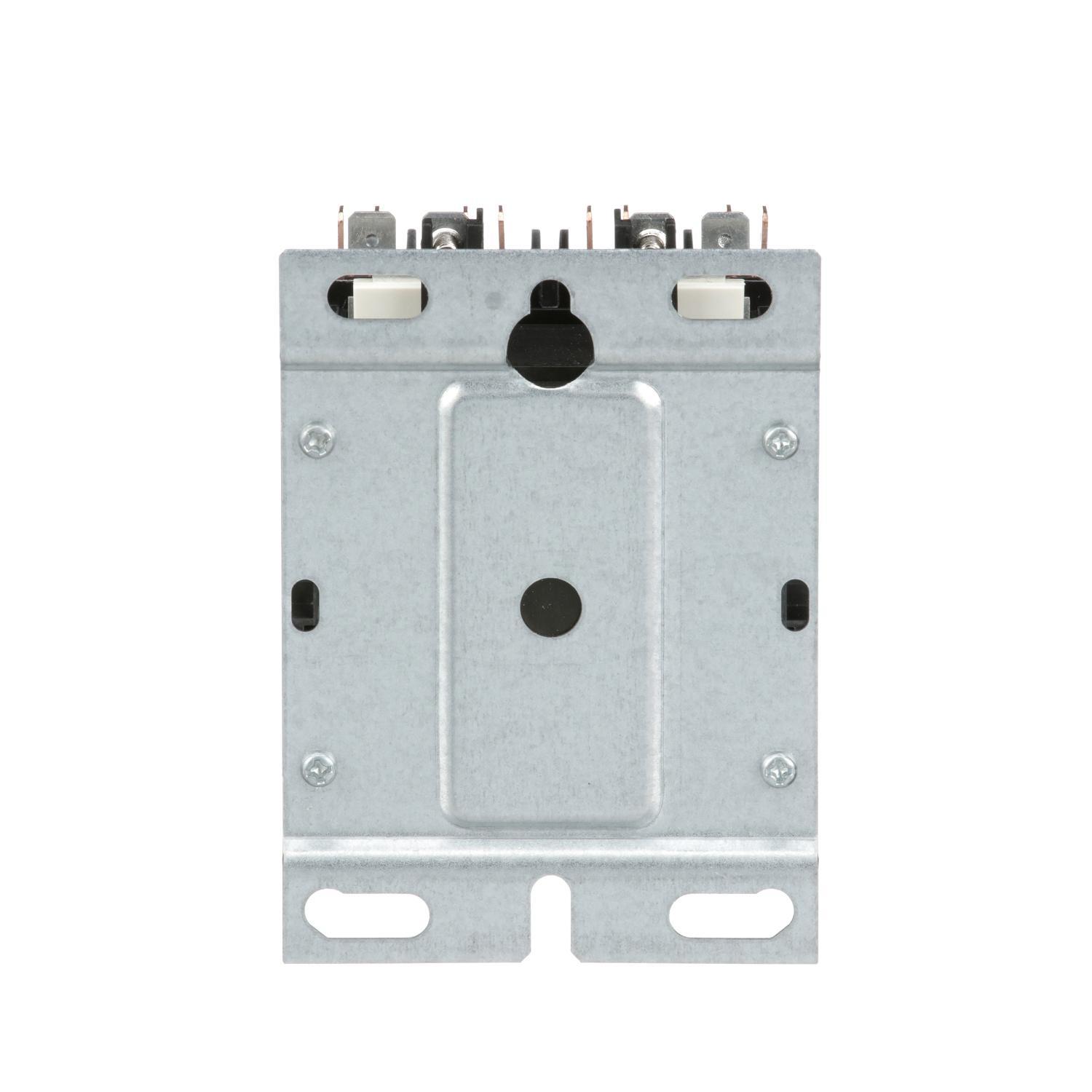

Square D™ 8910DPA44V09 3-Phase Electromechanical Type DPA Definite Purpose Contactor, 208/220/240 VAC V Coil, 40 A, 4NO Contact, 4 Poles
Brand: Square D™
Item ID: 522408
MPN: 8910DPA44V09
UPC: 785901749837
Login for Price
Features
- Compact Design
- Low Coil VA
- Straight-Through Wiring
- Continuous Duty Cycle
- Low Cost
Description
Square D™ 8910DPA44V09 magnetic contactor, definite purpose, for heating, air conditioning and refrigeration applications, 4-pole, 40 A (inductive) and 50 A (resistive) maximum at 600 V, 208 to 240 VAC, 50/60 Hz. operating coil, UL recognized, CSA Certified, CE marked, open style, with Type 1 enclosure and DIN mounting bracket available.
Square D™ Definite Purpose Contactor, 3-Phase Electromechanical Type DPA, Series: 8910, 208/220/240 VAC Coil, 40 A Maximum Load Current, Coil Power Rating: 3 hp at 115 VAC/7.5 hp at 230 VAC/10 hp at 230 VAC/20 hp at 460 VAC/25 hp at 575 VAC, 4 Pole, 50/60 Hz, Non-Reversing Contact, 4NO, 600 VAC Contact, Binding Head Screw, Quick-Connect Terminal, Open, 500000 cycles Operating Cycles, 0 to 65 deg C Operating, Panel Mount, 2.5 in W x 3.12 in D x 4 in H
Specifications
Coil Power Rating |
3 hp at 115 VAC/7.5 hp at 230 VAC/10 hp at 230 VAC/20 hp at 460 VAC/25 hp at 575 VAC |
Coil Voltage |
208/220/240 VAC |
Connection Type |
Binding Head Screw |
Contact Configuration |
4NO |
Contact Rating |
600 VAC |
Contact Type |
Non-Reversing |
Dimensions |
2.5 in W x 3.12 in D x 4 in H |
Enclosure Type |
Open |
Frequency Rating |
50/60 Hz |
Maximum Load Current |
40 A |
Mounting Type |
Panel |
Number of Poles |
4 |
Operating Cycles |
500000 cycles |
Operating Temperature |
0 to 65 deg C |
Series |
8910 |
Terminal Type |
Quick-Connect |
Type |
3-Phase Electromechanical Type DPA |
Standard Approval |
CCN NLDX2|CE Certified|CSA File No. LR25490/Class 3211 04|ECCN EAR99|RoHS Compliant|UL File No. E3190|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
Heating, Air Conditioning, Refrigeration, Data Processing and Food Service Equipment Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_aaa622bc13bdedbb4568358255c75a0c17e24866c01c1ce4771d2ee980b552ab.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7837e8b3881320ded55de582efcece341dbefe86261c64850ae12f28e1e732b3.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8910DPA33V02_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8910DPA92V02_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8910DPA92V02_Instruction_Installation_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8910DPA44V09_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_dbe24c93c70ef79a66b34f9c7d402eaaffadb4b47ddc77422a52c88c3b2a39f2.pdf
