Square D™ 8910DPA53V02
Square D™ 8910DPA53V02 8910DPA Electro-Mechanical 3-Phase Electromechanical Type Dpa Definite Purpose Contactor, 110/120 VAC V Coil, 50 A, 3NO Contact, 3 Poles
Brand: Square D™
Item ID: 40050
MPN: 8910DPA53V02
UPC: 785901080756
Login for Price
Features
- Quick connect terminals and binder head screws allow for easy wiring
- Auxiliary contact modules snap-on either side of the type DPA contactors
- Compact Design
- Low Coil VA
- Straight-Through Wiring
- Continuous Duty Cycle
- Low Cost
Description
Square D™ 8910DPA53V02 magnetic contactor, definite purpose, for heating, air conditioning and refrigeration applications, 3-pole, 50 a (inductive) and 65 a (resistive) maximum at 600 V, 120 VAC, 60 Hz. Operating coil, UL recognized, CSA Certified, CE marked, open style, with type 1 enclosure and DIN mounting bracket available.

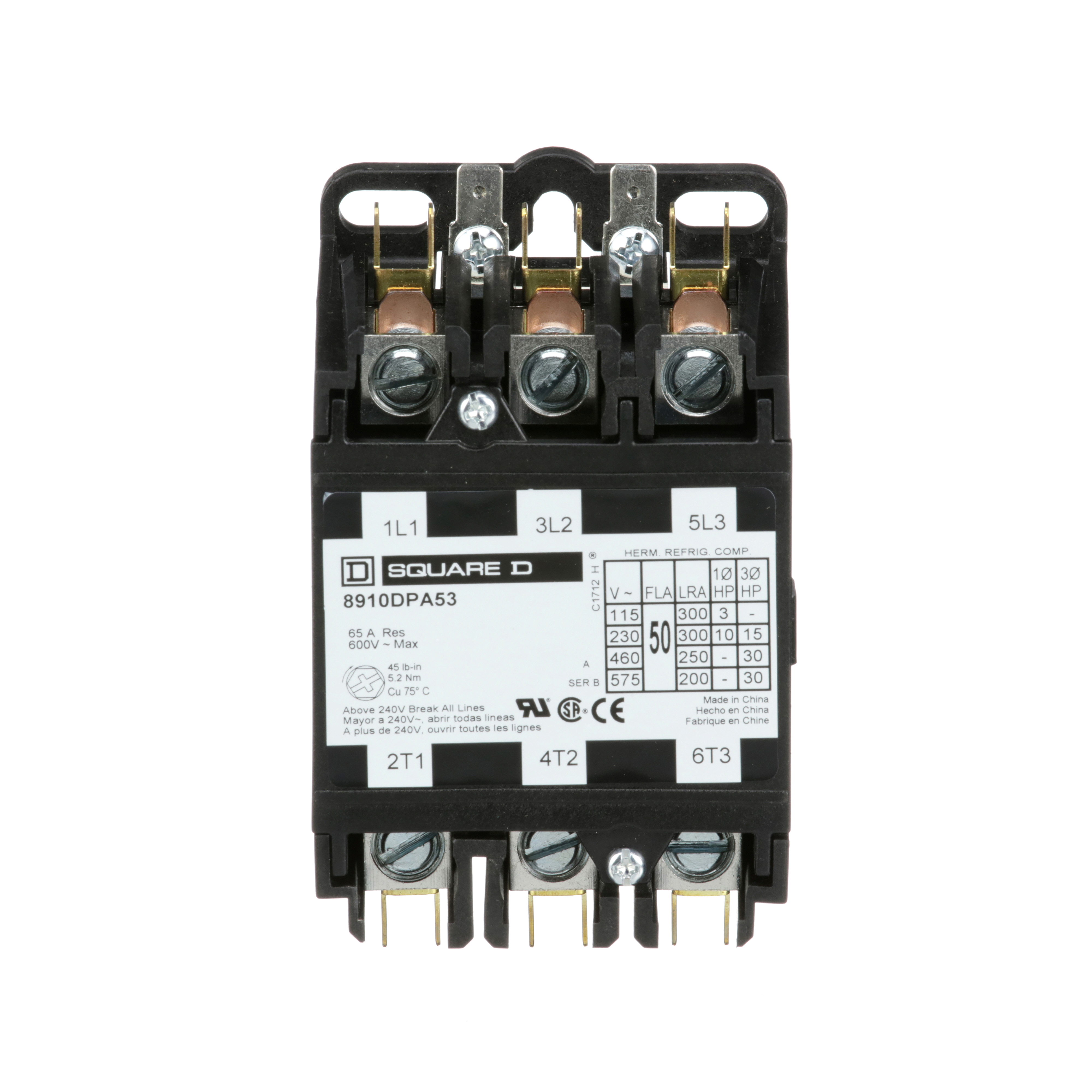

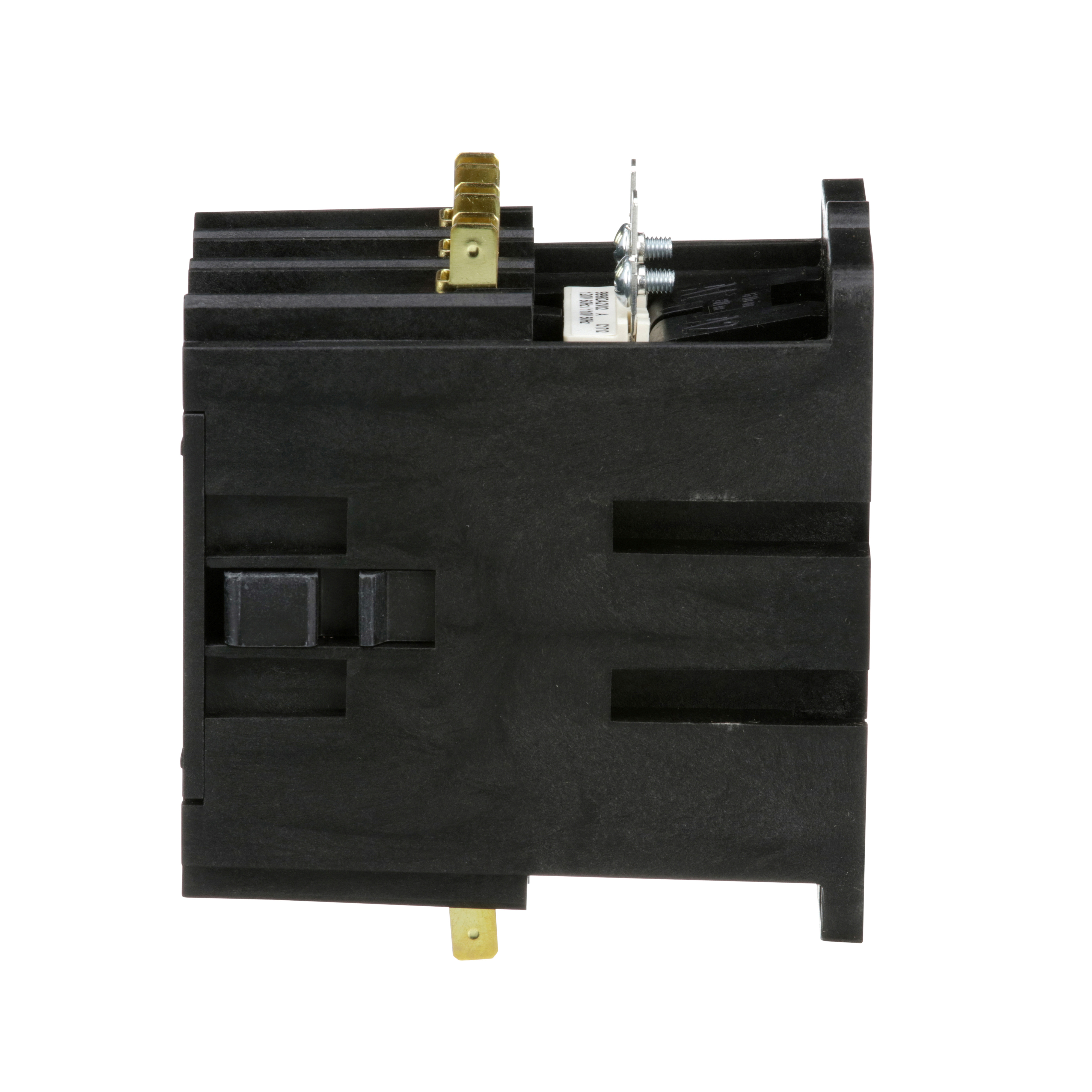

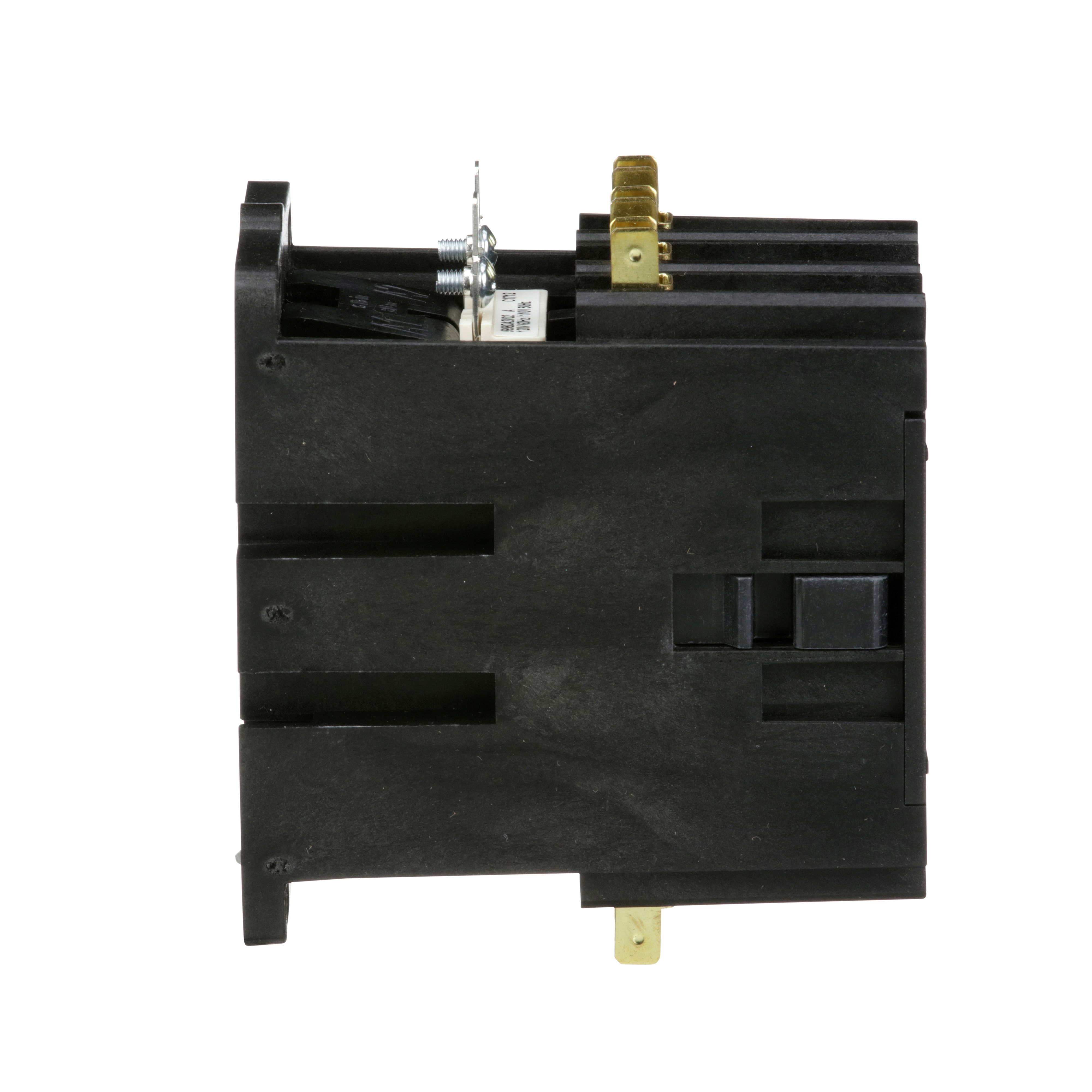

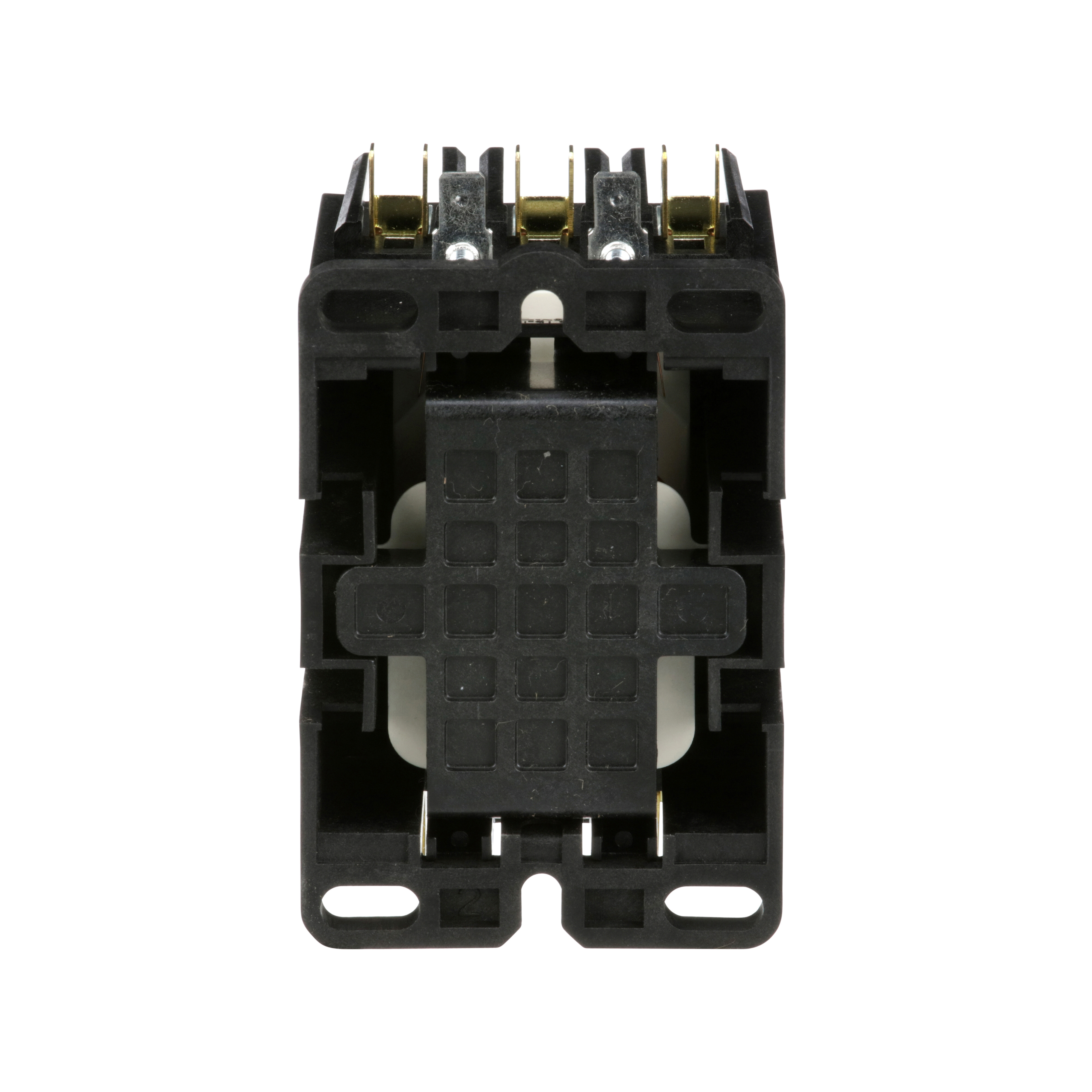

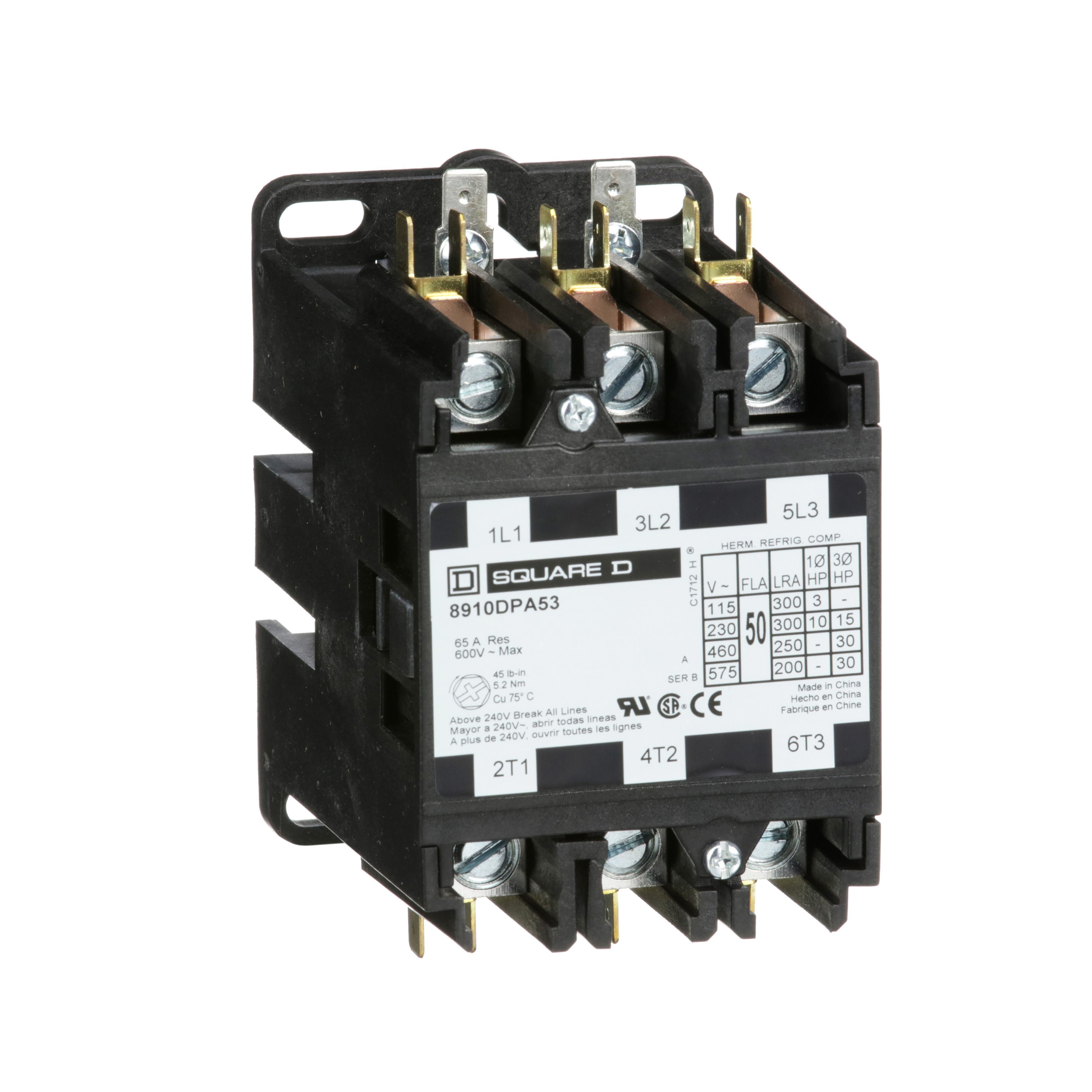

Square D™, 8910DPA53V02, 3-Phase Electromechanical Type Dpa Definite Purpose Contactor, Electro-Mechanical, Series: 8910DPA, 110/120 VAC Coil, 50 A Maximum Load Current, 3 hp at 115 VAC/10 hp at 230 VAC/15 hp at 230 VAC/30 hp 460/575 VAC Coil, 3 Pole, 50/60 Hz Frequency, Non-Reversing Contact, 3NO Contact Configuration, 600 VAC Contact, Box Lug/Quick-Connect Connection, Open Enclosure, 500000 Cycles Operating Cycles, 0 to 65 deg C Operating, Panel Mounting, 60.2 mm H x 76 mm W x 82.5 mm D Dimensions
Specifications
Coil Power Rating |
3 hp at 115 VAC/10 hp at 230 VAC/15 hp at 230 VAC/30 hp 460/575 VAC |
Coil Voltage |
110/120 VAC |
Connection Type |
Box Lug/Quick-Connect |
Contact Configuration |
3NO |
Contact Rating |
600 VAC |
Contact Type |
Non-Reversing |
Dimensions |
60.2 mm H x 76 mm W x 82.5 mm D |
Enclosure Type |
Open |
Frequency Rating |
50/60 Hz |
Maximum Load Current |
50 A |
Mounting Type |
Panel |
Number of Poles |
3 |
Operating Cycles |
500000 Cycles |
Operating Temperature |
0 to 65 deg C |
Series |
8910DPA |
Terminal Type |
Box Lug/Quick-Connect |
Type |
Electro-Mechanical |
Standard Approval |
CCN Guide No. NLDX2|CE Certified|CSA File No. LR25490/Class 3211-04|RoHS Compliant|UL File No. E3190|UL Recognized|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov |
Application |
Heating, Air Conditioning, Refrigeration, Data Processing and Food Service Equipment Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_78f07680dc77f1d231a806b93af5806ea1dc177572b89c22480b91aee4c520af.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8910DPA63V02_Full_Engineering_Drawing.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9998DA2V02_Full_Engineering_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9998DA2V02_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1a25de1831215a0b6c39cbe1ffab4a80e605f07864508a0fcf1d86c9b79b2311.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8910DPA33V02_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8910DPA92V02_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8910DPA92V02_Instruction_Installation_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8910DPA53V02_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ba6ac7633ad641c4d80bae3915234667d518f360c38e967b854788b771769908.pdf
