Square D™ 8910DPA62V09

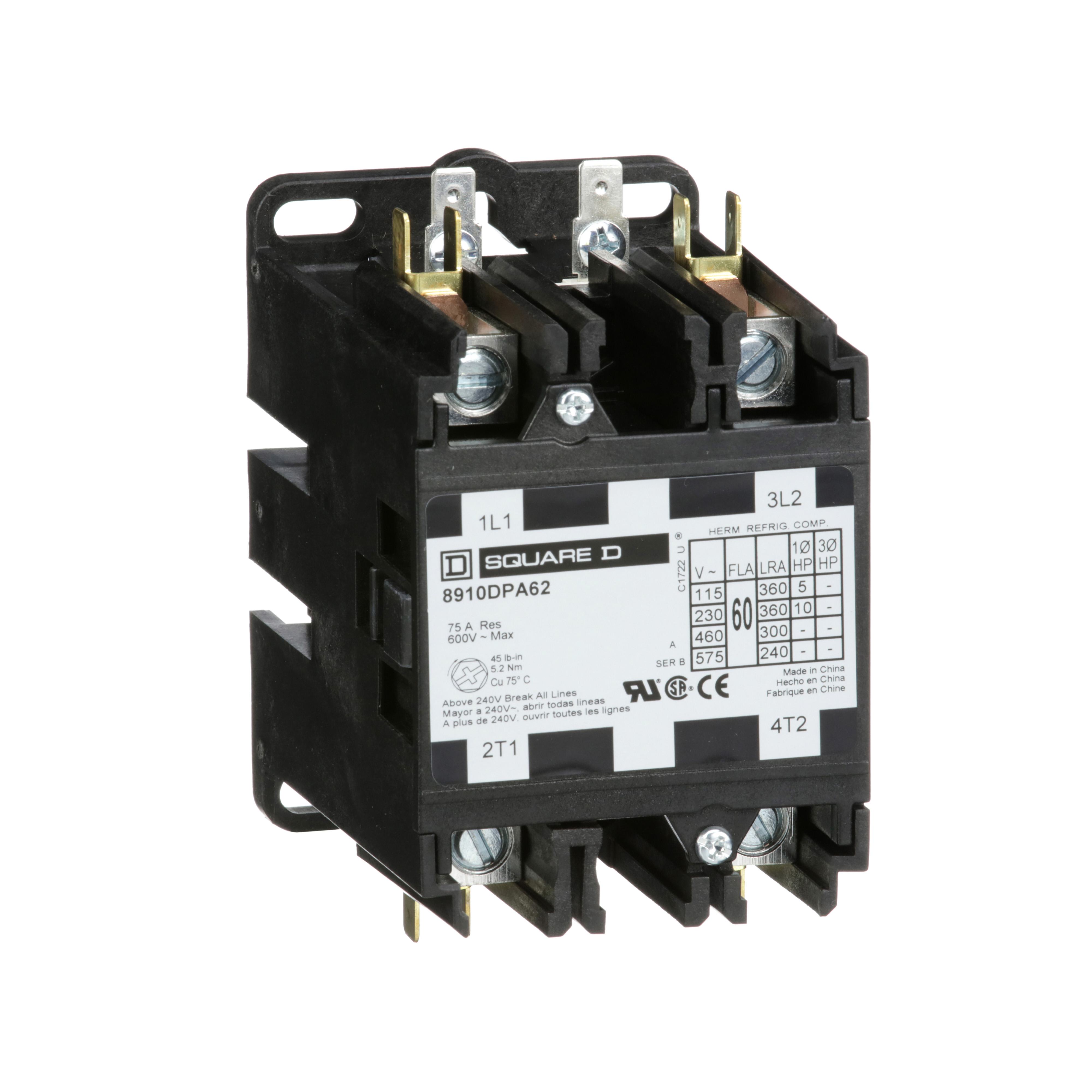

Square D™ 8910DPA62V09 1-Phase Type DPA Definite Purpose Contactor, 208/220/240 VAC V Coil, 60 A, 2NO Contact, 2 Poles
Brand: Square D™
Item ID: 40059
MPN: 8910DPA62V09
UPC: 785901080800
Login for Price
Features
- Square D 8910DPA62V09 magnetic contactor, definte purpose, 2 pole, 60 Aeres maximum at 600 V, with 208-240 VAC, 50/60 Hz operating coil, open
- Quick connect terminals and binder head screws allow for easy wiring
- Box lugs are standard on contactors 40 A and larger
- Coils can be changed quickly, without a tool, on the type DPA 50 to 90 A contactors
- Auxiliary contact modules snap-on either side of the type DPA contactors
- Compact design
- Industry standard mounting
- Double break contacts
- Low coil VA
- Straight-through wiring
- 100000 electrical operations on type DP and 200000 on type DPA, SYD
- Continuous duty cycle
- Low cost
- 600 VAC system voltage
Description
8910 Definite purpose contactors are ideal for heating, air conditioning, refrigeration, data processing and food service equipment. Compact 1 and 2-pole contactors are available along with full size 2, 3 and 4-pole devices.
Square D™ Definite Purpose Contactor, 1-Phase Type DPA, Series: 8910, 208/220/240 VAC Coil, 60 A Maximum Load Current, Coil Power Rating: 5 hp at 115 VAC/10 hp at 230 VAC, 2 Pole, 50/60 Hz, 3.7 kW at 115 V/7.5 kW at 230 V/18.5 kW at 230 V/22 kW at 460/575 V, 2NO, 600 VAC Contact, Binding Head Screw, Quick-Connect Terminal, Open, 500 cpm Operating Cycles, 32 to 149 deg F Operating, Panel Mount, 2.37 in W x 2.9 in D x 3.25 in H
Specifications
Coil Power Rating |
5 hp at 115 VAC/10 hp at 230 VAC |
Coil Voltage |
208/220/240 VAC |
Connection Type |
Binding Head Screw |
Contact Configuration |
2NO |
Contact Rating |
600 VAC |
Dimensions |
2.37 in W x 2.9 in D x 3.25 in H |
Enclosure Type |
Open |
Frequency Rating |
50/60 Hz |
Maximum Load Current |
60 A |
Mounting Type |
Panel |
Number of Poles |
2 |
Operating Cycles |
500 cpm |
Operating Temperature |
32 to 149 deg F |
Series |
8910 |
Terminal Type |
Quick-Connect |
Type |
1-Phase Type DPA |
Wattage |
3.7 kW at 115 V/7.5 kW at 230 V/18.5 kW at 230 V/22 kW at 460/575 V |
Standard Approval |
CE Certified|CSA File LR25490 Class 3211-04|ECCN EAR99|RoHS Compliant|UL File E3190 CCN NLDX2|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
Heating, Air Conditioning, Refrigeration, Data Processing and Food Service Equipment Applications |
