Square D™ 8910DPA73V09

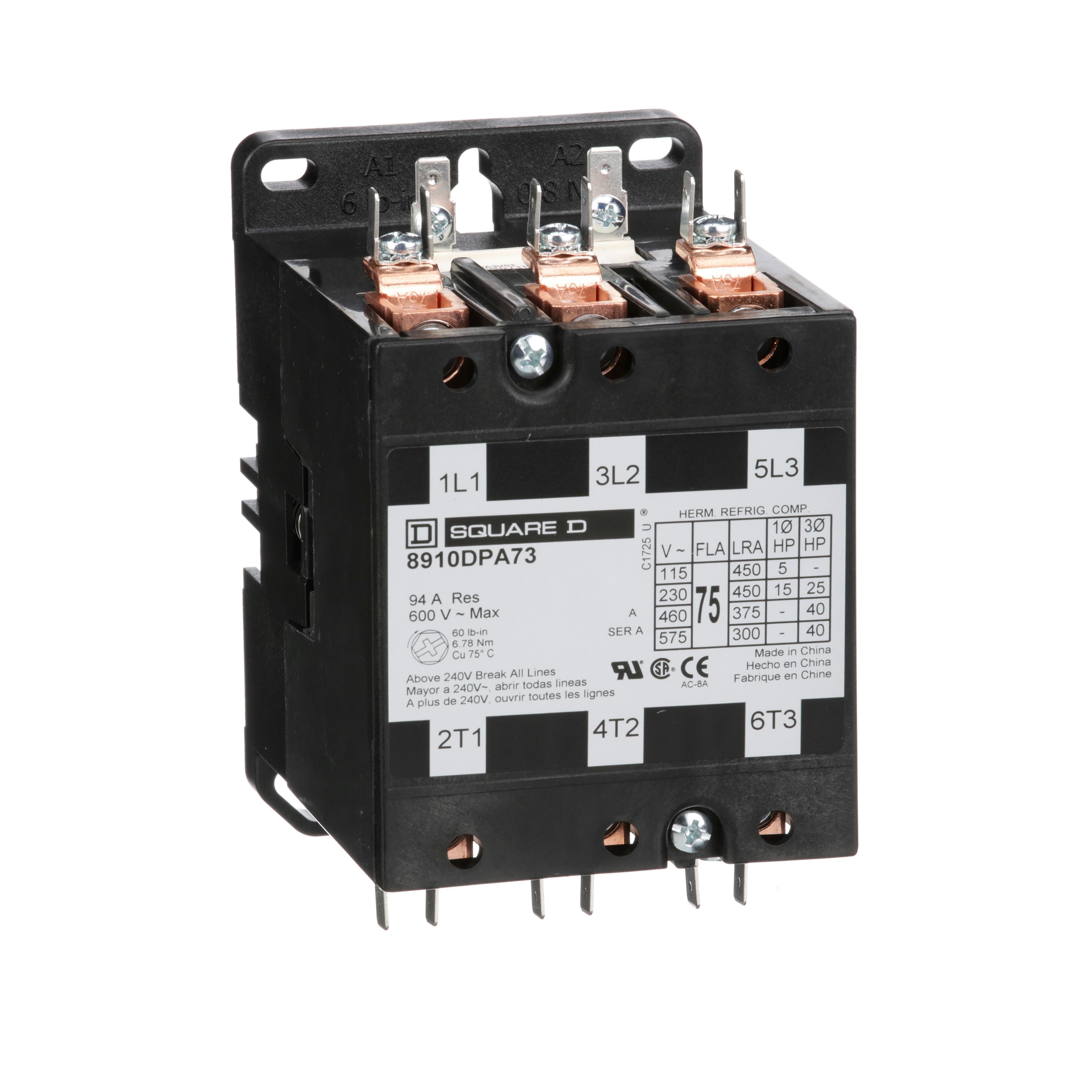

Square D™ 8910DPA73V09 3-Phase Electromechanical Type DPA Definite Purpose Contactor, 208/220/240 VAC V Coil, 75 A, 3NO Contact, 3 Poles
Brand: Square D™
Item ID: 467937
MPN: 8910DPA73V09
UPC: 785901118374
Login for Price
Features
- Compact Design
- Low Coil VA
- Straight-Through Wiring
- Continuous Duty Cycle
- Low Cost
Description
Square D™ 8910DPA73V09 magnetic contactor, definite purpose, for heating, air conditioning and refrigeration applications, 3-pole, 75 A (inductive) and 94 A (resistive) maximum at 600 V, 208 to 240 VAC, 50/60 Hz. operating coil, UL recognized, CSA Certified, CE marked, open style, with Type 1 enclosure and DIN mounting bracket available.
Square D™ Definite Purpose Contactor, 3-Phase Electromechanical Type DPA, Series: 8910, 208/220/240 VAC Coil, 75 A Maximum Load Current, Coil Power Rating: 5 hp at 115 VAC/15 hp at 230 VAC/25 hp at 230 VAC/40 hp at 460/575 VAC, 3 Pole, 50/60 Hz, Non-Reversing Contact, 3NO, 600 VAC Contact, Binding Head Screw, Quick-Connect Terminal, Open, 500000 cycles Operating Cycles, 0 to 65 deg C Operating, Panel Mount, 3.39 in W x 4.37 in D x 5.2 in H
Specifications
Coil Power Rating |
5 hp at 115 VAC/15 hp at 230 VAC/25 hp at 230 VAC/40 hp at 460/575 VAC |
Coil Voltage |
208/220/240 VAC |
Connection Type |
Binding Head Screw |
Contact Configuration |
3NO |
Contact Rating |
600 VAC |
Contact Type |
Non-Reversing |
Dimensions |
3.39 in W x 4.37 in D x 5.2 in H |
Enclosure Type |
Open |
Frequency Rating |
50/60 Hz |
Maximum Load Current |
75 A |
Mounting Type |
Panel |
Number of Poles |
3 |
Operating Cycles |
500000 cycles |
Operating Temperature |
0 to 65 deg C |
Series |
8910 |
Terminal Type |
Quick-Connect |
Type |
3-Phase Electromechanical Type DPA |
Standard Approval |
CCN NLDX2|CE Certified|CSA File No. LR25490/Class 3211 04|ECCN EAR99|RoHS Compliant|UL File No. E3190|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
Heating, Air Conditioning, Refrigeration, Data Processing and Food Service Equipment Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9007MS05G0410_Catalog.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8910DPA33V02_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8910DPA92V02_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8910DPA92V02_Instruction_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f39051632b1c9c9c1928c31ac1916a26091d70be23f27be42165d29d298780fd.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XCKP2539P16_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8910DPA73V09_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_34505af70a94cdf00e0b3cd1b12f40a02c87dccdba24d4c65c51a9ef35eca54c.pdf
