Square D™ 8910DPA93V02

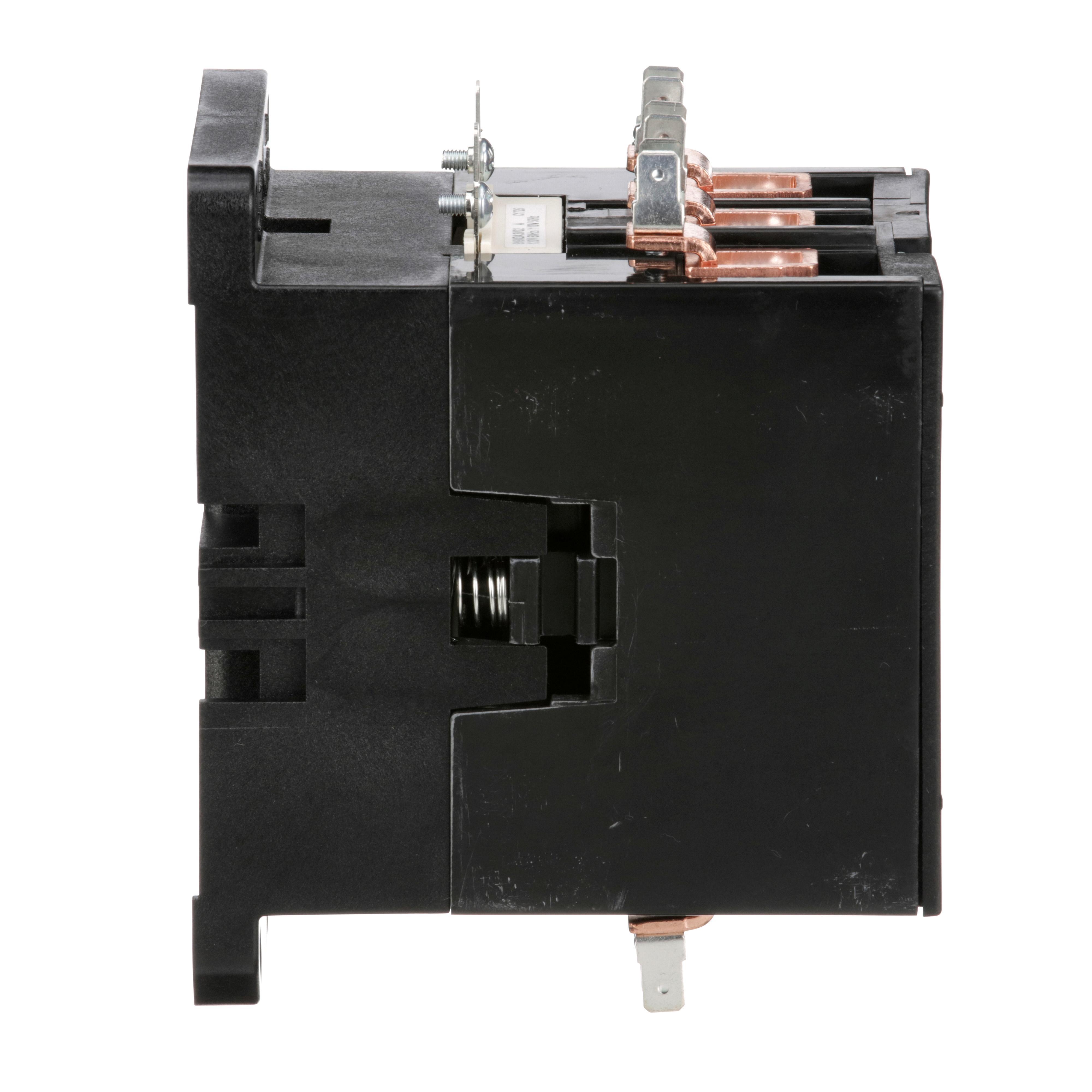

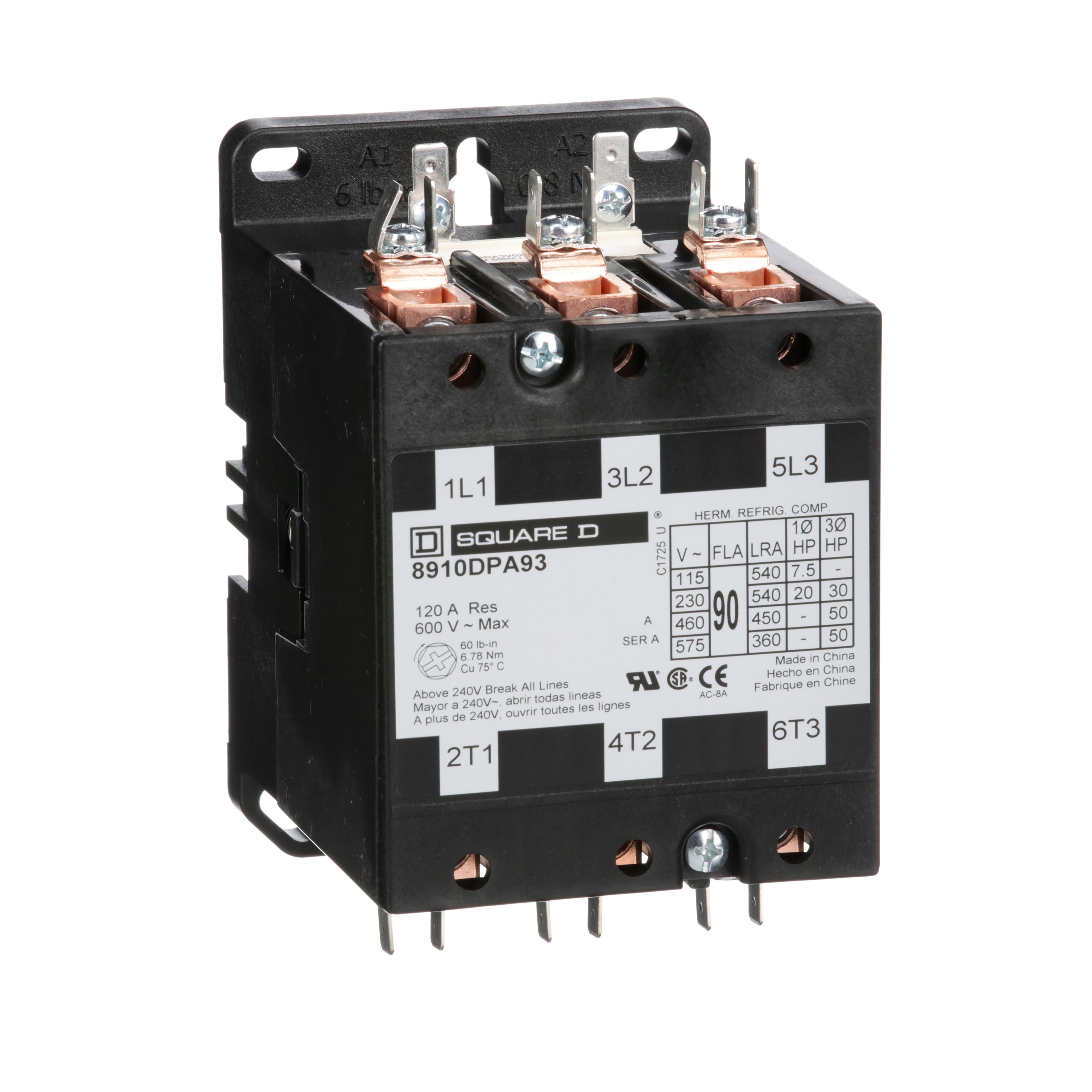

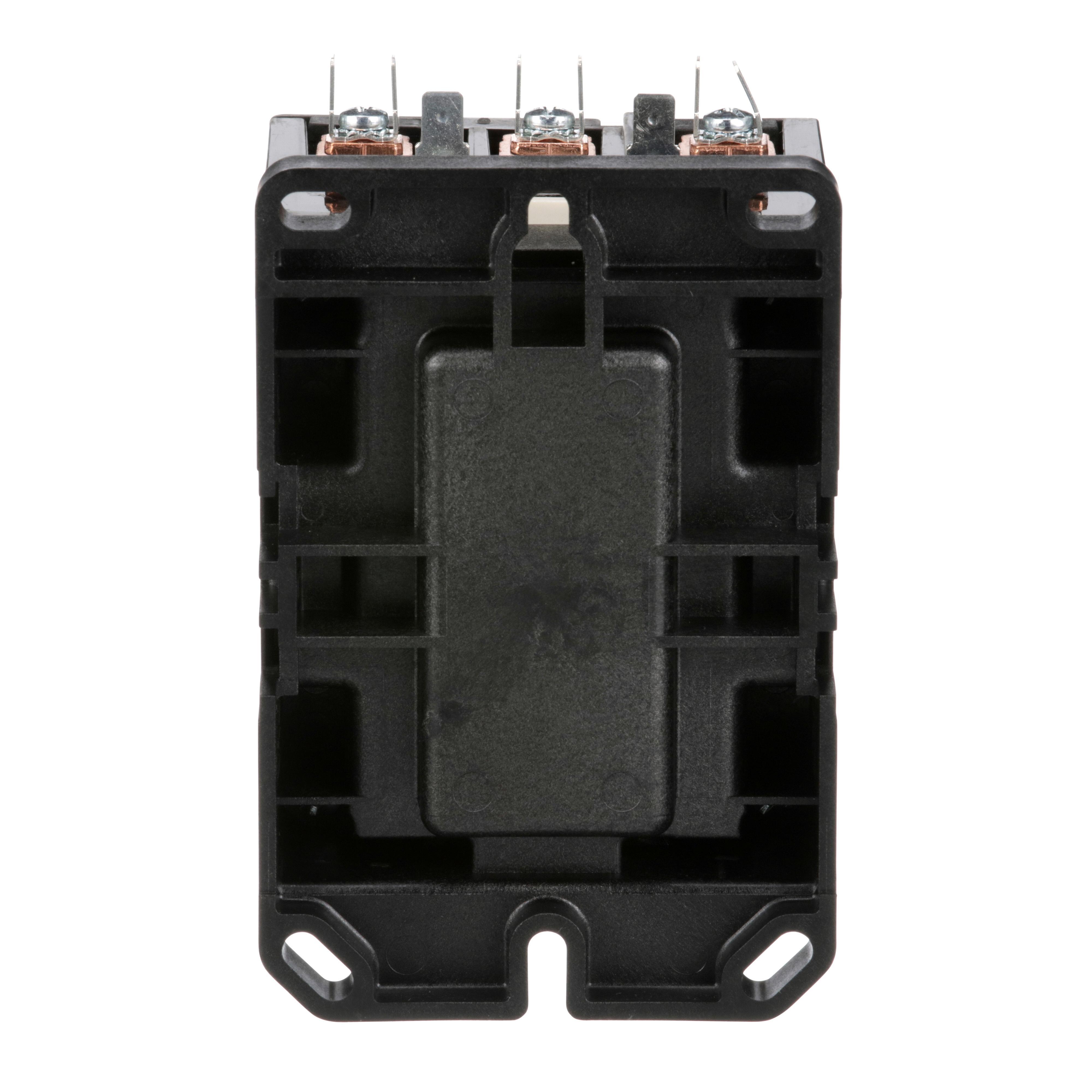

Square D™ 8910DPA93V02 8910DPA Electro-Mechanical Definite Purpose Contactor, 110/120 VAC V Coil, 90 A, 3NO Contact, 3 Poles
Brand: Square D™
Item ID: 8910DPA93V02
MPN: 8910DPA93V02
UPC: 785901118398
Login for Price
Features
- Quick connect terminals and binder head screws allow for easy wiring
- Auxiliary contact modules snap-on either side of the type DPA contactors
- Compact Design
- Low Coil VA
- Straight-Through Wiring
- Continuous Duty Cycle
- Low Cost
Description
Square D™ 8910DPA93V02 magnetic contactor, definite purpose, for heating, air conditioning and refrigeration applications, 3-pole, 90 a (inductive) and 120 a (resistive) maximum at 600 V, 120 VAC, 60 Hz. Operating coil, UL recognized, CSA Certified, CE marked, open style, with type 1 enclosure and DIN mounting bracket available.
Square D™, 8910DPA93V02, Definite Purpose Contactor, Electro-Mechanical, Series: 8910DPA, 110/120 VAC Coil, 90 A Maximum Load Current, 7.5 hp at 115 VAC/20 hp at 230 VAC/30 hp at 230 VAC/50 hp at 460/575 VAC Coil, 3 Pole, 50/60 Hz Frequency, Non-Reversing Contact, 3NO Contact Configuration, 600 VAC Contact, Box Lug/Quick-Connect Connection, Open Enclosure, 500000 Cycles Operating Cycles, 0 to 65 deg C Operating, Panel Mounting, 5.2 in H x 3.39 in W x 4.37 in D Dimensions
Specifications
Coil Power Rating |
7.5 hp at 115 VAC/20 hp at 230 VAC/30 hp at 230 VAC/50 hp at 460/575 VAC |
Coil Voltage |
110/120 VAC |
Connection Type |
Box Lug/Quick-Connect |
Contact Configuration |
3NO |
Contact Rating |
600 VAC |
Contact Type |
Non-Reversing |
Dimensions |
5.2 in H x 3.39 in W x 4.37 in D |
Enclosure Type |
Open |
Frequency Rating |
50/60 Hz |
Maximum Load Current |
90 A |
Mounting Type |
Panel |
Number of Poles |
3 |
Operating Cycles |
500000 Cycles |
Operating Temperature |
0 to 65 deg C |
Series |
8910DPA |
Terminal Type |
Box Lug/Quick-Connect |
Type |
Electro-Mechanical |
Standard Approval |
UL E3190, CCN NLDX2 Listed|CSA LR25490 Certified|Class 3211 04|CE Certified |
Application |
For heating, air conditioning, refrigeration, data processing and food service equipment |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8910DPA33V02_Installation_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8910DPA93V02_RoHS.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SBG2V08H30S_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SBG2V08H30S_Technical_Bulletin.pdf
