Square D™ 8911DPSG33V09

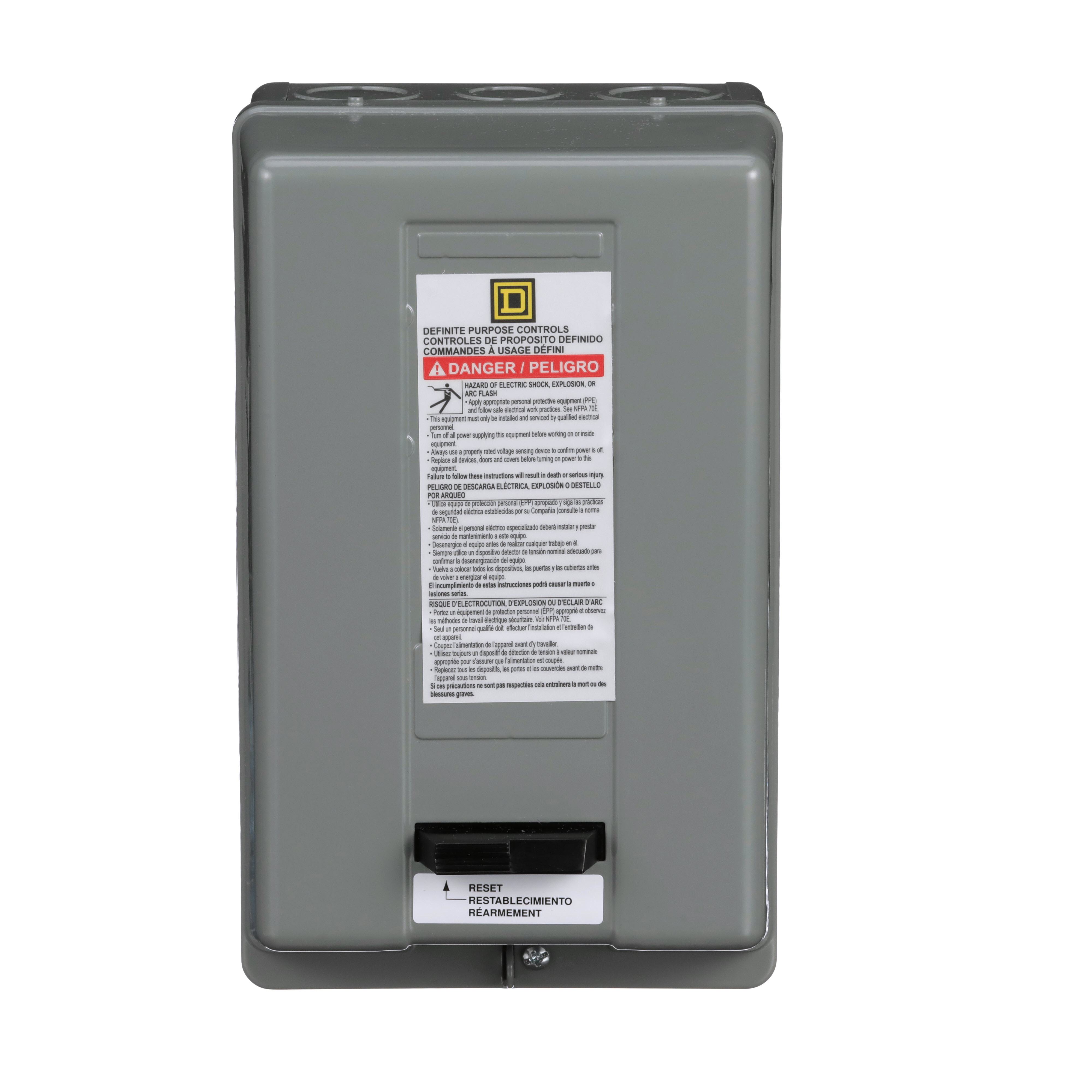

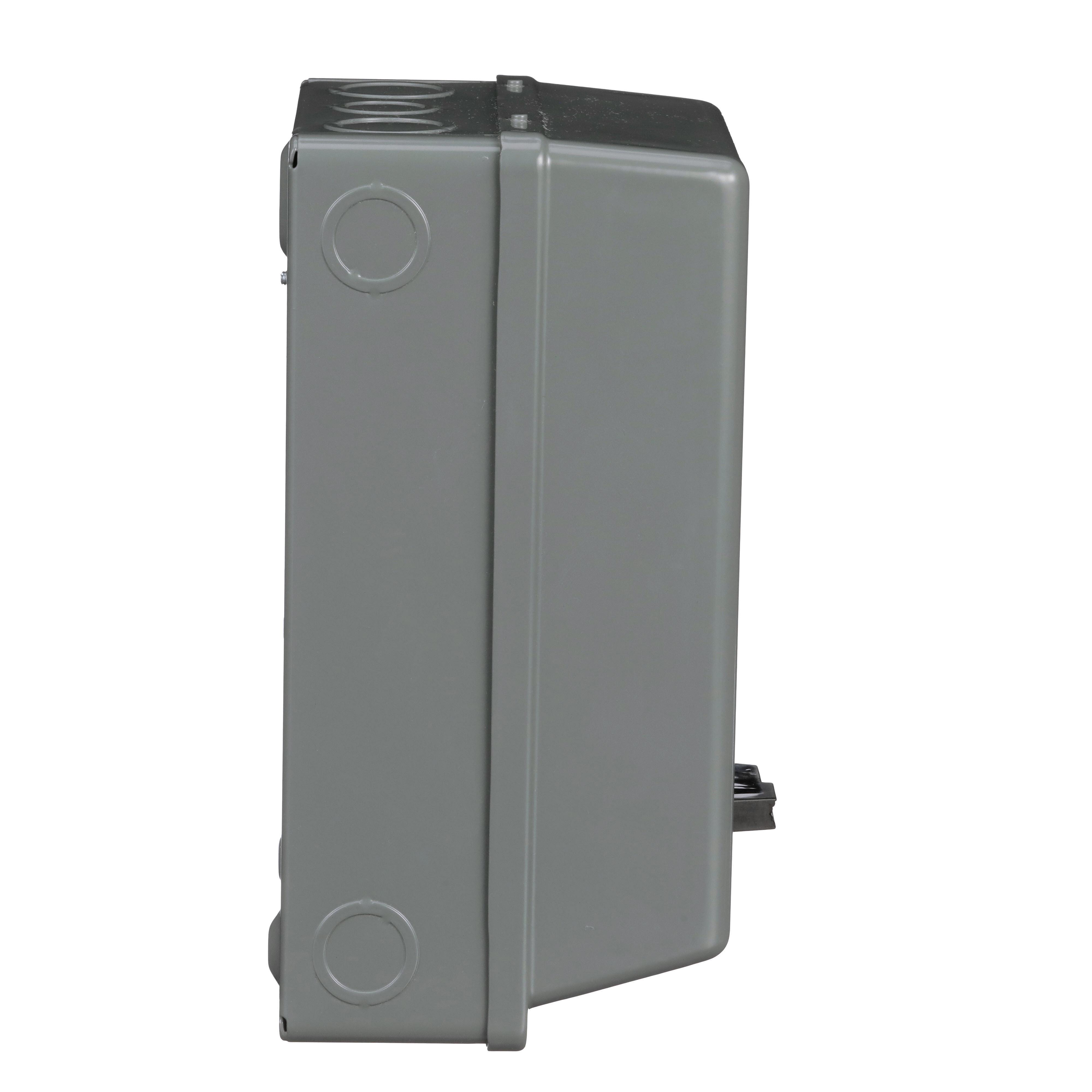

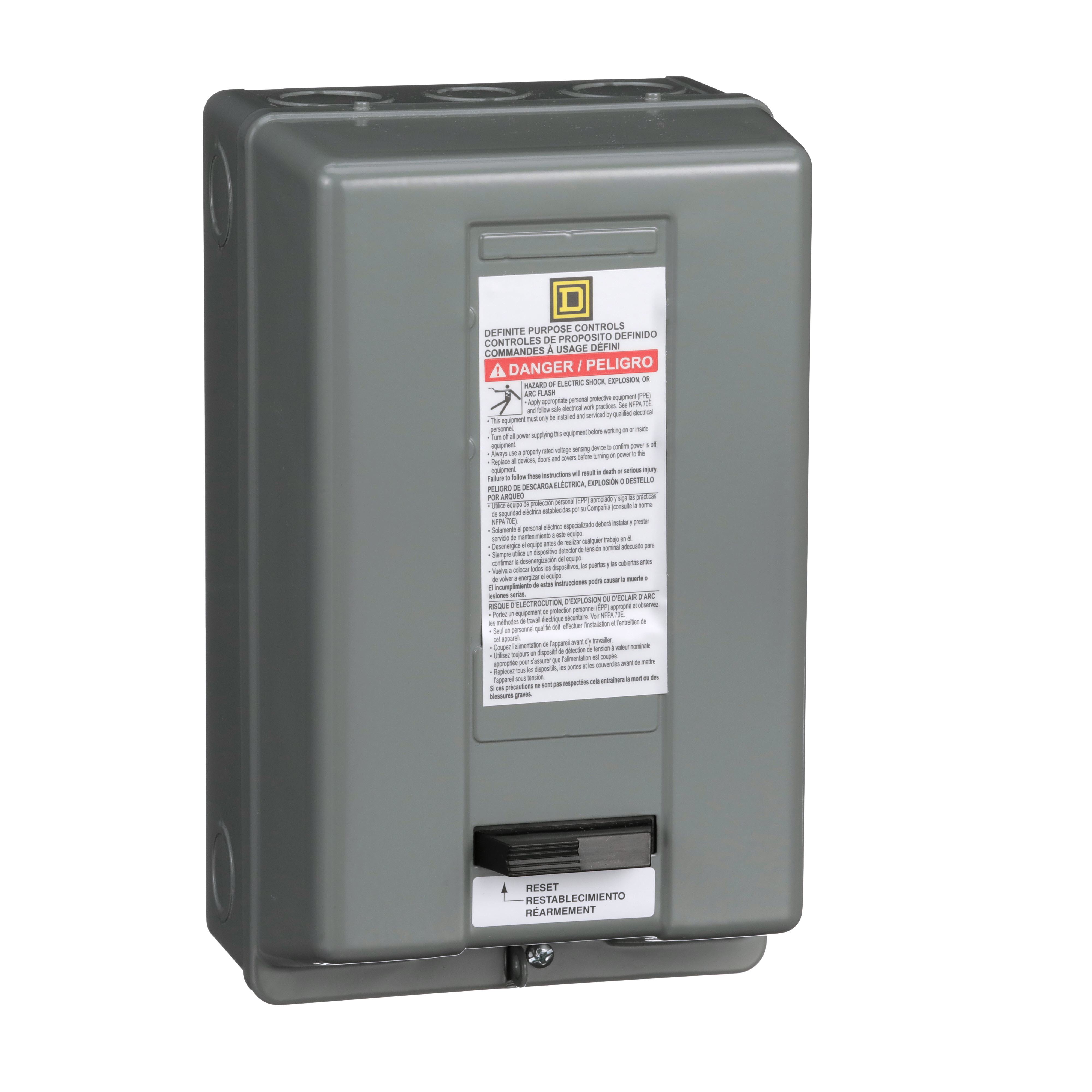

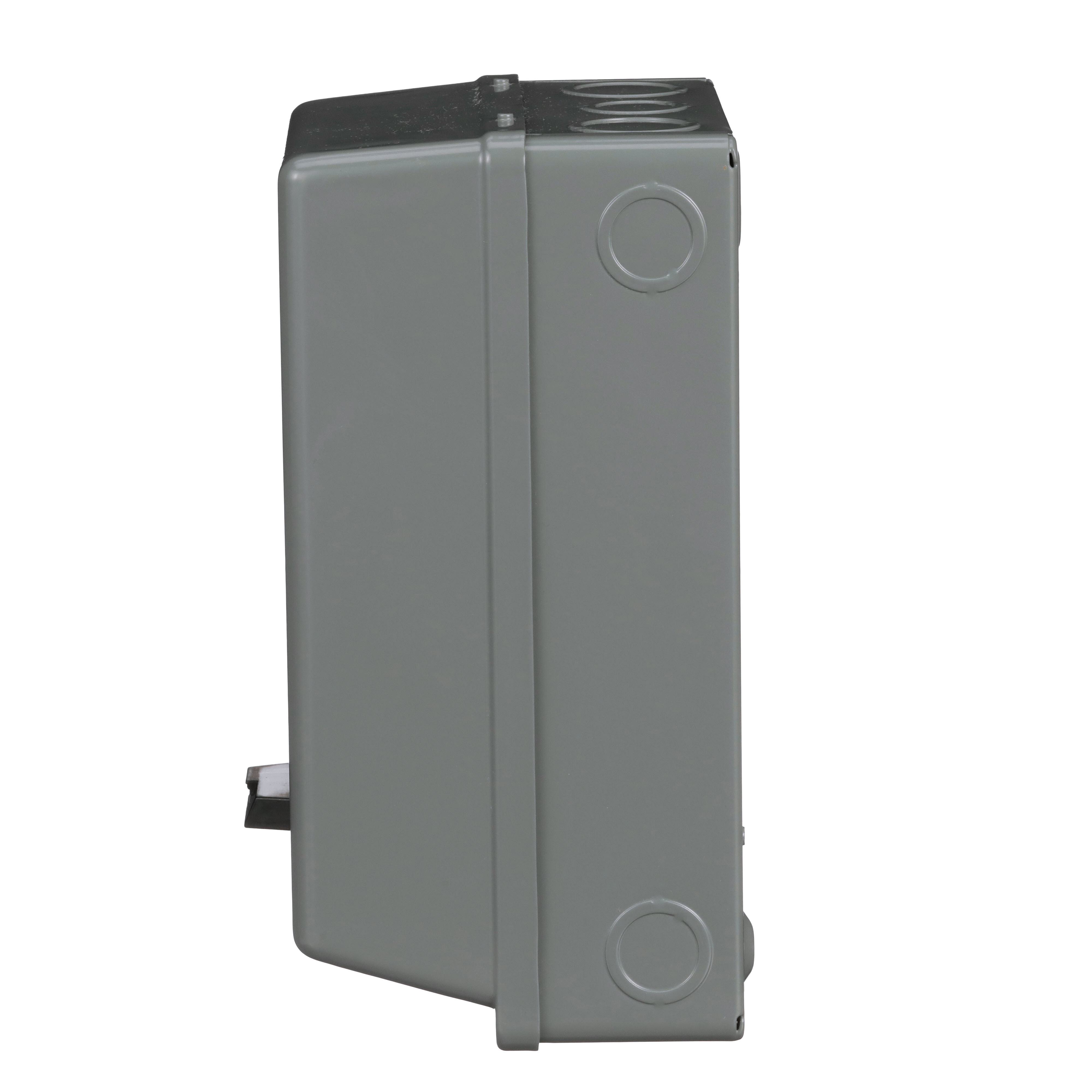

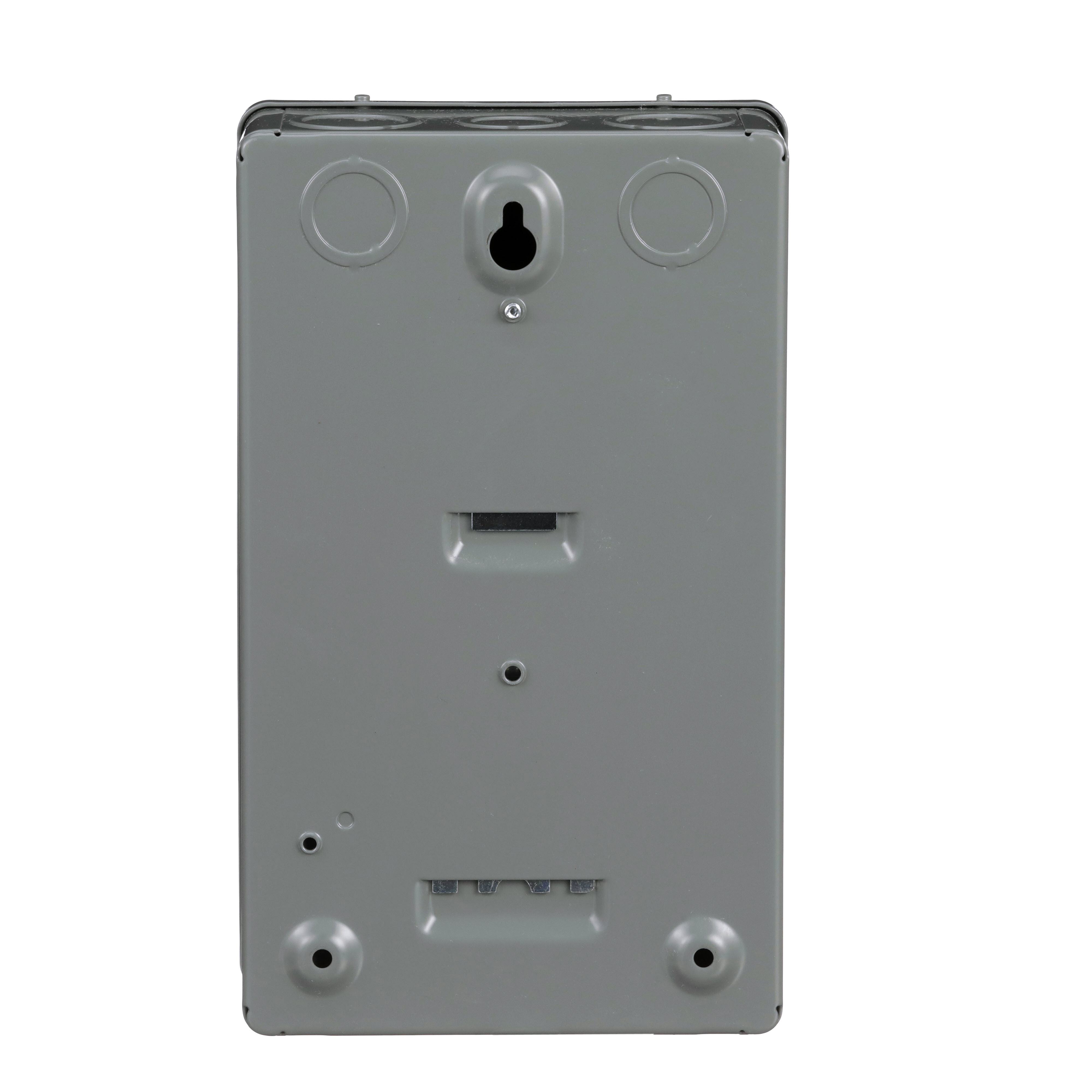

Square D™ 8911DPSG33V09 Type DPS Definite Purpose Starter, 220 VAC at 50 Hz, 208, 240 VAC at 60 Hz V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure
Brand: Square D™
Item ID: 449900
MPN: 8911DPSG33V09
UPC: 785901081524
Login for Price
Features
- Low cost, small size
- Trip-free reset mechanism
- 500000 mechanical operations
- NEMA type 1 general purpose enclosure
Description
Definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps and HVAC equipment.
Square D™ Definite Purpose Starter, Type DPS, Series: 8911, 600 VAC, 30 A, 50/60 Hz Frequency, 2 hp at 115 VAC, 5 hp at 230 VAC, 10 hp at 230 VAC, 15 hp at 460 VAC, 20 hp at 575 VAC Motor, 220 VAC at 50 Hz, 208, 240 VAC at 60 Hz Coil, 3 Pole, (3) Thermal Melting Alloy Reset, 3 ph, Non-Reversing Action, NEMA 1 Enclosure, Sheet Steel, 6 in W x 10 in H Dimensions
Specifications
Action |
Non-Reversing |
Amperage Rating |
30 A |
Coil Voltage |
220 VAC at 50 Hz, 208, 240 VAC at 60 Hz |
Dimensions |
6 in W x 10 in H |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Material |
Sheet Steel |
Motor Power |
2 hp at 115 VAC, 5 hp at 230 VAC, 10 hp at 230 VAC, 15 hp at 460 VAC, 20 hp at 575 VAC |
Number of Poles |
3 |
Phase |
3 |
Reset Type |
(3) Thermal Melting Alloy |
Series |
8911 |
Type |
Type DPS |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|CSA File No. LR25490 Class 3211-04|ECCN: EAR99|UL File E3190|CCN Guide No. NLDX2|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Application |
General Purpose, Indoor, Air Compressors, Agricultural Equipment, Pumps and HVAC Equipment Applications |
