Square D™ 8965DPR33V02

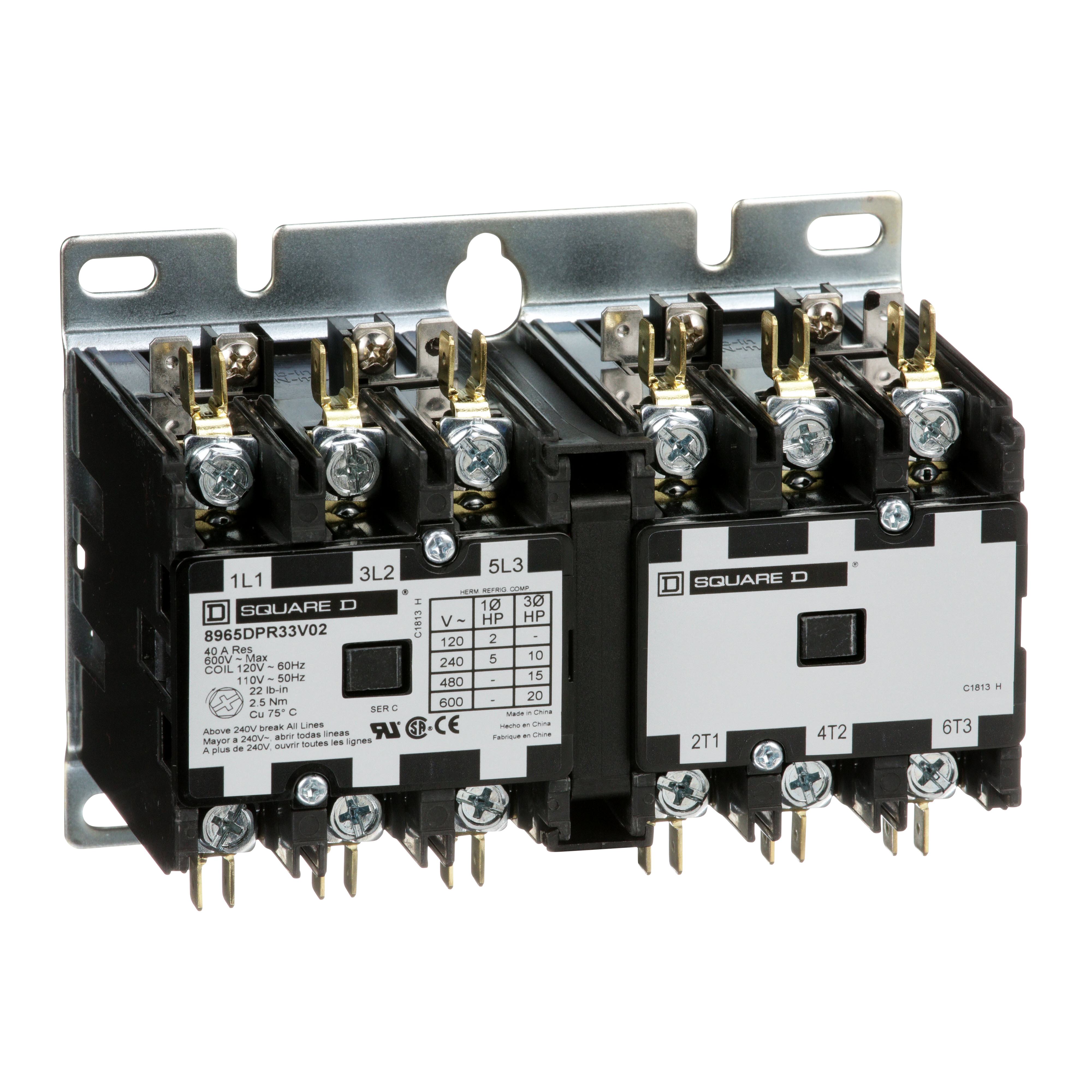

Square D™ 8965DPR33V02 3-Phase Hoist Contactor, 110/120 VAC V Coil, 30 A, 3 Poles
Brand: Square D™
Item ID: 540383
MPN: 8965DPR33V02
UPC: 785901081364
Login for Price
Features
- 2 hp 115 VAC, 5 hp 230 vac 1 ph, 10 hp 230 VAC, 15 hp 460/575 vac polyphase motor power
Description
QO™(B) circuit breakers come in plug-on or bolt-on options and a complete range of amperages and interrupting ranges to fit into various QO™ distribution panels. QO™ is the "World's Finest" Industry leading offer since 1955, with features engineered for faster installation, reliability and quality.
Square D™ Hoist Contactor, 3-Phase, Series: 8965DPR, 110/120 VAC Coil, 30 A Maximum Load Current, 15 hp Coil, 3 Pole, 50/60 Hz Frequency, Reversing Contact, 600 VAC Contact, Screw Terminal, Open Enclosure, Surface Mounting, 6.87 in W x 3.3 in D x 3.98 in H Dimensions
Specifications
Actuator Type |
Trip-Free Toggle |
Amperage Rating |
20 A |
Coil Power Rating |
15 hp |
Coil Voltage |
110/120 VAC |
Connection Type |
Pressure Plate |
Contact Rating |
600 VAC |
Contact Type |
Reversing |
Dimensions |
6.87 in W x 3.3 in D x 3.98 in H |
Enclosure Type |
Open |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA at 120 VAC |
Maximum Load Current |
30 A |
Mounting Type |
Surface |
Number of Poles |
3 |
Phase |
1 ph |
Series |
8965DPR |
Temperature Rating |
40 deg C |
Terminal Type |
Screw |
Trip Type |
Thermal/Magnetic |
Type |
3-Phase |
Voltage Rating |
120 VAC |
Wire Size |
14 to 8 AWG Aluminum or Copper, 14 to 10 AWG Copper |
Standard Approval |
RoHS Compliant|UL File No. E42240|CSA File No. LR25490 Class 3211-04|ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Application |
For control of motors in hoists, overhead door, small elevators, commercial laundry equipment and other related products applications |
