Square D™ 8965DPR43V02

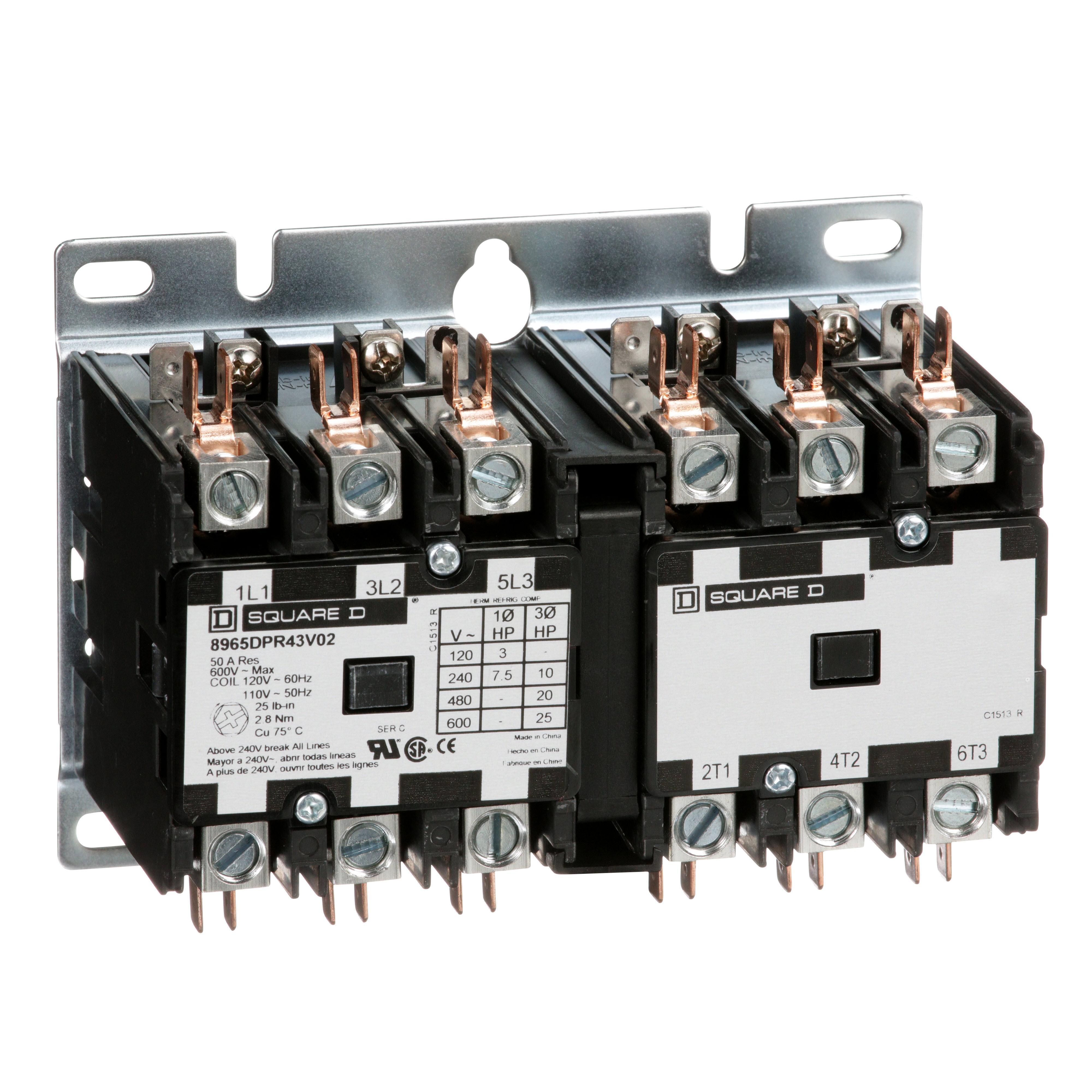

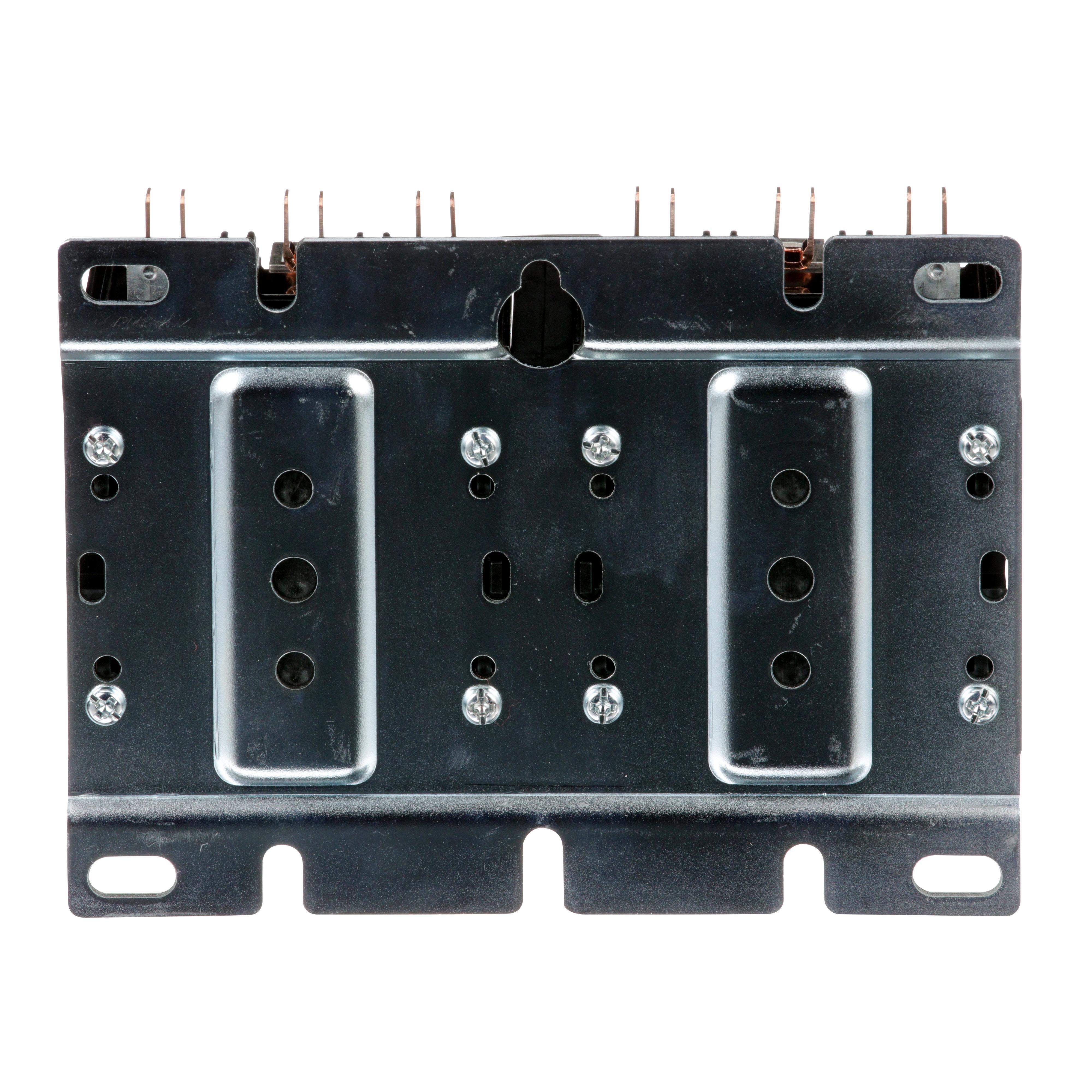

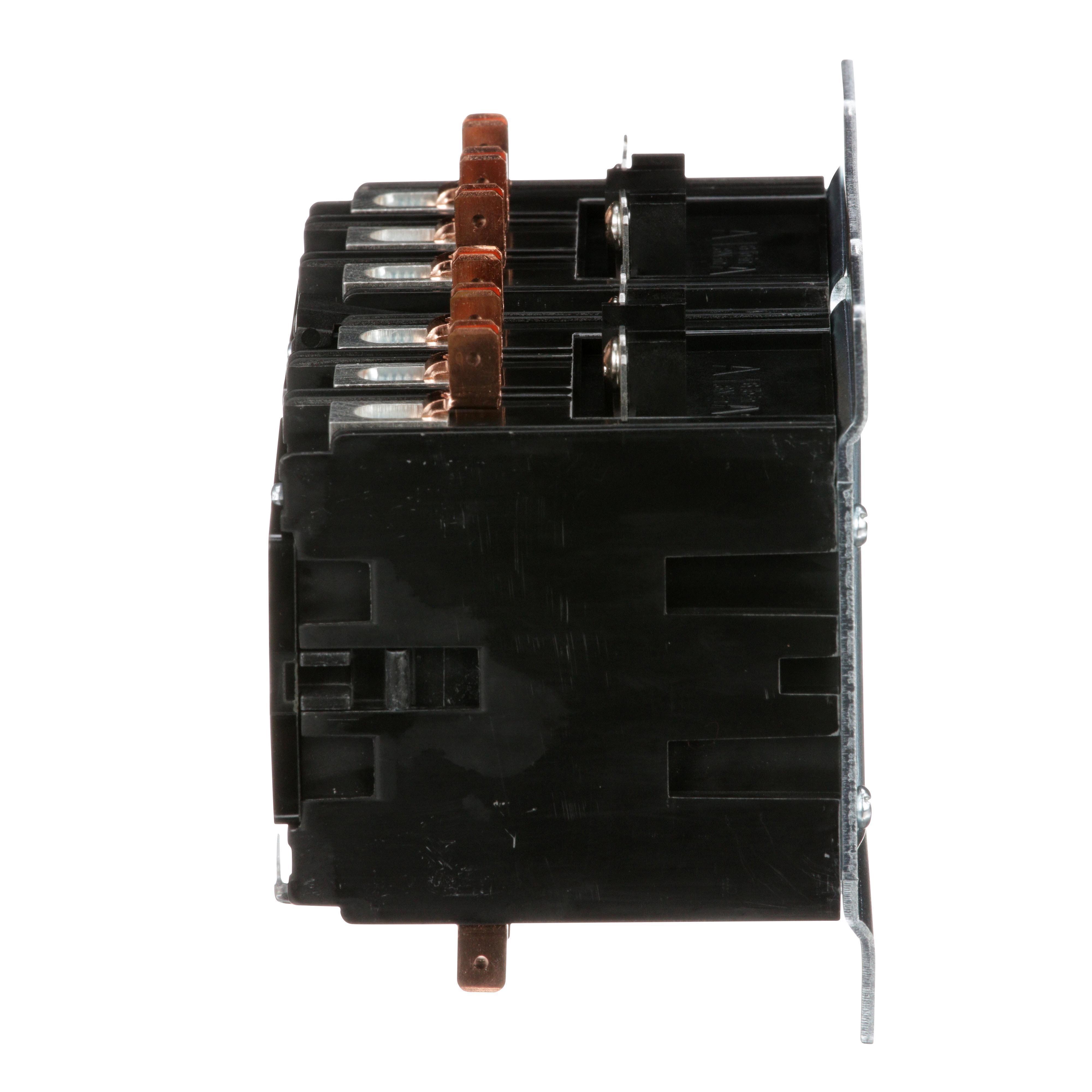

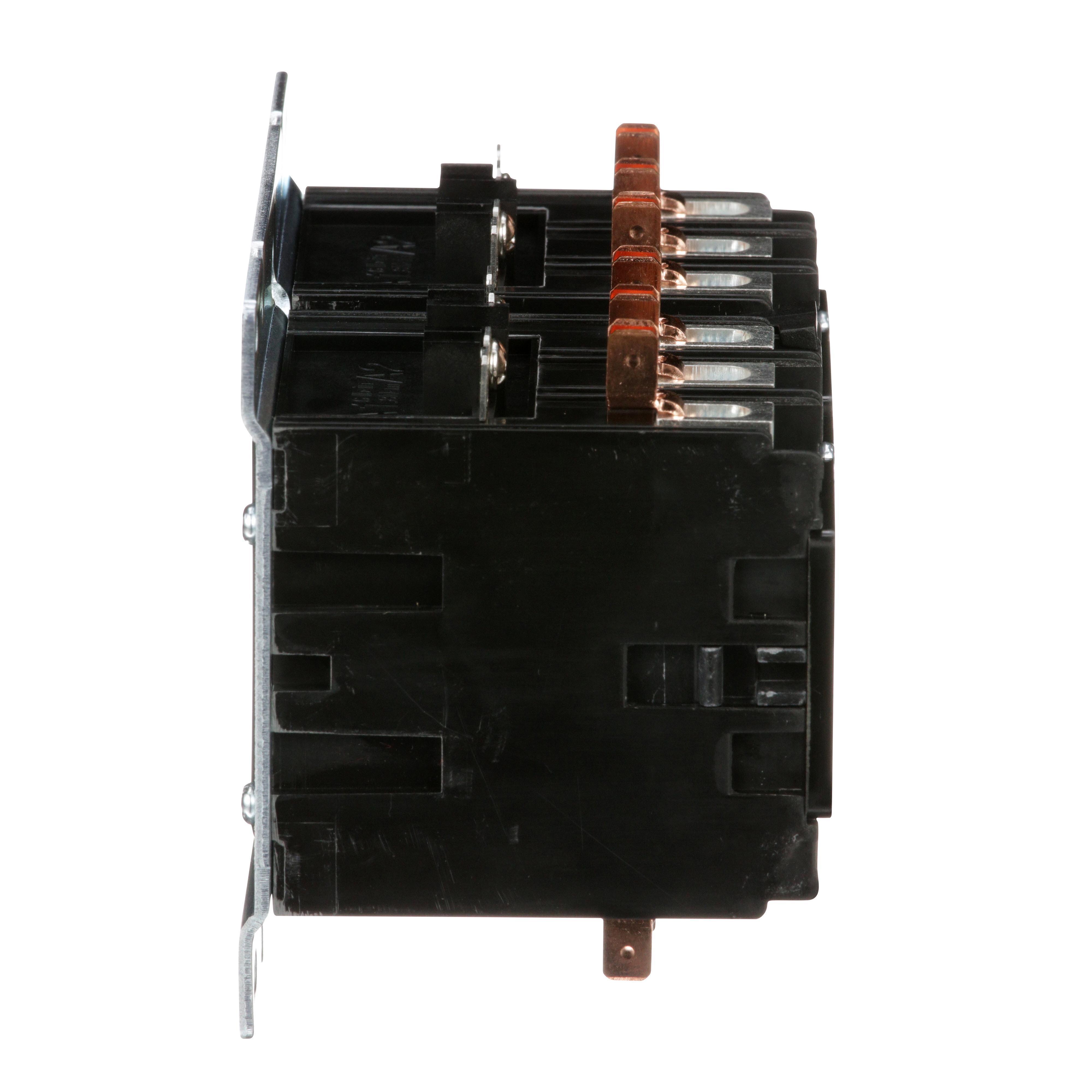

Square D™ 8965DPR43V02 3-Phase Type DPR Reversing Hoist Contactor, 110/120 VAC V Coil, 40 A, 3NO Contact, 3 Poles
Brand: Square D™
Item ID: 534996
MPN: 8965DPR43V02
UPC: 785901081357
Login for Price
Features
- Designed to operate on line voltages of 85 to 110% of rated voltage
- Designed for applications at 50 or 60 Hz only
- Coils are easily replaced with external base removed
- Field installable auxiliary contacts for flexibility
- Designed to accept one auxiliary contact module with up to two isolated circuits per side (two modules per device), when auxiliary contacts are ordered separately, two modules are normally used for each device, one for forward, one for reverse
- 600 VAC system voltage
- 3 hp at 115 VAC 1-phase, 7-1/2 hp at 230 VAC 1-phase, 15 hp at 230 VAC 3-phase, 20 hp at 460 VAC 3-phase, 20 hp at 575 VAC 3-phase
Description
Type DPR reversing/hoist contactors are designed for the control of motors in hoists, overhead doors, small elevators, commercial laundry equipment and other related products which use reversing motors. They are rated to perform in the short periods of jogging experienced in hoist service.
Square D™ Hoist Contactor, 3-Phase Type DPR Reversing, Series: 8965, 110/120 VAC Coil, 40 A Maximum Load Current, 3 hp at 115 VAC 1 ph, 7-1/2 hp at 230 VAC 1 ph, 15 hp at 230 VAC 3 ph, 20 hp at 460/575 VAC 3 ph Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, Open Enclosure, 3.73 in H x 6.03 in W x 2.98 in D Dimensions
Specifications
Coil Power Rating |
3 hp at 115 VAC 1 ph, 7-1/2 hp at 230 VAC 1 ph, 15 hp at 230 VAC 3 ph, 20 hp at 460/575 VAC 3 ph |
Coil Voltage |
110/120 VAC |
Contact Configuration |
3NO |
Dimensions |
3.73 in H x 6.03 in W x 2.98 in D |
Enclosure Type |
Open |
Frequency Rating |
50/60 Hz |
Maximum Load Current |
40 A |
Number of Poles |
3 |
Series |
8965 |
Type |
3-Phase Type DPR Reversing |
Standard Approval |
CE Certified|CSA File LR25490 Class 3211-04|ECCN EAR99|UL File E3190 CCN NLDX2|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Application |
Heating, Air Conditioning, Refrigeration, Data Processing, Food Service Equipment, Control of Motors in Hoists, Overhead Doors, Small Elevators and Commercial Laundry Equipment Applications |
