Square D™ 9001BG112

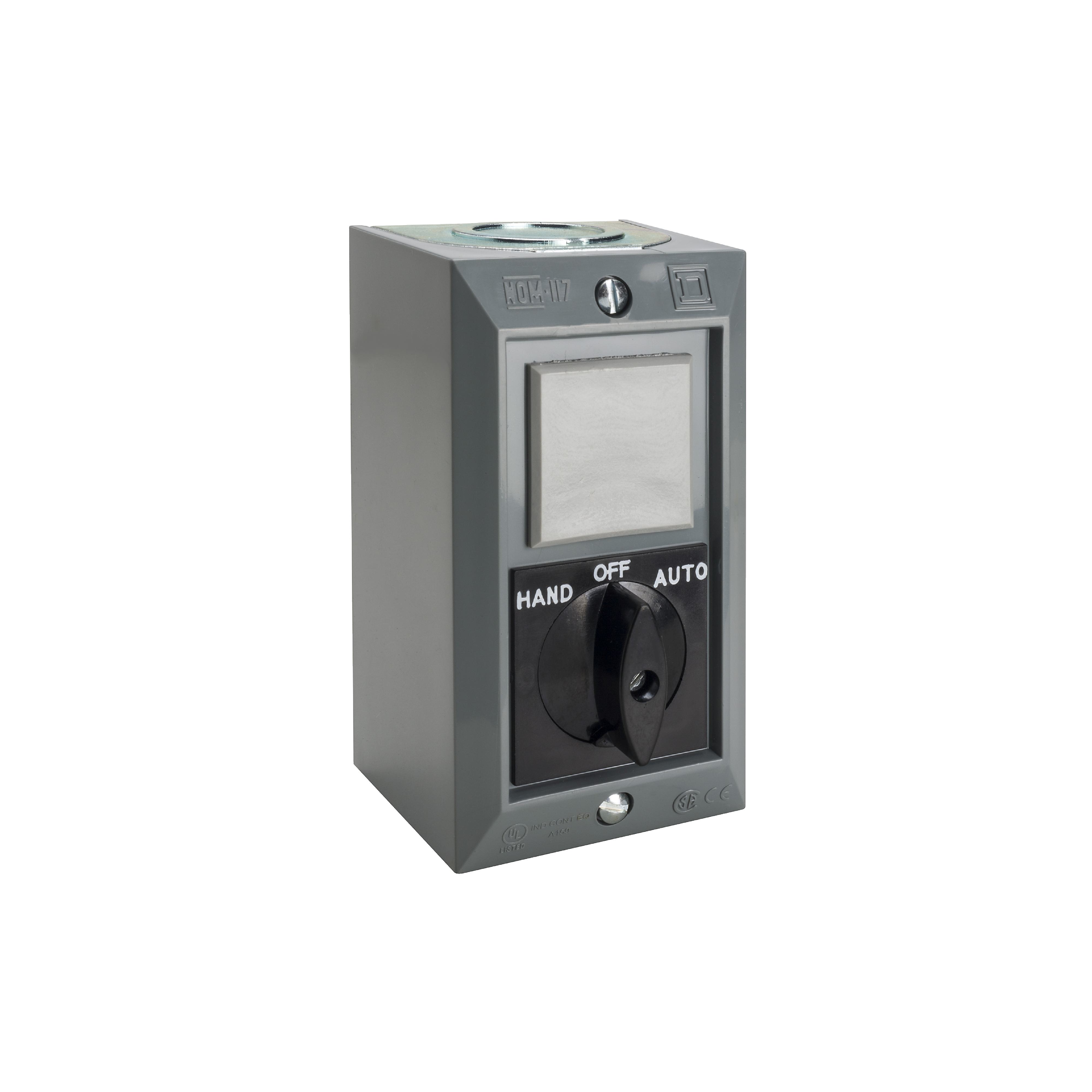

Square D™ 9001BG112 Selector Switch Control Station, 600 VAC, 5 A, 1NC-1NO Contact, 1 Operator, NEMA 1 NEMA Rating
Brand: Square D™
Item ID: 465809
MPN: 9001BG112
UPC: 785901390138
Login for Price
Features
- General purpose (indoor) environmental conditions
- Screw clamp terminal connections
- 1 projecting pushbutton operator profile
Description
Square D™ Selector Switch Control Station, 600 VAC, 5 A, 1 Operator, 1NC-1NO Contact Configuration, Maintained Contact Mode, 5 A at 600 VAC Contact, Knob Operator, Legend: HAND-OFF-AUTO, Screw Clamp Connection, NEMA 1 NEMA Rating, Surface Mounting, Plastic
Specifications
Amperage Rating |
5 A |
Connection Type |
Screw Clamp |
Contact Configuration |
1NC-1NO |
Contact Mode |
Maintained |
Contact Rating |
5 A at 600 VAC |
Legend |
HAND-OFF-AUTO |
Material |
Plastic |
Mounting Type |
Surface |
NEMA Rating |
NEMA 1 |
Number of Operators |
1 |
Operator Type |
Knob |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|CE Certified|CSA File No. LR25490 Class 3211-03|UL File No. E42259|CCN Guide No. NKCR|PROP65: This product can expose you to chemicals including Nickel compounds which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
General Purpose and Indoor Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_caea237713196cc20c671ab5f48a151ef6563bb8642628be6fc2d58aaaa90146.pdf
Catalog 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d70182799fe5cd406adb03417710c7c6786ef08b0ce5efcb6d05d75754bb8119.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_84d53384f81c0b4710d08fee1ea8055f3f178ff3a622508e426a70a3e6eb74d3.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_bd9f88d8da0fa8e44af0a81096d1b8a4d7150f1c72db38b2562652fc9a67172d.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8cf869c3a54d7fe6f22a64789dde7c1d3f34ee73153f4f6839c0f8a0f0c54c20.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BG204_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BG204_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BG204_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XY2CZ1015_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BG112_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_30315088137a540e46417e0d9cf3d51b899e0dc5509da0e294917cb1985ad8bf.pdf
Specification Sheet 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b66a73f29b33870040a42a6d1710b77e4d242b4ef8258616a04278816cab70f1.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BG112_Specification_Sheet.pdf
