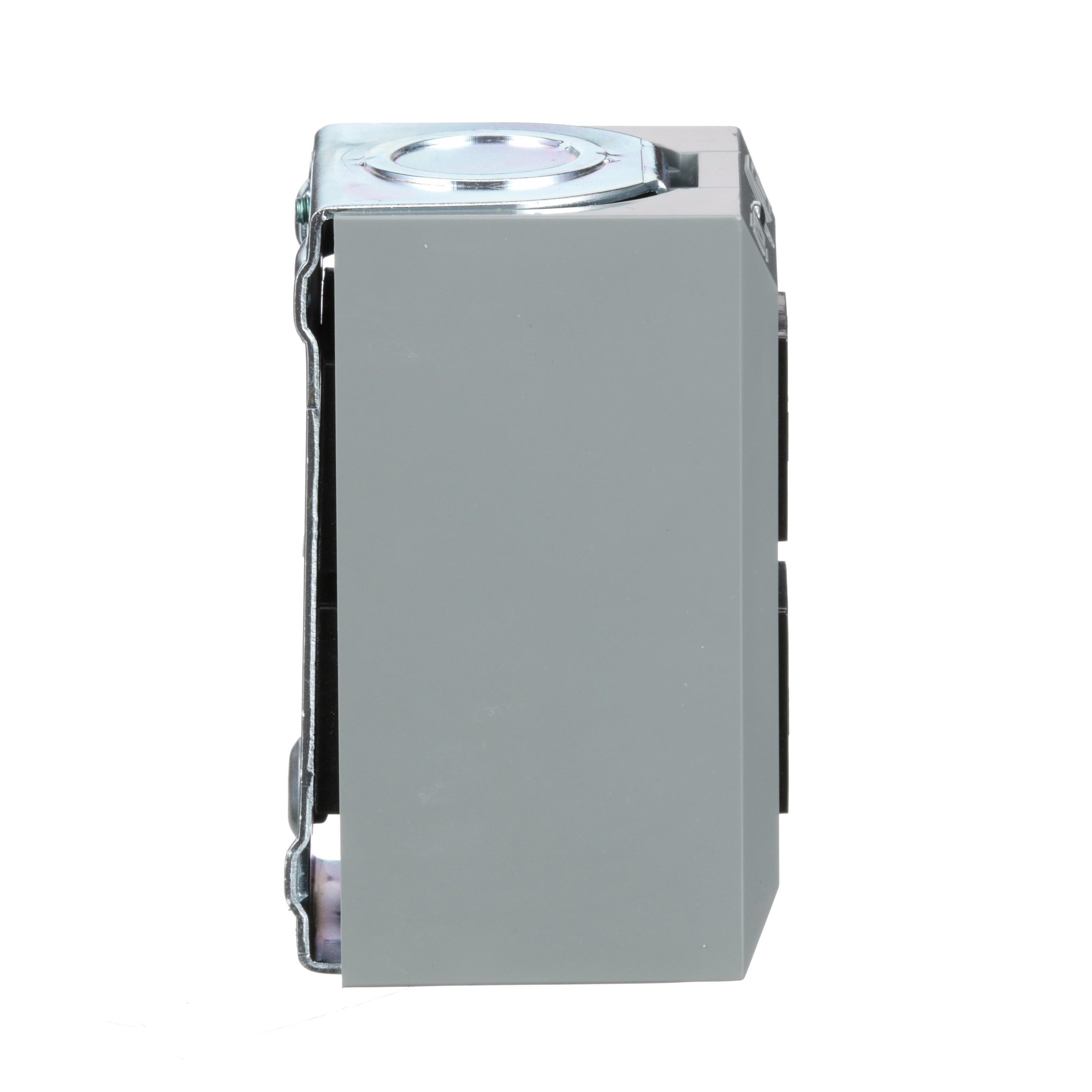

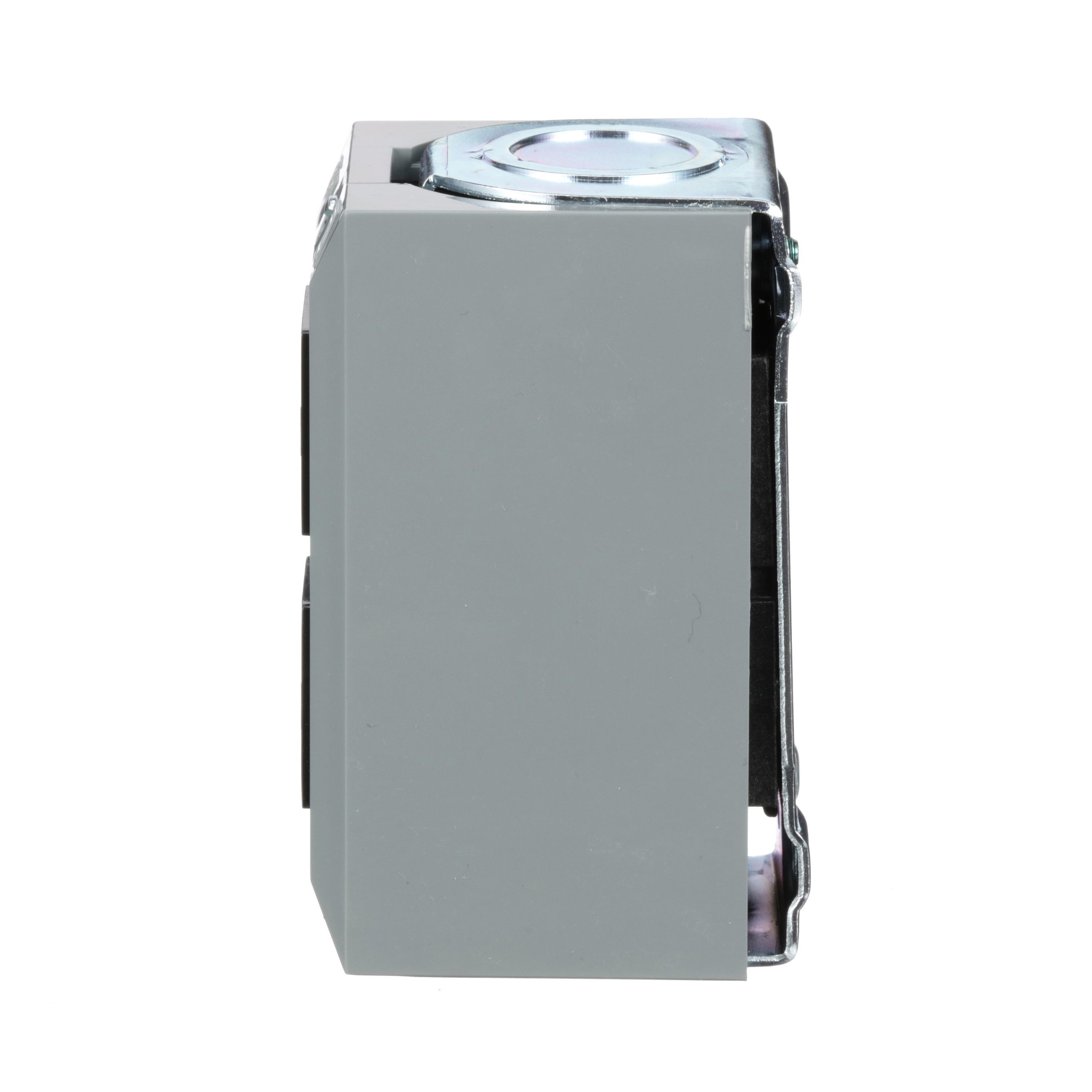

Square D™ 9001BG201
Square D™ Harmony™ 9001BG201 Type BG Control Station, 600 VAC, 5 A, 1NC-1NO Contact, 2 Operators, NEMA 1 NEMA Rating
Brand: Square D™
Item ID: 40597
MPN: 9001BG201
UPC: 785901390176
Login for Price
Features
- Indoor installation
- 1/2 in-and 3/4 in knockout
Description

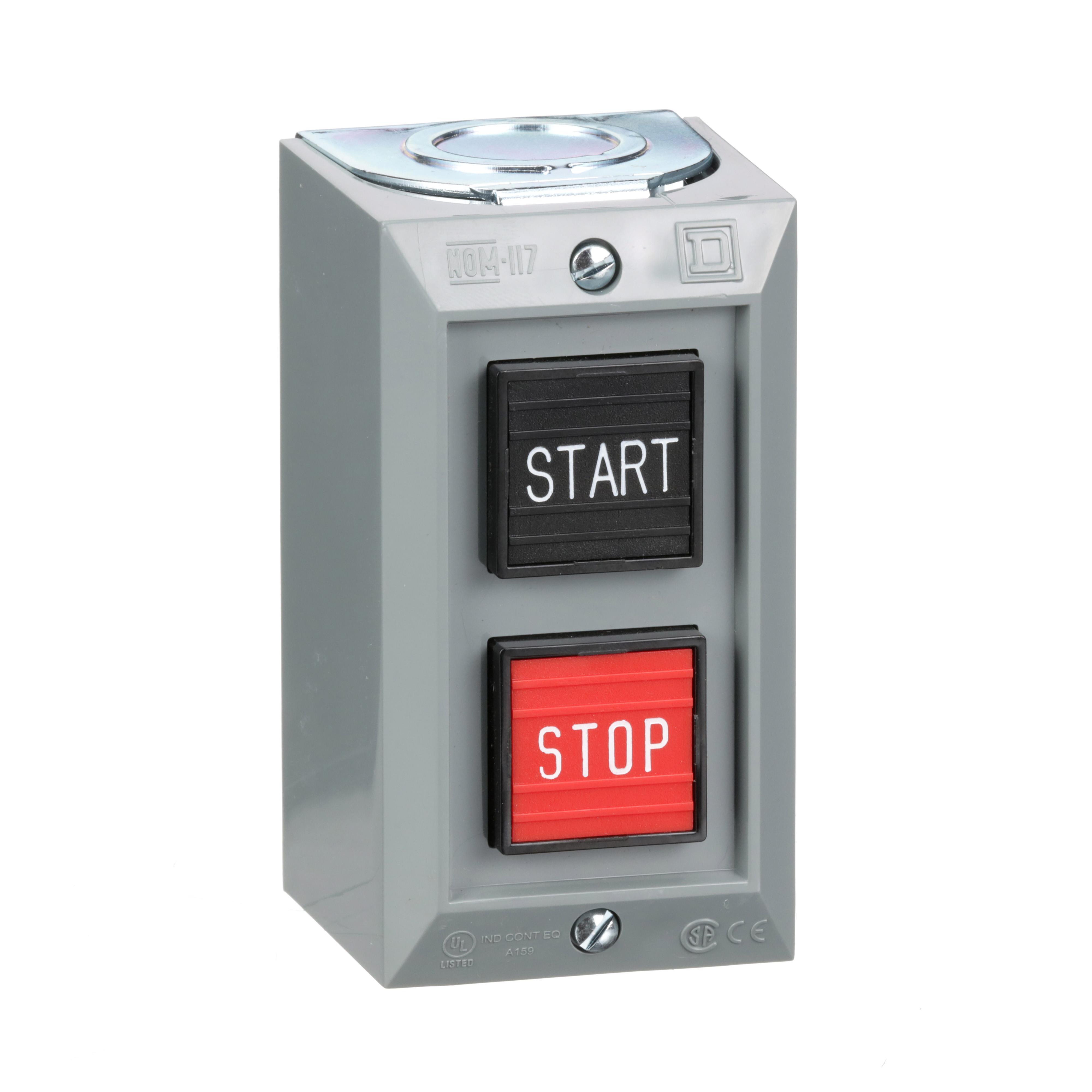

Square D™ Harmony™ Control Station, Type BG, Series: 9001B, 600 VAC, 5 A, 2 Operators, 1NC-1NO, Momentary Contact Mode, 5 A at 600 VAC Contact, Push Button Operator, START-STOP Legend, Push Button, Screw Clamp, NEMA 1, Surface Mount, Plastic, 2.06 in L x 2.53 in W x 2.34 in H
Specifications
Actuator |
Push Button |
Amperage Rating |
5 A |
Connection Type |
Screw Clamp |
Contact Configuration |
1NC-1NO |
Contact Mode |
Momentary |
Contact Rating |
5 A at 600 VAC |
Dimensions |
2.06 in L x 2.53 in W x 2.34 in H |
Legend |
START-STOP |
Material |
Plastic |
Mounting Type |
Surface |
NEMA Rating |
NEMA 1 |
Number of Operators |
2 |
Operator Type |
Push Button |
Series |
9001B |
Type |
Type BG |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|CSA File No. LR25490 Class 3211 03|UL File No. E42259|CE Certified|PROP65: This product can expose you to chemicals including Nickel compounds which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
General Purpose and Indoor Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e123699aa4d65cca8d626288136caa1a8e1167a05934307082afe769f299ba41.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_bd9f88d8da0fa8e44af0a81096d1b8a4d7150f1c72db38b2562652fc9a67172d.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BG201_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BG201_Instruction_Installation_Manual.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BG305_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BG305_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BGC214_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BGC214_Owners_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BG201_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_37efe3fde8c92a88eb8f07590b11f33890521252a02217d922993428c2e9a502.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BG201_Specification_Sheet.pdf
