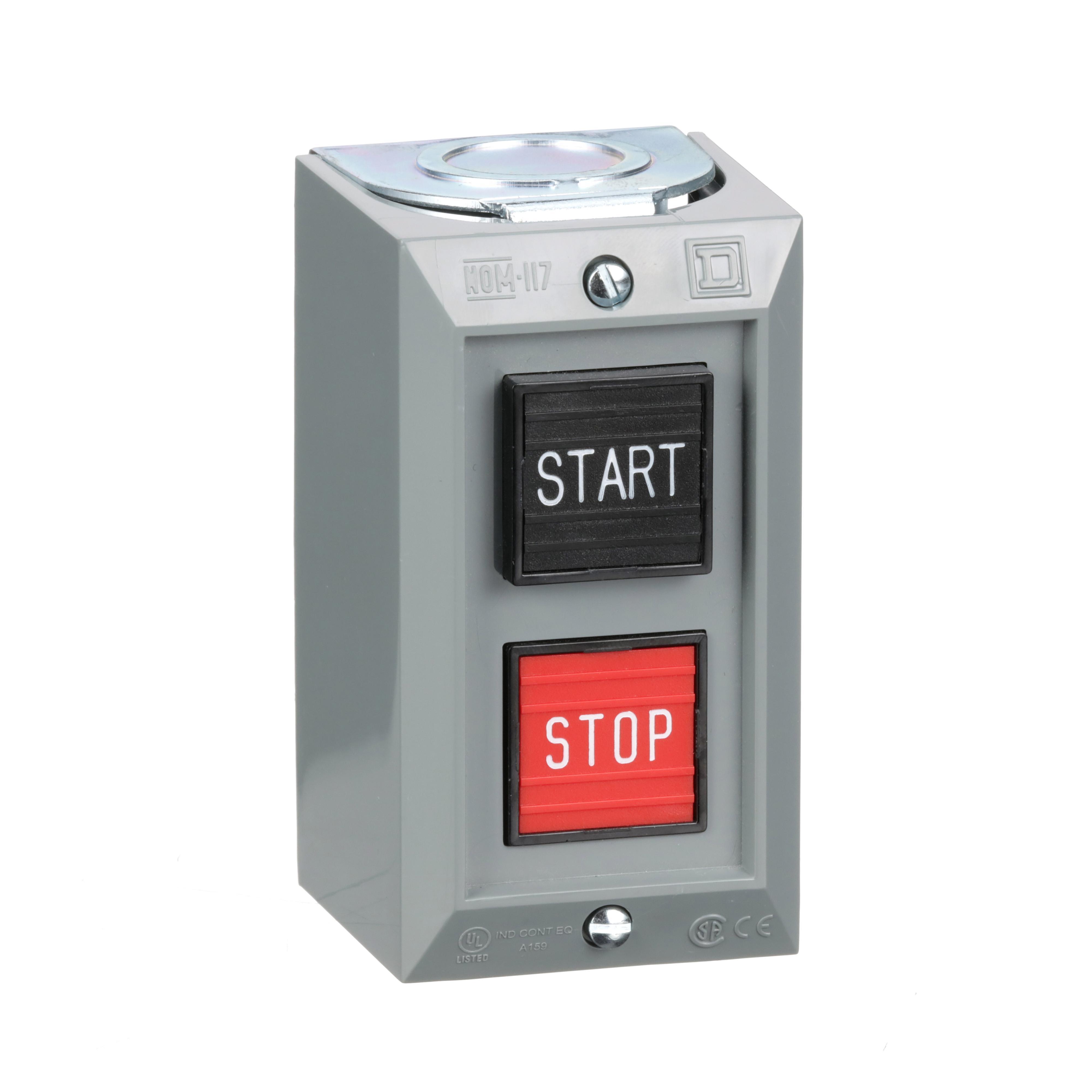

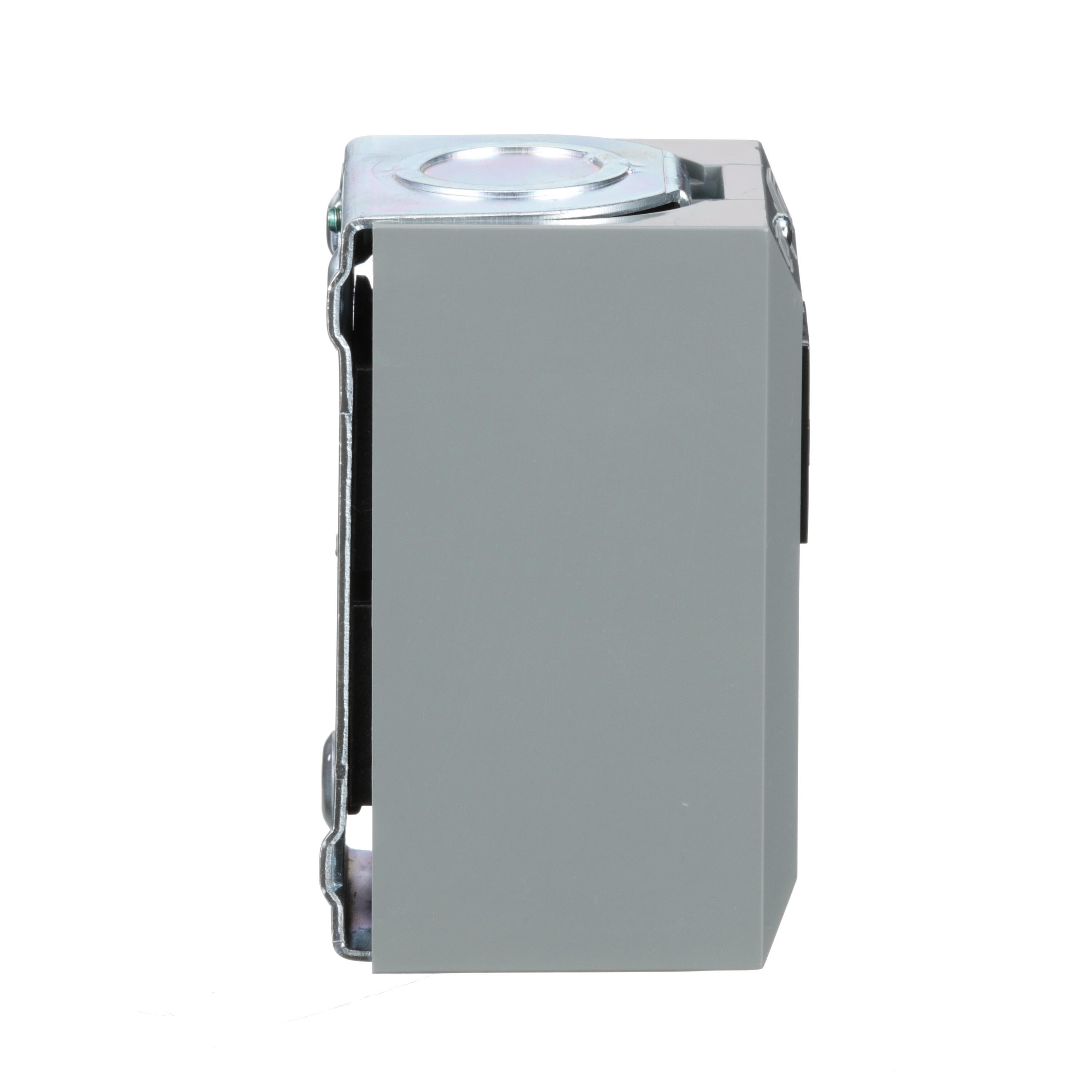

Square D™ 9001BG215
Square D™ Harmony™ 9001BG215 Complete Interlocked Type BG Control Station, 600 VAC, 5 A, 2NO Contact, 2 Operators, NEMA 1 NEMA Rating
Brand: Square D™
Item ID: 40608
MPN: 9001BG215
UPC: 785901390268
Login for Price
Features
- 1/2 and 3/4 in knockout
- Two projecting pushbuttons
Description
Square D™ Harmony™ Control Station, Complete Interlocked Type BG, Series: 9001B, 600 VAC, 5 A, 2 Operators, 2NO, Maintained Contact Mode, 5 A at 600 VAC Contact, Push Button Operator, START-STOP Legend, Push Button, Screw Clamp, NEMA 1, Surface Mount, Plastic, 2.06 in L x 2.53 in W x 2.34 in H
Specifications
Actuator |
Push Button |
Amperage Rating |
5 A |
Connection Type |
Screw Clamp |
Contact Configuration |
2NO |
Contact Mode |
Maintained |
Contact Rating |
5 A at 600 VAC |
Dimensions |
2.06 in L x 2.53 in W x 2.34 in H |
Legend |
START-STOP |
Material |
Plastic |
Mounting Type |
Surface |
NEMA Rating |
NEMA 1 |
Number of Operators |
2 |
Operator Type |
Push Button |
Series |
9001B |
Type |
Complete Interlocked Type BG |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|CE Certified|CSA File No. LR25490 Class 3211 03|UL File No. E42259|PROP65: This product can expose you to chemicals including Nickel compounds which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
General Purpose and Indoor Applications |
