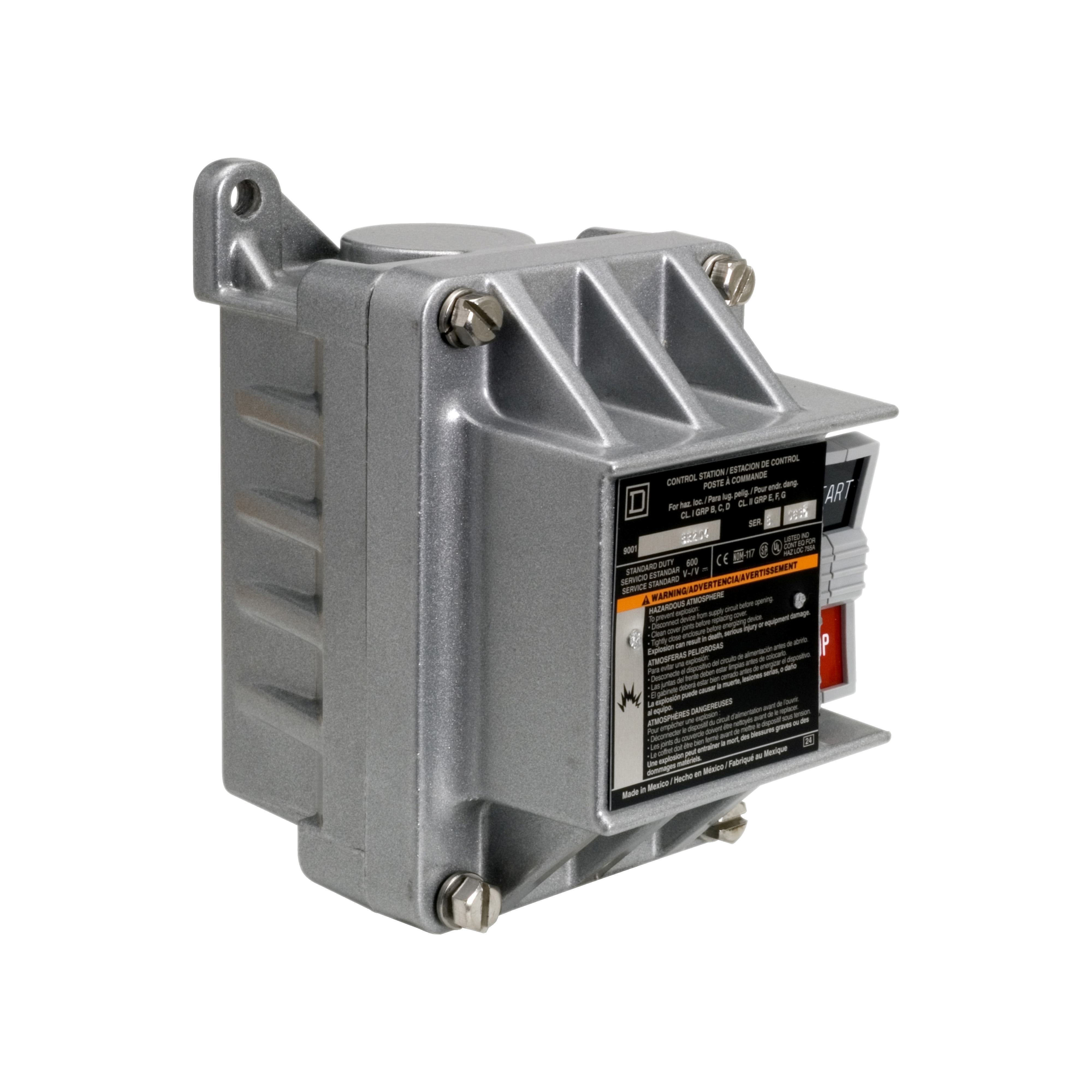

Square D™ 9001BR204
Square D™ Harmony™ 9001BR204 Complete Type BR Control Station, 600 VAC, 5 A, 1NC-1NO Contact, 2 Operators, NEMA 7/9 NEMA Rating
Brand: Square D™
Item ID: 40646
MPN: 9001BR204
UPC: 785901600886
Login for Price
Features
- 1/2 to 14 NPT cable entry
- Two projecting pushbuttons
Description
Square D™ Harmony™ Control Station, Complete Type BR, Series: 9001B, 600 VAC, 5 A, 2 Operators, 1NC-1NO, Momentary Contact Mode, 5 A at 600 VAC Contact, Start Stop Legend, Push Button, Screw Clamp, NEMA 7/9, Surface Mount, Aluminum, 3.95 in W x 4.35 in D x 6.36 in H
Specifications
Actuator |
Push Button |
Amperage Rating |
5 A |
Connection Type |
Screw Clamp |
Contact Configuration |
1NC-1NO |
Contact Mode |
Momentary |
Contact Rating |
5 A at 600 VAC |
Dimensions |
3.95 in W x 4.35 in D x 6.36 in H |
Legend |
Start Stop |
Material |
Aluminum |
Mounting Type |
Surface |
NEMA Rating |
NEMA 7/9 |
Number of Operators |
2 |
Series |
9001B |
Type |
Complete Type BR |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|CSA File No. LR25490 Class 3211-03|CE Certified|UL File No. E42259|PROP65: This product can expose you to chemicals including Nickel compounds which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
Hazardous Location and Indoor Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6b3ca061ae2ade5dd3f6c40be600765ec3c84d440d877ca8b3f3ffdffe7cd4dc.pdf
Catalog 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d70182799fe5cd406adb03417710c7c6786ef08b0ce5efcb6d05d75754bb8119.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XVLA333_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XVLA333_Catalog.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3885eada4bc1c02c53a729dda8f81ceb09f1cabd9e3e84549f6cbda6d7608a45.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e3f11a84203276310cfebbd1157e660f290da4a9a0f0c16b93ec78e39627452d.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BR204_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BR204_Instruction_Installation_Manual.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_18725af52d9f479b6ee6337a6a7631ad28e4113ead15088697d6e3b577763f0b.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e6b7df550c7aecef42ac8a39c3e1813a618bc29f7af82cca4798ef32216a94eb.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BR204_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BR204_Specification_Sheet.pdf
