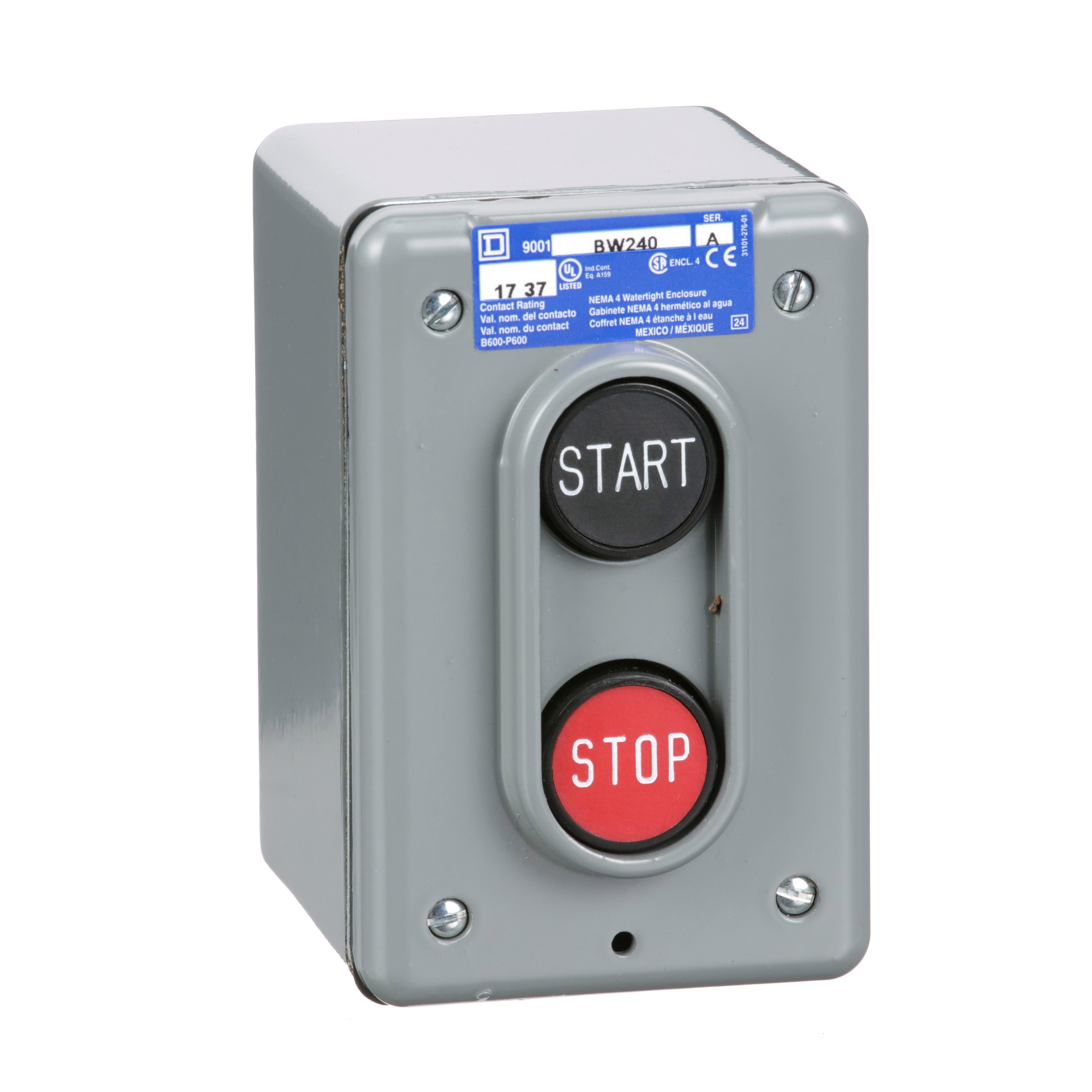

Square D™ 9001BW240
Square D™ Harmony™ 9001BW240 Type BW Complete Push Button Control Station, 600 VAC, 5 A, 1NC-1NO Contact, 2 Operators, NEMA 4 Rating
Brand: Square D™
Item ID: 40659
MPN: 9001BW240
UPC: 785901458753
Login for Price
Features
- Dust and damp proof
- 1/2 to 14 NPT cable entry
- 2-projecting pushbuttons
- Watertight and dusttight
Description
Square D™ Harmony™ Push Button Control Station, Type BW Complete, Series: 9001B, 600 VAC, 5 A, 2 Operators, 1NC-1NO Contact Configuration, Momentary Contact Mode, 5 A at 600 VAC Contact, Push Button Operator, Legend: START-STOP, Screw Clamp Connection, NEMA 4 Rating, Surface Mounting, Die Cast Zinc, 2.76 in W x 3.6 in D x 4.25 in H Dimensions
Specifications
Amperage Rating |
5 A |
Connection Type |
Screw Clamp |
Contact Configuration |
1NC-1NO |
Contact Mode |
Momentary |
Contact Rating |
5 A at 600 VAC |
Dimensions |
2.76 in W x 3.6 in D x 4.25 in H |
Legend |
START-STOP |
Material |
Die Cast Zinc |
Mounting Type |
Surface |
NEMA Rating |
NEMA 4 |
Number of Operators |
2 |
Operator Type |
Push Button |
Series |
9001B |
Type |
Type BW Complete |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|CE Certified|CSA File No. LR25490 Class 3211 03|UL File No. E42259|PROP65: This product can expose you to chemicals including Nickel compounds which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
Indoor/Outdoor Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6be813f7264482fd88c3a92cde6a6a7a76d112173341c2e5a784ac49f3ad434e.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fb67f67b292f70ea705b6d53eb99d5eae186bd1a77347dadfb9b328fbbe93c51.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BW252_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BWD220_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BWD220_Instruction_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BW252_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BWD220_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BWD220_Owners_User_Manual.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8910DPA43V02Y244_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BW240_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_21bf584fd2e488fa7e1481ffe0009040ac33a7dcdd71faf3178374322aef2283.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BW240_Specification_Sheet.pdf
