Schneider Electric 9001BW95Y

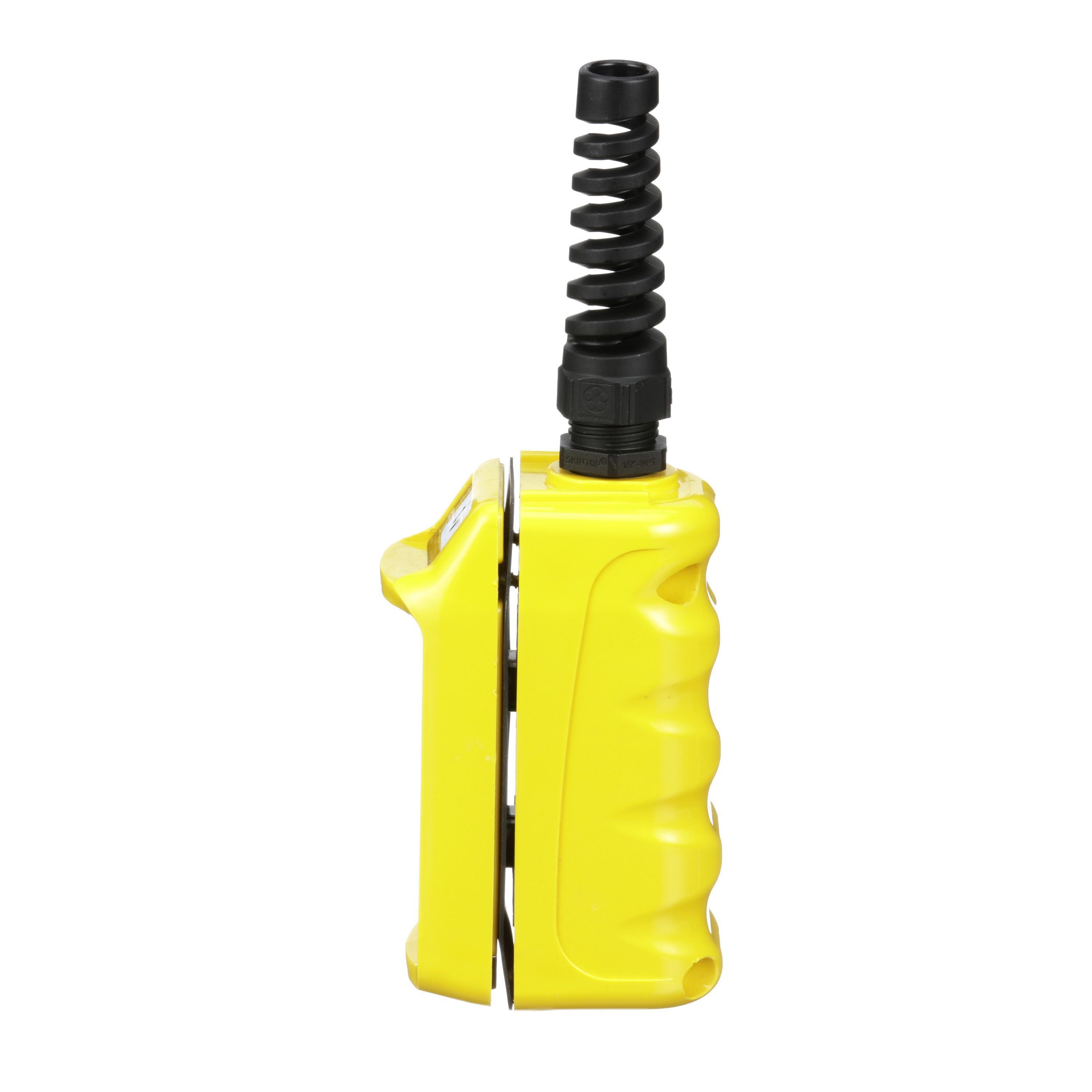

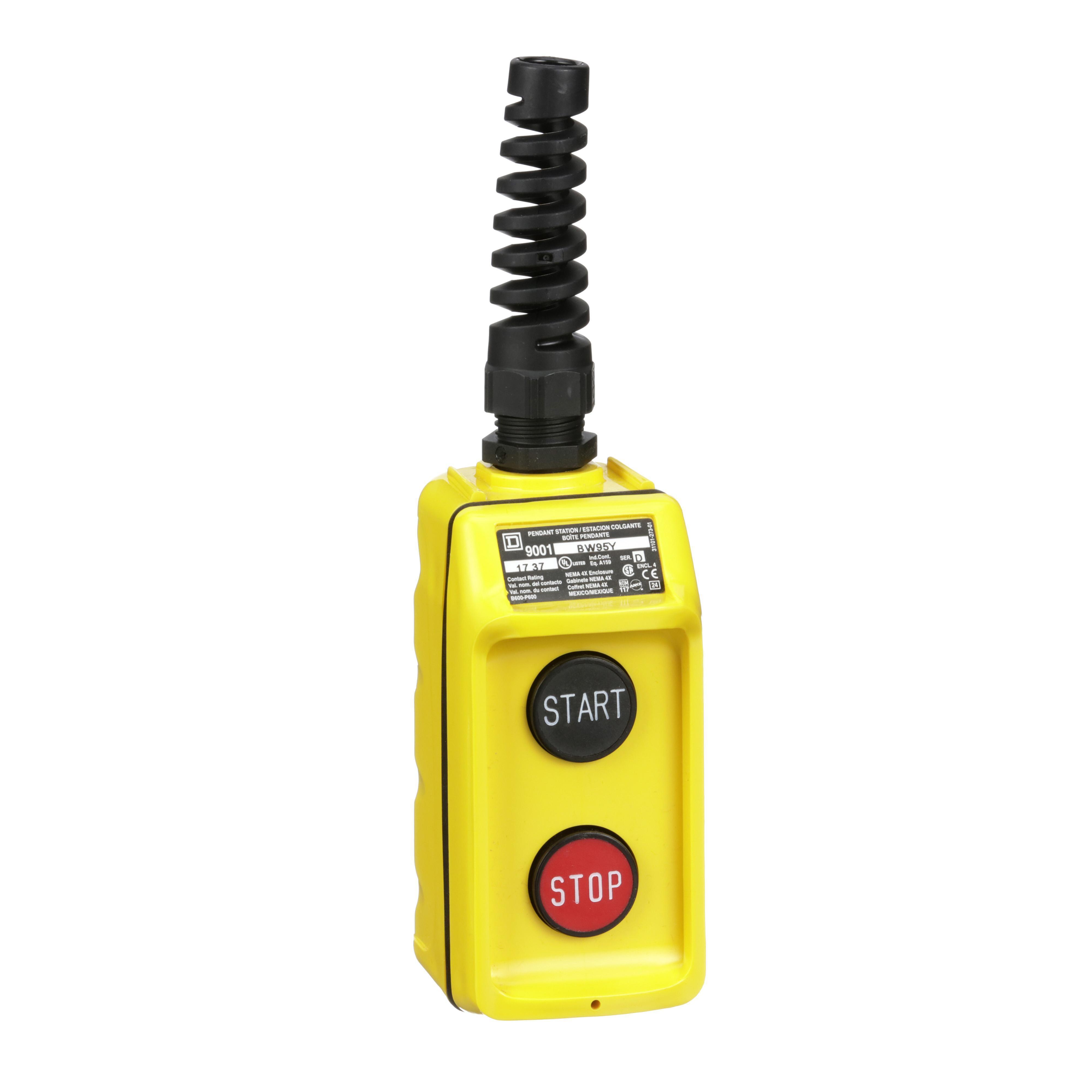

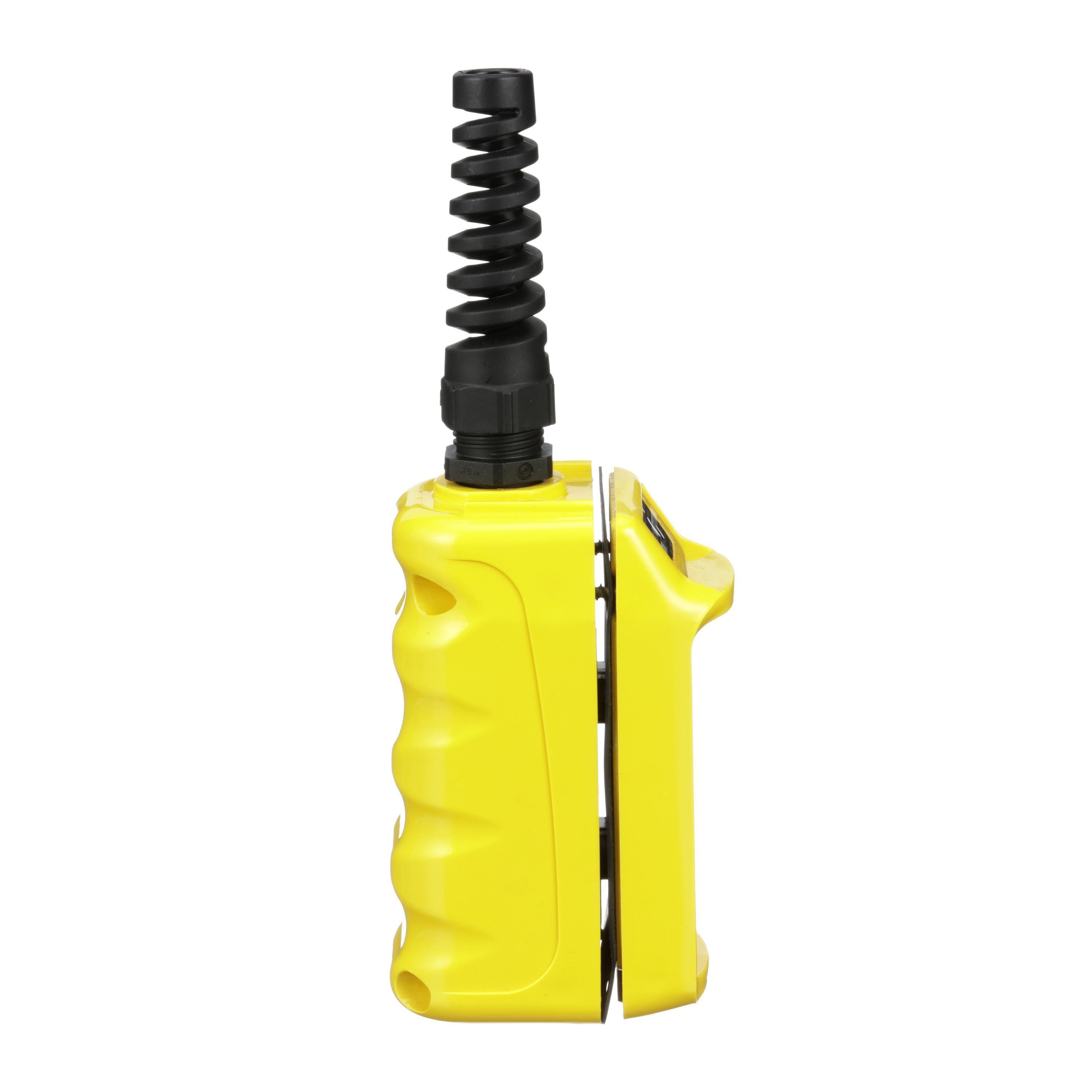

Schneider Electric Harmony™ 9001BW95Y Type BW Pendant Control Station, 600 VAC, 5 A, 1NC-1NO Contact, 2 Operators, NEMA 1/3/3R/4/4X NEMA Rating
Brand: Schneider Electric
Item ID: 472201
MPN: 9001BW95Y
UPC: 785901663690
Login for Price
Features
- 1/2 to 14 NPT cable entry
Description
Pendant Station, 2 push buttons, not interlocked, NO contacts, START STOP, yellow enclosure, 600 VAC 5 A
Schneider Electric Harmony™ Pendant Control Station, Type BW, Series: 9001B, 600 VAC, 5 A, 2 Operators, 1NC-1NO Contact Configuration, Momentary Operator, Legend: Start-Stop, NEMA 1/3/3R/4/4X NEMA Rating, Panel Mounting, -13 to 140 deg F Operating, Polycarbonate, Yellow, 4.25 in H x 2.76 in W x 3.6 in D Dimensions
Specifications
Amperage Rating |
5 A |
Color |
Yellow |
Contact Configuration |
1NC-1NO |
Dimensions |
4.25 in H x 2.76 in W x 3.6 in D |
Legend |
Start-Stop |
Material |
Polycarbonate |
Mounting Type |
Panel |
NEMA Rating |
NEMA 1/3/3R/4/4X |
Number of Operators |
2 |
Operating Temperature |
-13 to 140 deg F |
Operator Type |
Momentary |
Series |
9001B |
Type |
Type BW |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|UL Listed|CE Certified|CSA Certified|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
Hoist Applications |
Documentation
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001BW95Y_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XUM9APCNDEQ0701_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f88b65212443b2e4a9f0e6fe090cd909f6959d372b39278e2b714477e31c3fbd.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001BW95Y_Specification_Sheet.pdf
