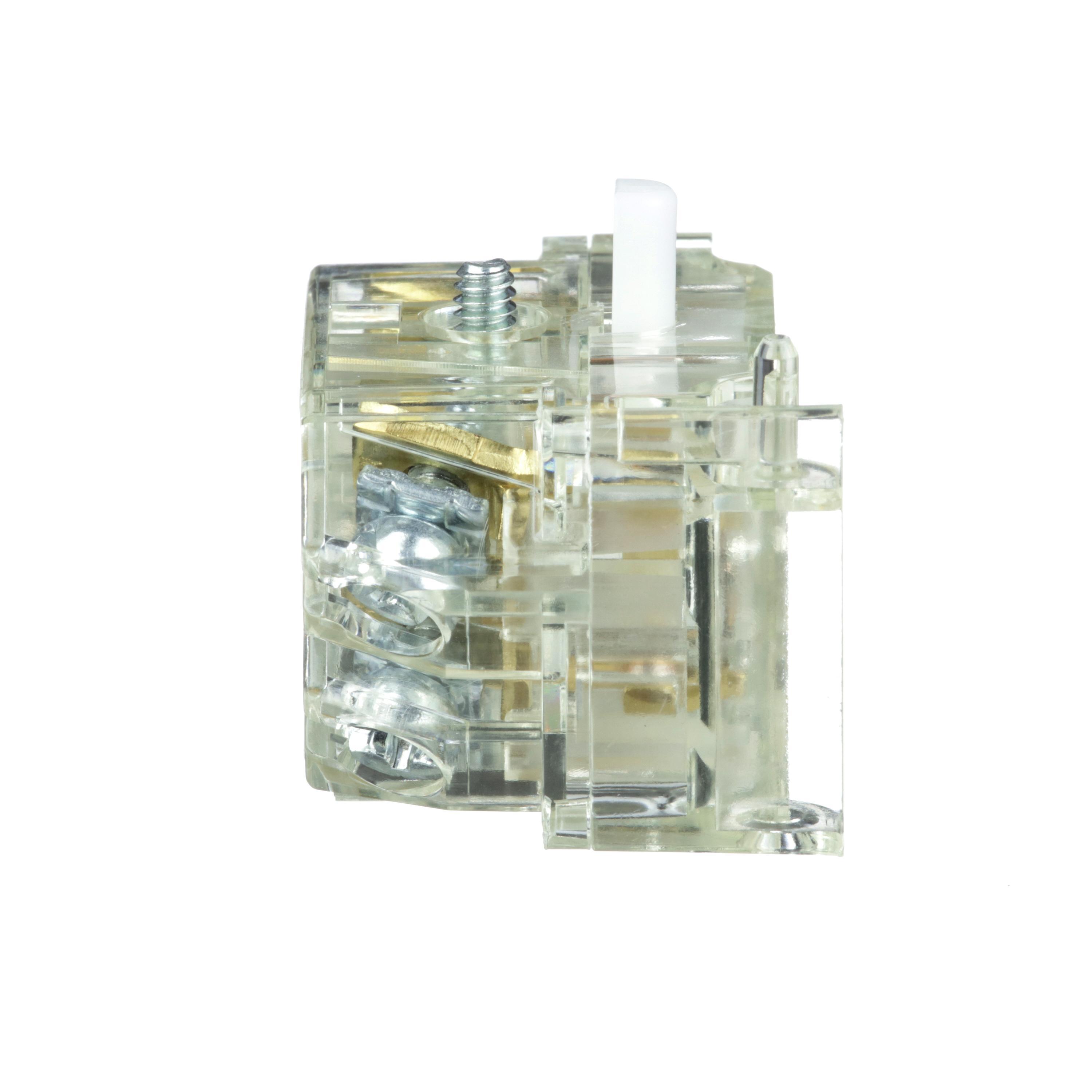

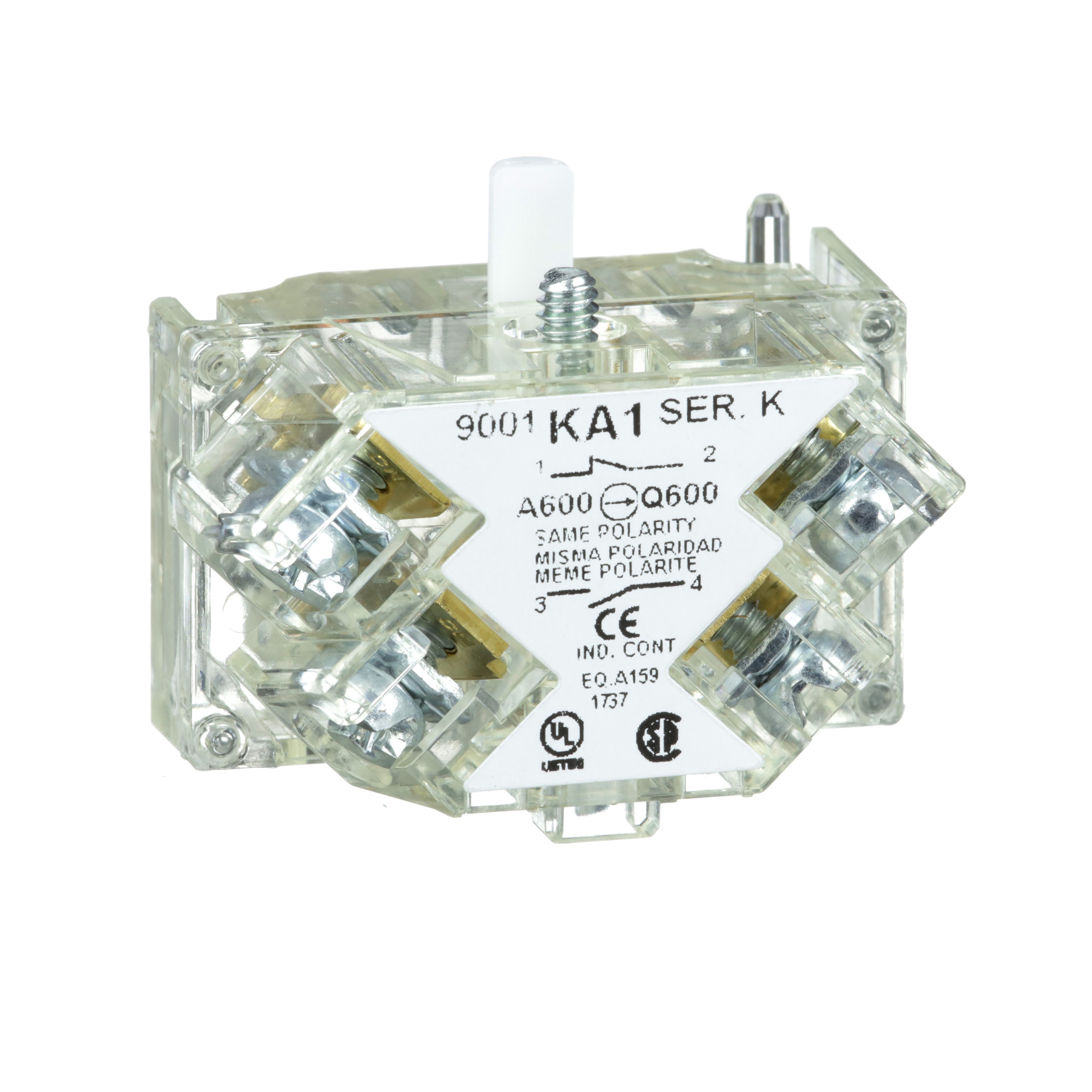

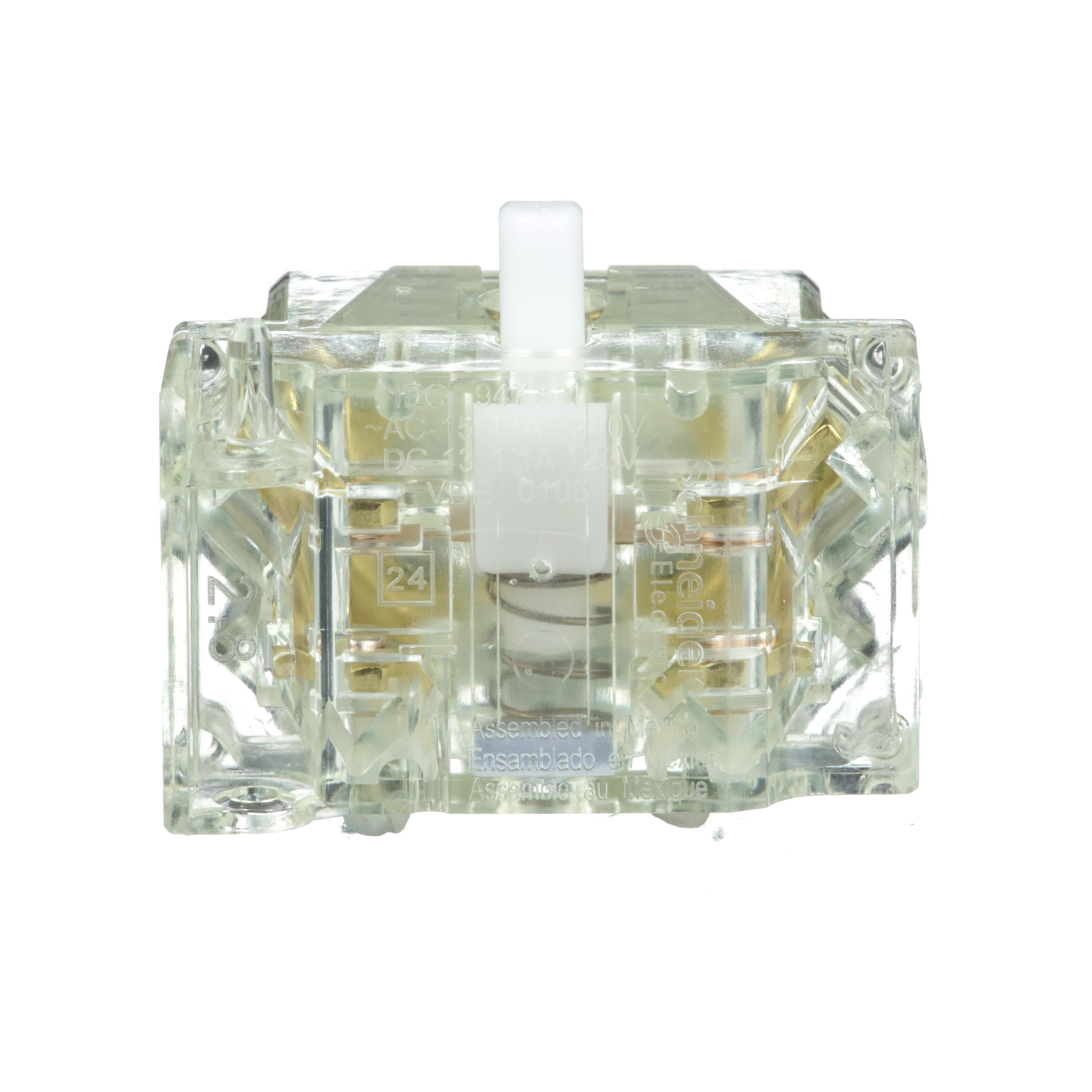

Square D™ 9001KA1

• This Schneider Electric Harmony 9001K contact block uses screw-clamp terminals and has 1 x NO + 1 x NC contacts
• It is compatible with Harmony 9001K push-buttons and switches
• It fits in a 30mm hole
• Momentary action
• This robust range is designed for application requiring a high-resistance to corrosion
• Amorphous nylon housing
• Steel terminal
• Steel saddle clamp
• Stainless steel spring
• Paper label
• Steel mounting screw
• -13 to 158 deg F operating temperature
• (2) 24 to 12 AWG solid or stranded wires

This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on 9001K complete push-button units and selector switches and connects to control circuits with simple screw-clamp connections. Its clear color of cover allows users to identify it visually at a distance. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Square D™ Harmony™ Contact Block, Types K SK KX Finger Safe Standard, Series: 9001K, 30 mm Size, 1NO-1NC Contact Configuration, 10 A, 600 VAC Contact, Silver Alloy Contact, Momentary Action, Standard Operator, IP20 Enclosure, Screw Clamp Terminal, Threaded Mounting, Nylon, Clear
