Schneider Electric 9001KP1R31

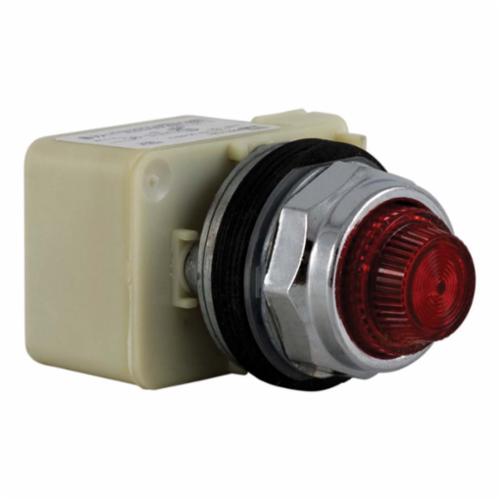

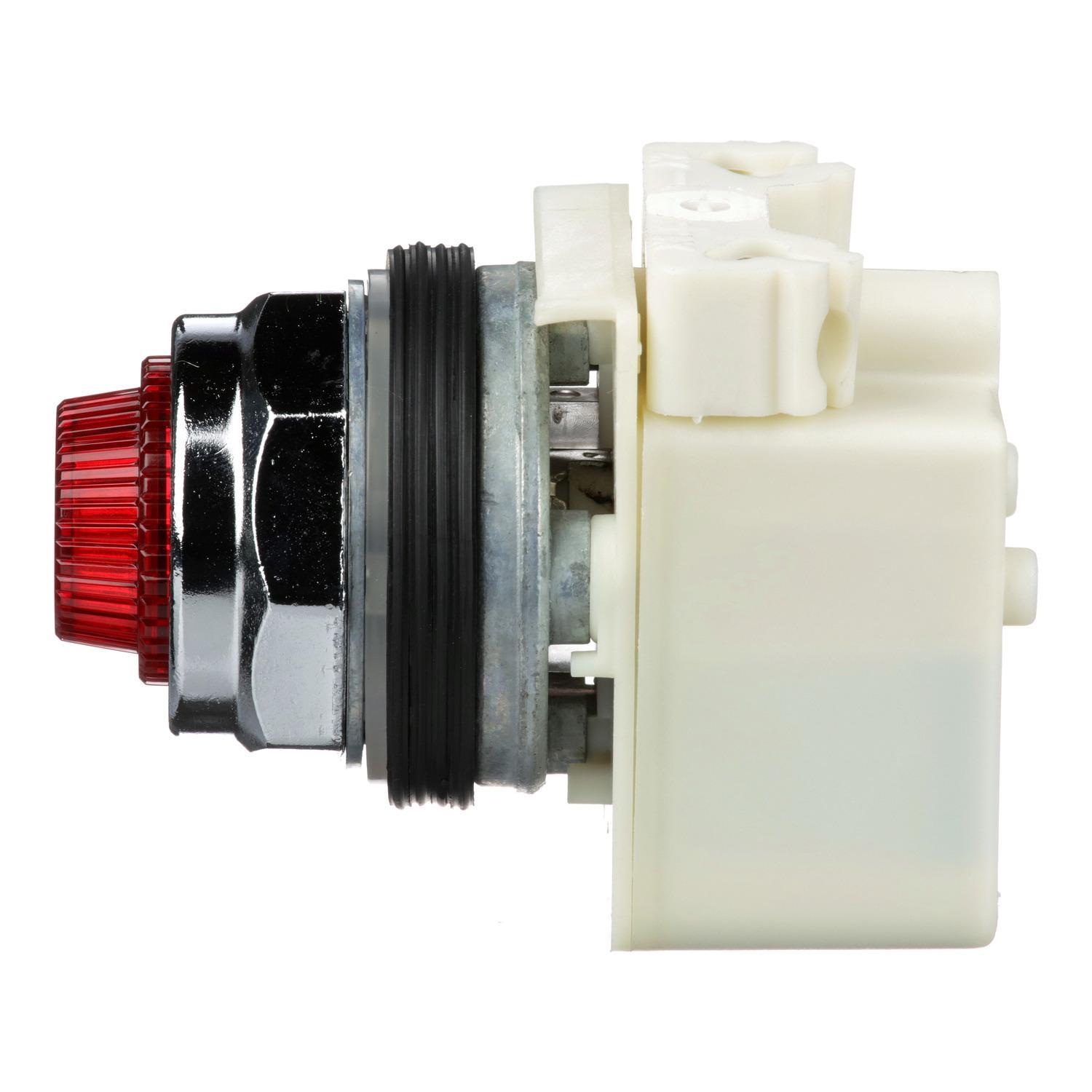

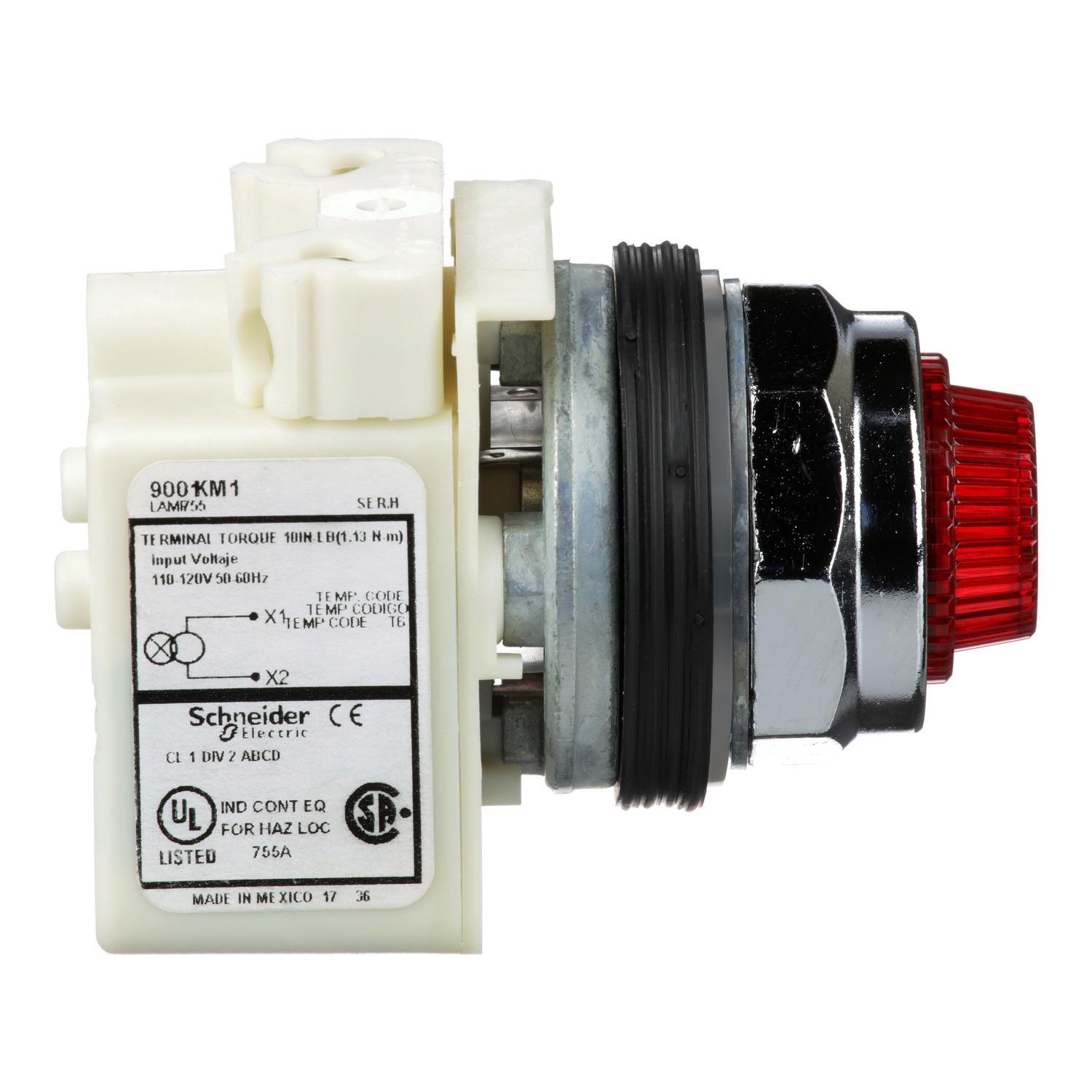

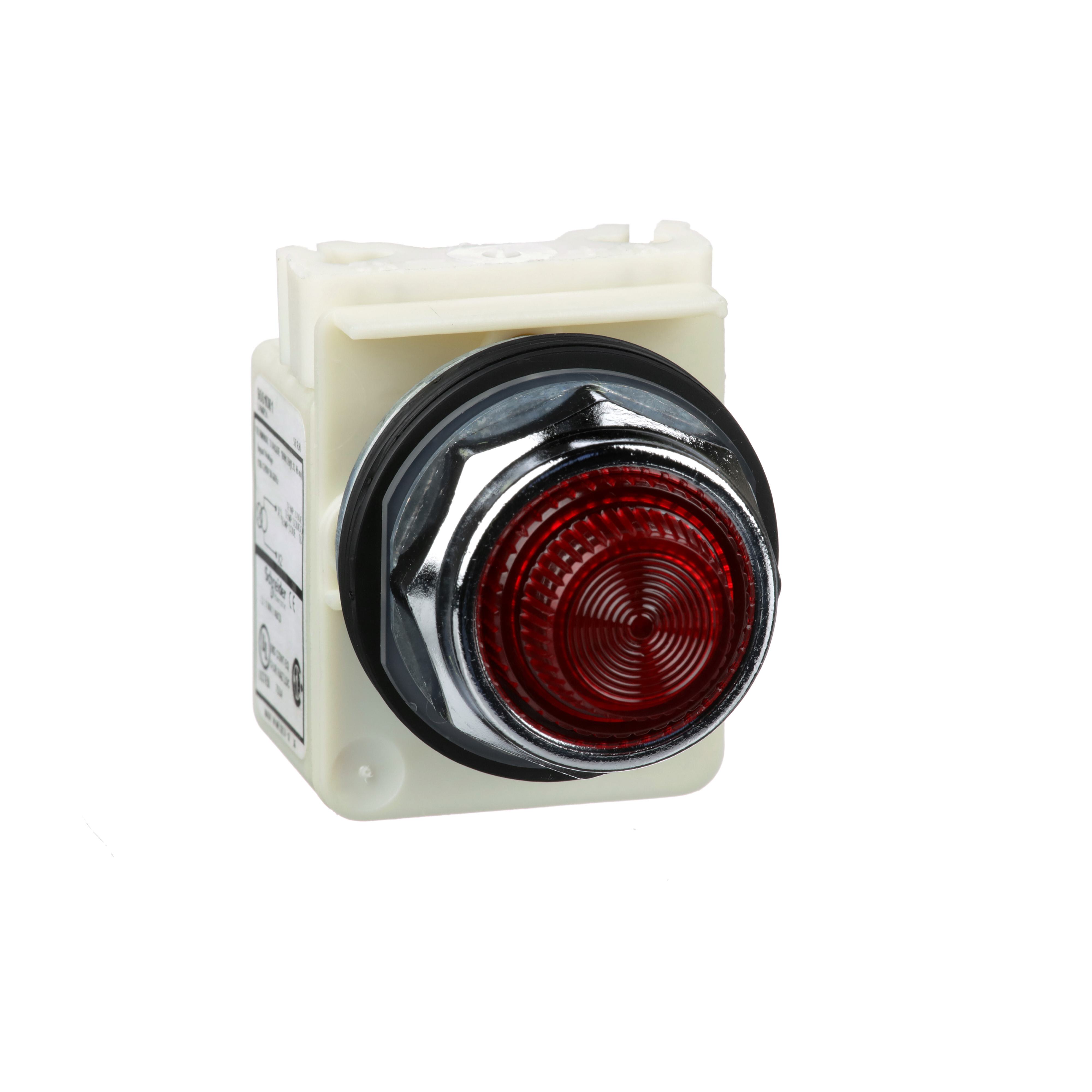

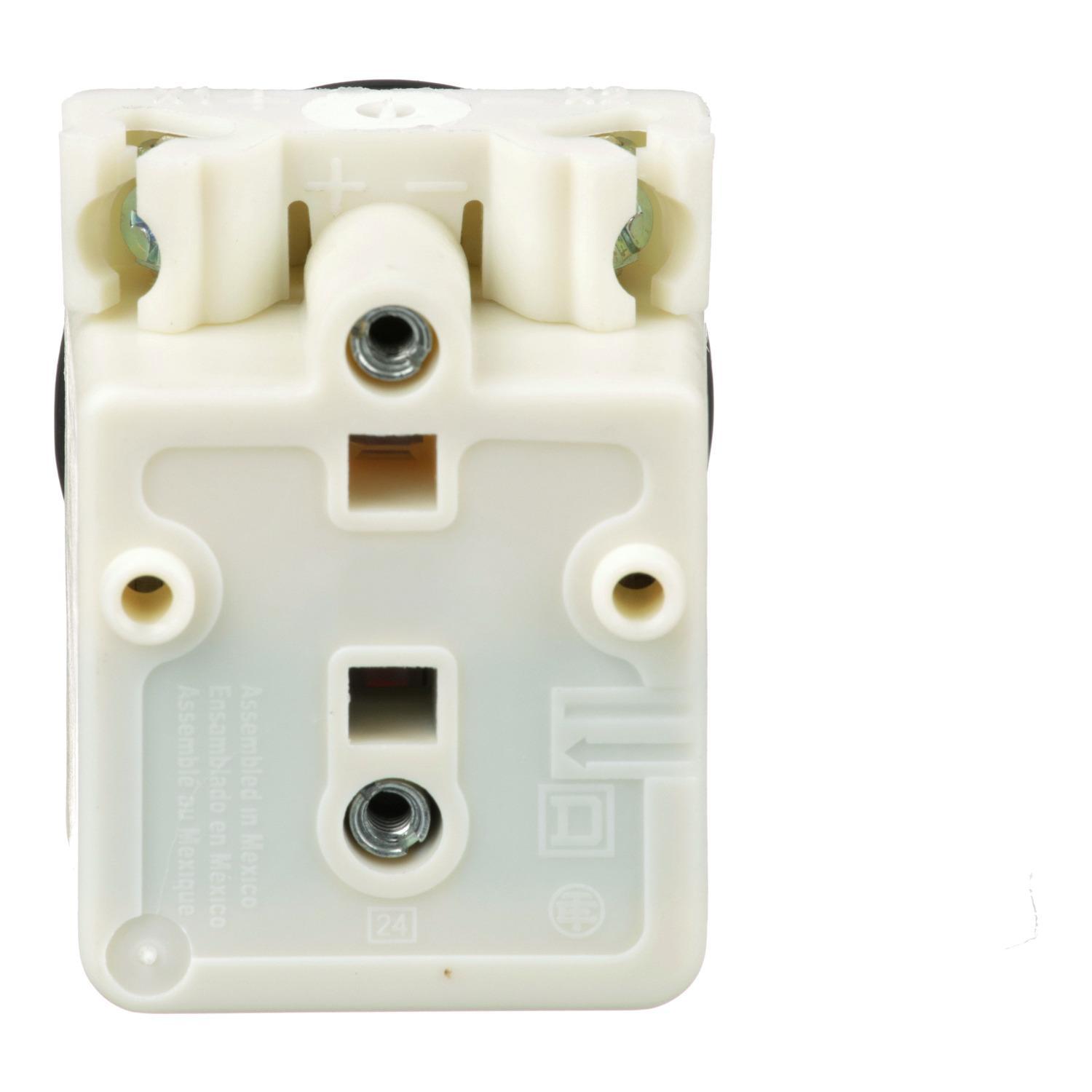

Schneider Electric Harmony™ 9001KP1R31 Type K Pilot Light, 110/120 VAC, Fresnel Glass Lens, Panel Mount
Brand: Schneider Electric
Item ID: 451756
MPN: 9001KP1R31
UPC: 785901094579
Login for Price
Features
- This Schneider Electric Harmony 9001K red pilot light with transformer and plastic fresnel is supplied with 110VAC
- It fits in a 30mm hole
- It has a chromium-plated metal bezel
- Watertight, dusttight, oiltight and corrosion-resistant environmental conditions
- For use in hazardous locations
Description
This single component pilot light with transformer provides clear visual feedback on the status of your machines. It is easily installed into a standard 30 mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
Schneider Electric Harmony™ Pilot Light, Type K, Series: 9001K, 110/120 VAC, Normal/Standard Style, Fresnel Glass Lens, Red Lens, Plastic Lens, Incandescent Lamp, Bezel/Housing: Polished Chrome Metal/Zinc, 30 mm Size, Round Shape, BA9s Base, Screw Clamp Terminal, NEMA 1/2/3/3R/4/6/12/13/IP66 Enclosure, Panel Mounting, Transformer Fixture, Environmental Conditions: -25 to 70 deg C Operating
Specifications
Base Type |
BA9s |
Bezel/Housing |
Polished Chrome Metal/Zinc |
Enclosure Type |
NEMA 1/2/3/3R/4/6/12/13/IP66 |
Environmental Conditions |
-25 to 70 deg C Operating |
Fixture Type |
Transformer |
Lamp Type |
Incandescent |
Lens Color |
Red |
Lens Material |
Plastic |
Lens Type |
Fresnel Glass |
Mounting Type |
Panel |
Series |
9001K |
Shape |
Round |
Size |
30 mm |
Style |
Normal/Standard |
Terminal Type |
Screw Clamp |
Type |
Type K |
Voltage Rating |
110/120 VAC |
Standard Approval |
RoHS Compliant|UL File #E42259 CCN NKCR|CSA Class 3211-03 File #LR24590|CE Certified|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
Signaling, Indoor and Outdoor Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_044c684173c150e246743bb5044bbee863390e5a898b38a4acd99da48184636c.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KP1R31_Full_Engineering_Drawing.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f3c92d66a21d9820ec91a9e93fef2c98f76974b2aa4d12a991ebcb19a7e37ab4.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001KYK24_User_Manual.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KP1R31_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_TCSESM063F2CS1_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c8682063d84df118853c31022ab71553e15cc66877b2ea4312bc86281d7c2627.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KP1R31_Specification_Sheet.pdf
