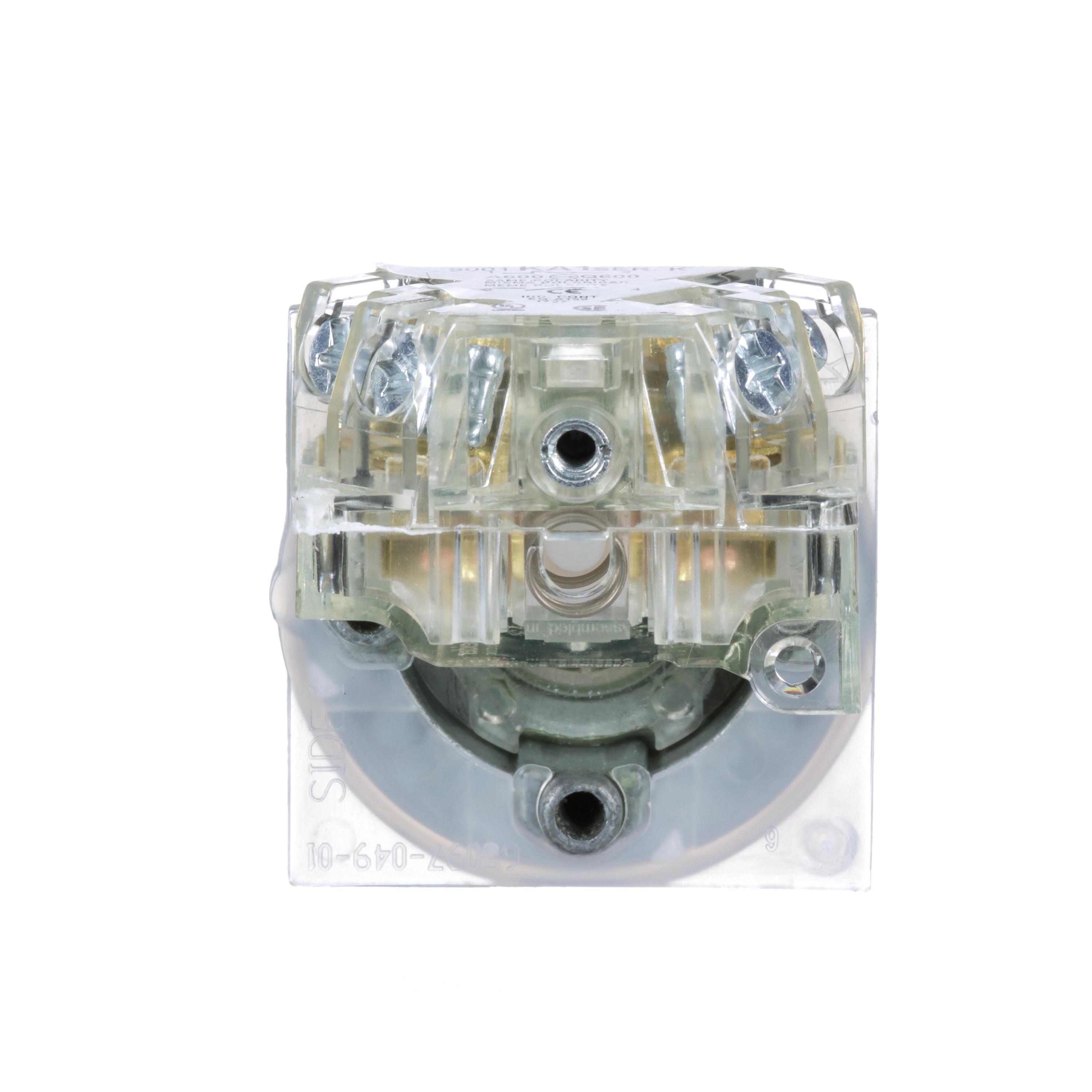

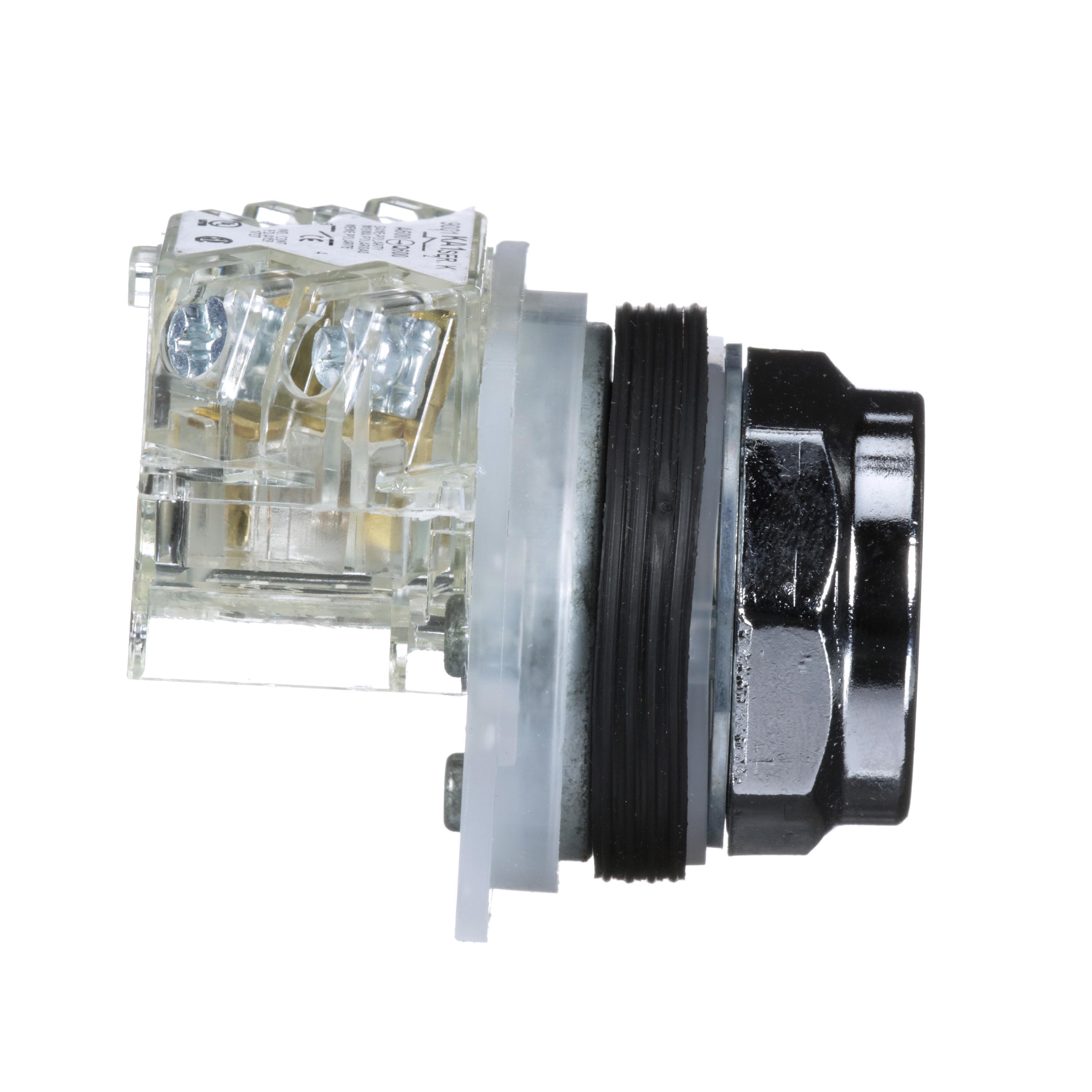

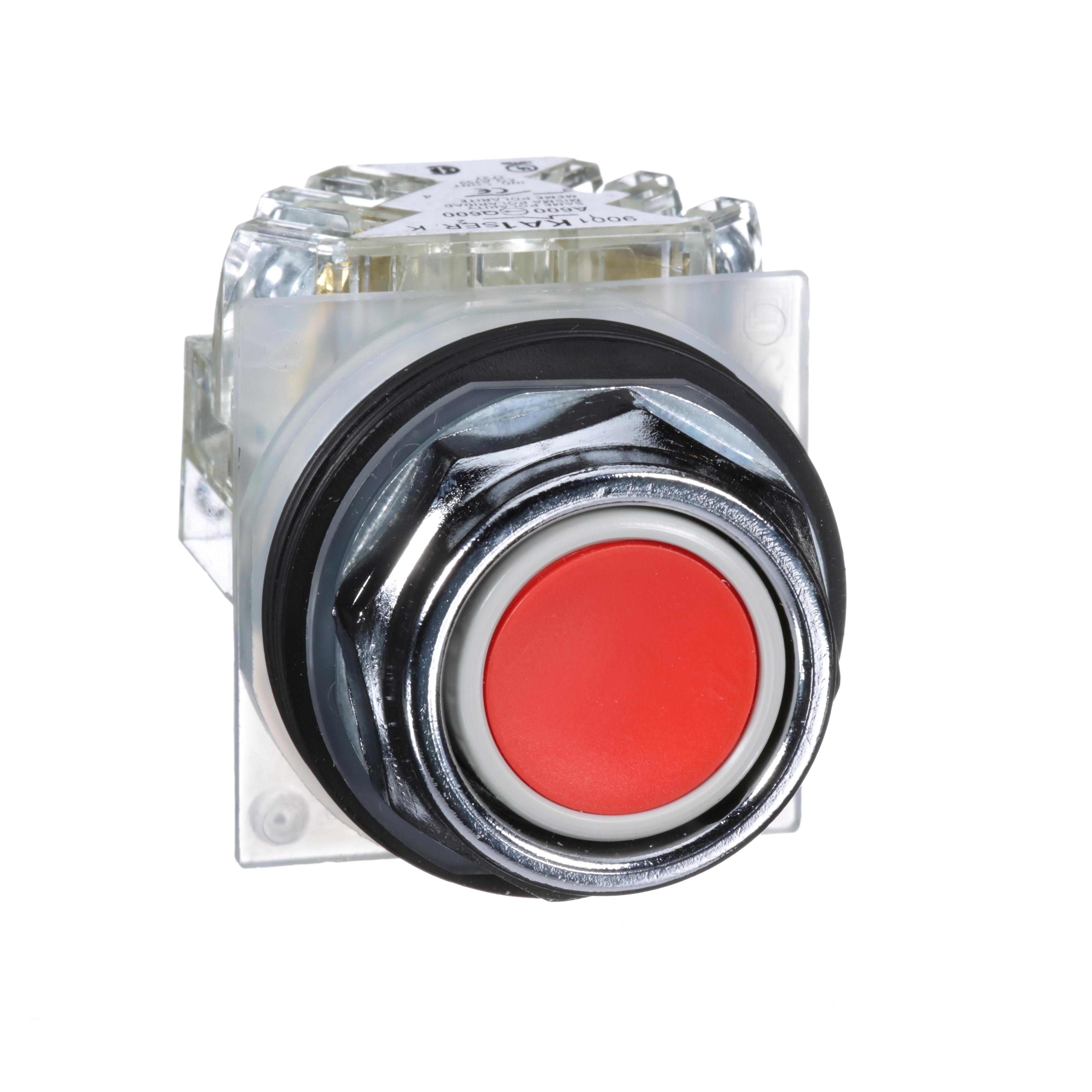

Schneider Electric 9001KR1RH13

• This Schneider Electric Harmony 9001K modular flush red push-button with full guard has 2 positions, operates with spring return mechanism
• It has 1 x NO + 1 x NC contact and fits in a 30mm hole
• It is supplied with contact block and uses screw-clamp term
• Flush, red marking and unmarked operator profile
• Full guard in plastic operator
• Octagonal shape of signaling unit head
• Cross slotted head shape of screw head
• 5000000 cycles mechanical durability
• 3 A 240 VAC-15 A600-Q600 NEMA and 0 55 A 125 VDC-13 A600-Q600 NEMA rated operational current
• 2 5 kV conforming to IEC 60947-1 rated impulse withstand voltage
• 3 deg of pollution
• Silver alloy contact material
• Standard contacts operation
• Without positive opening
• 10 A cartridge fuse conforming to IEC 60947-5-1 short circuit protection
• 10 A conventional free air thermal current
• (13-14-11-12) OF terminals
• TC protective treatment

This flush pushbutton with full guard provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30 mm Dia panel cut-outs and connected to control circuits with classic screw clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact-resistant, dust-resistant, water-resistant and vibration-resistant thanks to its IP66, making it ideal for operation in harsh environments.

Schneider Electric, 9001KR1RH13, Dust/Oil/Watertight Standard Round Non-Illuminated Pushbutton, Type T-K, Series: 9001K, 30 mm Size, 1CO Contact Configuration, Momentary Contact Mode, 10 A at 600 VAC Contact, Spring Return Operator, Bezel/Housing: Chromium Plated Metal, Flush Actuator, Screw Clamp Connection, NEMA 1/2/3/3R/4/12/13/IP66 Enclosure, Panel Mounting, Red, Environmental Conditions: -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature
