Schneider Electric 9001KR9P1RH13
Schneider Electric 9001KR9P1RH13 9001K Type K Round Dusttight/Oiltight/Watertight Illuminated Pushbutton, 30 mm, 41 mm, 1CO Contact, Push-Pull/Standard Operator, Red
Brand: Schneider Electric
Item ID: 509803
MPN: 9001KR9P1RH13
UPC: 785901821083
Login for Price
Features
- Simple and easy installation reduces commissioning time
- Flexible, compact and modular, it enables you to build the right operator to meet your requirements
Description

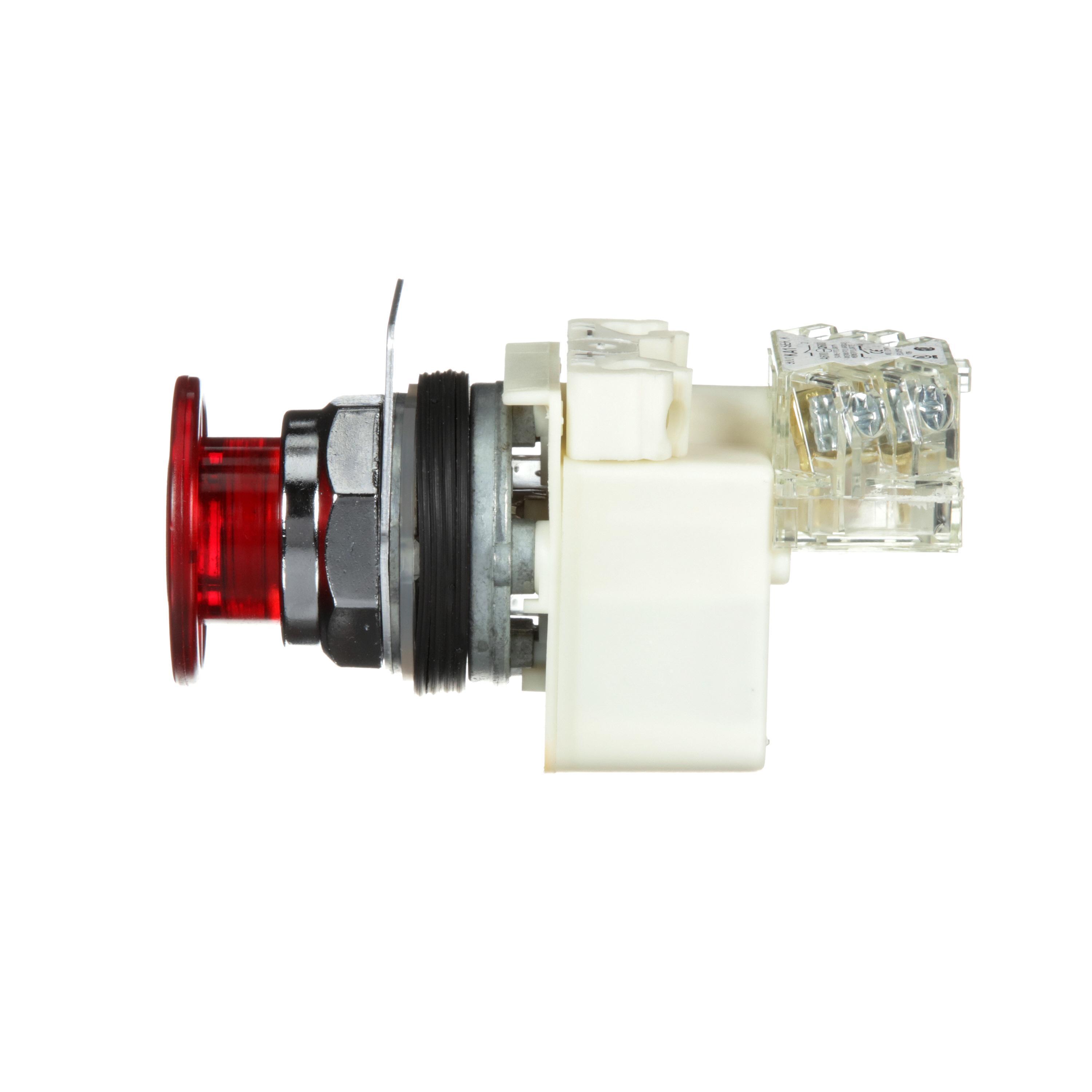

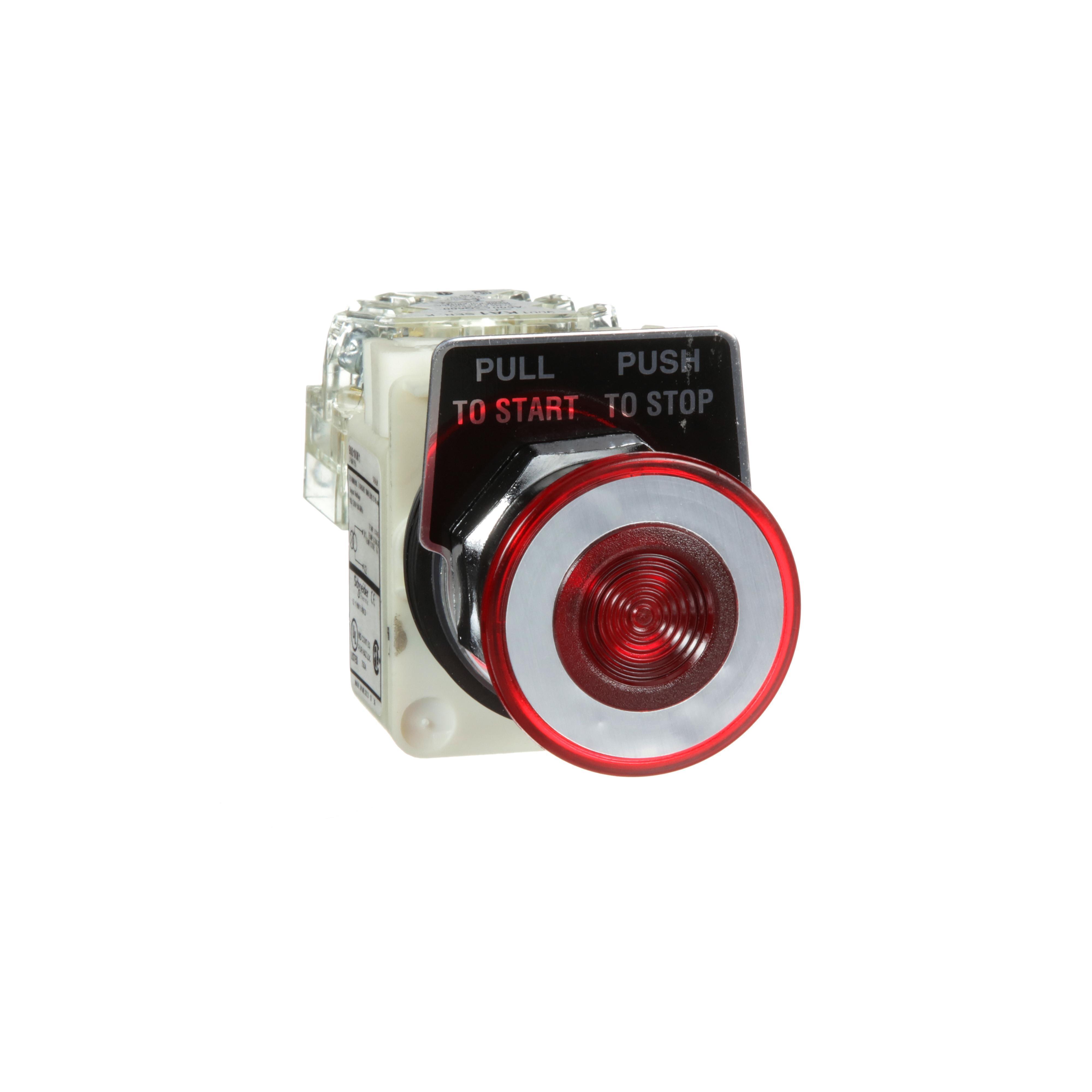

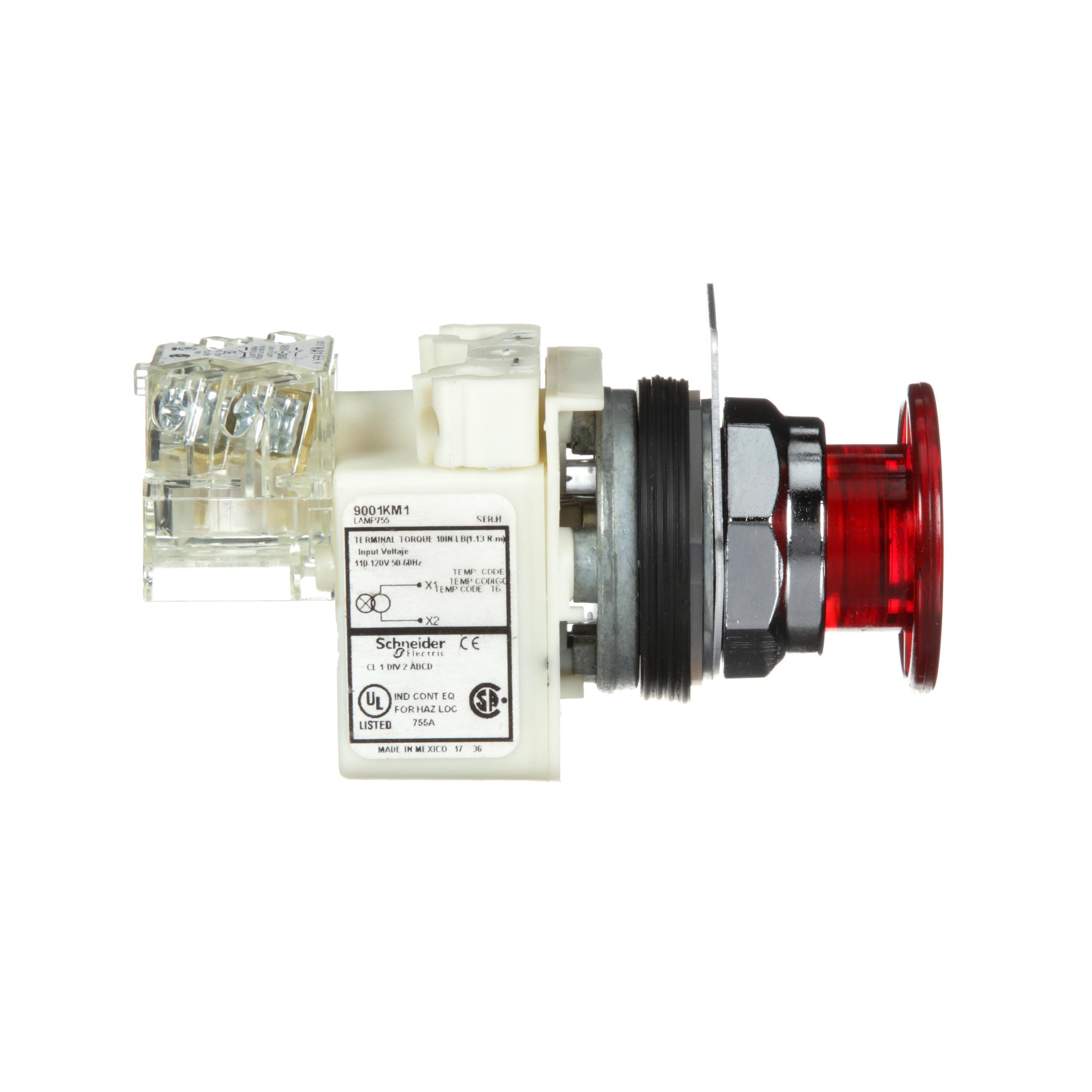

This mushroom shaped push-button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into a standard 30 mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and a prominent 40 mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.
Schneider Electric, 9001KR9P1RH13, Illuminated Pushbutton, Type K Round Dusttight/Oiltight/Watertight, Series: 9001K, 30 mm, 41 mm Size, 1CO Contact Configuration, Maintained Contact Mode, 10 A at 600 VAC, 110 to 120 VAC, AC15 - DC13 Contact, Push-Pull/Standard Operator, Incandescent Lamp, Bezel/Housing: Polished Chrome Metal, Mushroom Head Actuator, Screw Clamp Terminal, NEMA 1/2/3/3R/4/6/12/13 Enclosure, Panel Mounting, Plastic, Red
Specifications
Actuator |
Mushroom Head |
Bezel/Housing |
Polished Chrome Metal |
Color |
Red |
Connection Type |
Screw-On |
Contact Configuration |
1CO |
Contact Mode |
Maintained |
Contact Rating |
10 A at 600 VAC, 110 to 120 VAC, AC15 - DC13 |
Enclosure Type |
NEMA 1/2/3/3R/4/6/12/13 |
Lamp Type |
Incandescent |
Material |
Plastic |
Mounting Type |
Panel |
Operator Type |
Push-Pull/Standard |
Series |
9001K |
Size |
30 mm, 41 mm |
Terminal Type |
Screw Clamp |
Type |
Type K Round Dusttight/Oiltight/Watertight |
Standard Approval |
Buy American Act Compliant|CCN NKCR|CE Marking|CSA File No.LR25490 Class 3211-03|NEMA Approved|RoHS Compliant|UL File No.E42259|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
Indoor/Outdoor Applications |
Documentation
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_179611725071b4e3447a47475cdbbef92e3c4be55b956039d4a38de2b1700fc9.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001SKR8P1_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001SKR8W_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001SKR8W_Instruction_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001KR1WH13_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001KR1WH13_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001SK1L1AH13_User_Manual.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR9P1RH13_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XS4P30MA230A_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f2586e69789ce3f00927abdc1d92962c88f47203206ab58624e2f47c20a13fe5.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR9P1RH13_Specification_Sheet.pdf
