Schneider Electric 9001KR9R94H13

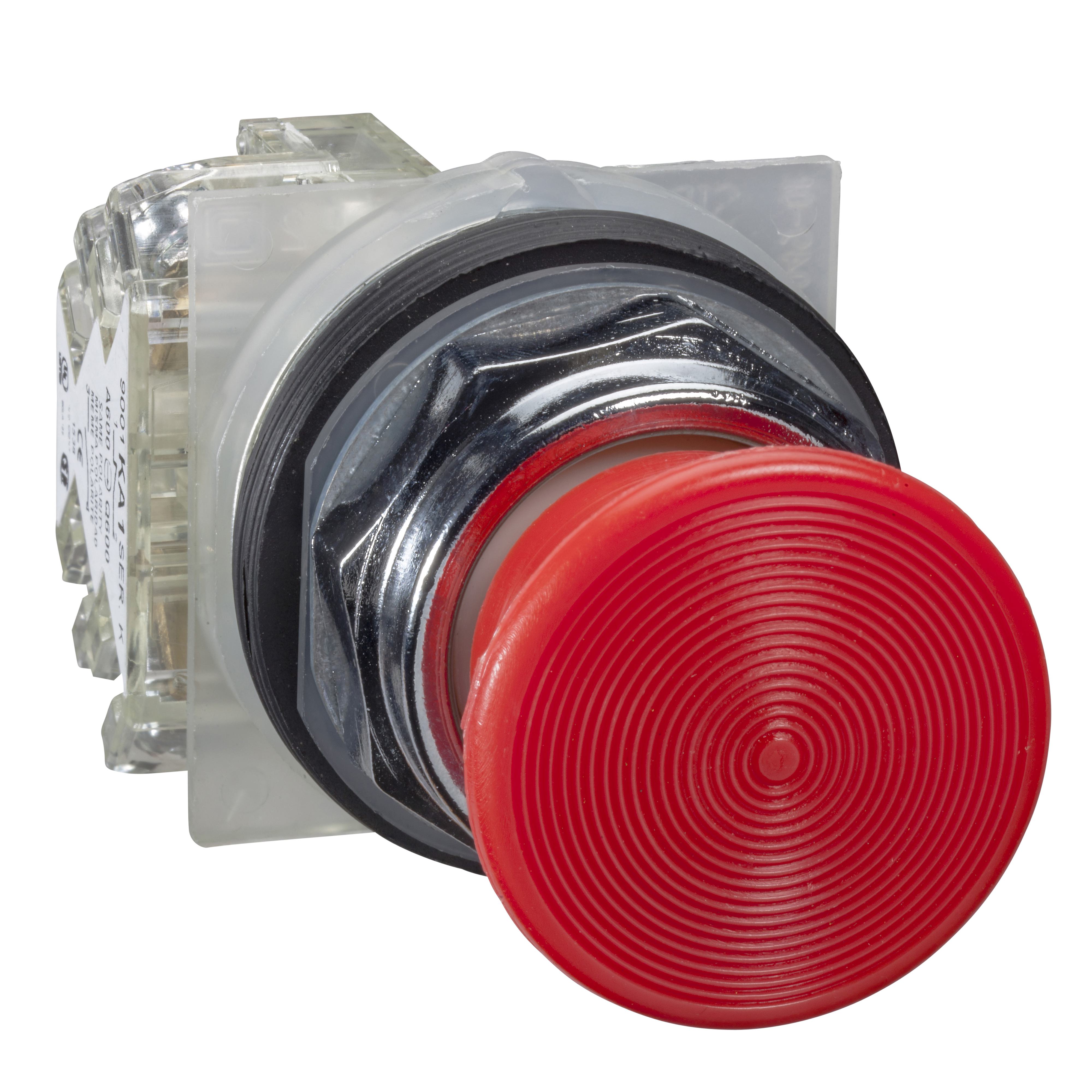

Schneider Electric Harmony™ Square D™ 9001KR9R94H13 Type K Heavy Duty Non-Illuminated Pushbutton, 30 mm, 1NC-1NO Contact, Push-Pull/Unmarked Operator, Red
Brand: Schneider Electric
Item ID: 478712
MPN: 9001KR9R94H13
UPC: 785901413158
Login for Price
Features
- This Schneider Electric Harmony 9001K modular red push-button has 2 positions and operates with a stay-put mechanism
- It has a round shape and is supplied with contact block, 40mm mushroom head and 1 x NO + 1 x NC contact
- It fits in a 30mm hole
- It has a
- Full size and shallow depth light modules
- Reduced panel space with side by side mounting
- Easy to actuate, tactile feel operators
- Maintenance-free operation
- Simplified installation and identification
- Wide range of accessories, colored lenses and knobs for customer adaptations
- Water, dust and oil (indoor/outdoor) environmental conditions
Description
This 40 mm mushroom shaped pushbutton head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomic. It is easily combined with Harmony™ range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact-resistant, dust-resistant, water-resistant and vibration-resistant thanks to its IP66, making it ideal for operation in harsh environments.
Schneider Electric Harmony™ Square D™ Non-Illuminated Pushbutton, Type K Heavy Duty, Series: 9001KR, 30 mm Size, 1NC-1NO Contact Configuration, Maintained/Slow-Break Contact Mode, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC/0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact, Push-Pull/Unmarked Operator, 2 Positions, Bezel/Housing: Chromium Plated Metal, 40 mm Mushroom Head Actuator, Screw-On Connection, Screw Clamp Terminal, NEMA 1/2/3/3R/4/6/12/13/IP66 Enclosure, Panel Mounting, Red, Environmental Conditions: -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature
Specifications
Actuator |
40 mm Mushroom Head |
Bezel/Housing |
Chromium Plated Metal |
Color |
Red |
Connection Type |
Screw-On |
Contact Configuration |
1NC-1NO |
Contact Mode |
Maintained/Slow-Break |
Contact Rating |
6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC/0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
Enclosure Type |
NEMA 1/2/3/3R/4/6/12/13/IP66 |
Environmental Conditions |
-13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
Mounting Type |
Panel |
Number of Positions |
2 |
Operator Type |
Push-Pull/Unmarked |
Series |
9001KR |
Size |
30 mm |
Terminal Type |
Screw Clamp |
Type |
Type K Heavy Duty |
Standard Approval |
CCN NKCR|CE Marked|CSA File No. 14|CSA File No. LR24590 Class 321103|CSA File No. LR25490 Class 321103|ECCN: EAR99|EN/IEC 60529|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|Green Premium|JIS C 4520|JIS C 852|REACH Compliant|RoHS Compliant|UL 508|UL File No. E42259|UL File No. E78403|WEEE Compliant|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
Food and Beverage, Chemical, Mining, Mineral and Metal Processing, Pulp and Paper, Water and Wastewater, Automotive, Crane and Hoists, Machine Tools, Airport and Transportation, Textile, Heavy Industry, Robust and Indoor/Outdoor Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4d5d1fd1fecfbbdaec0eb4f72bfba9d1feeecf314a92d1450a43cc2705dba648.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_92e1026747e27cc60af34af34e64b53a6a7921761872aef77f3a5fa421a16abd.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001SKR8P1_Installation_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001SKP35R31_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001SK1L1AH13_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001SKT1LRR31_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001SKT1LRR31_Owners_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR9R94H13_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c01a8ef2c15f9f970030fbda2493c52ae8e0f29c5126d63f9d5ed0cfc53348ff.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KR9R94H13_Specification_Sheet.pdf
