Schneider Electric 9001KS11BH13

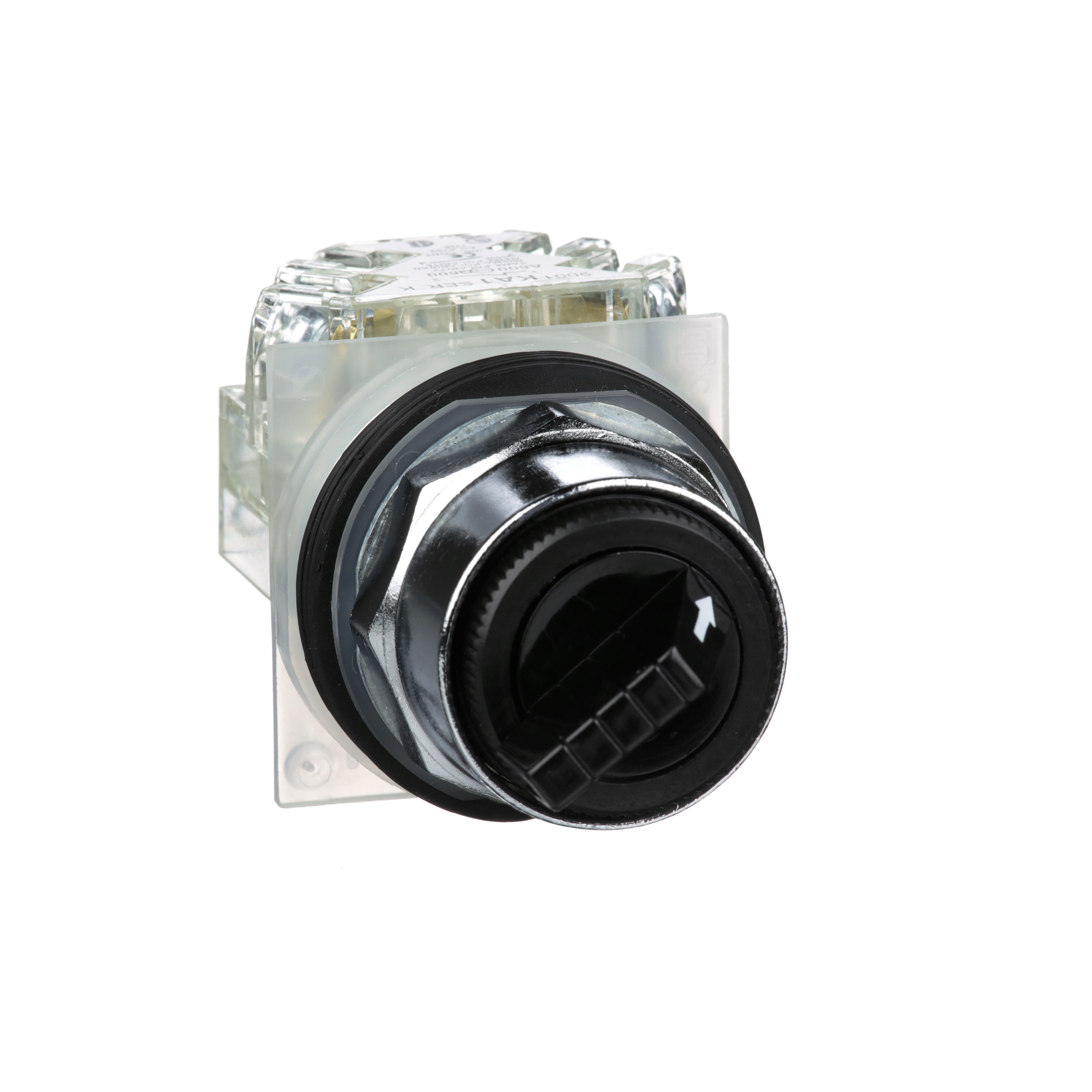

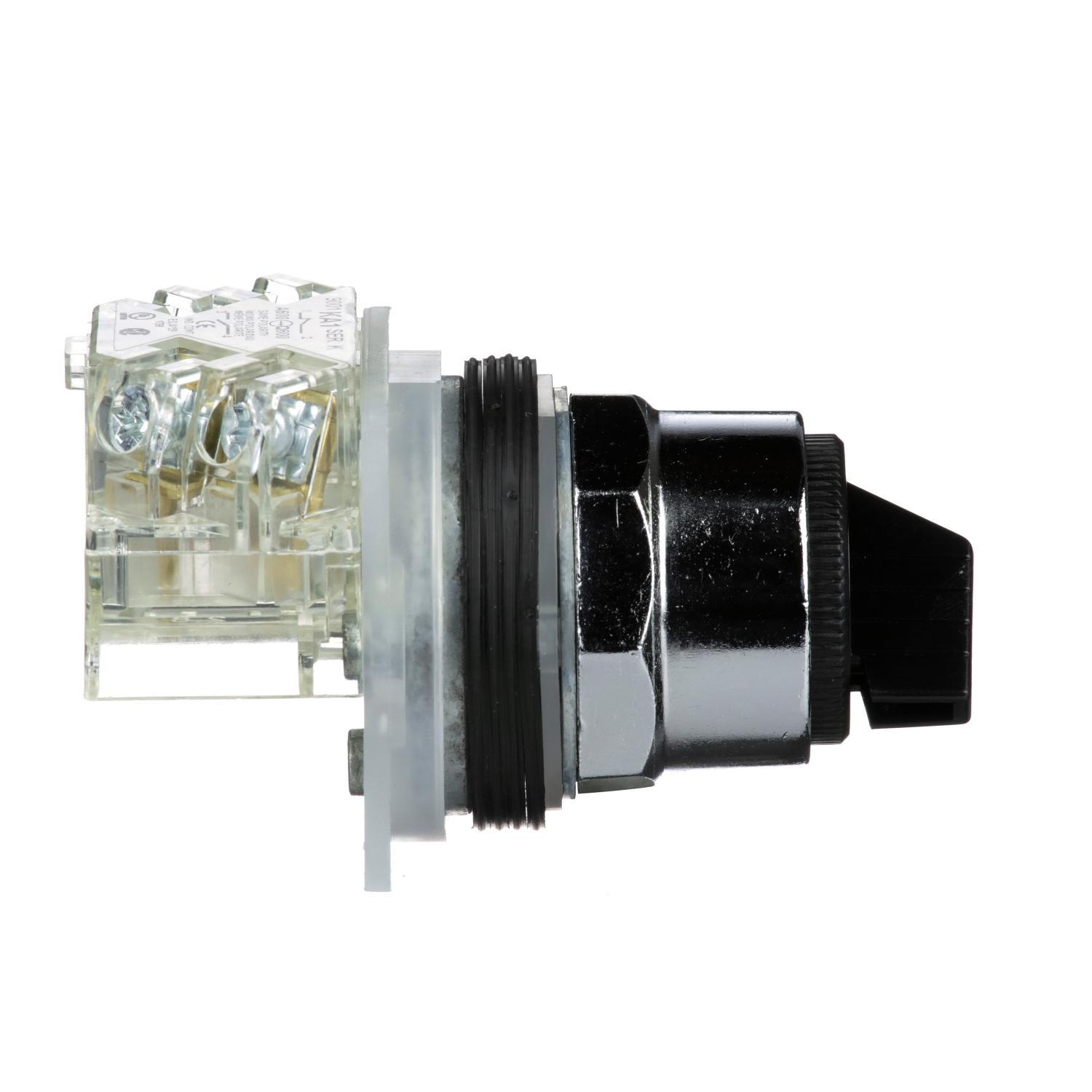

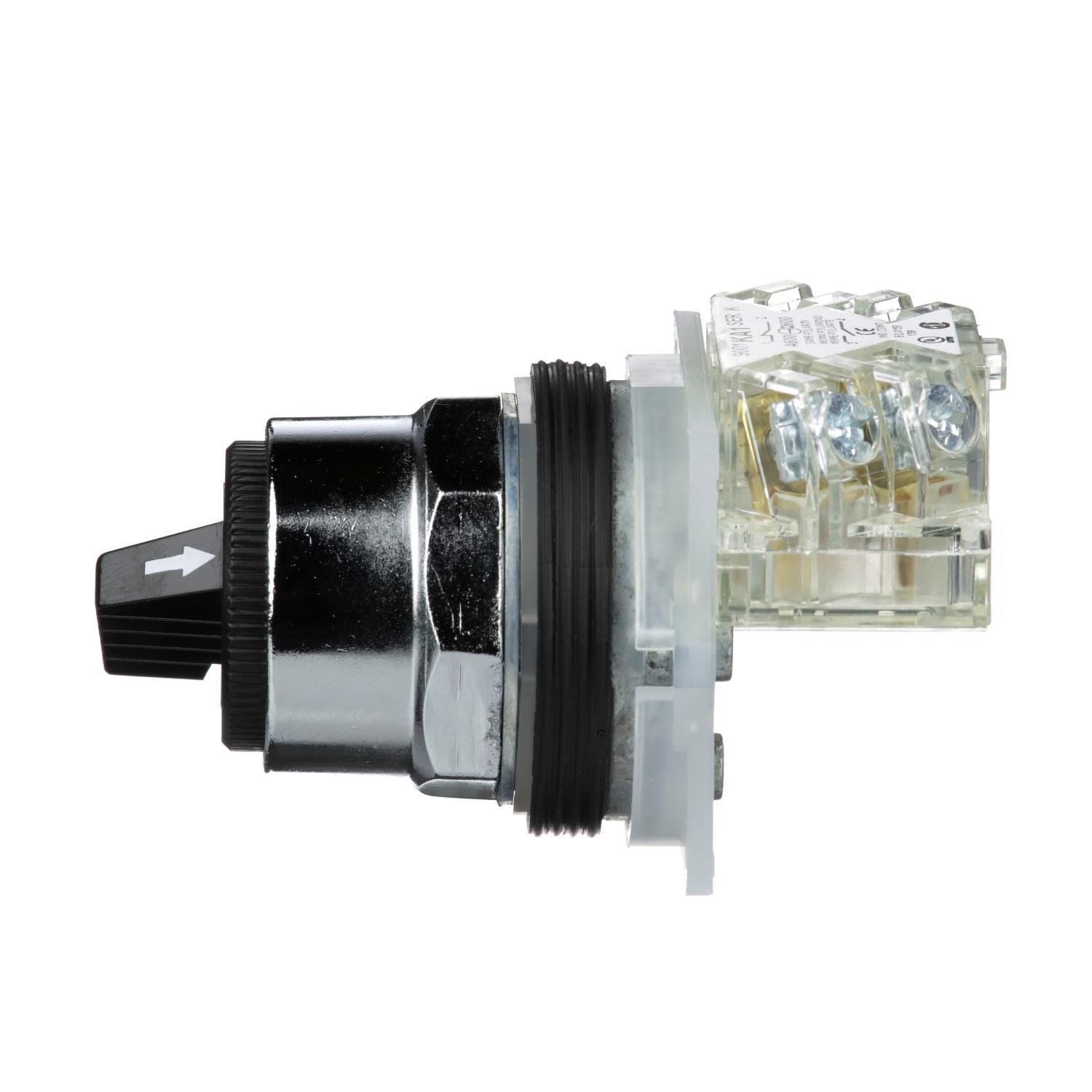

Schneider Electric Harmony™ 9001KS11BH13 Heavy Duty Non-Illuminated Selector Switch, 1.18 in, 1CO Contact, Round Knob/Stay Put Operator, Black
Brand: Schneider Electric
Item ID: 422401
MPN: 9001KS11BH13
UPC: 785901330226
Login for Price
Features
- This Schneider Electric Harmony 9001K black selector switch with E cam has 2 positions and operates with a stay-put mechanism
- It uses screw-clamp terminals and has 1 x NO + 1 x NC contacts
- It fits in a 30mm hole
- It has a chromium-plated metal bezel
- 10 A amperage rating
- Silver alloy contact material
- Watertight, dusttight and corrosion-resistant (indoor/outdoor) environmental condition
Description
Harmony™ 9001K and 9001SK push buttons, pilot lights, selector switches and mushroom head operators provide robust and reliable solutions for a wide range of heavy industry applications.
Schneider Electric Harmony™ Selector Switch, Heavy Duty Non-Illuminated, Series: 9001KS, 1.18 in, 1CO, Maintained Contact Mode, 10 A at 600 VAC, AC15 - DC13 Contact, Round Knob/Stay Put Operator, 2 Positions, 70 deg Left/Right Throw, Cam Code: E, Bezel/Housing: Chromium Plated Metal, Push Button, Screw Terminal, NEMA 1/2/3/3R/4/6/12/13, Panel Mount, Die Cast Zinc, Black
Specifications
Actuator |
Push Button |
Bezel/Housing |
Chromium Plated Metal |
Cam Code |
E |
Color |
Black |
Contact Configuration |
1CO |
Contact Mode |
Maintained |
Contact Rating |
10 A at 600 VAC, AC15 - DC13 |
Enclosure Type |
NEMA 1/2/3/3R/4/6/12/13 |
Material |
Die Cast Zinc |
Mounting Type |
Panel |
Number of Positions |
2 |
Operator Type |
Round Knob/Stay Put |
Series |
9001KS |
Size |
1.18 in |
Terminal Type |
Screw |
Throw |
70 deg Left/Right |
Type |
Heavy Duty Non-Illuminated |
Standard Approval |
CE Marking|CSA Certified File No. LR24590 Class 3211-03|UL Listed File No. E42259 CCN NKCR|PROP65: This product can expose you to chemicals including - nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
Food and Beverage, Chemical, Mining, Mineral and Metal Processing, Pulp and Paper, Water and Waste Water, Automotive, Crane and Hoists, Machine Tools, Airport and Transportation and Textile, Indoor and Outdoor Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4526510e07e1c5af84f8268ae9877844185927e85b62c61c4788d8b3c95e1a7e.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KS11BH13_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_621910028945d0a458e9727a0e01634aeb97a3b6a616c0c32b60bf9ac1184345.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001KS43K10H1_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001KYK24_User_Manual.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KS11BH13_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XS8E1A1PBM8_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_721f366692e17af17507c664c486df40a602874aac306084804bdb64b4499f78.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001KS11BH13_Specification_Sheet.pdf
