Square D™ 9001KS88B

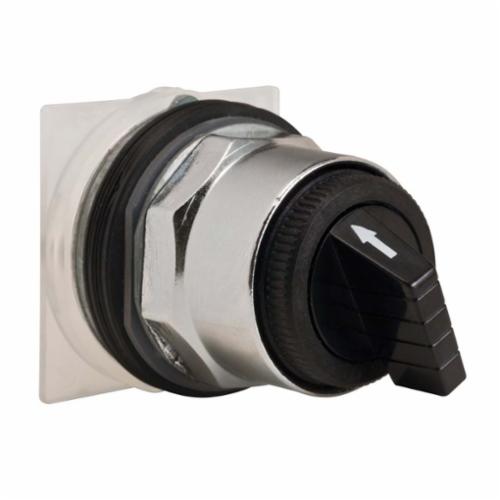

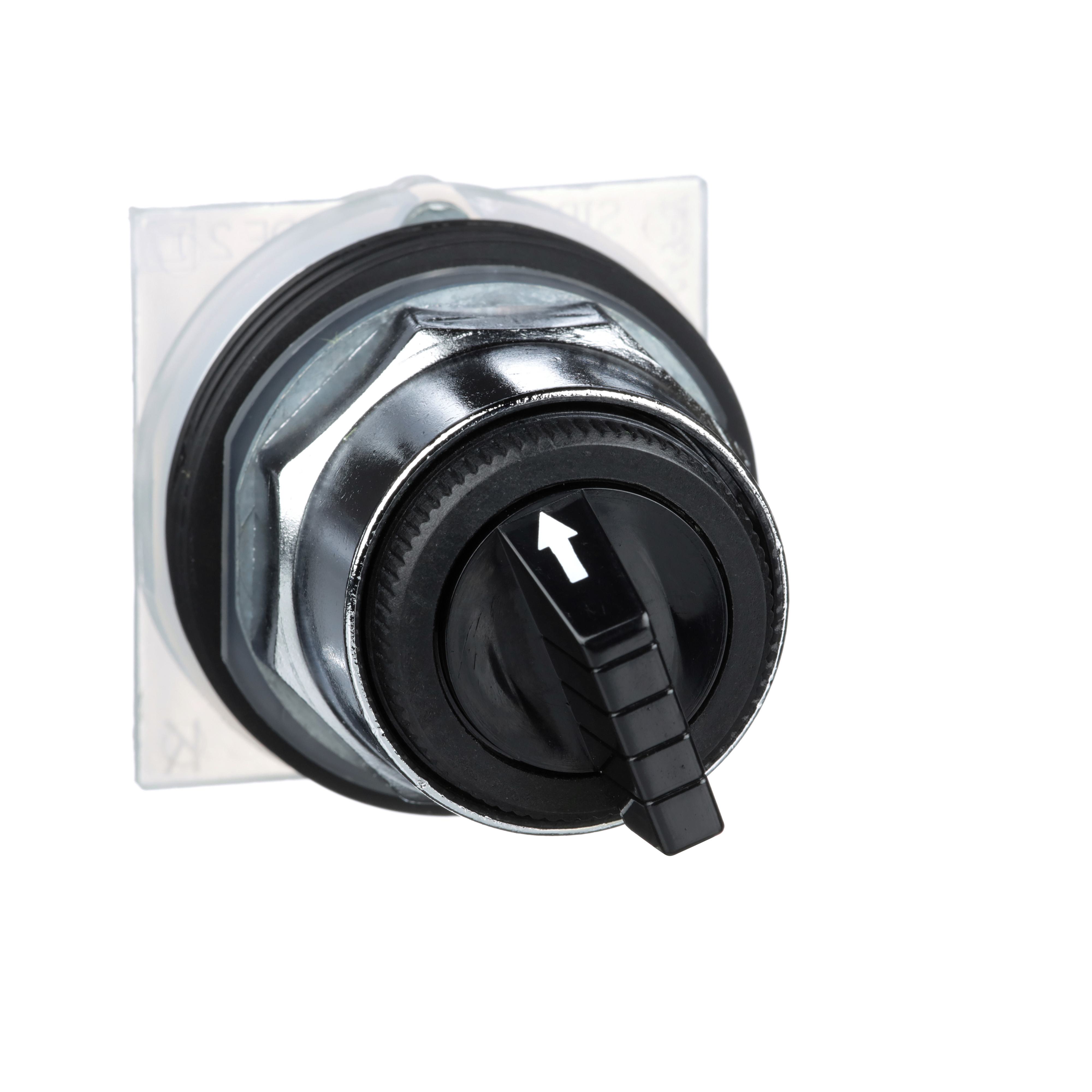

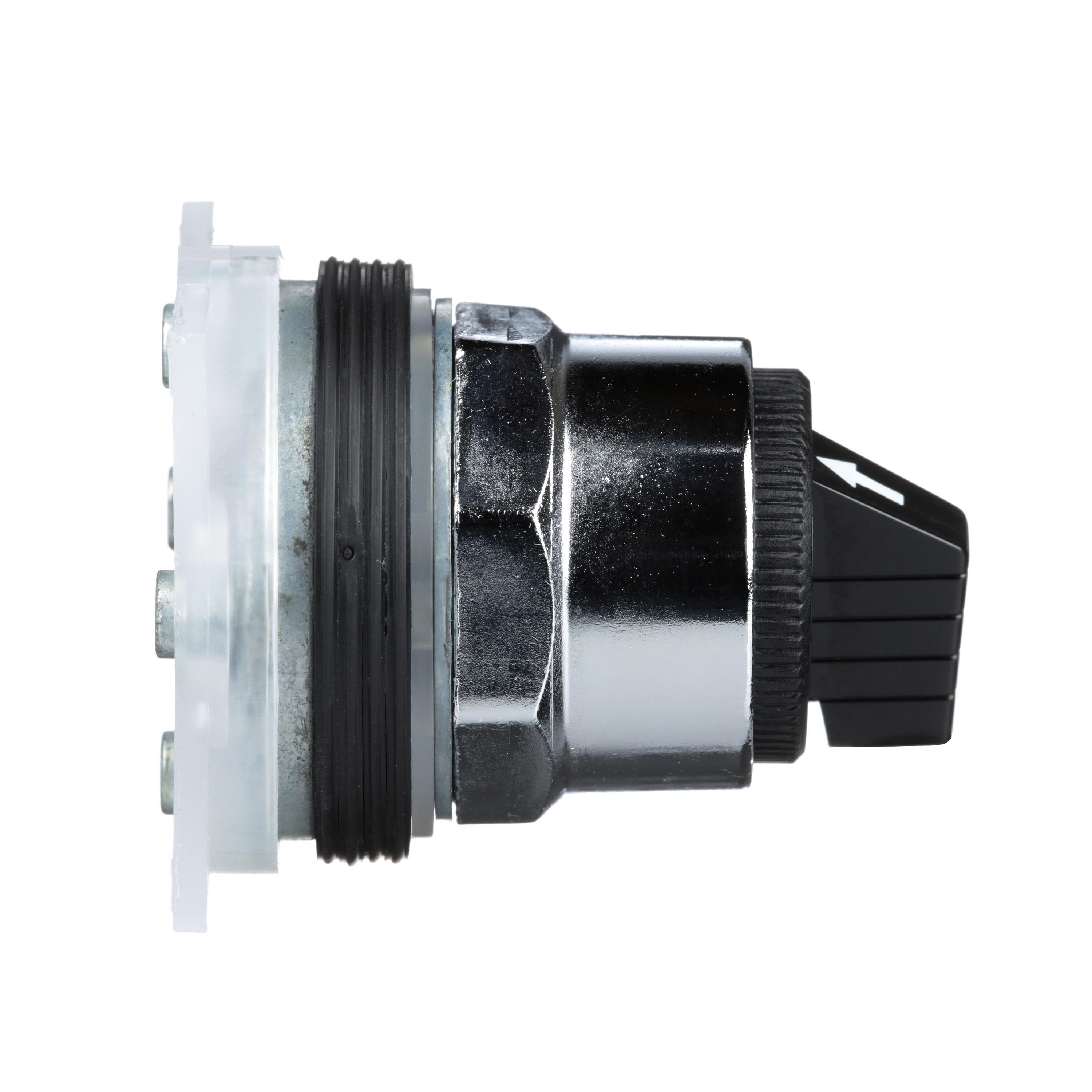

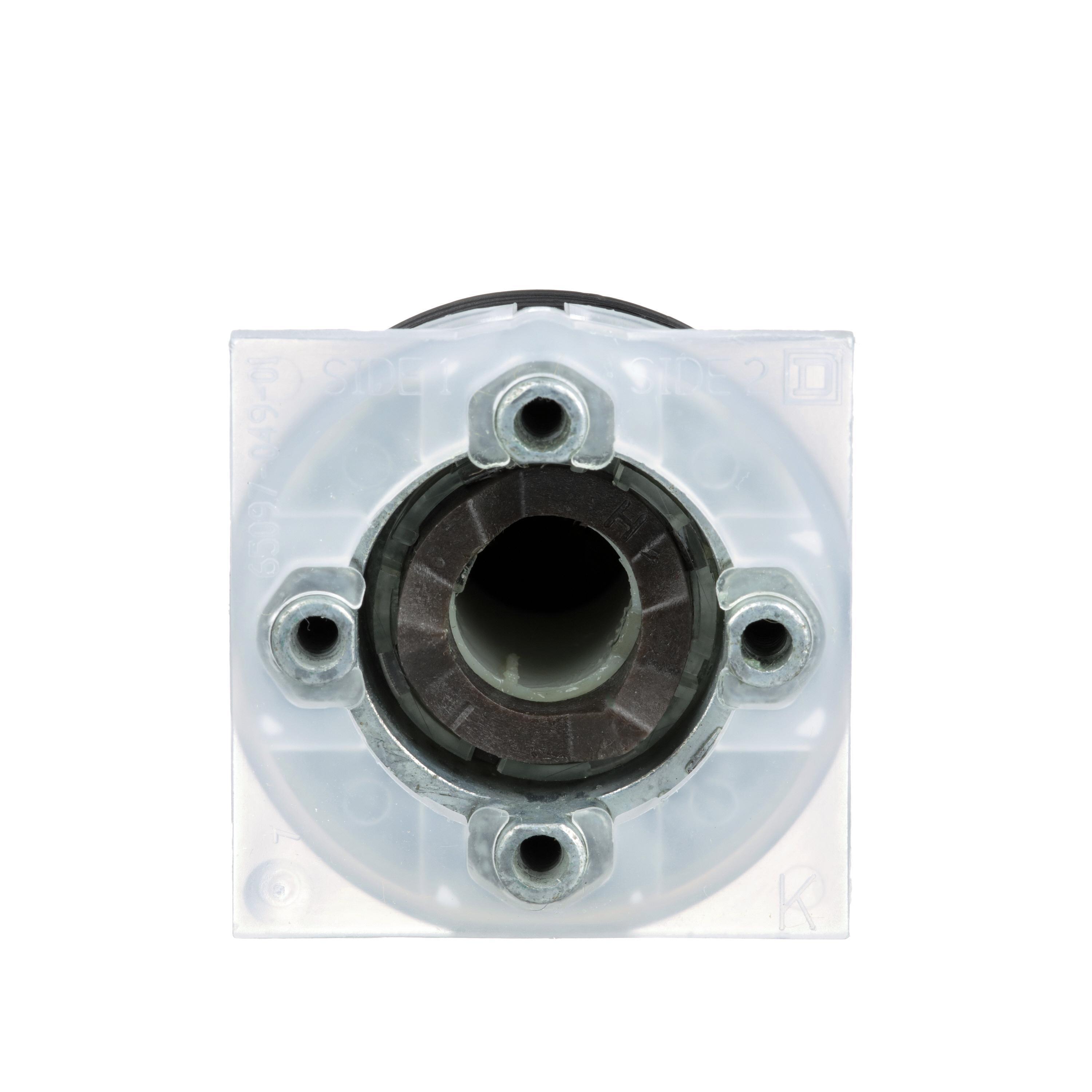

Square D™ Harmony™ 9001KS88B Heavy Duty Non-Illuminated Selector Switch Operator, 30 mm, Round Knob/Stay Put Operator, 4 Positions, Black
Brand: Square D™
Item ID: 456677
MPN: 9001KS88B
UPC: 785901322535
Login for Price
Features
- This Schneider Electric Harmony 9001K black selector switch with H cam has 4-positions, operates with a stay-put mechanism
- It fits in a 30mm hole
- It has a chromium-plated metal bezel
- Without contact blocks
- Black plastic ring nut
- Watertight, dusttight and oiltight (Indoor/Outdoor) environmental condition
Description
Harmony® 9001K and 9001SK push buttons, pilot lights, selector switches and mushroom head operators provide robust and reliable solutions for a wide-range of heavy industry applications.
Square D™ Harmony™ Non-Illuminated Selector Switch Operator, Heavy Duty, Series: 9001K, 30 mm Size, Maintained Contact Mode, Round Knob/Stay Put Operator, 4 Positions, 47/46/47 deg Left/Right Throw, Cam Code: H, 600 VAC, NEMA 1/2/3/3R/4/6/12/13/IP66 Enclosure, Panel Mounting, Bezel/Housing: Polished Chrome Metal, Black
Specifications
Bezel/Housing |
Polished Chrome Metal |
Cam Code |
H |
Color |
Black |
Contact Mode |
Maintained |
Enclosure Type |
NEMA 1/2/3/3R/4/6/12/13/IP66 |
Mounting Type |
Panel |
Number of Positions |
4 |
Operator Type |
Round Knob/Stay Put |
Series |
9001K |
Size |
30 mm |
Throw |
47/46/47 deg Left/Right |
Type |
Heavy Duty |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|UL File No. E42259 CCN NKCR|CSA File No. LR25490/Class 321103|CE Certified|PROP65: This product can expose you to chemicals including Nickel compounds which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
Food and Beverage, Chemical, Mining, Mineral and Metal Processing, Pulp and Paper, Water and Waste Water, Automotive, Crane and Hoists, Machine Tools, Airport and Transportation and Textile Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c02b91dfe28f442b088d268381828a1c48e037409187d713a2bd8d05831038bf.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001KS88B_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001SK11J38LGG_Installation_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001SKP35R31_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001SK1L1AH13_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001SKT1LRR31_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001SKT1LRR31_Owners_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001KS88B_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_51a4b6573ef21cfcefd248930a7710d4c3e0ef0de24dcd8cf71a589c25f61b6b.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001KS88B_Specification_Sheet.pdf
