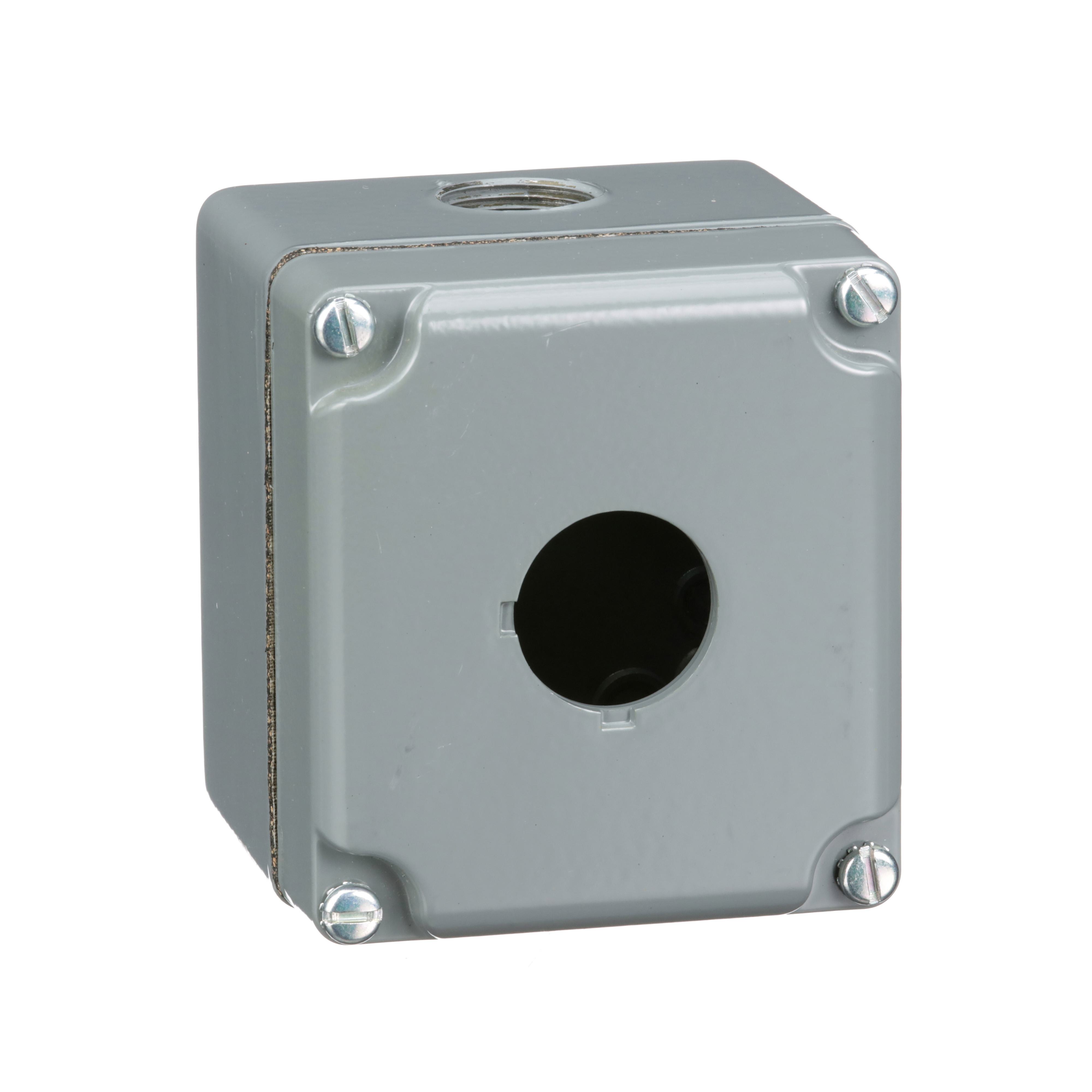

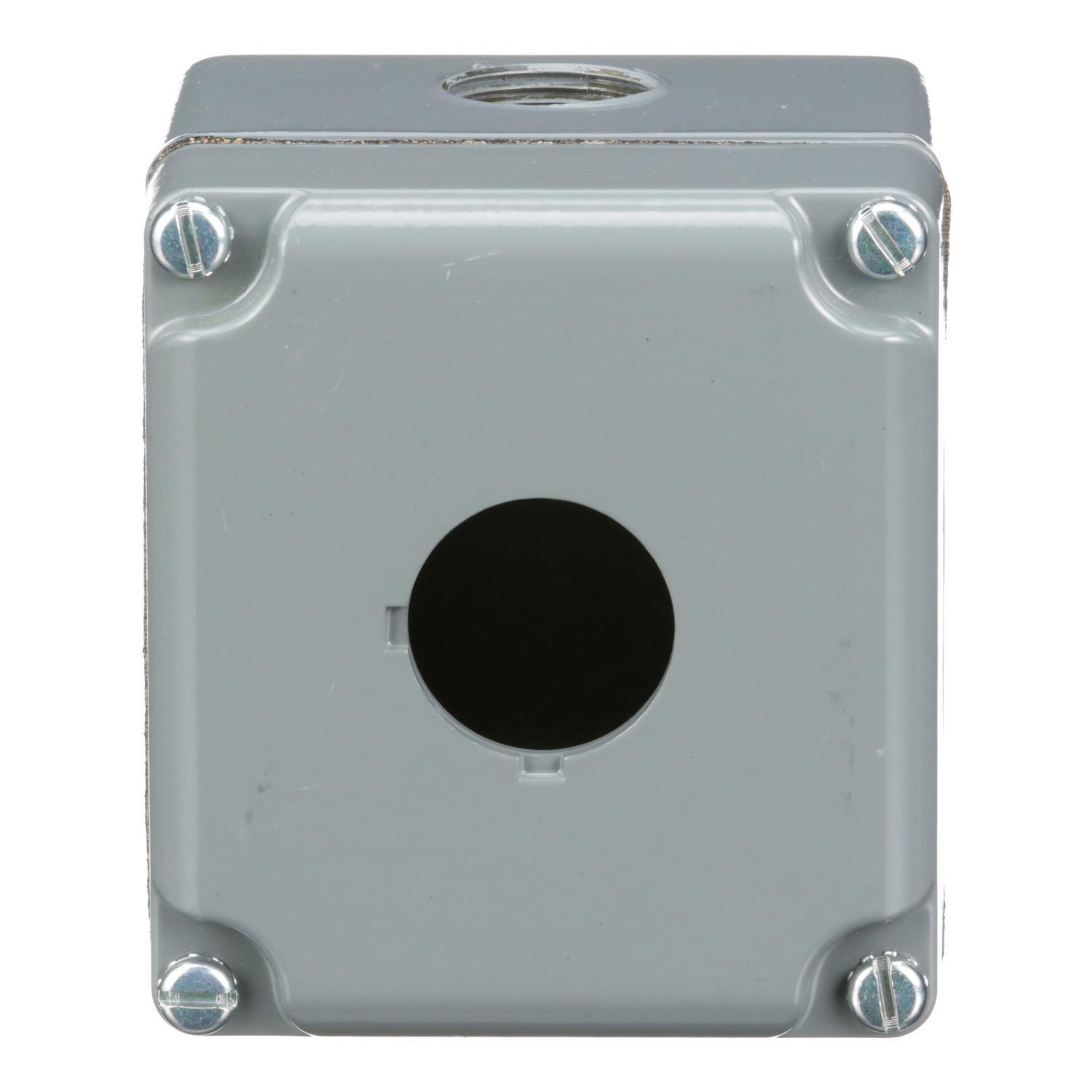

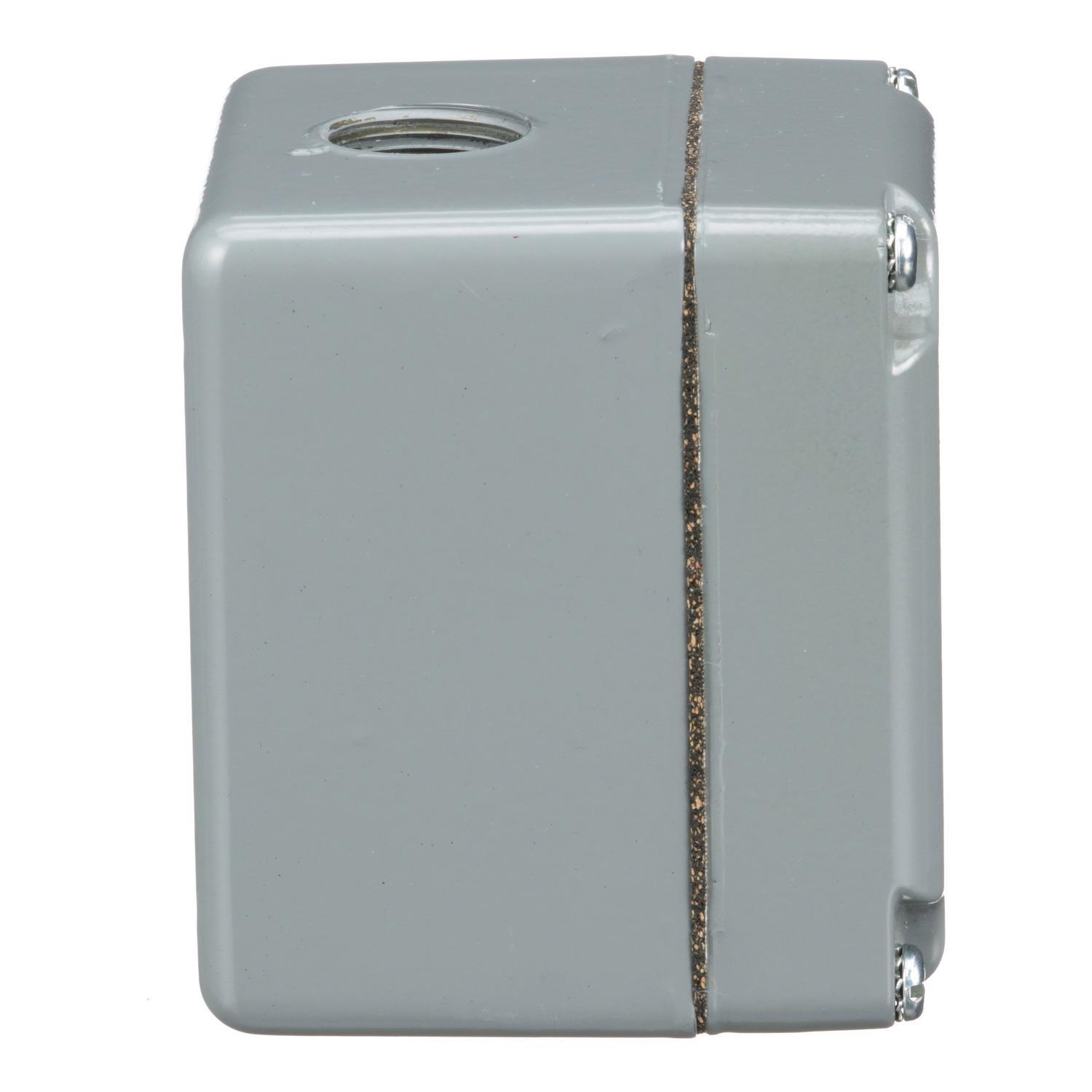

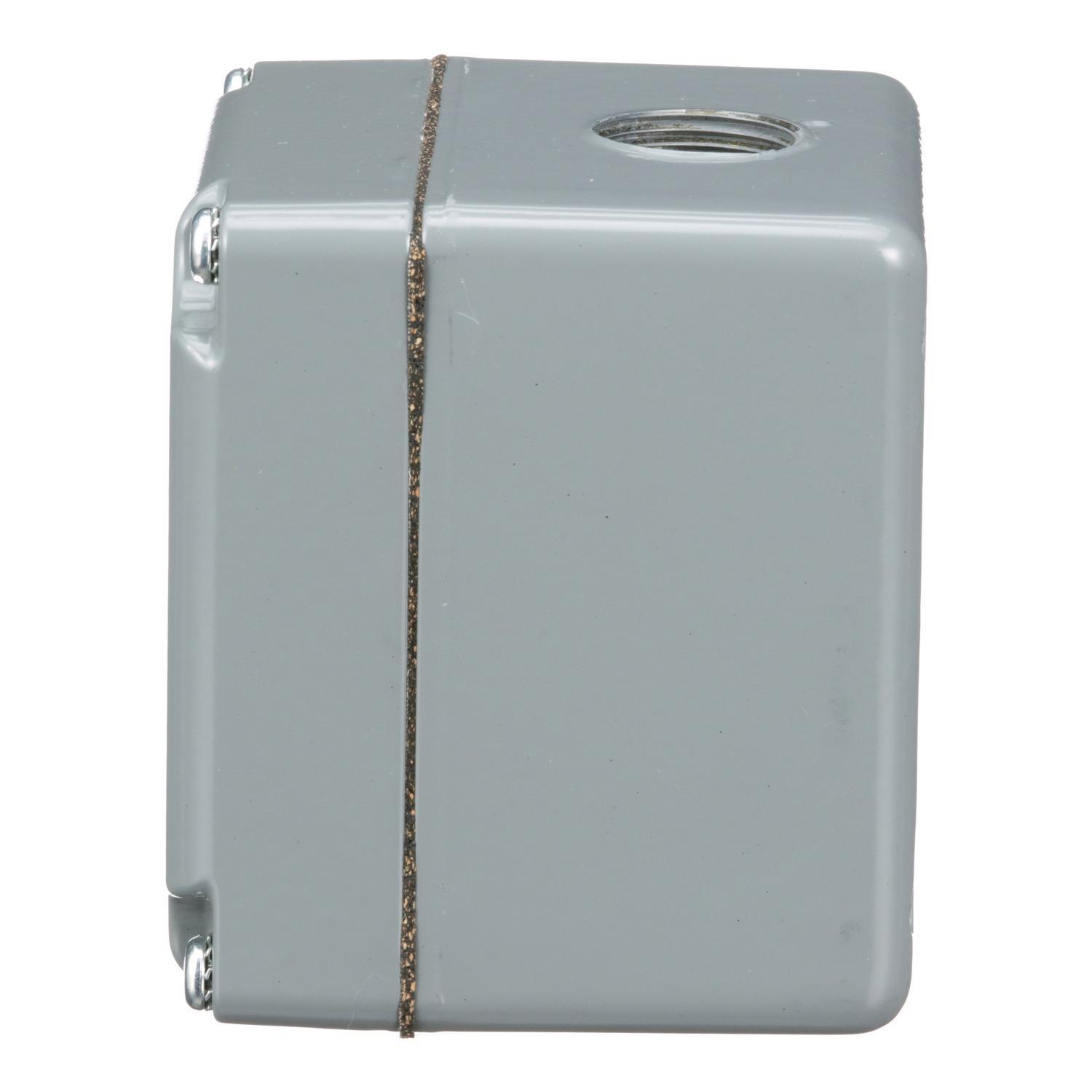

Square D™ 9001KY1
Square D™ Harmony™ 9001KY1 Dusttight Oiltight Watertight Control Station Enclosure, 4 in L x 3.62 in W x 3.53 in D, 1 Outlet, NEMA 1/3/4/6/12/13 NEMA Rating, Aluminum
Brand: Square D™
Item ID: 509969
MPN: 9001KY1
UPC: 785901874423
Login for Price
Features
- Control station use pushbutton and pilot lights from the 9001K metal and 9001SK plastic operator range
- 1 cut-out diameter of 30 mm
- 3/4-14 NPT conduit thread
- TH protective treatment
- 9001K device short name
- (1) entry tapped for 3/4 in cable gland
- Raintight, dusttight and oiltight
Description
30mm Push Button, Types K or SK, empty push button enclosure, cast aluminium, one 30 mm hole, NEMA 4 and 13
Square D™ Harmony™ Control Station Enclosure, Dusttight Oiltight Watertight, 4 in Length, 3.62 in Width, 3.53 in Depth, NEMA 1/3/4/6/12/13 NEMA Rating, 1 Outlet, Surface Mounting, -25 to 70 deg C, Aluminum, Gray
Specifications
Color |
Gray |
Depth |
3.53 in |
Length |
4 in |
Material |
Aluminum |
Mounting Type |
Surface |
NEMA Rating |
NEMA 1/3/4/6/12/13 |
Number of Outlets |
1 |
Temperature Rating |
-25 to 70 deg C |
Type |
Dusttight Oiltight Watertight |
Width |
3.62 in |
Standard Approval |
CE Certified|CSA Certified|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|REACH Compliant|RoHS Compliant|UL Listed |
Application |
30 mm Control and Signalling Units Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6be813f7264482fd88c3a92cde6a6a7a76d112173341c2e5a784ac49f3ad434e.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fb67f67b292f70ea705b6d53eb99d5eae186bd1a77347dadfb9b328fbbe93c51.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001BW252_Installation_Manual.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_8910DPA33V14Y244_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001KY1_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b757338a4585b3d9030015186522100bab56d76e67118ca86640e324555432c0.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001KY1_Specification_Sheet.pdf
