Square D™ 9001KYG1

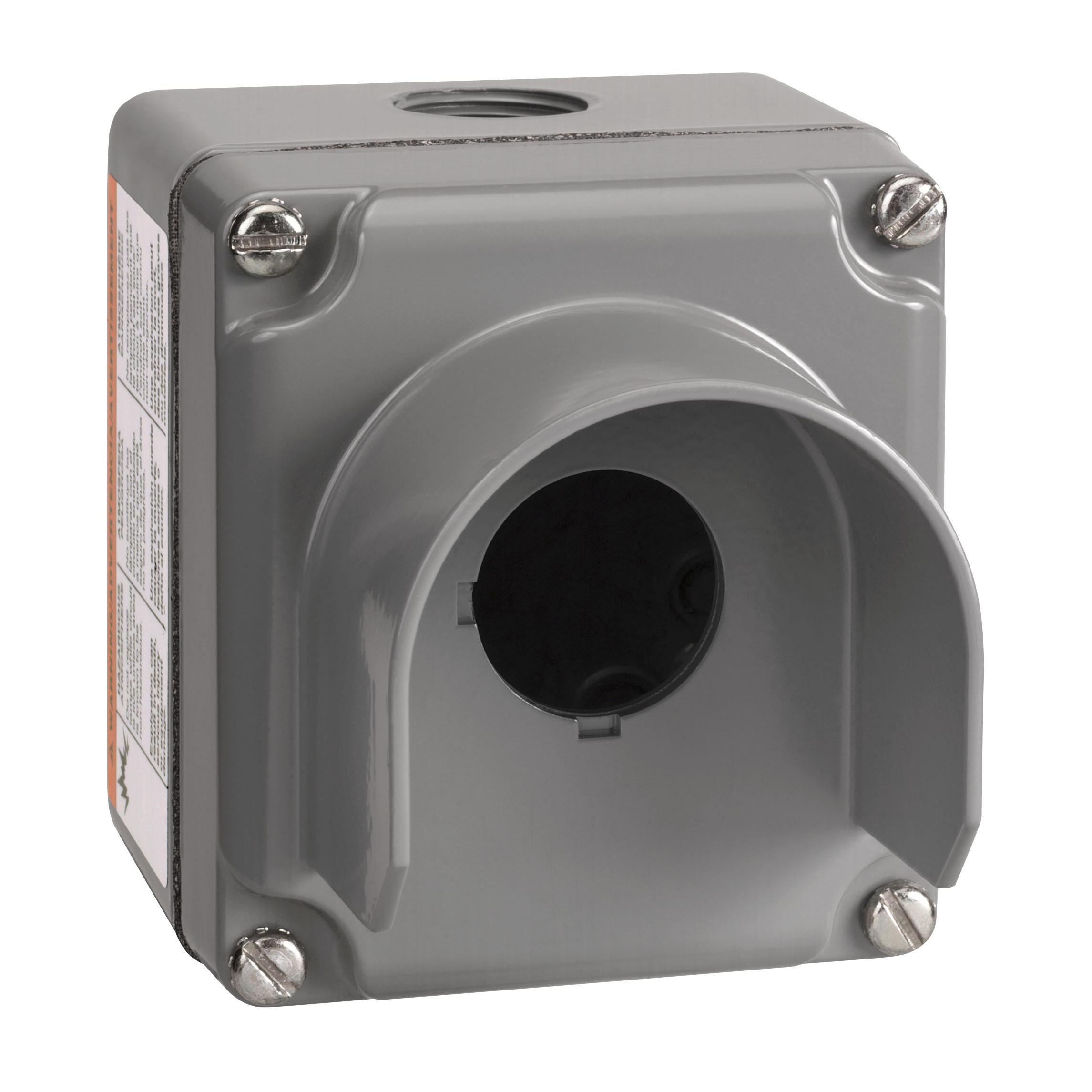

Square D™ Harmony™ 9001KYG1 Control Station Enclosure With Guard, 4 in L x 5.26 in W x 3.53 in D, 1 Outlet, NEMA 1/3/4/6/12/13 NEMA Rating, Aluminum
Brand: Square D™
Item ID: 537612
MPN: 9001KYG1
UPC: 785901589099
Login for Price
Features
- Control stations use pushbutton and pilot lights from the 9001K metal and 9001SK plastic operator range
- 1-cut-out diameter of 30 mm
- Integral guard
- TH protective treatment
- 9001K device short name
- 3/4-14 NPT conduit opening
- One entry tapped for 3/4 in cable gland
- Empty enclosure
Description
empty control station - 9001K - aluminium - 1 cut-out 30 - integral guard
Square D™ Harmony™ Control Station Enclosure, 4 in Length, 5.26 in Width, 3.53 in Depth, NEMA 1/3/4/6/12/13 Rating, 1 Outlet, -13 to 158 deg F, Aluminum, Gray
Specifications
Color |
Gray |
Depth |
3.53 in |
Length |
4 in |
Material |
Aluminum |
NEMA Rating |
NEMA 1/3/4/6/12/13 |
Number of Outlets |
1 |
Temperature Rating |
-13 to 158 deg F |
Width |
5.26 in |
Standard Approval |
RoHS Compliant|UL Listed|CSA Certified|REACH Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
For 30 mm dia control and signaling units |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b2691c7338b24a2c72e4540cca7b06b4d4a0e3f235f3ac1cb4546d544de885bb.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f4a732949ce05ceb4318392e3a534059c00092450554230bc99b0867db2b77a3.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6d8e79ebbf7550ace7a27a66785aab80adbbd18f75d9b668067b3d7cc4d57563.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001KYG1_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a6678368d7a74ac6ce45c97bbeadd874898dc566560a1fbc849169c64704616a.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001KYG1_Specification_Sheet.pdf
