Schneider Electric 9001SKR16H2

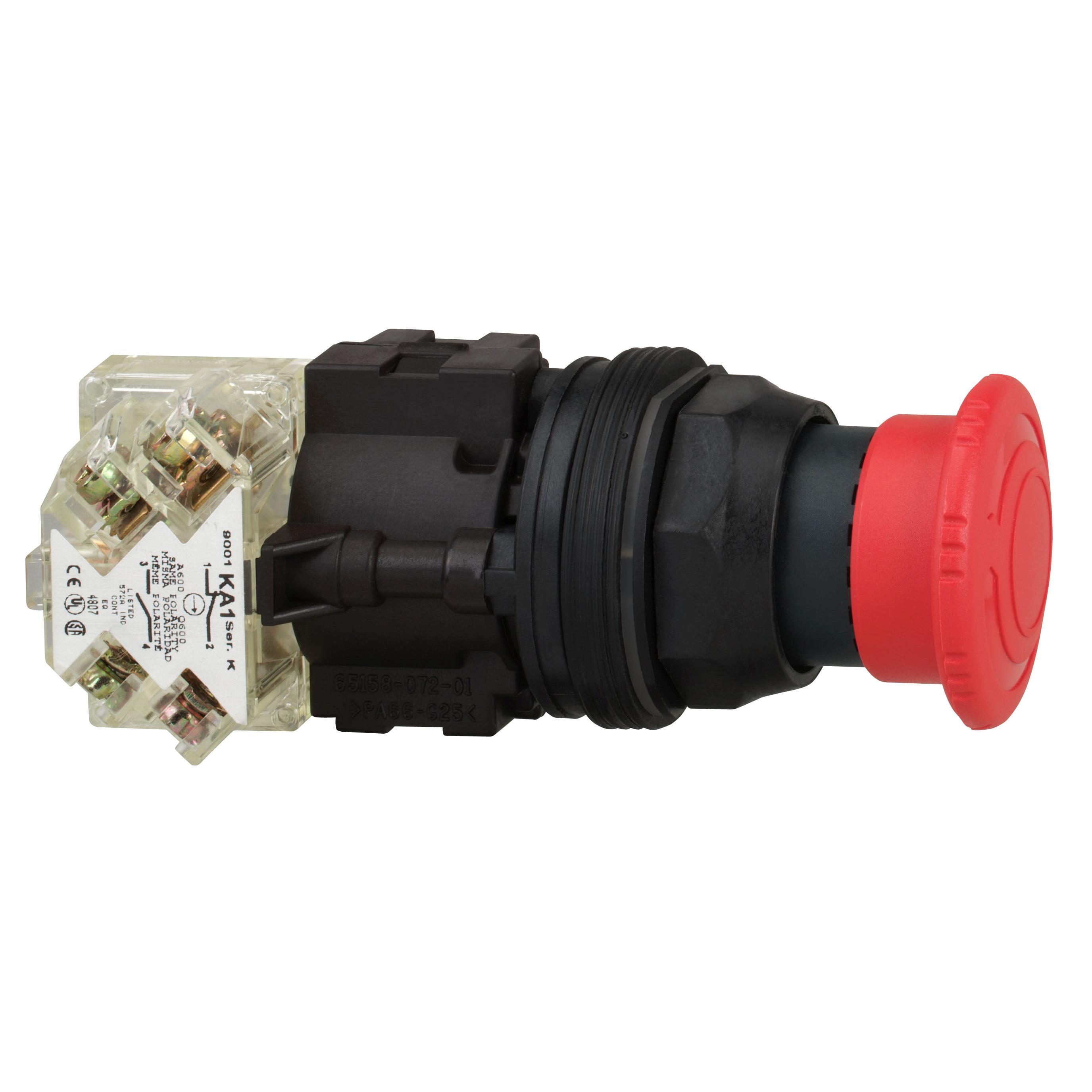

Schneider Electric Harmony™ Square D™ 9001SKR16H2 Type SK Non-Illuminated Pushbutton, 30 mm, 2NO-2NC Contact, Push-Pull/Spring Return/Mechanically Interlocked/Unmarked Operator, Red
Brand: Schneider Electric
Item ID: 454720
MPN: 9001SKR16H2
UPC: 785901914228
Login for Price
Features
- This Schneider Electric Harmony 9001SK emergency stop/shutdown 30mm mushroom head modular red push-button has 2 positions, operates with a latched turn to release mechanism
- It has a double insulated plastic bezel and has 2 x NO + 2 x NC contacts
- It is
- Full size and shallow depth light modules
- Reduced panel space with side by side mounting
- Easy to actuate, tactile feel operators
- Maintenance-free operation
- Simplified installation and identification
- Wide range of accessories, colored lenses and knobs for customer adaptations
- Water, dust, oil and corrosion-resistant (indoor/outdoor) environmental conditions
Description
This emergency stop/shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into a standard 30 mm Dia cut-outs and connected with simple screw clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40 mm mushroom shape. It is impact-resistant, dust-resistant, water-resistant and vibration-resistant thanks to its IP66, making it ideal for operation in harsh environments.
Schneider Electric Harmony™ Square D™ Non-Illuminated Pushbutton, Type SK, Series: 9001SK, 30 mm Size, 2NO-2NC Contact Configuration, Maintained/Slow-Break Contact Mode, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC/0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC Contact, Push-Pull/Spring Return/Mechanically Interlocked/Unmarked Operator, 2 Positions, Bezel/Housing: Plastic, Mushroom Head Actuator, Screw Clamp Terminal, NEMA 1/2/3/3R/4/4X/12/13/IP65/IP66 Enclosure, Panel Mounting, Red, Environmental Conditions: -22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature
Specifications
Actuator |
Mushroom Head |
Bezel/Housing |
Plastic |
Color |
Red |
Contact Configuration |
2NO-2NC |
Contact Mode |
Maintained/Slow-Break |
Contact Rating |
6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 460 VAC, 1.2 A at 600 VAC/0.55 A at 125 VDC, 0.27 A at 250 VDC, 0.1 A at 600 VDC |
Enclosure Type |
NEMA 1/2/3/3R/4/4X/12/13/IP65/IP66 |
Environmental Conditions |
-22 to 140 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
Mounting Type |
Panel |
Number of Positions |
2 |
Operator Type |
Push-Pull/Spring Return/Mechanically Interlocked/Unmarked |
Series |
9001SK |
Size |
30 mm |
Terminal Type |
Screw Clamp |
Type |
Type SK |
Standard Approval |
CCN NKCR|CE Marked|Class 321103|CSA C22.2 No. 14|CSA File No. LR25490|ECCN: EAR99|EN/IEC 60947-1|EN/IEC 60947-5-1|EN/IEC 60947-5-4|Green Premium|JIS C 4520|JIS C 852|REACH Compliant|RoHS Compliant|UL 508|UL File No. E42259|UL File No. E78403|WEEE Compliant|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
Food and Beverage, Chemical, Mining, Mineral and Metal Processing, Pulp and Paper, Water and Wastewater, Automotive, Crane and Hoists, Machine Tools, Airport and Transportation and Textile, Petrochemical, Material Handling, Metallurgy and Industrial Applications |
