Schneider Electric 9001SKS11B

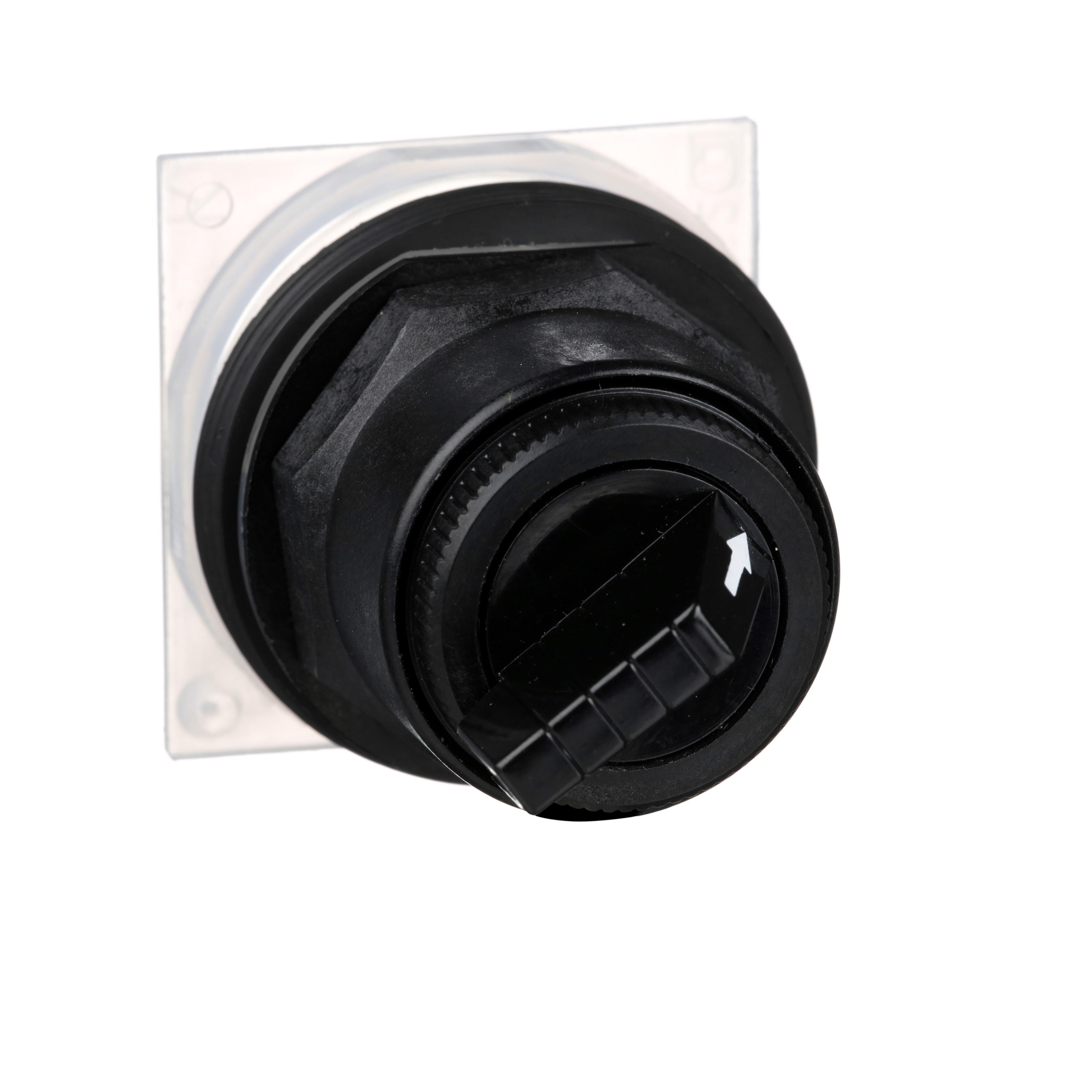

Schneider Electric Harmony™ 9001SKS11B Heavy Duty Non-Illuminated Selector Switch Operator, 30 mm, Round Knob Operator, 2 Positions, Black
Brand: Schneider Electric
Item ID: 43067
MPN: 9001SKS11B
UPC: 785901524366
Login for Price
Features
- Without contact block
- Simple and easy installation reduces commissioning time
- Flexible, compact and modular, it enables you to build the right operator to meet your requirements
Description
Harmony™ 9001K and 9001SK push buttons, pilot lights, selector switches and mushroom head operators provide robust and reliable solutions for a wide range of heavy industry applications.
Schneider Electric Harmony™ Non-Illuminated Selector Switch Operator, Heavy Duty, Series: 9001SK, 30 mm Size, Maintained Contact Mode, Round Knob Operator, 2 Positions, 70 deg Left/Right Throw, Cam Code: E, 600 VAC, NEMA 1/2/3/3R/4/4X/6/12/13/IP66 Enclosure, Panel Mounting, Bezel/Housing: Plastic, -25 to 70 deg C, Black
Specifications
Bezel/Housing |
Plastic |
Cam Code |
E |
Color |
Black |
Contact Mode |
Maintained |
Enclosure Type |
NEMA 1/2/3/3R/4/4X/6/12/13/IP66 |
Mounting Type |
Panel |
Number of Positions |
2 |
Operator Type |
Round Knob |
Series |
9001SK |
Size |
30 mm |
Temperature Rating |
-25 to 70 deg C |
Throw |
70 deg Left/Right |
Type |
Heavy Duty |
Voltage Rating |
600 VAC |
Standard Approval |
CE Marking|CSA Certified File No. LR25490 Class 3211-03|UL Listed File No. E42259 CCN NKCR|PROP65: This product can expose you to chemicals including - nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|IEC 60529 |
Application |
Food and Beverage, Chemical, Mining, Mineral and Metal Processing, Pulp and Paper, Water and Waste Water, Automotive, Crane and Hoists, Machine Tools, Airport and Transportation and Textile, Non-Illuminated Pushbutton, Indoor and Outdoor Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_088a4419b0d4afe37b0fedebbcdadbb2389c0e70dba2ba2a0c2505434a08398c.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001SKS11B_Full_Engineering_Drawing.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_RWLED4T105SF_480_Installation_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001KS11BH8_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001KS11BH8_Instruction_Installation_Manual.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001SK11J38LGG_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001KS11BH21_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001KS11BH21_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_9001KYK24_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_9001SKS11B_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_406d14e97d63e67d156d721ba9b5e36a30bd221b3ff9fcbc51c7ea6110a0c30d.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_806e219644c3f40d73e31b98e680a823e707b6023cb752d6a6f3d3a6db677619.pdf
