Square D™ 9007CR53B2

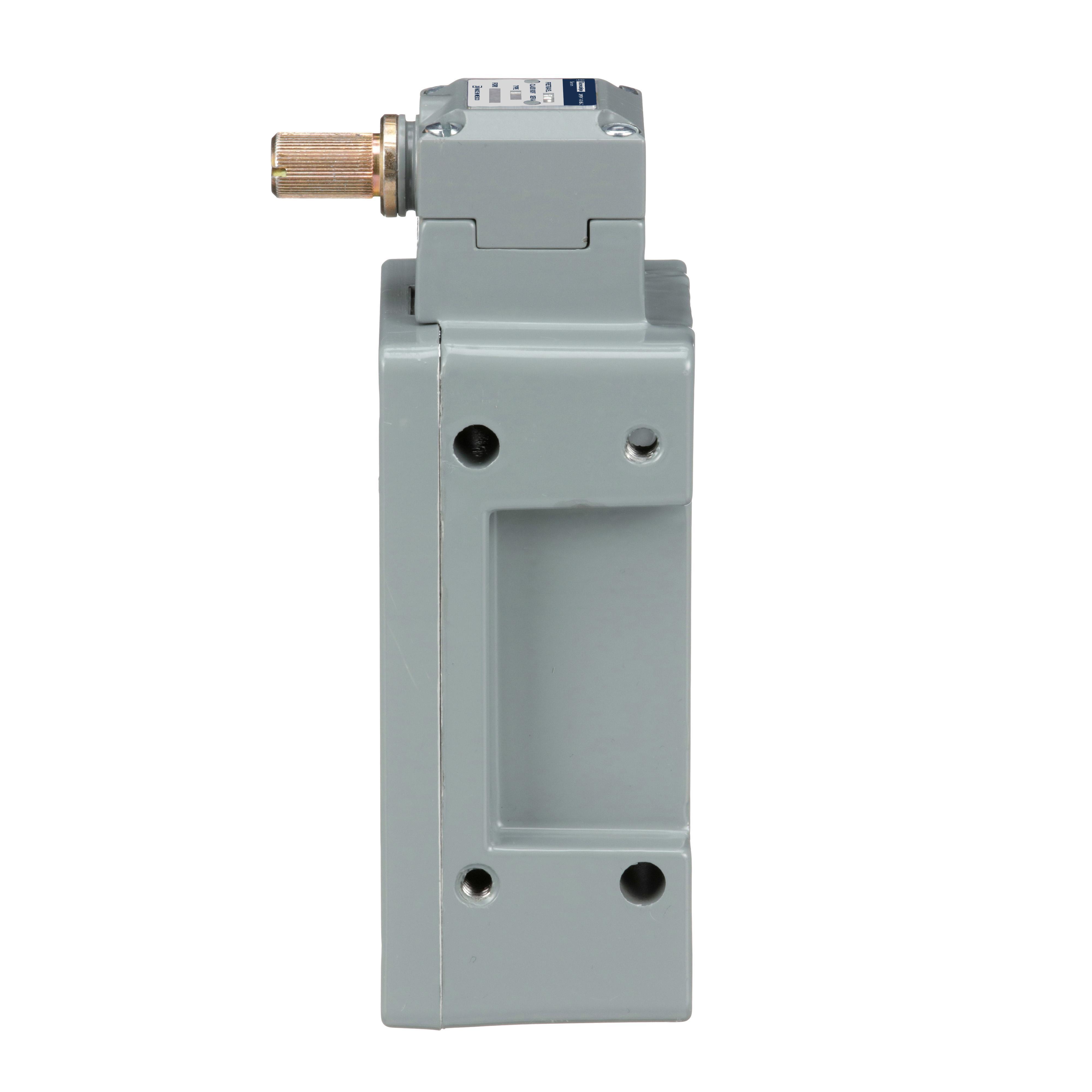

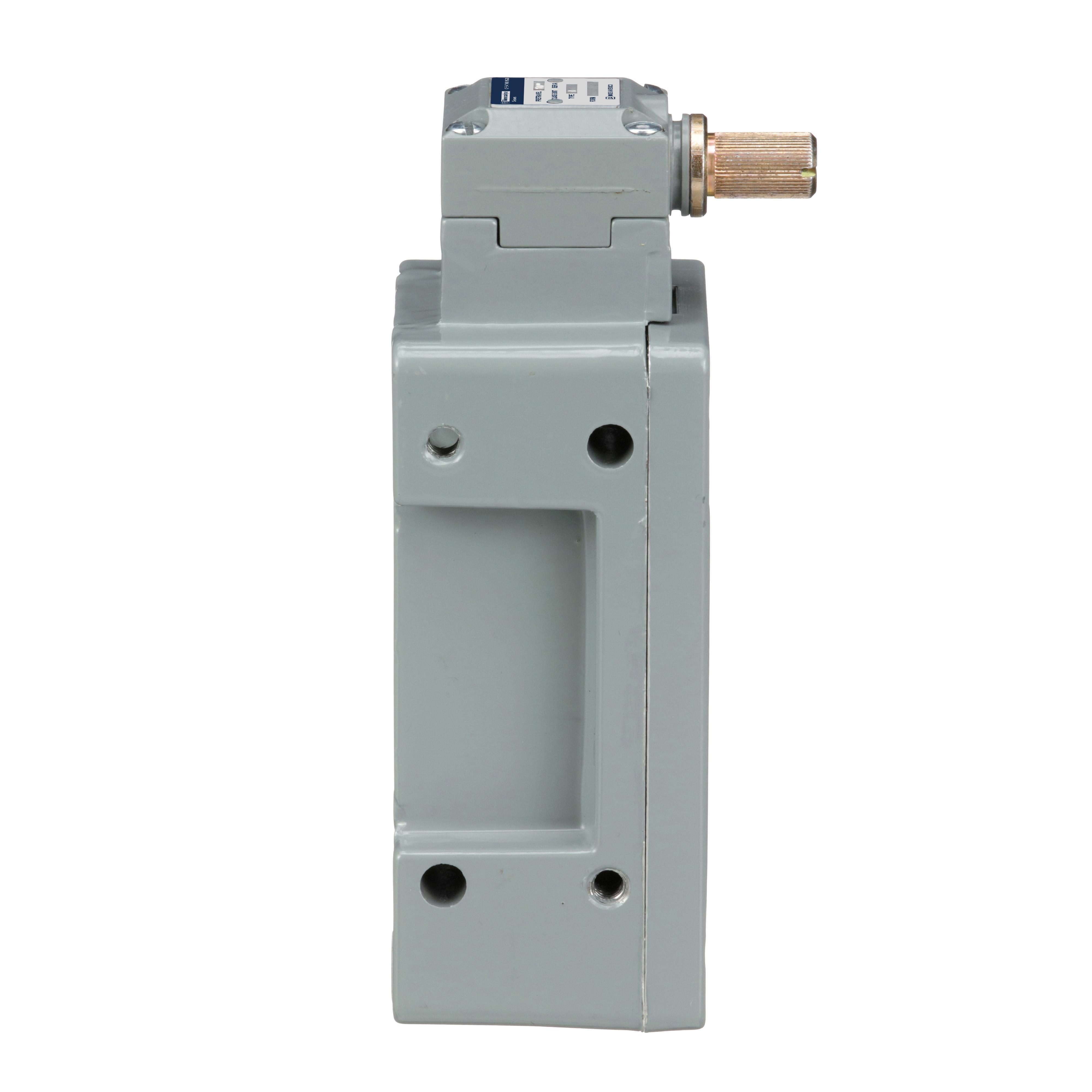

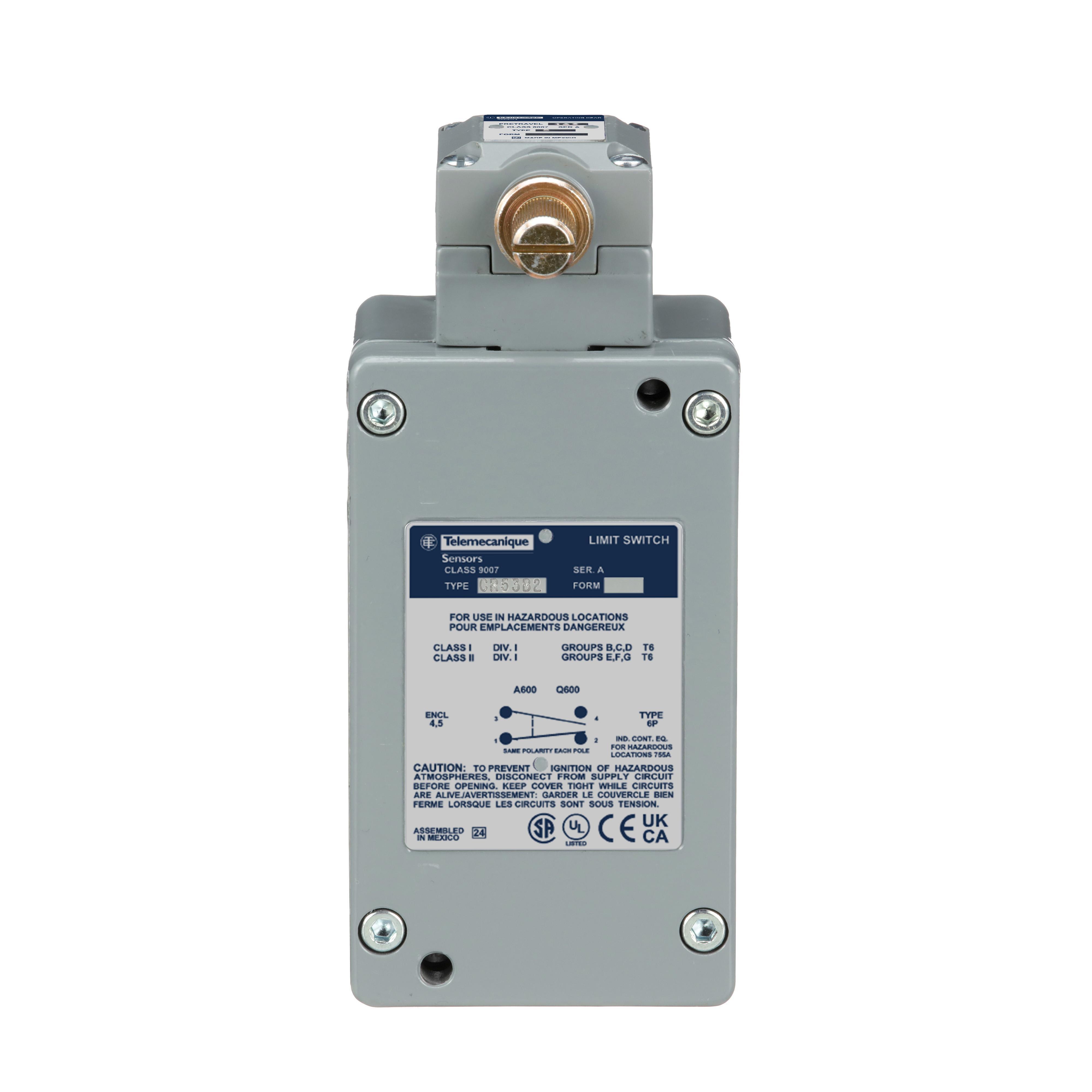

Square D™ 9007CR53B2 Standard Rotary Actuated Limit Switch, 600 VAC/VDC, 10 A, Rotary Lever Arm Actuator, 1NO-1NC Contact, 1 Pole
Brand: Square D™
Item ID: 457816
MPN: 9007CR53B2
UPC: 785901763352
Login for Price
Features
- Hazardous locations box
- Zinc spring return without operating lever operator
- From left and right, CW and CCW switch actuation
- One or two-programmable direction lateral approach
- Screw clamp terminal, 22 to 12 AWG electrical connection
- 1 cable entry for 1/2 to 14 NPT conforming to ANSI B1.20.1
- 1000000 cycles electrical durability, 10000000 cycles mechanical durability
- 25 gn (10/150 Hz) vibration-resistance
- Form Z, snap action silver contact
- Without positive opening
- 4 in-lb operating torque
- 1/2 in NPT conduit entrance
- NEMA A600/Q600
- 1/2 to 1/4 in NPT thread
- Without operating lever
Description
limit switch, 9007C, rotary lever arm head, standard pretravel, spring return, 1 NO and 1 NC, NEMA 7 and 9
Square D™ Rotary Actuated Limit Switch, Standard, Series: 9007CR, 600 VAC/VDC, 10 A, 1NO-1NC Contact Configuration, 1.2 A at 600 VAC, 0.1 A at 600 VDC, A600/Q600 Contact, 1 Pole, Rotary/Spring Return/Snap Action, Rotary Lever Arm Actuator, Screw Clamp Connection, NEMA 1/2/4/6/6P/12/13 Enclosure, Body/Plug-In Mounting, 2.72 in W x 2.79 in D x 6.1 in H Size, 1000000 cycles Operating Cycles, -20 to 185 deg F Operating, Zinc Alloy, Epoxy Powder Coated, Environmental Conditions: -20 to 185 deg F
Specifications
Action |
Rotary/Spring Return/Snap |
Actuator |
Rotary Lever Arm |
Amperage Rating |
10 A |
Connection Type |
Screw Clamp |
Contact Configuration |
1NO-1NC |
Contact Rating |
1.2 A at 600 VAC, 0.1 A at 600 VDC, A600/Q600 |
Enclosure Type |
NEMA 1/2/4/6/6P/12/13 |
Environmental Conditions |
-20 to 185 deg F |
Finish |
Epoxy Powder Coated |
Material |
Zinc Alloy |
Mounting Type |
Body/Plug-In |
Number of Poles |
1 |
Operating Cycles |
1000000 cycles |
Operating Temperature |
-20 to 185 deg F |
Series |
9007CR |
Size |
2.72 in W x 2.79 in D x 6.1 in H |
Type |
Standard |
Voltage Rating |
600 VAC/VDC |
Standard Approval |
25 GN 10-150 HZ IEC 60068-2-6/60068-2-27/60529/61140|60 GN 9 MS|ANCE|CE Certified|CSA File No. LR25490 Class 3211-03|NOM Certified|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov|RoHS Compliant|UL File No. E42259 CCN NKCR Type 6P |
Application |
9007CR Heavy Duty Limit Switch, Hazardous Locations and Dust Environment Applications |
